304q Grade Ss Woven Wire Mesh 1mtr 1.2mtrs 1.5mtr 2mtr Width
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | SS Woven Wire Mesh | Material | SS304Q |
---|---|---|---|
Surface | Bright Silver | Hole Shape | Square, Rectangular |
Weaving | Plain Type | Wire Diameter | 0.07mm - 1.43mm |
Roll Width | 3 Feet, 1mtr, 1.2mtrs, 1.5mtr, 2mtr | Standard Length | 30m Standard. Other Length Can Be Available. |
Properity | High Accuracy | Application | LEP Shielding Mesh; Micro-circuit Manufacturing; Textile Printing; Ceramics Printing; Glass Printing. |
High Light | 304q grade ss woven wire mesh,2mtr width ss woven wire mesh,stainless steel woven wire 20 mesh |

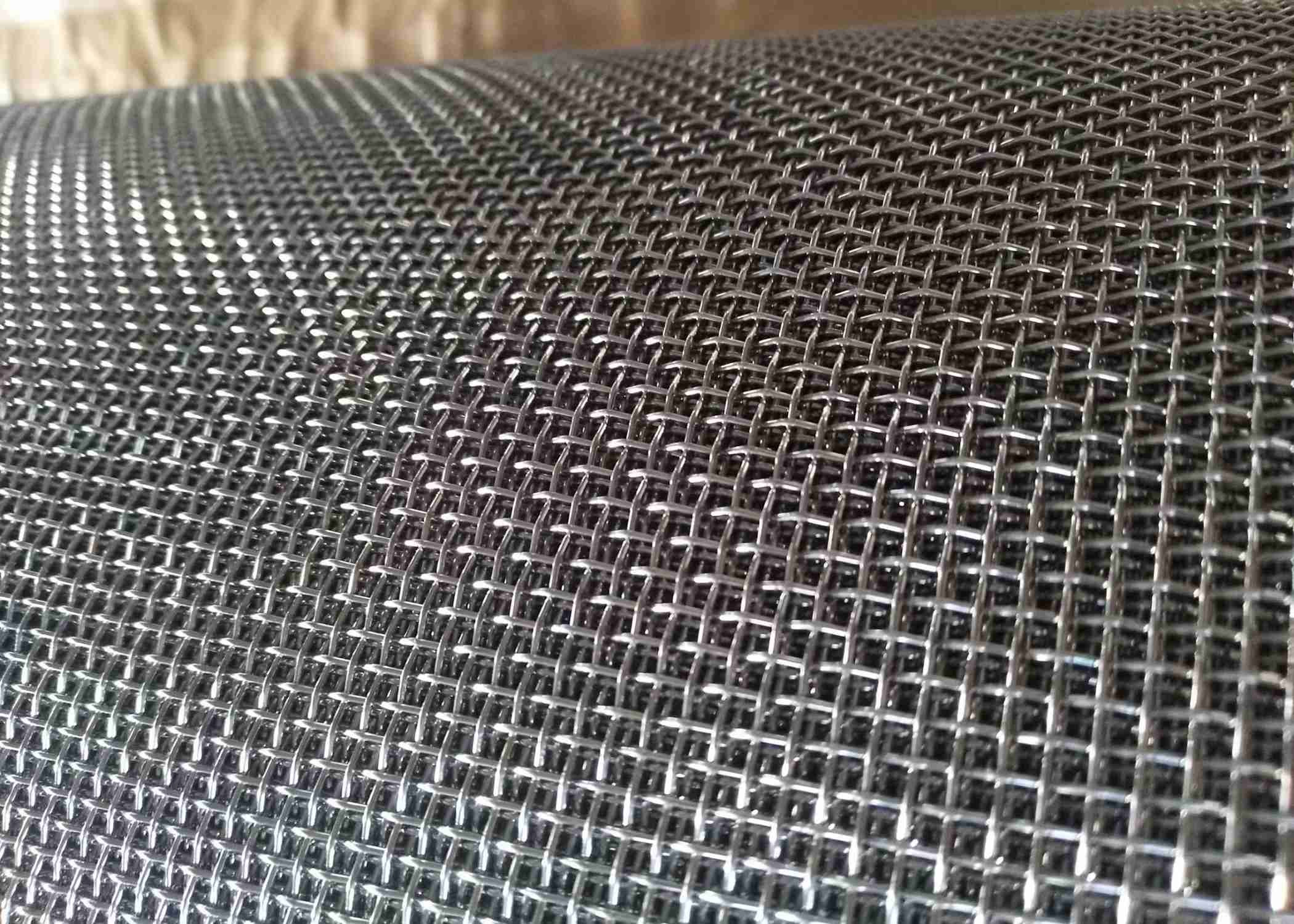

304Q Grade Stainless Steel Wire Mesh With 1mtr 1.2mtrs 1.5mtr 2mtr Width
Introduction
Woven wire is versatile and easily adapted to special uses and conditions. It is fabricated from drawn or rolled sections in standard or special materials. In open mesh constructions such as partitions, guards and grilles, it has long been accepted and specified for outstanding quality and durability. Woven wire in the above form and construction, being mostly portable, is unexcelled where conditions such as ventilation, lighting, vision and fire-proofed materials are prime requisites. Stainless steel mesh is used use on a oil catch muffler for vacuum trucks. Woven wire of any gauge from fine to coarse can meet the particular need of any open mesh requirement that may be presented to the fabricator.
Custom fabrication of square and diamond meshes for wire mesh partitions, fill panels, wire mesh railings, window guards and other architectural woven wire products are also in our product line.
304Q Specifications:
8 × 23 | 8 × 25 | 8 × 27 | |
10 × 21 | 10 × 23 | 10 × 25 | 10 × 27 |
12 × 25 | 12 × 23 | 12 × 27 | |
14 × 23 | 14 × 25 | 14 × 27 | 14 × 29 |
16 × 22 | 16 × 24 | 16 × 25 | 16 × 26 |
16 × 27 | 16 × 27 | 16 × 30 | 16 × 32 |
18 × 24 | 18 × 26 | 18 × 28 | 18 × 30 |
18 × 32 | 20 × 24 | 20 × 26 | 20 × 28 |
20 × 30 | 20 × 32 | 22 × 30 | 22 × 32 |
22 × 24 | 24 × 28 | 24 × 30 | 24 × 32 |
26 × 28 | 26 × 30 | 28 × 30 | 28 × 32 |
30 × 28 | 30 × 30 | 30 × 32 | |
30 × 34 | 30 × 36 | 32 × 30 | |
32 × 32 | 34 × 30 | 34 × 32 | 34 × 34 |
36 × 30 | 36 × 32 | 36 × 34 | 40 × 32 |
40 × 34 | 40 × 36 | 40 × 38 | 40 × 40 |
50 × 34 | 50 × 36 | 50 × 38 | 50 × 40 |
60 × 34 | 60 × 36 | 60 × 37 | 60 × 38 |
60 × 40 | 70 × 36 | 70 × 38 | 72 × 38 |
80 × 38 | 80 × 40 | 80 × 42 | 80 × 44 |
100 × 40 | 100 × 42 | 100 × 44 | |
120 × 43 | 120 × 44 |
Gauge (SWG) = (dia.) mm
17=1.43mm | 32=0.27mm |
18=1.22mm 19=1.02mm |
33=0.25mm 34=0.23mm |
20=0.91mm | 35=0.21mm |
21=0.81mm | 36=0.19mm |
22=0.71mm | 37=0.17mm |
23=0.61mm | 38=0.15mm |
24=0.56mm | 39=0.13mm |
25=0.51mm | 40=0.12mm |
26=0.46mm | 41=0.11mm |
27=0.41mm | 42=0.10mm |
28=0.37mm | 43=0.09mm |
29=0.34mm | 44=0.08mm |
30=0.31mm | 45=0.07mm |
31=0.29mm |
Materials: SS304Q
Weaving Type: Plain weave.
Characteristics:
Uniform wire diameter;
Consistent mesh thickness;
Evenly tension weaves;
High tension;
Super precision, fine wire diameter and even mesh opening ensures high precision;
High flexibility, the printing mesh will not lose elasticity at extreme tension;
Low elongation, very small elongation of printing screen at high tension;
High corrosion resistance, stainless steel printing mesh has better corrosion resistance than the polyester fiber;
Good heat-melting resistance, stainless steel printing mesh is suitable for heat-melting ink;
Great solvent resistance, It can prevent various solvents from corroding printing mesh and ensure the ety of printing screen.
Applications:
We produce wide range of stainless steel wire mesh that is widely used in printed circuit boards,solar cell, glass bottles, membrane switch, electro luminescent, thick film technology, key pads,dash boards, liquid crystal displays etc.
304Q stainless steel mesh with black polyethylene coating

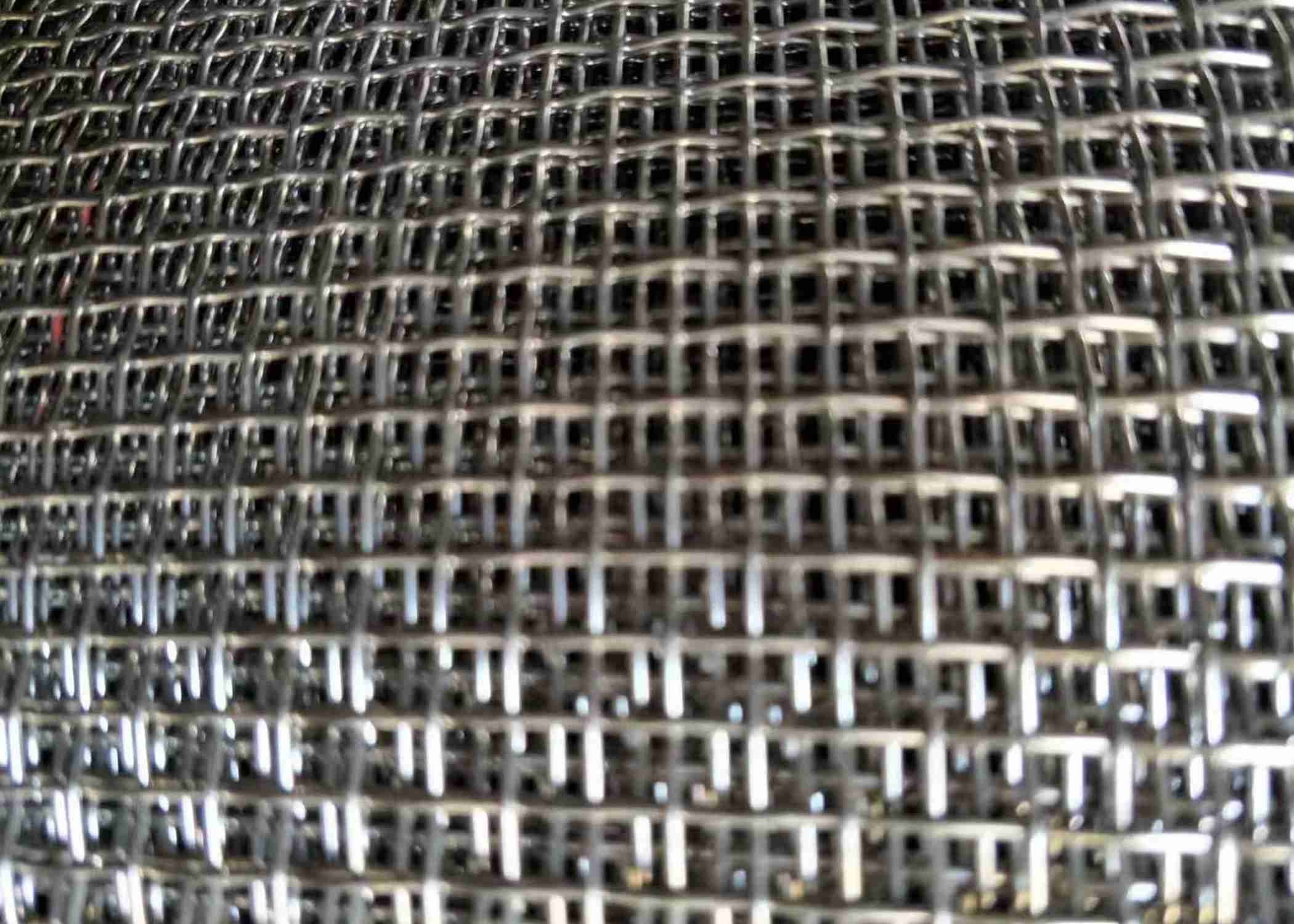

ASTM 304Q stainless steel wire mesh roll
