304l 316l Stainless Steel Insect Screening High Visibility And Strength
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Good Stability And Resistance To Rust, Heat, Acid, Alkaline And Corrosion. | Product Name | SS Woven Wire Mesh |
|---|---|---|---|
| Material | SS304, 304L, 316, 316L, Etc | Surface | Bright Silver |
| Aperture Shape | Square | Warp/ Weft | 14x14, 16x16, 18x18, 18x14, 20x20, Etc |
| Weaving Type | Plain Weave | Wire Diameter | BWG38, BWG37, BWG36, BWG35, BWG34, Etc |
| Roll Size | 3"×100", 4"×100", 1×25M, 1.2×25M | Application | High Temperature Workshops And Civil Constructions. |
| Highlight | 304l stainless steel insect screening,high visibility stainless steel insect screening,316l stainless steel insect mesh |
||
Product Description

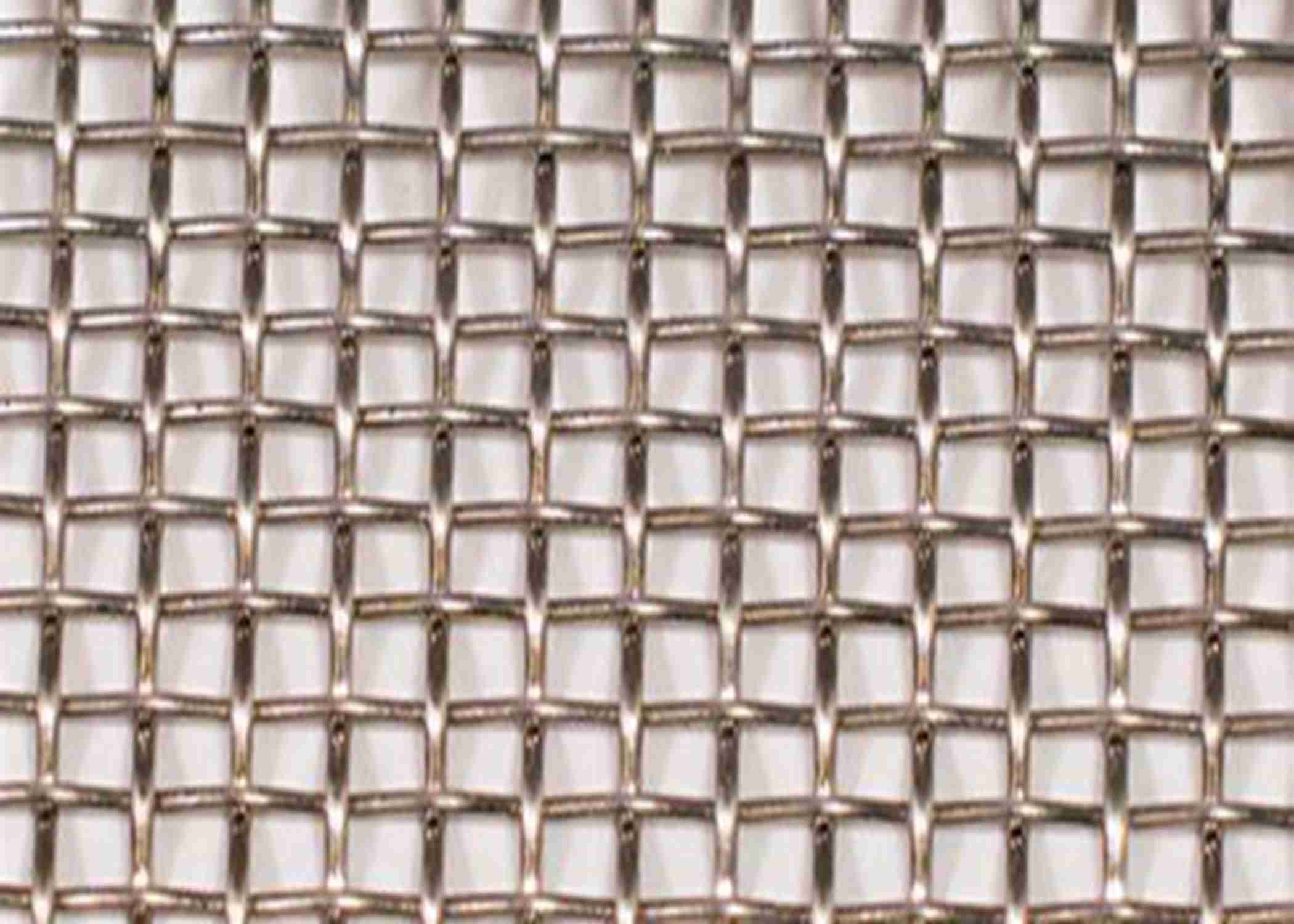

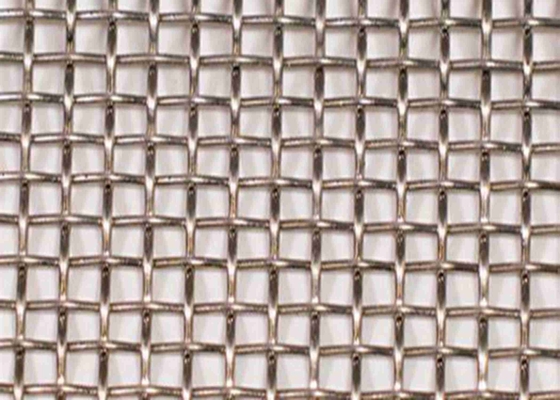

Stainless Steel Insect Screening With High Visibility And Strength
Stainless Steel Woven Wire Mesh-Rectangular openings
Stainless Steel Insect Screen is widely used in resident and various commercial buildings. The high quality stainless steel mesh is rust resistant, it is very fine and is designed for fly and insect control.
Stainless steel screen not only offers improved visibility with its fine wire diameter, it is even also more durable than standard insect screen. Uninterrupted visibility maximizes an outer view to make it look sharper and more brilliant. It permits excellent airflow and meets the great standard of insect protection. The stainless steel screen is fit for various screening applications including windows, doors and porches, it is also e to use with pressure based lumber.
Window screening is widely used for windows and corridors to prevent insects from interrupting The specifications include 14 × 14mesh, 16 × 14mesh, 16 × 16mesh, 18 × 16mesh, 18 × 18mesh, 18 × 14mesh, and the wire diameter generally is BWG31or BWG32. The following window screening are available for supply.
Material: AISI304 & AISI316
| AISI304 CHEMICAL COMPOSITIONS (WT%) | |||||||
| ITEMS | C | Si | Mn | P | S | Ni | Cr |
| SPEC. | <0.08 | <1.00 | <2.00 | <0.045 | <0.03 | 8-10.5 | 18-20 |
| AISI316 CHEMICAL COMPOSITIONS (WT%) | ||||||||
| ITEMS | C | Si | Mn | P | S | Ni | Cr | Mo |
| SPEC. | <0.08 | <1.00 | <2.00 | <0.045 | <0.03 | 10-14 | 16-18 | 2-3 |
Other stainless steel grades please keep me informed. Materials available with plain steel, aluminum, copper/brass, nickel and so on with pure metal or alloy metal.
Specifications:
| Product name | Specification | Elucidation | ||
| Mesh/Inch | Wire Gauge | Roll Size | ||
| Stainless Steel Insect Screening | 14 × 14 |
BWG38 |
3" × 100" 4" × 100" 1 × 25M 1.2 × 25M |
Material: 304,316,316L |
| 16 × 16 | ||||
| 18 × 18 | ||||
| 18 × 14 | ||||
| 20 × 20 | ||||
Other specifications according to your requirements.
Weaving Type: Plain Weave.
Features:
Woven stainless steel mesh
High visibility and strength
Great durability
Stainless steel insect mesh is a high quality fine mesh that fully resists corrosion. It is ideal for use in food preparation areas, domestic and commercial buildings. With good strength and toughness of stainless steel screen, it is the most durable screen material. The small wire diameters result in higher percentages of open area that improve air flow and visibility through the screens. The square openings eliminate the challenge of mismatch the alignment between windows during installation. Another advantage of square opening unlike to rectangular openings is the reduction of diagonal opening length resulting into a screen development that is more resistant to insect entrance.
Applications:
With light weight, good flexibility and easy cleaning, window screen netting is mainly uesd in hotels, public buildings, civil residences against bugs, insects, etc.
Packing:
In rolls, wrapped with waterproof paper then covered with hessian cloth. Special packing may be arranged if necessary.
