Battery 304l Ss Woven Wire Mesh With High Comprehensive Performance

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features It Has High Comprehensive Performance. Product Name Stainless Steel Mesh For Battery
Material SS304, SS304L, SS316, SS316L Aperture Shape Square, Rectangular
Weaving Type Plain Weave Aperture 0.8×1.2mm, 1×2mm, 1.25×2.5mm (can Be Customized)
Length Per Roll Up To 350M/roll, ≤2 Connector Appearance No Oil, Oxidation, Color Difference; Flat Surface, No Burr.
Other Available Materials Nickel, Titanium, Copper, Silver, Aluminum Mesh Electrode For Battery Available Application Lithium Manganese Battery Anode Current Collector
High Light

battery ss woven wire mesh

,

square aperture ss woven wire mesh

,

304l stainless steel woven wire mesh

Leave a Message
Product Description

Stainless Steel Mesh For Battery With High Comprehensive Performance



Introduction

A lightweight woven wire mesh has been investigated as an battery current collector, fuel cells and electrolyzers. Using woven wire mesh as a current collector offers battery companies properties in battery that are not found in other products. As the mesh is made from two separate wires, it can withstand more flexure. It is ideal for electrode substrates, current collectors, flow field screens and gas diffusion electrodes.

It can be provided as discs or cut into mesh tapes. In addition, we designed special machines to produce the finish edge mesh. The finish edge will increase the mesh stability and provide a safety edge for handling. And It will also protect the battery separator.

We provide expertise in manufacturing stainless steel wire mesh in selecting the appropriate products for your battery requirements. As our wire mesh can be woven with different configurations and properties, we can tailor the product for your use. A multitude of meshes, weaves and wire diameters are available.


This Stainless Steel Mesh is ideal material for electrode substrates, cathode, current collectors, flow field screens, and gas diffusion electrodes for battery, fuel cell and electrolyzer, etc. It has high comprehensive performance.

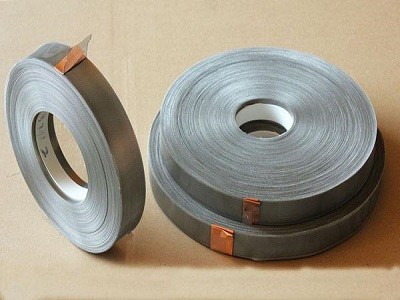

QIANPU is able to supply the mesh as discs or cut into size tapes. The mesh tapes can be supplied at extremely small width down to 20mm. Our product has specially finished edge; it increases the mesh stability and provides a safety edge for handling, it can also protect the battery separator.

Specifications:



Mesh Counts: 40mesh, 50mesh, 60mesh

Roll Width: 20mm to 500mm
Roll Length: 30m to 300m

Mesh Wire Diameter Aperture Open Area Rate
mm Inch mm Inch %
40 0.19 0.0074 0.445 0.0175 49.11
50 0.17 0.0066 0.338 0.0133 44.26
60 0.15 0.0059 0.273 0.0107 41.68




Features:


Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion and rust resistance. Square aperture, high flow through and relative high open area,as result less pressure drop during filtration. Meantime stainless steel square mesh also has the features of acid resistance, alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.


Technical Standards of Stainless Steel Mesh for Battery:


1: Material: 304, 304L, 316, 316L ( can be imported from Japan if require)
2: Length per Roll: up to 350M/roll, ≤2 connector
3: Aperture Size: 0.8×1.2mm, 1×2mm, 1.25×2.5mm, 1.5×2.5mm (can be customized)
4: Appearance Quality: Clean without oil, no oxidation, no color difference, with flat surface, no burr.
5: Both woven wire mesh and expanded metal foil for electrode applications are available.


Properties of Stainless Steel Mesh for Battery:


1: Good stability, flexibility
2: Acid and alkali resistance, high temperature resistance,
3: No fragment or rust happens in battery,
4: Good welding performance and easy fabricated
5: Low internal resistance


Applications:


1: Lithium manganese battery anode current collector
2: Substrates for coating battery electrode material
3: Flow field screens,
4: Gas diffusion electrodes

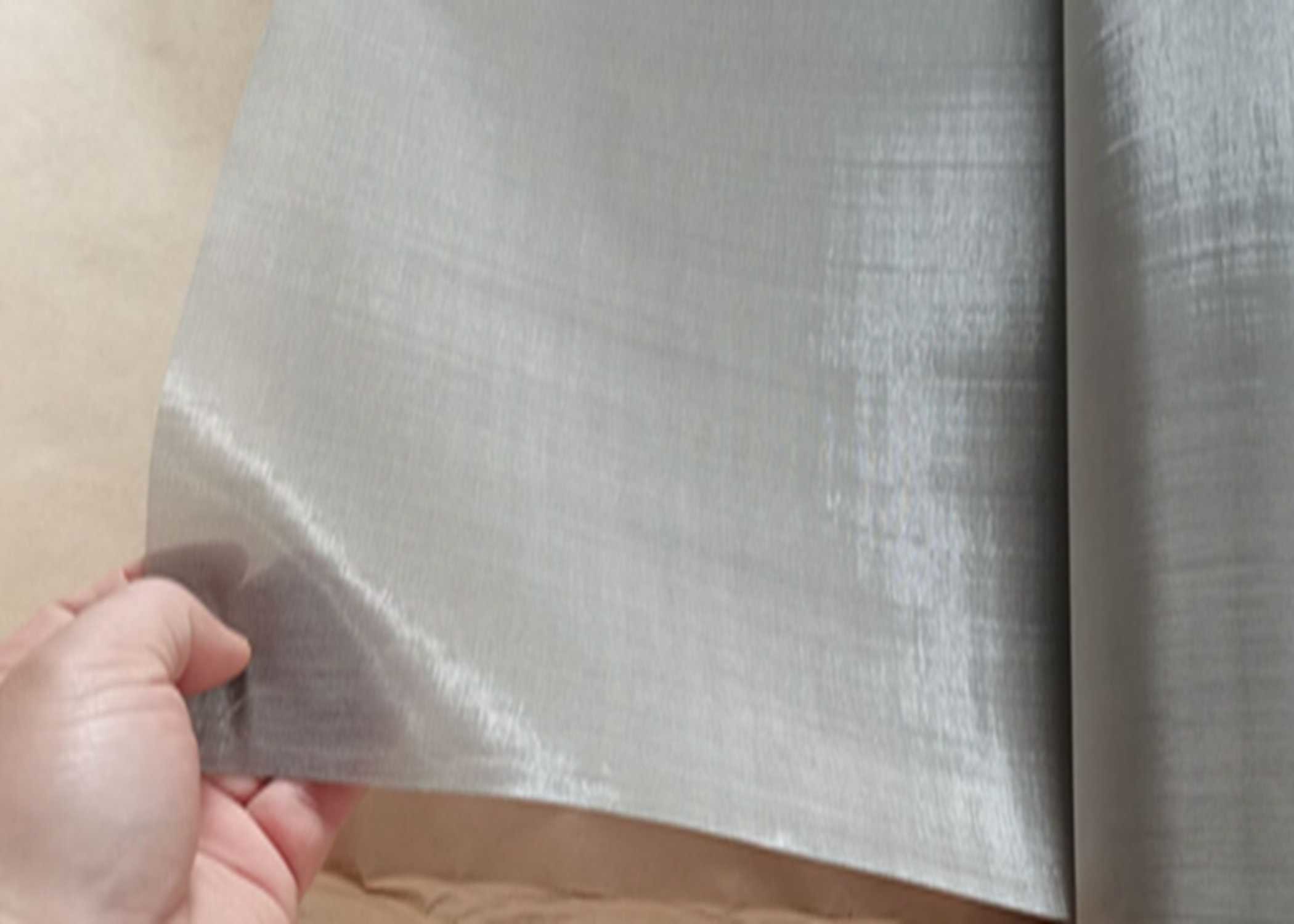

Battery 304l Ss Woven Wire Mesh With High Comprehensive Performance 0


Packing:
