304SS Ultra Thin Mesh 325x184 Mesh 0.0011" Wire Used For Petroleum Industry

Introduction:

Stainless Steel Ultra-thin Wire Mesh is a kind of ultra-thin woven stainless steel wire mesh with uniform opening and good firmness. The uses of carefully selected special stainless alloy materials and the most advanced weaving technology adopted ensure the very compact weaving structure is achieved and the thickness of the wire mesh is within the allowed tolerance range. Hence the precision of the wire mesh is further enhanced for high precision printing requirements.

Ultra-thin stainless steel wire cloth is used typically when heat and corrosion resistance is required, and frequently utilized in applications requiring shielding of electromagnetic interference and radio frequency interference.

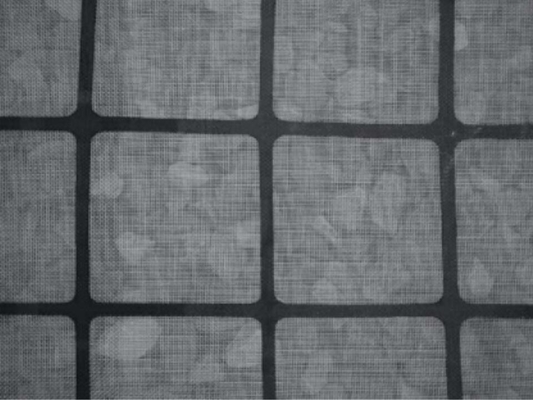

325/184mesh plain weave wire mesh including 325mesh in warp 184mesh in weft. Using 0.0011" diameter wire, by plain weaving, this wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. The widths of roll size can be 30", 36", 39", 40", 48" and so on. Some of items we keep in stock in case any urgent needs of customers. This type of wire mesh we produce is mostly export to the United States. Are widely used in petroleum industry.

Materials: AISI304, AISI304L, AISI316, AISI316L.

Weaving Type: Plain Weave Rectangelar Hole

For plain weave technique, wire diameters of warp and weft wire are of equal size, and each warp wire passes alternately over and under each weft wire running horizontally through the cloth at 90 degree angles.

Specifications:

Other wire diameter according to your requirements.

Features:

This wire structure is precision, uniform mesh, the mesh filtration accuracy is good, anti-wearing, high temperature resistant, acid resistant, corrosion-resistant properties. Stainless steel mesh piece is used for sieve and filtration at acids and alkali condition.

Applications:

This kind of stainless steel wire mesh are widely used in petroleum industry, energy industry, mining industry, environmental protection, pharmaceutical industry, chemical industry, food industry, mechanical industry, smelting industry, paper making, aeronautics and astronautics and so on.

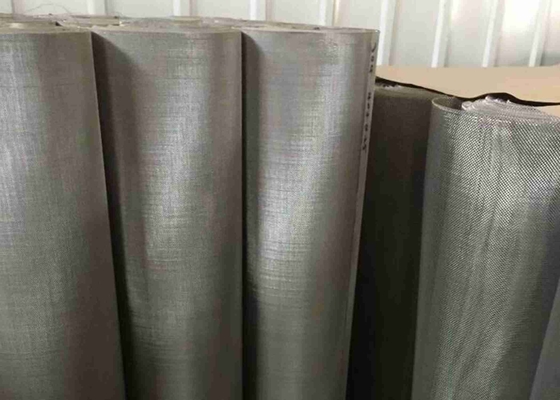

Packing: Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
