Ss 304 Ultra Thin Woven Metal Wire Mesh 30mesh 0.0065" In Oilfiled Industry
| Place of Origin | Anping of China |
|---|---|
| Brand Name | QIANPU |
| Certification | ISO |
| Minimum Order Quantity | 5 Rolls |
| Price | Negotiable |
| Packaging Details | Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets. |
| Delivery Time | two weeks |
| Payment Terms | T/T, Western Union, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | This Wire Structure Is Precision, Uniform Mesh, The Mesh Filtration Accuracy Is Good | Product Name | SS304 Ultra Thin Wire Mesh |
|---|---|---|---|
| Material | SS304 | Mesh Counts | 30mesh Per Inch |
| Wire Diameter | 0.0065" | Roll Width | 30", 48", Etc |
| Surface | Bright Silver | Aperture Shape | Square |
| Weaving Type | Plain Weave | Application | Widely Used In Petroleum Industry |
| Highlight | ultra thin woven metal wire mesh,oilfiled industry woven metal wire mesh,stainless steel woven wire 30 mesh |
||
Product Description

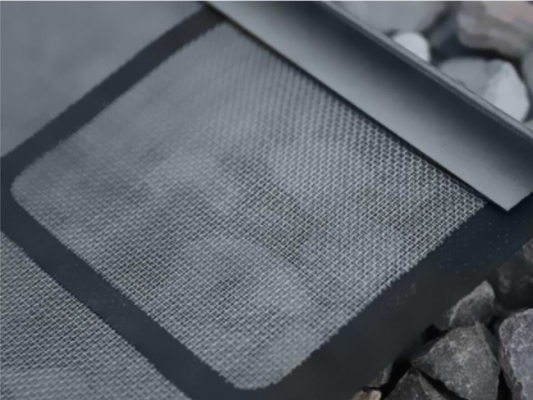

Stainless Steel 304 Ultra Thin Mesh 30mesh 0.0065" Wire Used In Oilfiled Industry
Introduction:
Plain weave stainless steel wire mesh is made of a weft wire and a warp wire with same diameter woven together. The Plain Weave/ Square Mesh is characterised by extremely exact mesh sizes. Weft wires are wound over and under the warp wires alternately in a constant pattern. The characteristics of this weave can be modified for special requirements.
30mesh plain weave wire mesh including 30 wires and openings per linear inch. Using 0.0065" diameter wire, by plain weaving, this wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. The widths of roll size can be 30", 36", 39", 40", 48" and so on. Some of items we keep in stock in case any urgent needs of customers. This type of wire mesh we produce is mostly export to the United States. Are widely used in petroleum industry.
30Mesh:
| Mesh Counts | 30 × 30 |
| Wire Diameter | 0.0065” |
| Aperture Size | 0.0268” |
| Stainless Steel Grades | SS304, SS304L, SS316, SS316L, etc. |
| Standard | AISI |
| Applications | Used in petroleum industry. |
Materials: AISI304, AISI304L, AISI316, AISI316L.
| AISI | Description | DIN |
| 304 | X5 Cr Ni 18 10 (V2A) | 1.4301 |
| 304L | X5 Cr Ni 18 11 | 1.4306 |
| 316 | X5 Cr Ni Mo 17 12 2 (V4A) | 1.4401 |
| 316L | X5 Cr Ni Mo 17 12 2 | 1.4404 |
Weaving Type: Plain Weave Square Hole
For plain weave technique, wire diameters of warp and weft wire are of equal size, and each warp wire passes alternately over and under each weft wire running horizontally through the cloth at 90 degree angles.
Specifications:
|
SS304 Filter Cloth in Petroleum Industry(Rectangle Hole) |
|||
|
Mesh Counts |
Wire Diameter |
Market Width |
Market Length |
|
Warp×Weft |
Inch |
Inch |
Feet |
|
64×38 |
0.0039” |
30”, 49” |
100’, 200’ |
|
76×45 |
0.0034” |
30”, 49” |
100’, 200’ |
|
45×90 |
0.0034” |
30”, 49” |
100’, 200’ |
|
50×90 |
0.0038” |
30”, 49” |
100’, 200’ |
|
105×64 |
0.0025” |
30”, 49” |
100’, 200’ |
|
110×50 |
0.0033” |
30”, 49” |
100’, 200’ |
|
120×76 |
0.0022” |
30”, 49” |
100’, 200’ |
|
140×70 |
0.0026” |
30”, 49” |
100’, 200’ |
|
145×90 |
0.0019” |
30”, 49” |
100’, 200’ |
|
170×105 |
0.0017” |
30”, 49” |
100’, 200’ |
|
170×85 |
0.0021” |
30”, 49” |
100’, 200’ |
|
200×100 |
0.0018” |
30”, 49” |
100’, 200’ |
|
220×110 |
0.0018” |
30”, 49” |
100’, 200’ |
|
230×115 |
0.0016” |
30”, 49” |
100’, 200’ |
|
130×225 |
0.0014” |
30”, 49” |
100’, 200’ |
|
370×200 |
0.0011” |
30”, 49” |
100’, 200’ |
|
325×184 |
0.0012” |
30”, 49” |
100’, 200’ |
|
280×180 |
0.0010” |
30”, 49” |
100’, 200’ |
|
205×125 |
0.0014” |
30”, 49” |
100’, 200’ |
|
240×150 |
0.0012” |
30”, 49” |
100’, 200’ |
|
400×200 |
0.0011” |
30”, 49” |
100’, 200’ |
Other wire diameter according to your requirements.
Features:
This wire structure is precision, uniform mesh, the mesh filtration accuracy is good, anti-wearing, high temperature resistant, acid resistant, corrosion-resistant properties. Stainless steel mesh piece is used for sieve and filtration at acids and alkali condition.
Applications:
This kind of stainless steel wire mesh are widely used in petroleum industry, energy industry, mining industry, environmental protection, pharmaceutical industry, chemical industry, food industry, mechanical industry, smelting industry, paper making, aeronautics and astronautics and so on.

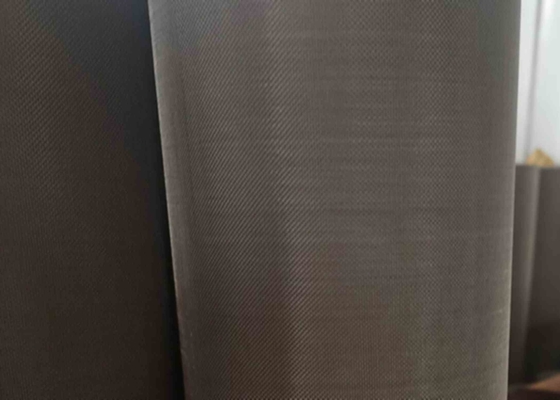

Packing: Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
