0.025mm Woven Wire Screen Ss304 Ss304l Ss316 Ss316l High Transparency

  • 0.025mm Woven Wire Screen Ss304 Ss304l Ss316 Ss316l High Transparency
  • 0.025mm Woven Wire Screen Ss304 Ss304l Ss316 Ss316l High Transparency
  • 0.025mm Woven Wire Screen Ss304 Ss304l Ss316 Ss316l High Transparency
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SS Woven Wire Mesh Material SS304, SS304L, SS316, SS316L
Surface Bright Silver Hole Shape Square Hole
Mesh Counts 30, 50, 80, 100, 120, 300, 325, Etc Wire Diameter 0.025mm, 0.03mm, 0.04mm, 0.05mm, Etc
Roll Width 1m, 1.2m, 1.5m, Etc Standard Length 30m
Properity High Transparency Application Uses Include Shielded Windows And Computer Monitors
High Light

0.025mm woven wire screen

,

ss 304l woven wire screen

,

high transparency woven mesh screen
Leave a Message
Product Description

SS304 SS304L SS316 SS316L High Transparency Wire Screen SS Woven Wire Mesh



Stainless Steel Woven Wire Mesh



Stainless steel: optically clear, high transparency meshes, listed in this section, are used in the manufacture of shielded windows for viewing instrumentation inside a shielded enclosure. They are also used for covering computer display screens to prevent the emanation of unwanted electrical emissions.



These meshes are produced using highly sophisticated wire drawing and weaving technologies. Stainless steel T304 rod is drawn to an extremely smooth close tolerance wire many times finer than a single strand of human hair. A computer-controlled loom weaves this into the world's most delicate metal fabric.



The result is a highly transparent, uniform mesh. It is used in shielded windows and cathode ray tubes (CRT's). Our mesh qualifies as "optical grade". It requires great care in handling. High Transparency Mesh are used for manufacturing shielded CRT screens and transparent radio frequency (RFI) shielded windows


Materials: Stainless Steel 304, 304L, 316, 316L.



AISI Chemical Composition
C Si Mn P S Ni Cr Mo
304 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 8.00~10.50 18.00~20.00 -
304L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 9.00~13.00 18.00~20.00 -
316 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 10.00~14.00 16.00~18.00 2.00~3.00
316L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 12.00~15.00 16.00~18.00 2.00~3.00


Weaving Type: Plain weave.

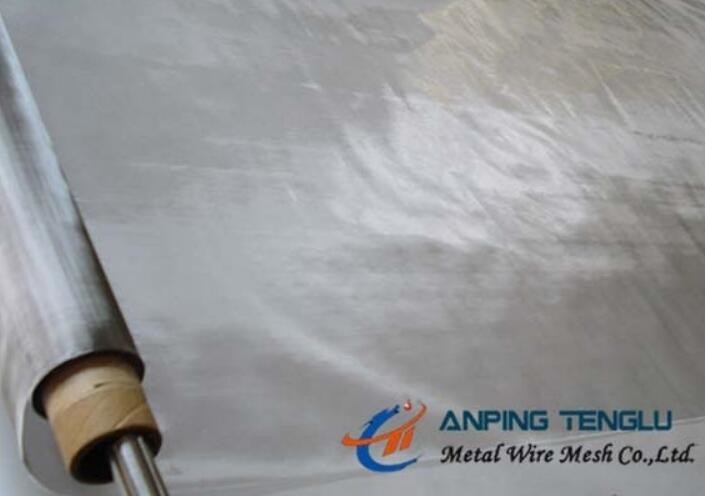

SS304, SS304L, SS316, SS316L Grades High Transparency Wire ScreenSS304, SS304L, SS316, SS316L Grades High Transparency Wire Screen



Key Features: High Light Transmission(High Transparency)


Applications: Stainless Steel High Transparency Mesh(Ultra-thin Mesh) is widely used as shielding materials. They are used for manufacturing shielded CRT screens and transparent radio frequency(RFI) shielded windows. We can supply it of different sizes according to the customer’s request.



Specifications:



Material Mesh Count Wire Dia. Weave Type Thickness Aperture Open Area
316 165 0.025mm Plain 0.0550mm 0.13mm 70.16%
316 120 0.026mm Plain 0.0572mm 0.19mm 76.94%
304/316 100 0.055mm Plain 0.1210mm 0.20mm 61.38%
304/316 100 0.050mm Plain 0.1100mm 0.20mm 64.50%
304/316 100 0.030mm Plain 0.0660mm 0.22mm 77.77%
316 100 0.025mm Plain 0.0550mm 0.23mm 81.28%
316 80 0.025mm Plain 0.0550mm 0.29mm 84.87%
304/316 60 0.040mm Plain 0.0880mm 0.38mm 82.00%
316 50 0.025mm Plain 0.0550mm 0.48mm 90.40%
304/316 30 0.050mm Plain 0.110mm 0.80mm 88.54%

Other specifications according to your requirements.

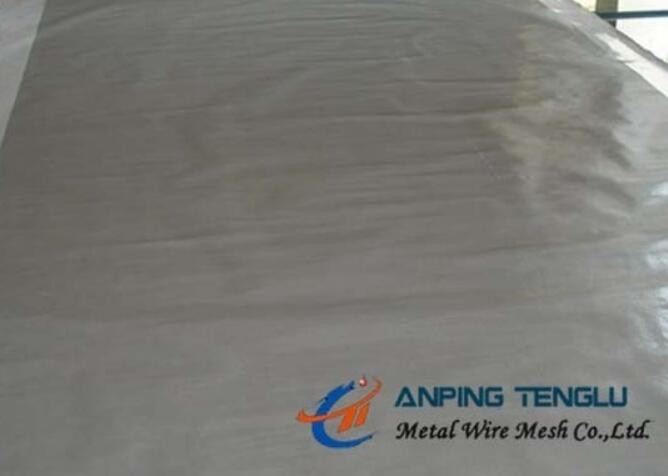

SS304, SS304L, SS316, SS316L Grades High Transparency Wire Screen



Types of Woven Wire Mesh Cloth:



1.Market Grade Wire Mesh
The most commonly used industrial wire mesh, it is a kind of square or twill weave mesh.

2.Mill Grade Wire Mesh
It provides a greater percentage of open area than market grade, usually is square weave. Mainly used in the sizing and sifting applications.

3.Tensile Bolting Mesh
Tensile bolting wire mesh offers a highest percentage of open area, it is also suited in separation and filtering applications.

4.Dutch Weave Wire Cloth
Dutch weave filter cloth includes plain dutch and twill dutch weave wire cloth, can meet specific needs for gas and liquid filtration.
