Stainless Steel 0.04mm Twill Weave Wire Mesh 50micron Opening

  • Stainless Steel 0.04mm Twill Weave Wire Mesh 50micron Opening
  • Stainless Steel 0.04mm Twill Weave Wire Mesh 50micron Opening
  • Stainless Steel 0.04mm Twill Weave Wire Mesh 50micron Opening
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wear-resistant, High Strength And Long Service Life Product Name SS Woven Wire Mesh
Material SS316L Surface Bright Silver
Aperture Shape Square Wire Diameter 0.04mm
Aperture 50micron Weaving Type Plain Weave
Width 1m, 1.22m, 1.6, Etc Application Filtration
High Light

0.04mm twill weave wire mesh

,

50micron twill weave wire mesh

,

316l twill weave ss wire mesh
Leave a Message
Product Description

Stainless Steel Twill Weave 50micron Opening 0.04mm Wire SS Woven Wire Mesh



50micron Plain Weave SS316L Wire Mesh



Type 316L or T-316L is a very low carbon stainless steel containing molybdenum for superior corrosion resistance. 316L stainless steel wire mesh screen is particularly resistant to pitting by solutions containing chloride ions, phosphoric acid, sulfuric acid, and brine solutions. The general corrosion resistance is similar to Type 316 SS, but 316L SS has superior resistance to intergranular corrosion following welding. Type 316L is used over 316 in assemblies which cannot be annealed after fabrication by welding. Can be used at temperatures up to 1600°F. Type 316L wire mesh screen is nonmagnetic in the annealed, and slightly magnetic when cold worked. Like 316 SS, 316L SS wire mesh screen is widely used in chemical, food, pharmaceutical, medical, refining, power plant, aircraft, photographic, textile, paper equipment and strainers.



Twill Weave Mesh is fabricated by passing every shute wire alternately up and down of two warp wires. The pattern is staggered on following warp wires, providing a parallel diagonal lines appearance. Twill Weave Wire Mesh permits the use of relatively heavier wires in the specific mesh count than is feasible in the plain weave mesh. This mesh has broad application tendency of supporting larger loads and finer filtrations.



Standard Specifications:



Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8
635X635 0.0008 0.0203 0.0008 0.0203 25 2.63

Other specifications according to your requirements.

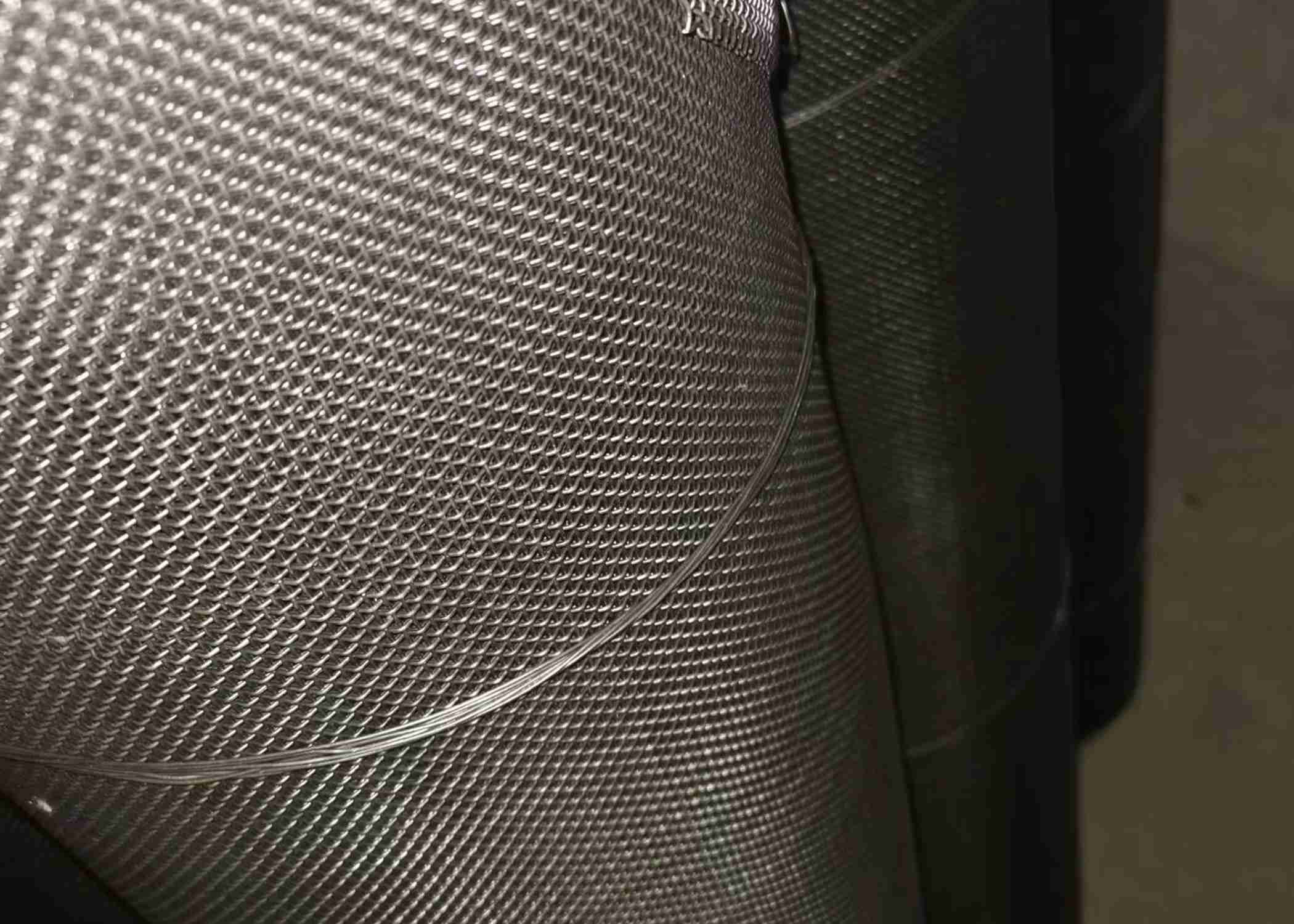

Stainless Steel 0.04mm Twill Weave Wire Mesh 50micron Opening 0



Material: SS316L.



CHEMICAL COMPOSITIONS(WT%)
ITEMS C Si Mn P S Ni Cr Mo
SPEC. <0.03 <1.00 <2.00 <0.045 <0.03 12-15 16-18 2-3
TESTING 0.016 0.54 1.26 0.02 0.017 12.13 17.81 2.06



Weave Type: Twill Weave



SS316L Twill Weave Wire Cloth, 635mesh 0.015mm Wire 0.025 Aperture


Characteristics:



High tension, much higher tension than common polyester mesh,and this property is very suitable.

Super precision: uniform wire diameter and aperture with extremely low difference.

Low elongation: very small elongation of wire mesh at high tension.

High flexibility: the wire mesh will not lose elasticity at extreme tension.

High corrosion resistance: the excellent corronsion resistance of stainless steel wire exceeds polyester fiber.

Non-electrostatic: to avoid affects of nonelectrostatic for printing and ensure the ety of priting.

Good heat melting resistance:special features of steel wire mesh suitable for heta-melting ink.

Good solvent resistance: to avoid the affects of any solvents to wire mesh.


Applications:

Pressure filters for fine filtration in hydraulic steering equipment.
Oil and fuel filters.
Pressure and vacuum filters.
As porous media for fluid beds.
Filter candles.
Medical science.
Food and beverage industry.
Plastics industry.



Packing:



Water-proof paper first then plastic film, in wooden case or pallets.

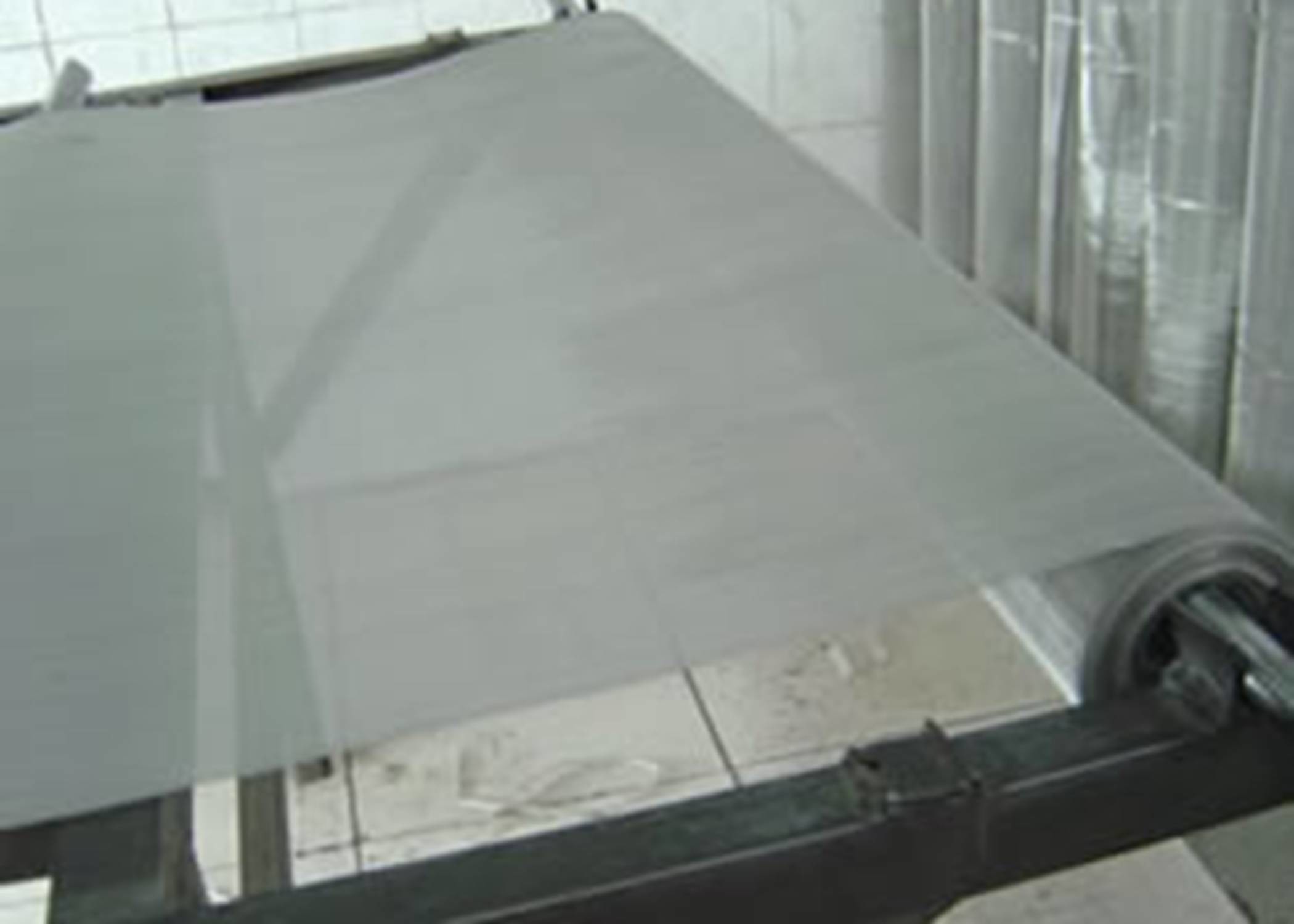

Stainless Steel 0.04mm Twill Weave Wire Mesh 50micron Opening 2
