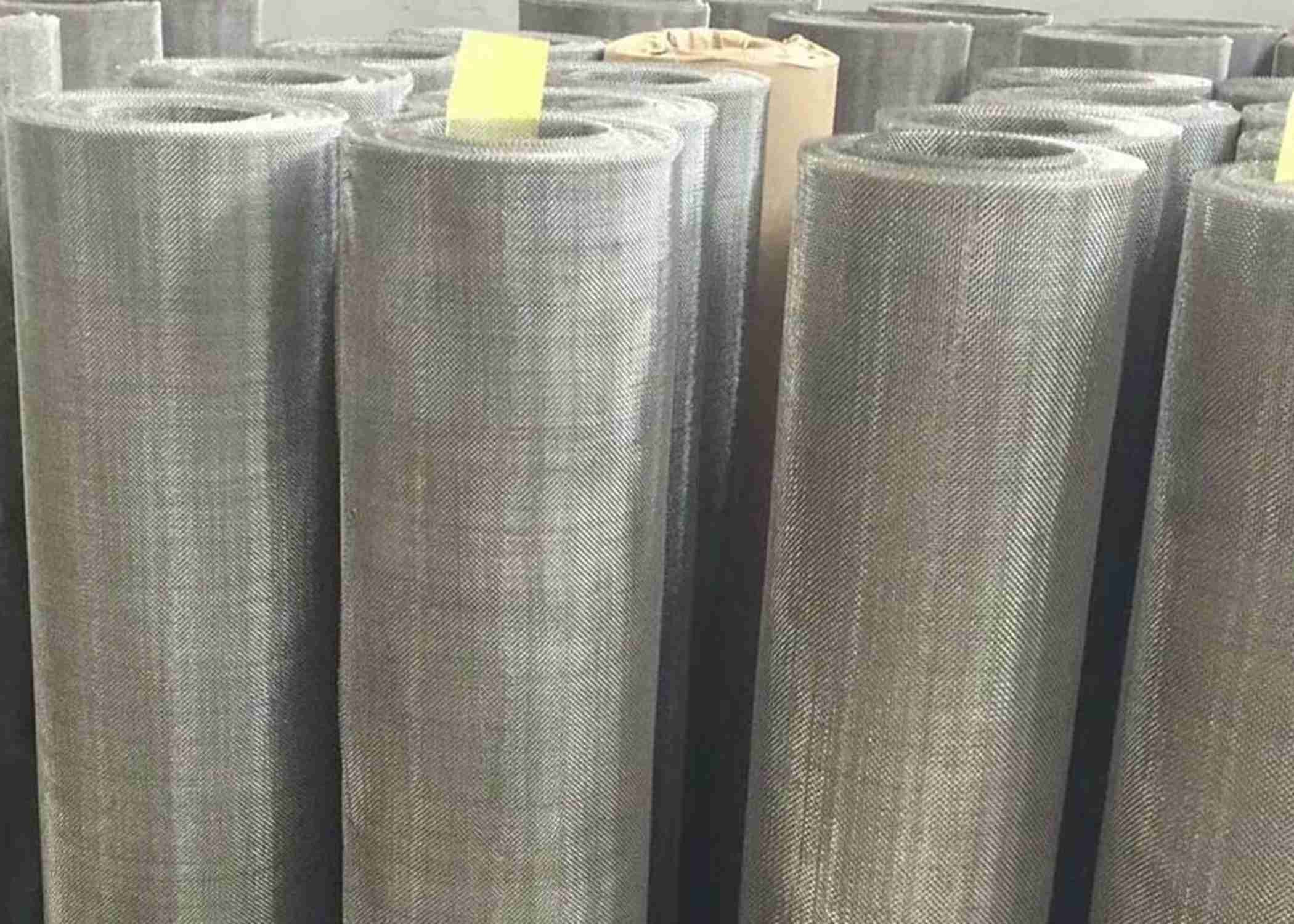

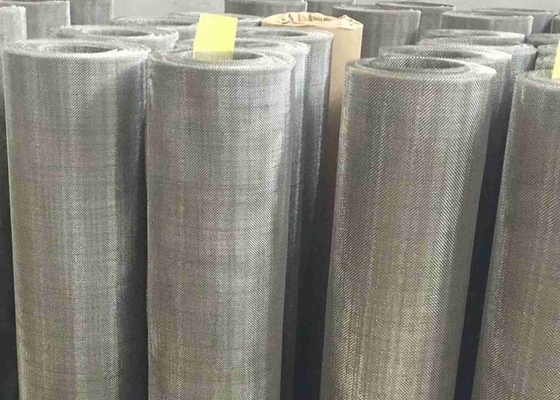

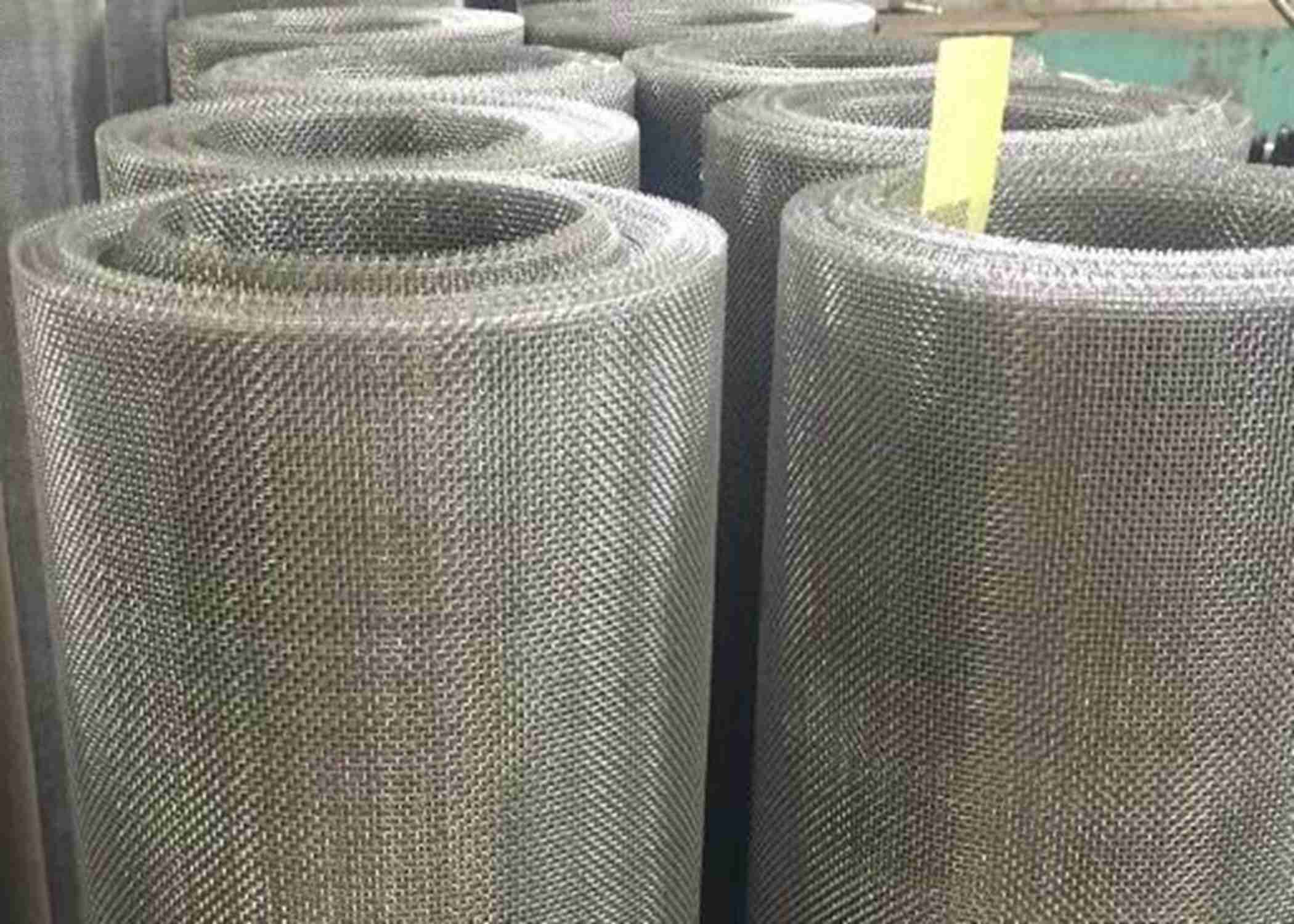

1.9mm Opening 0.65mm Ss Woven Wire Mesh 316l Stainless Steel

  • 1.9mm Opening 0.65mm Ss Woven Wire Mesh 316l Stainless Steel
  • 1.9mm Opening 0.65mm Ss Woven Wire Mesh 316l Stainless Steel
  • 1.9mm Opening 0.65mm Ss Woven Wire Mesh 316l Stainless Steel
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time Immediately
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SS Woven Wire Mesh Material Stainless Steel 316L
Surface Bright Silver Aperture Shape Square
Opening 1.9mm Wire Diameter 0.65mm
Roll Width 1m, 1.22m, 1.6m Stock Standard Length 30m
Properity Superior Corrosion Resistance Application Filtration
High Light

0.65mm ss woven wire mesh 316l

,

1.9mm opening ss woven wire mesh

,

square 316 stainless steel mesh
Leave a Message
Product Description

316L Stainless Steel 1.9mm Opening 0.65mm Wire SS Woven Wire Mesh



CSS316L Plain Weave Wire Mesh:


Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

Plain Dutch Weave.



Type 316L or T-316L is a very low carbon stainless steel containing molybdenum for superior corrosion resistance. 316L stainless steel wire mesh screen is particularly resistant to pitting by solutions containing chloride ions, phosphoric acid, sulfuric acid, and brine solutions. The general corrosion resistance is similar to Type 316 SS, but 316L SS has superior resistance to intergranular corrosion following welding. Type 316L is used over 316 in assemblies which cannot be annealed after fabrication by welding. Can be used at temperatures up to 1600°F. Type 316L wire mesh screen is nonmagnetic in the annealed, and slightly magnetic when cold worked. Like 316 SS, 316L SS wire mesh screen is widely used in chemical, food, pharmaceutical, medical, refining, power plant, aircraft, photographic, textile, paper equipment and strainers.



Mesh Specifications:



Mesh Wire Diameter Aperture Open Area Rate Weight/㎡
mm Inch mm Inch % Kgs Lbs
10 0.90 0.0354 1.64 0.0645 41.66 4.05 8.91
0.80 0.0314 1.74 0.0685 46.92 3.20 7.04
0.70 0.0275 1.84 0.0724 52.47 2.45 5.39
0.60 0.0236 1.94 0.0763 58.33 1.80 3.96
0.50 0.0196 2.04 0.0803 64.50 1.25 2.75
0.40 0.0157 2.14 0.0842 70.98 0.80 1.76
Roll Width: Max 8.0m



Standard Specifications:



Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
1x1 0.08 2.03 0.92 23.37 84.6 41.1
2X2 0.063 1.6 0.437 11.1 76.4 51.2
3X3 0.054 1.37 0.279 7.09 70.1 56.7
4X4 0.063 1.6 0.187 4.75 56 104.8
4X4 0.047 1.19 0.203 5.16 65.9 57.6
5X5 0.041 1.04 0.159 4.04 63.2 54.9
6X6 0.035 0.89 0.132 3.35 62.7 48.1
8X8 0.028 0.71 0.097 2.46 60.2 41.1
10X10 0.025 0.64 0.075 1.91 56.3 41.2
10X10 0.02 0.51 0.08 2.03 64 26.1


Other specifications according to your requirements.



1.9mm Opening 0.65mm Ss Woven Wire Mesh 316l Stainless Steel 0





Materials:



316L


Weaving Type:



Plain weave



SS316L wire mesh Features:


Acid and alkali resistance, wear resistance, high temperature and weather resistance.
High temperature oxidation, good corrosion performance.
High strength, tensile, toughness.
Non-toxic, odorless and harmless.
Normal processing, plastic processing that is easy to diversify the possibility of using a stainless steel mesh. Finish, without having to surface treatment.
Simple and easy maintenance.
Durable in use.


Applications:

Widely used in stainless steel mesh screen filter and protective decorative, scope throughout the mining, petroleum, chemical, food, medicine, machinery manufacturing, construction, decoration, electronics, aerospace and other industries.



Packing:

1.9mm Opening 0.65mm Ss Woven Wire Mesh 316l Stainless Steel 1
