Welded 2205 Duplex 0.55mm SS Woven Wire Mesh Excellent Mechanical Features

  • Welded 2205 Duplex 0.55mm SS Woven Wire Mesh Excellent Mechanical Features
  • Welded 2205 Duplex 0.55mm SS Woven Wire Mesh Excellent Mechanical Features
  • Welded 2205 Duplex 0.55mm SS Woven Wire Mesh Excellent Mechanical Features
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Excellent Mechanical Features Product Name SS Woven Wire Mesh
Material Duplex 2205 Surface Bright Silver
Aperture Shape Square Mesh Counts 3 To 500
Weaving Type Plain Weave Wire Diameter 0.05mm-0.55mm
Width 0.1 To 1.5m Application Chemical/ Petrochemical, Food Processing, And Oil Field/refinery Industries
High Light

0.55mm ss woven wire mesh

,

2205 duplex ss woven wire mesh

,

2205 duplex stainless steel welded mesh
Leave a Message
Product Description

2205 Duplex Stainless Steel Excellent Mechanical Features SS Woven Wire Mesh



Duplex Stainless Steel Wire Mesh 2205 Introduction



2205 duplex stainless steel wire mesh is the most extensively used duplex stainless steel alloy in the industrial wire cloth world. As a duplex stainless steel alloy, 2205 duplex exhibits double the yield strength of most standard austenitic stainless steel alloys (i.e. T-316L). Additionally, 2205 duplex stainless steel wire cloth has superior corrosion resistance properties vs. T-316L wire cloth as a result of its higher chromium, nitrogen, and molybdenum content. If the superior corrosion resistance and strength of 2205 duplex is not required, T-316L is often substituted due to its lower cost.



2205 Duplex Stainless Steel Mesh Chemistry:



Cr

Ni

Mo

C

N

Mn

Si

P

S

Fe

22-23 %

4.50-6.50 %

3-3.50 %

0.030 %

0.14-0.20 %

2 %

1 %

0.030 %

0.020 %

Bal %



2205 duplex stainless steel is also commonly referred to as: UNS S32205, 2205 Stainless, Alloy 2205.

Specifications:



Woven Style: Plain and Twill Weave
Mesh Counts: 3-500Mesh
Diameter: 0.025mm-2.2mm
Roll Width: 0.1-1.5m
Roll Length: 10-100m



Mesh Inch SWG

Wire Diameter

(mm)

Aperture

(mm)

Effective

(%)
3mesh 14 2.2 6.27 62
3mesh 18 1.219 7.25 70
3.5mesh 20 0.914 6.34 66
4mesh 16 1.63 4.72 58
4mesh 20 0.914 5.45 76
4.5mesh 22 0.711 4.93 71
5mesh 18 1.22 3.86 57
5mesh 22 0.711 4.36 76
6mesh 18 1.22 3.04 50
6mesh 22 0.711 3.52 63
8mesh 20 0.91 2.26 43
8mesh 24 0.559 2.5 67
10mesh 20 0.91 1.63 41
10mesh 26 0.46 2.08 67
12mesh 22 0.71 1.41 43
12mesh 26 0.457 1.74 68
14mesh 26 0.46 1.36 57
16mesh 28 0.376 1.21 55
18mesh 30 0.315 1.1 60
20mesh 30 0.315 0.95 58
22mesh 32 0.274 0.88 57
24mesh 32 0.274 0.78 55
26mesh 32 0.274 0.74 51
28mesh 34 0.234 0.67 50
30mesh 34 0.234 0.61 48
32mesh 34 0.234 0.56 50
36mesh 34 0.234 0.47 45
38mesh 36 0.193 0.48 46
40mesh 36 0.193 0.44 50
50mesh 38 0.152 0.36 46
60mesh 40 0.122 0.3 50
80mesh 40 0.12 0.198 44
100mesh 42 0.1 0.154 37
120mesh 44 0.081 0.13 40
130mesh 45 0.07 0.125 41
140mesh 45 0.07 0.111 38
150mesh 46.5 0.055 0.115 48
160mesh 46 0.61 0.097 32
170mesh 47 0.05 0.09 41
180mesh 47 0.051 0.09 410
190mesh 47 0.051 0.083 40
200mesh 48 0.041 0.086 46
220mesh 48 0.041 0.074 41
240mesh 48 0.041 0.065 39
250mesh 48 0.041 0.061 38
260mesh 48 0.041 0.057 34
280mesh 49 0.031 0.06 31
300mesh 49 0.031 0.054 40
320mesh 49 0.031 0.048 39
350mesh 49 0.031 0.042 36
400mesh 50 0.025 0.0385 39
450mesh 50 0.025 0.0314 37
500mesh 50 0.025 0.0258 35



Other specifications according to your request.

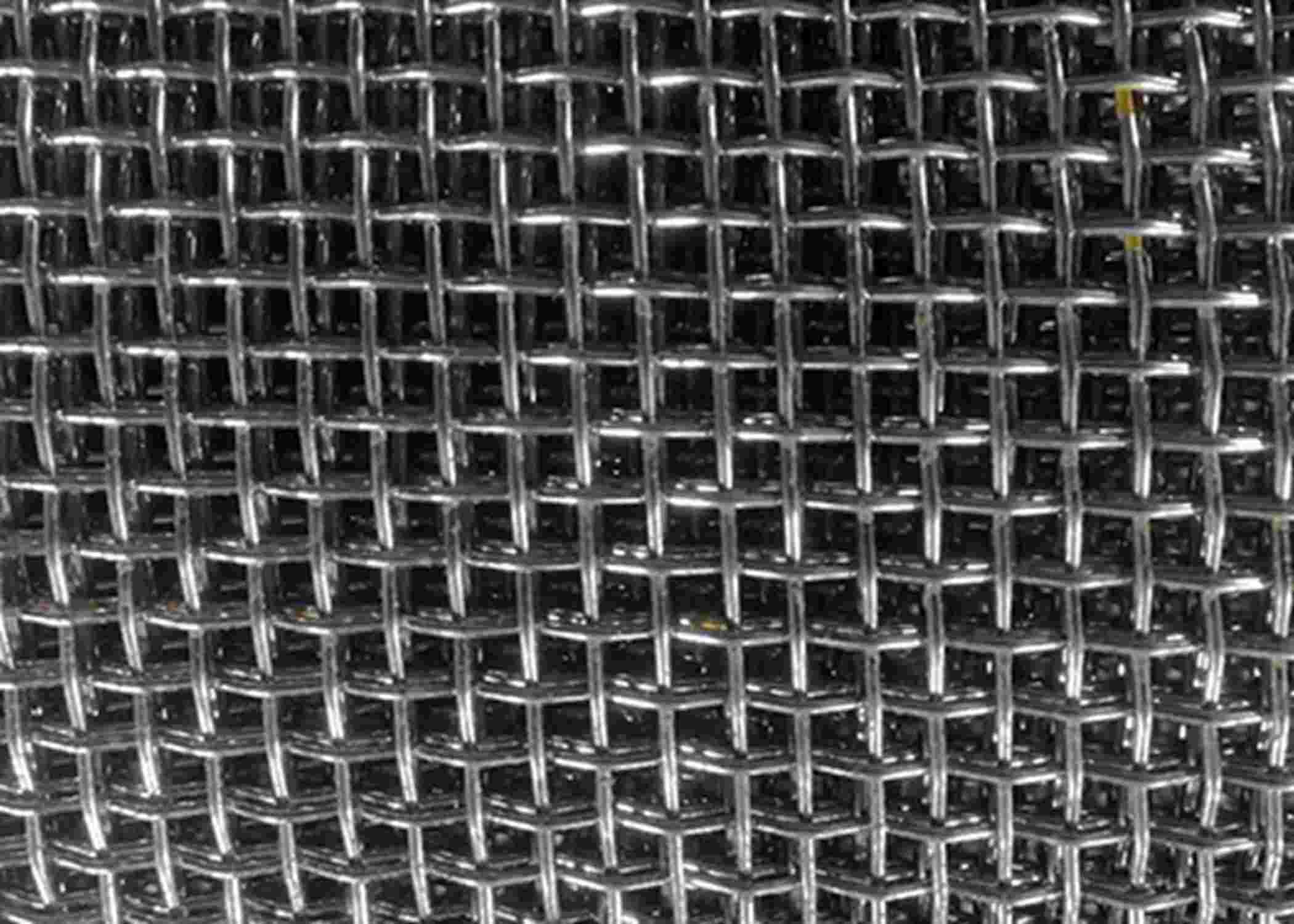

Welded 2205 Duplex 0.55mm SS Woven Wire Mesh Excellent Mechanical Features 0

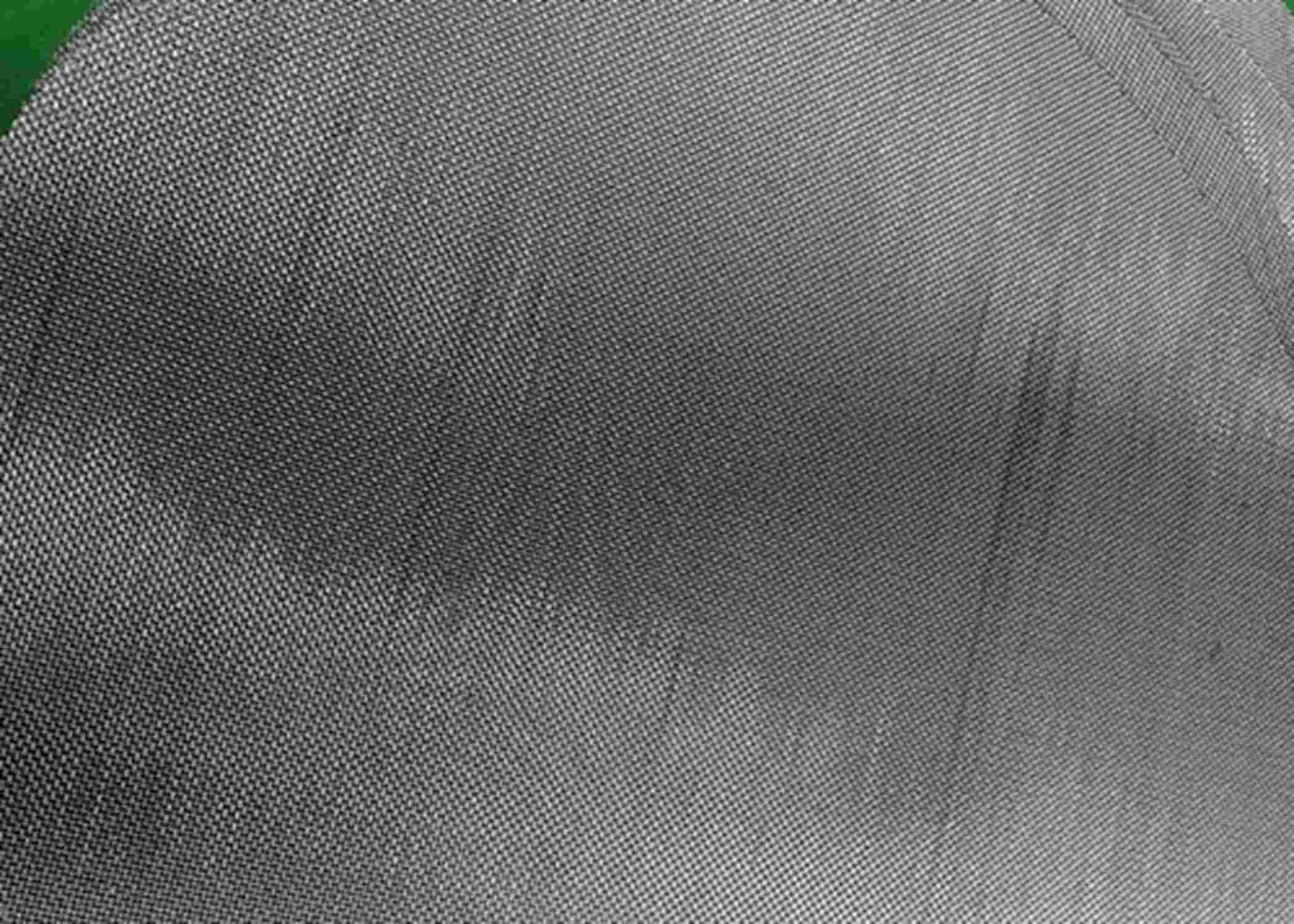

Welded 2205 Duplex 0.55mm SS Woven Wire Mesh Excellent Mechanical Features 1



Features:



Duplex stainless steel (both ferritic and austenitic).
Less frequently used stainless steel alloy in the industrial wire cloth world (T-304 & T-316 being the most common).
Magnetic in all conditions.
Withstands outdoor exposure without rusting.
Good fatigue strength & excellent corrosion resistance in severe industrial and chemical settings.
Best used in temperatures below 570°F (undergoes embrittlement at higher temperatures).
Easily welded, more difficult to cut and form than T-316L (thus, higher cutting forces are required).



Applications:



2205 duplex stainless steel wire cloth is primarily used in chemical/ petrochemical, food processing, and oil field/refinery industries. Additional industries and applications which commonly use 2205 duplex stainless steel wire cloth include:



SUBMIT RFQ
Architectural (seashore/urban areas)
Biofuel Plants
Boat/Yacht Fittings
High Chloride Environments
Liquid Filtration & Particle Separation
Marine Applications
Power Plant
Textile
Wastewater Treatment
