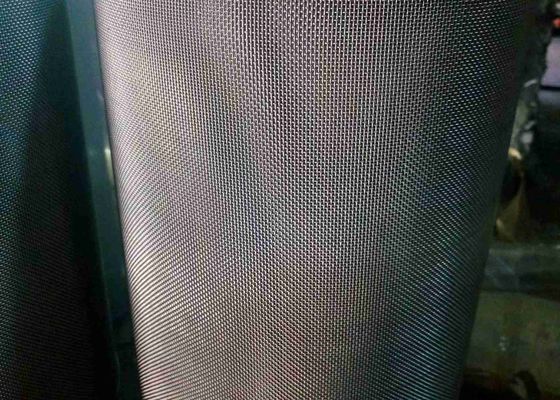

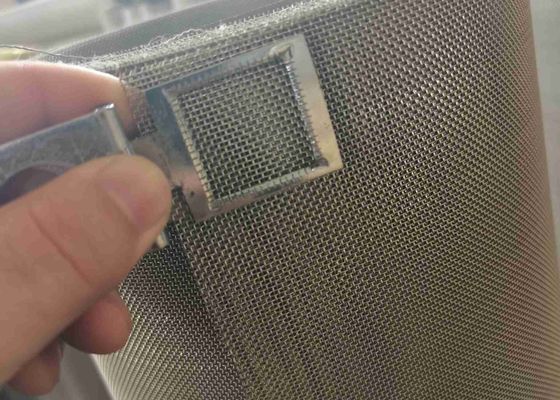

Super Duplex S32750 SS Woven Wire Mesh Anti Chloride Corrosion 0.05mm-0.55mm

  • Super Duplex S32750 SS Woven Wire Mesh Anti Chloride Corrosion 0.05mm-0.55mm
  • Super Duplex S32750 SS Woven Wire Mesh Anti Chloride Corrosion 0.05mm-0.55mm
  • Super Duplex S32750 SS Woven Wire Mesh Anti Chloride Corrosion 0.05mm-0.55mm
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wear-resistant, High Strength And Long Service Life Product Name SS Woven Wire Mesh
Material UNS S32750 Surface Bright Silver
Aperture Shape Square Mesh Counts 3 To 500
Weaving Type Plain Weave Wire Diameter 0.05mm-0.55mm
Width 0.1 To 1.5m Application Oil And Gad Industry
High Light

S32750 SS Woven Wire Mesh

,

Super Duplex SS Woven Wire Mesh

,

0.55mm stainless steel filter mesh
Leave a Message
Product Description

Super Duplex S32750 Stainless Steel Anti- Chloride Corrosion SS Woven Wire Mesh



Super Duplex Stainless Steel Wire Mesh(UNS-S32750) Introduction



S32750 (F53/SAF2507) alloy is super duplex stainless steel made up of 250%Cr, 40% Mo and 7% Ni and N. This steel is mainly used in chemical, petrochemical and marine equipment which required special intension and corrosion resistance.



Material: UNS S32750, UNS S32760



Chemical Composition(%)
Steel Grade C Mn Si S P Cr Ni Mo Cu N
UNS S32750 ≤0.03 ≤1.20 ≤0.80 ≤0.02 ≤0.035 24.0-26.0 6.0-8.0 3.0-5.0 ≤0.5 0.24-0.32



Specifications:



Woven Style: Plain and Twill Weave
Mesh Counts: 3-500Mesh
Diameter: 0.025mm-2.2mm
Roll Width: 0.1-1.5m
Roll Length: 10-100m



Mesh Inch SWG

Wire Diameter

(mm)

Aperture

(mm)

Effective

(%)
3mesh 14 2.2 6.27 62
3mesh 18 1.219 7.25 70
3.5mesh 20 0.914 6.34 66
4mesh 16 1.63 4.72 58
4mesh 20 0.914 5.45 76
4.5mesh 22 0.711 4.93 71
5mesh 18 1.22 3.86 57
5mesh 22 0.711 4.36 76
6mesh 18 1.22 3.04 50
6mesh 22 0.711 3.52 63
8mesh 20 0.91 2.26 43
8mesh 24 0.559 2.5 67
10mesh 20 0.91 1.63 41
10mesh 26 0.46 2.08 67
12mesh 22 0.71 1.41 43
12mesh 26 0.457 1.74 68
14mesh 26 0.46 1.36 57
16mesh 28 0.376 1.21 55
18mesh 30 0.315 1.1 60
20mesh 30 0.315 0.95 58
22mesh 32 0.274 0.88 57
24mesh 32 0.274 0.78 55
26mesh 32 0.274 0.74 51
28mesh 34 0.234 0.67 50
30mesh 34 0.234 0.61 48
32mesh 34 0.234 0.56 50
36mesh 34 0.234 0.47 45
38mesh 36 0.193 0.48 46
40mesh 36 0.193 0.44 50
50mesh 38 0.152 0.36 46
60mesh 40 0.122 0.3 50
80mesh 40 0.12 0.198 44
100mesh 42 0.1 0.154 37
120mesh 44 0.081 0.13 40
130mesh 45 0.07 0.125 41
140mesh 45 0.07 0.111 38
150mesh 46.5 0.055 0.115 48
160mesh 46 0.61 0.097 32
170mesh 47 0.05 0.09 41
180mesh 47 0.051 0.09 410
190mesh 47 0.051 0.083 40
200mesh 48 0.041 0.086 46
220mesh 48 0.041 0.074 41
240mesh 48 0.041 0.065 39
250mesh 48 0.041 0.061 38
260mesh 48 0.041 0.057 34
280mesh 49 0.031 0.06 31
300mesh 49 0.031 0.054 40
320mesh 49 0.031 0.048 39
350mesh 49 0.031 0.042 36
400mesh 50 0.025 0.0385 39
450mesh 50 0.025 0.0314 37
500mesh 50 0.025 0.0258 35



Other specifications according to your request.



Super Duplex S32750 Stainless Steel Wire Mesh, Anti- Chloride Corrosion



Features:



S32750 is with strong ability to resist chloride corrosion, higher heat conductivity and lower thermal expansion corrosion. High chromium, molybdenum and nitrogen content makes it has strong ability to resist pitting corrosion, crevice corrosion and general corrosion. Compared with 2205, S32750 is with corrosion resistance ability suited to extreme corrosion environment. Its impact strength is high, but S32750 alloy is not suitable for environment with temperature higher than 299℃, then its toughness will be reduced.



Applications:



S32750 Super duplex stainless steel wire mesh can be widely used in oil and gad industry equipment, offshore platform, all kinds of heat exchangers, water treatment equipment, water circulation system, chemical industry, pulp container, high corrosion resistance parts, power plant equipment and absorption tower device etc.



Packing:



Super Duplex S32750 SS Woven Wire Mesh Anti Chloride Corrosion 0.05mm-0.55mm 1
