18''X14'' 0.011" Plain Weave Wire Mesh Wear Resistant
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Wear-resistant, High Strength And Long Service Life | Product Name | SS Woven Wire Mesh |
|---|---|---|---|
| Material | SS304 | Surface | Bright Silver |
| Aperture Shape | Square | Warp/ Weft | 18 X 14 |
| Weaving Type | Plain Weave | Wire Diameter | 0.011" |
| Openging Size | 0.0445" X 0.0604" | Application | Window Screen Netting |
| High Light | 0.011" plain weave wire mesh,14'' plain weave wire mesh,18'' filter mesh stainless steel |
||
Product Description

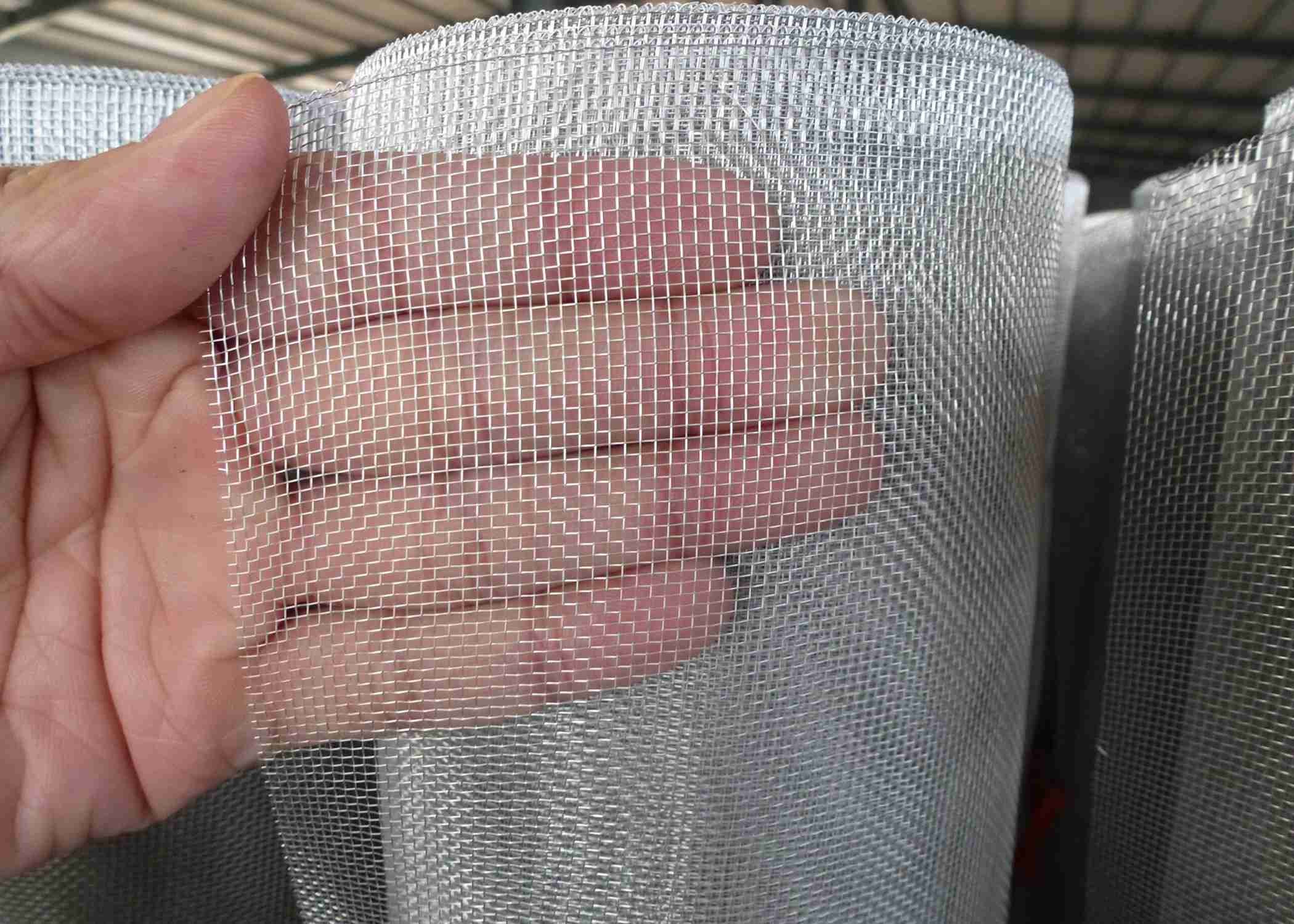

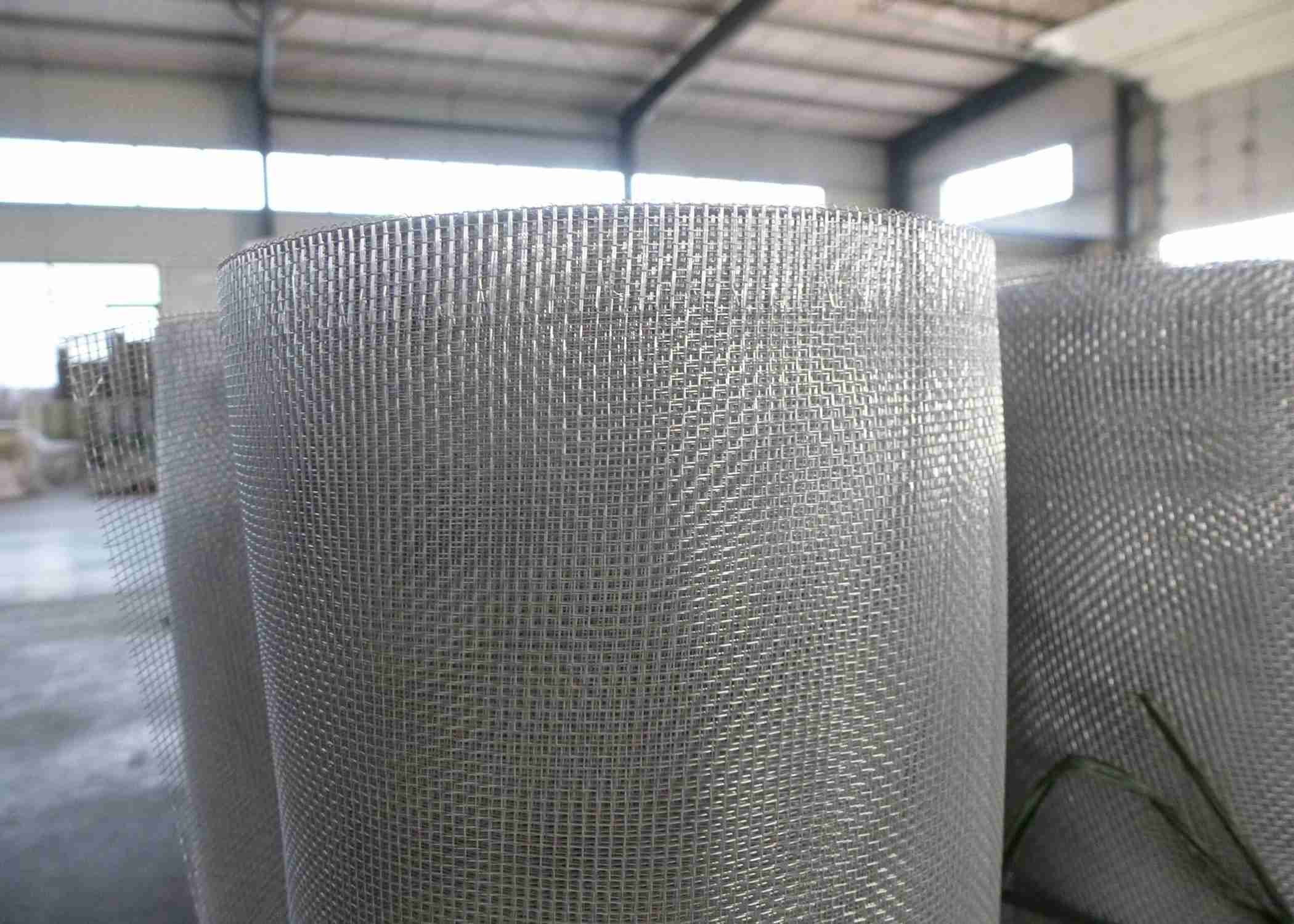

18/ 14Mesh 0.011" Wire Rectangle Openging Wire Mesh SS Woven Wire Mesh
Stainless Steel Woven Wire Mesh-Rectangular openings
A Plain Weave wire cloth, woven in an over and under pattern with a different number of wires in the warp and shute direction, which yields a rectangular opening wire cloth. Rectangular openings are often used in sifting and sizing operations to increase product “through” capacity with minor sacrifices in accuracy. To reduce material costs, off-count mesh may be substituted for square mesh in some applications that do not require a high level of accuracy.
18×14mesh rectangle opening as the drawing show. 18mes/inch warp and 14neshes/inch weft. The wire diameters of both directions are the same.
Material: AISI304 & AISI316
| AISI304 CHEMICAL COMPOSITIONS (WT%) | |||||||
| ITEMS | C | Si | Mn | P | S | Ni | Cr |
| SPEC. | <0.08 | <1.00 | <2.00 | <0.045 | <0.03 | 8-10.5 | 18-20 |
| AISI316 CHEMICAL COMPOSITIONS (WT%) | ||||||||
| ITEMS | C | Si | Mn | P | S | Ni | Cr | Mo |
| SPEC. | <0.08 | <1.00 | <2.00 | <0.045 | <0.03 | 10-14 | 16-18 | 2-3 |
Other stainless steel grades please keep me informed. Materials available with plain steel, aluminum, copper/brass, nickel and so on with pure metal or alloy metal.
Specifications:
| Specifications | US | Metric |
| Mesh Size | 18x14/Inch | 18x14/2.54cm |
| Wire Diameter | 0.011” | 0.279mm |
| Width | 36", 48” | 0.914m, 1.22m |
| Length | 100ft | 30.5m |
| Packing: Water-proof paper first then plastic film, in wooden case or pallets. | ||
| Nearest Port: Tianjin(By Sea); Beijing(By Air). | ||
Other specifications according to your requirements.
Weaving Type: Plain Weave.
Features:
Stainless steel square mesh also has the features of acid resistance, alkaline-resisting property, heat-resisting feature, wear-resistant, high tensile and high temperature property.
Applications:
With light weight, good flexibility and easy cleaning, window screen netting is mainly uesd in hotels, public buildings, civil residences against bugs, insects, etc.
Packing:
In rolls, wrapped with waterproof paper then covered with hessian cloth. Special packing may be arranged if necessary.
