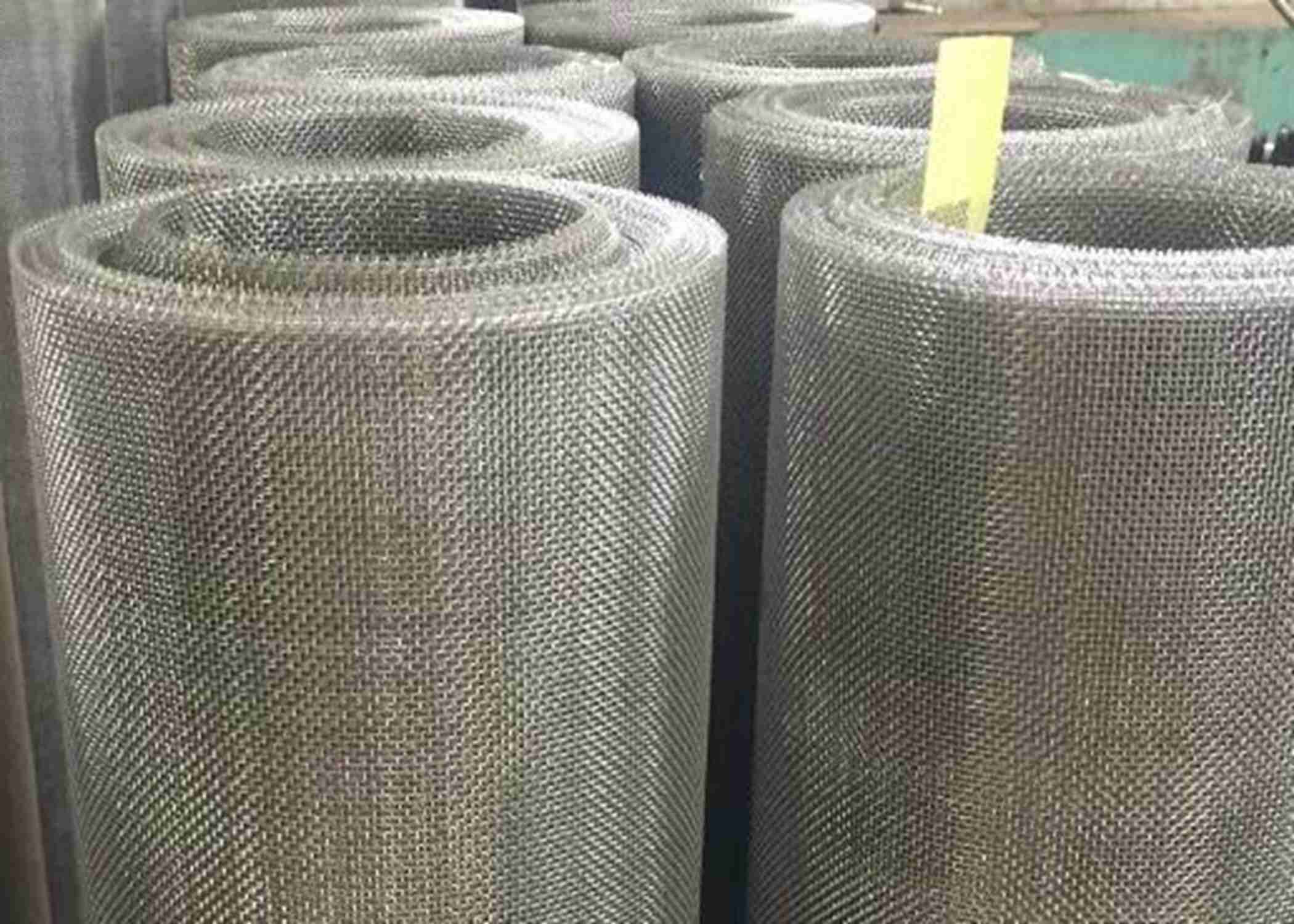

SS304 Square 400x200 SS Woven Wire Mesh High Strength

  • SS304 Square 400x200 SS Woven Wire Mesh High Strength
  • SS304 Square 400x200 SS Woven Wire Mesh High Strength
  • SS304 Square 400x200 SS Woven Wire Mesh High Strength
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wear-resistant, High Strength And Long Service Life Product Name SS Woven Wire Mesh
Material SS304 Surface Bright Silver
Aperture Shape Square Warp/ Weft 400/ 200 Per Inch
Weaving Type Plain Weave Roll Width 30", 48"
Roll Length 100', 200' Application Petroleum Industry
High Light

200 SS Woven Wire Mesh

,

400 SS Woven Wire Mesh

,

Square 304 stainless steel mesh
Leave a Message
Product Description

304SS 400x 200 Mesh Filter Cloth in Petroleum Industry SS Woven Wire Mesh



Stainless Steel Woven Wire Mesh introduction:



400X200 mesh plain weave stainless steel 304 wire mesh using 0.0011" diameter wire, by plain weaving, woven 400X200 mesh opening generally used in petroleum industry. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. This type of wire mesh mostly exported to the United States.



SS304 Filter Cloth in Petroleum Industry

Mesh Counts Wire Diameter Market Width Market Length
Warp×Weft Inch Inch Feet
400×200 0.0011 30” 100’
400×200 0.0011 49” 200’



Specifications:

SS304 Filter Cloth in Petroleum Industry
Mesh Counts Wire Diameter Market Width Market Length
Warp×Weft Inch Inch Feet
64×38 0.0039” 30”, 49” 100’, 200’
76×45 0.0034” 30”, 49” 100’, 200’
45×90 0.0034” 30”, 49” 100’, 200’
50×90 0.0038” 30”, 49” 100’, 200’
105×64 0.0025” 30”, 49” 100’, 200’
110×50 0.0033” 30”, 49” 100’, 200’
120×76 0.0022” 30”, 49” 100’, 200’
140×70 0.0026” 30”, 49” 100’, 200’
145×90 0.0019” 30”, 49” 100’, 200’
170×105 0.0017” 30”, 49” 100’, 200’
170×85 0.0021” 30”, 49” 100’, 200’
200×100 0.0018” 30”, 49” 100’, 200’
220×110 0.0018” 30”, 49” 100’, 200’
230×115 0.0016” 30”, 49” 100’, 200’
130×225 0.0014” 30”, 49” 100’, 200’
370×200 0.0011” 30”, 49” 100’, 200’
325×184 0.0012” 30”, 49” 100’, 200’
280×180 0.0010” 30”, 49” 100’, 200’
205×125 0.0014” 30”, 49” 100’, 200’
240×150 0.0012” 30”, 49” 100’, 200’
400×200 0.0011” 30”, 49” 100’, 200’

Other specifications according to your requirements.


SS304, 400*200Mesh/ 0.0011" Wire, Filter Cloth in Petroleum Industry


Materials: SS304



Weaving Type: Plain weave.


SS304, 400*200Mesh/ 0.0011" Wire, Filter Cloth in Petroleum Industry



Characteristics:


Cost effective and corrosion resistant, T-304 stainless steel is often used in refineries and in oil fields. The wire mesh specifications featured here are popularly requested items that various refineries and oil fields use on a continuous basis. Keep in mind the list of items here is not exhaustive.


Applications:



Oil fields in petroleum industry.

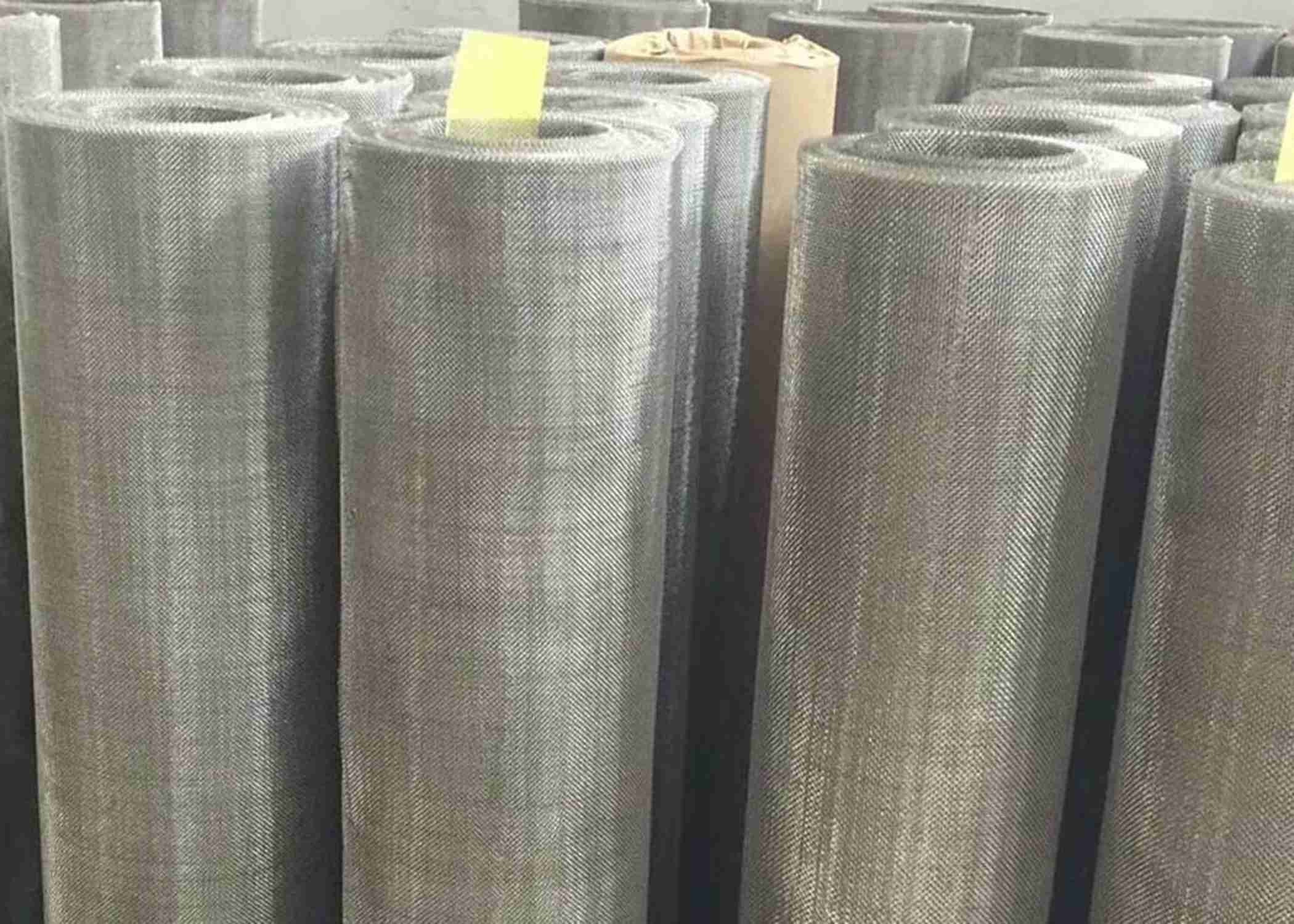

SS304 Square 400x200 SS Woven Wire Mesh High Strength 2



Packing:



Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof.

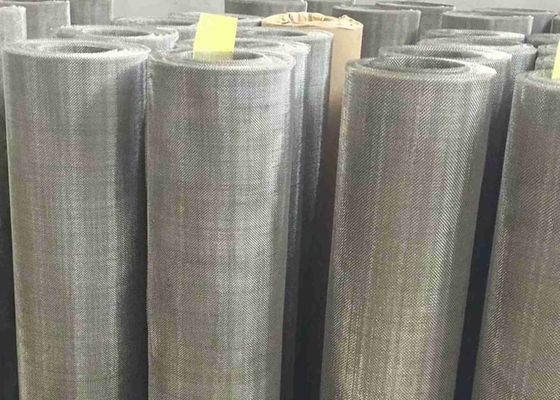

SS304 Square 400x200 SS Woven Wire Mesh High Strength 3
