AISI304 8 To 100 Stainless Steel Woven Wire Mesh Herringbone Weave

  • AISI304 8 To 100 Stainless Steel Woven Wire Mesh Herringbone Weave
  • AISI304 8 To 100 Stainless Steel Woven Wire Mesh Herringbone Weave
  • AISI304 8 To 100 Stainless Steel Woven Wire Mesh Herringbone Weave
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wear-resistant, High Strength And Long Service Life Product Name SS Woven Wire Mesh
Material Stainless Steel Surface Bright Silver
Aperture Shape Square Mesh Counts 8mesh -100mesh
Weaving Type Herringbone Weave Roll Width Customized
Roll Length Customized Application Used In The Dry Belt.
High Light

10 stainless steel woven wire mesh

,

8 stainless steel woven wire mesh

,

AISI304 stainless steel woven mesh
Leave a Message
Product Description

AISI304 Herringbone Weave Used in the Dry Belt SS Woven Wire Mesh



Stainless Steel Herringbone Weave Wire Mesh Introduction:



Herringbone, also called broken twill weave, describes a distinctive V-shaped weaving pattern usually found in twill weave wire mesh. The direction of twilled weave is reversed at regular intervals. The pattern is called herringbone because it resembles the skeleton of a herring fish. The main feature is the smooth surface offering strong corrosion resistance, high tensile strength, good air permeability, easy deformation, durability and other special features. This fine mesh can reduce and prevent the leakage of small objects. Currently it is widely used in food, petrochemical, electronic components, machinery parts, heat treatment and other applicable industries.



Material:



Mainly with stainless steel 304.



Weaving Type:



Herringbone Weave (Aslo called broken twill weave)



Specifications:



Mesh/Inch Wire Diameter(mm) Aperture(mm)
8 0.71 2.47
10 0.65 1.89
12 0.60 1.52
14 0.50 1.31
16 0.40 1.19
20 0.40 0.87
24 0.35 0.71
30 0.30 0.55
40 0.25 0.39
50 0.20 0.31
60 0.17 0.25
80 x 70 0.135 - -
100 x 90 0.11 - -


Other specifications according to your requirements.

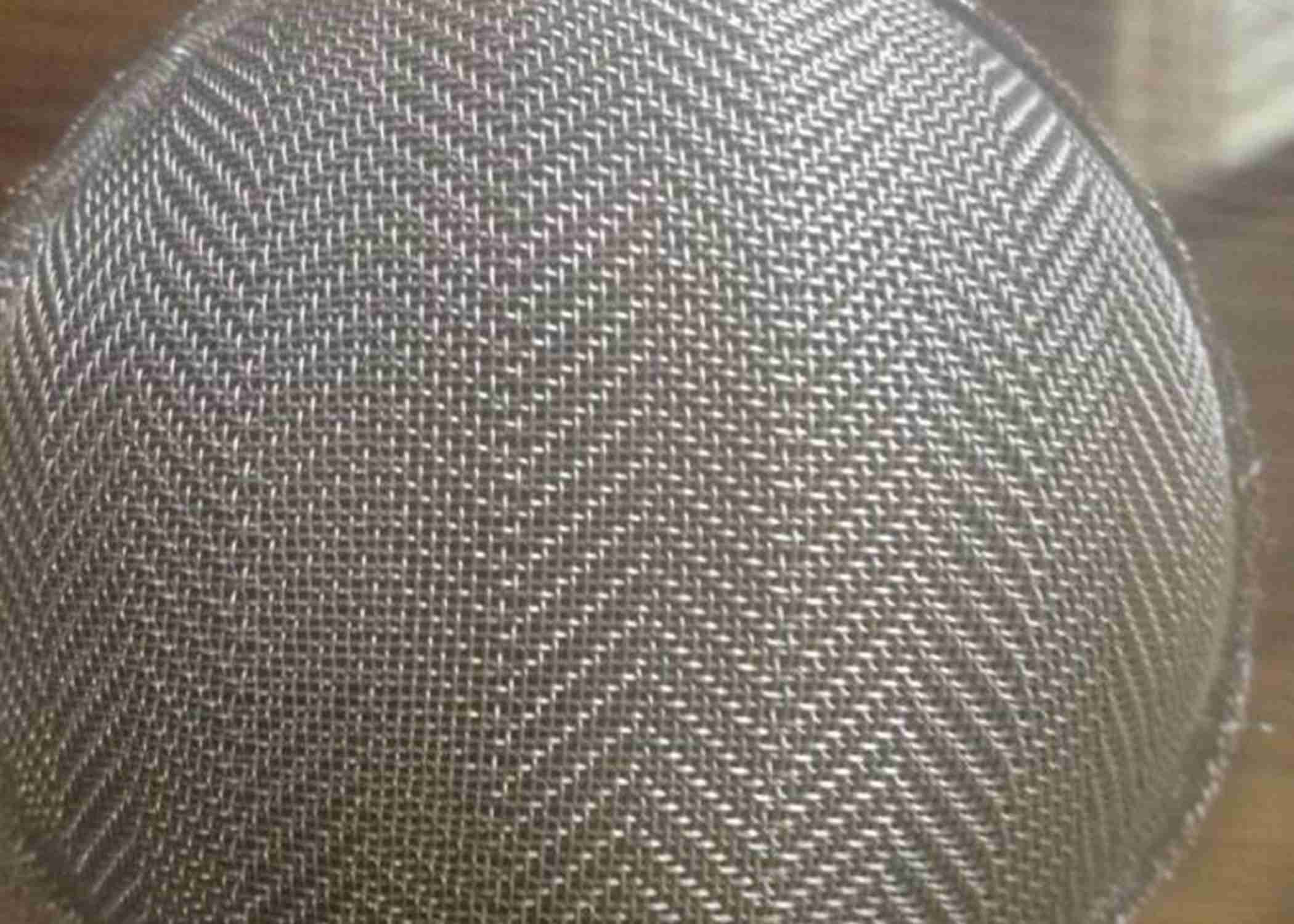

AISI304 Herringbone Weave Wire Mesh, 8 to 100mesh, Used in the Dry Belt


Features:



The main feature is the smooth surface offering strong corrosion resistance, high tensile strength, good air permeability, easy deformation, durability and other special features.



Applications:



It is widely used in food, petrochemical, electronic components, machinery parts, heat treatment and other applicable industries.

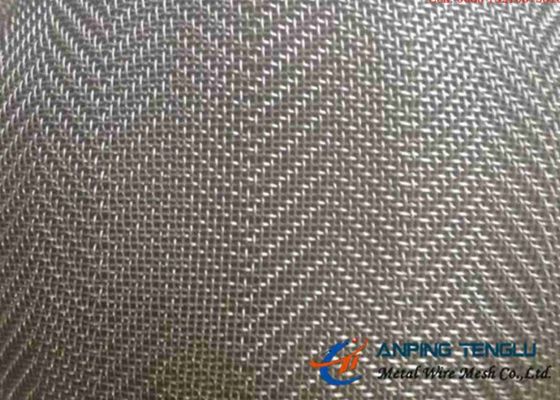

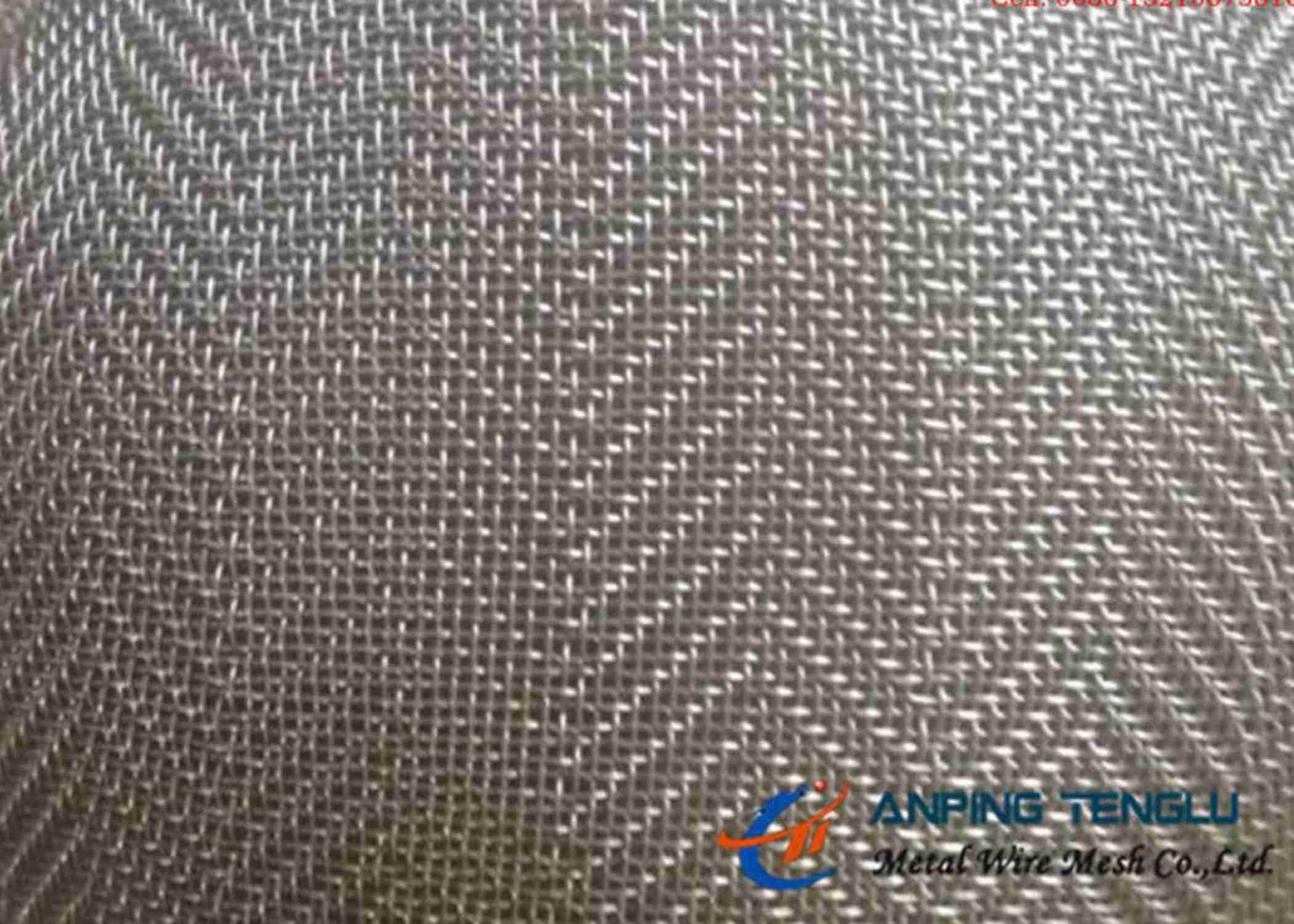

AISI304 Herringbone Weave Wire Mesh, 8 to 100mesh, Used in the Dry Belt



Packing:



AISI304 8 To 100 Stainless Steel Woven Wire Mesh Herringbone Weave 2
