Ultra Thin 304HC 304L SS Woven Wire Mesh Twill Weave

  • Ultra Thin 304HC 304L SS Woven Wire Mesh Twill Weave
  • Ultra Thin 304HC 304L SS Woven Wire Mesh Twill Weave
  • Ultra Thin 304HC 304L SS Woven Wire Mesh Twill Weave
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wear-resistant, High Strength And Long Service Life Product Name SS Woven Wire Mesh
Material Stainless Steel Surface Bright Silver
Aperture Shape Square Mesh Counts 1 To 635 Per Inch
Weaving Type Twill Weave Roll Width Customized
Roll Length 30m Standard Application Filtration
High Light

304L SS Woven Wire Mesh

,

304HC SS Woven Wire Mesh

,

Twill Weave screen mesh stainless steel
Leave a Message
Product Description

Ultra Thin Mesh Stainless Steel Plain Weave SS Woven Wire Mesh

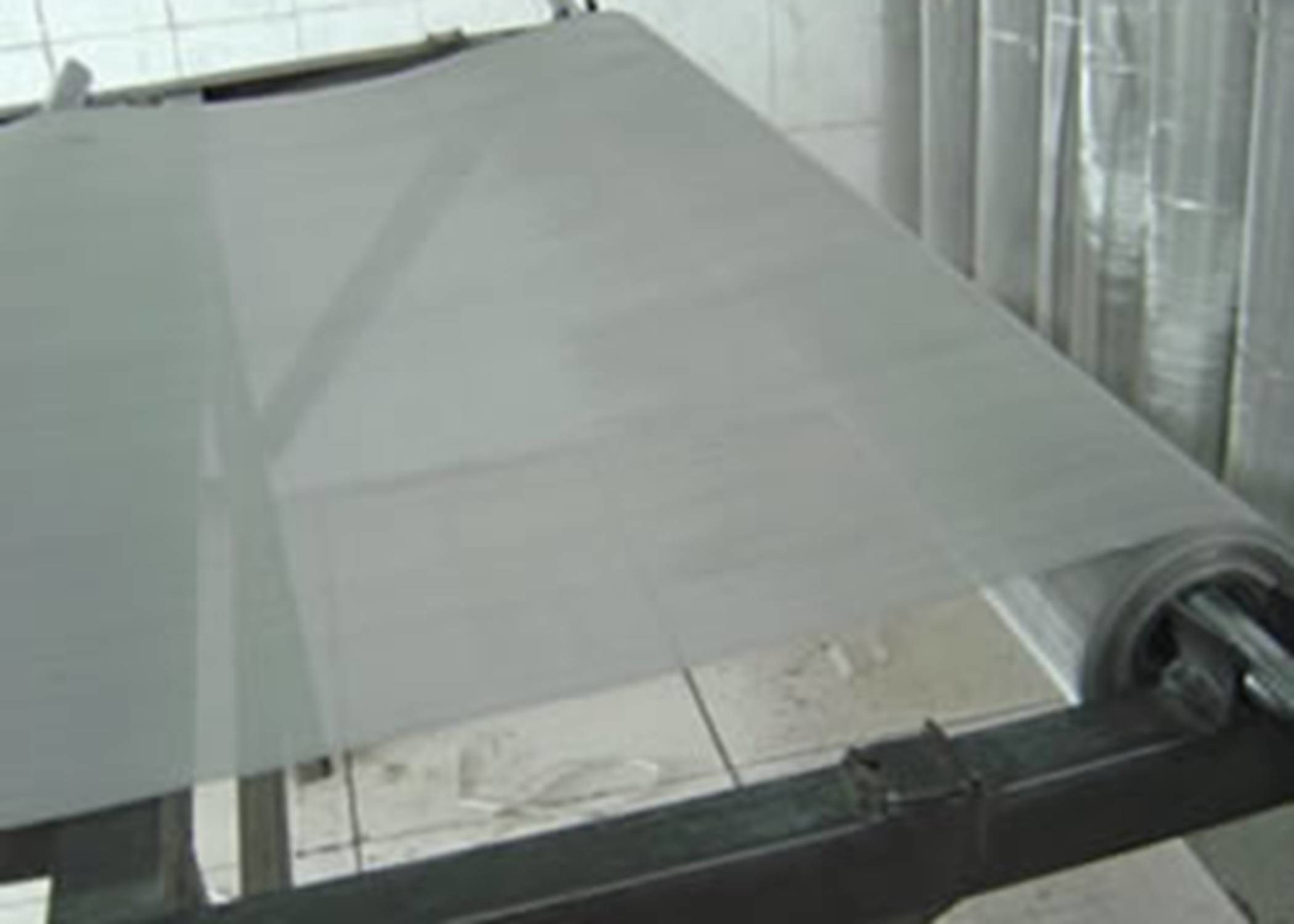

Stainless Steel Ultra-thin Mesh Introduction


stainless steel ultra- thin mesh is a kind of ultra-thin woven stainless steel wire mesh with uniform opening and good firmness.

Stainless Steel Ultra-thin Mesh The uses of carefully selected special stainless alloy materials and the most advanced weaving technology adopted ensure the very compact weaving structure is achieved and the thickness of the wire mesh is within the allowed tolerance range. Hence the precision of the wire mesh is further enhanced for high precision printing requirements.


Material:


SS304, 304HC, 304L, 316, 316L.



Weave:


Plain weave


Application:


Super-Thin Stainless Steel Wire Meshes are widly used as shielding materials. we can supply it of different sizes according to the customer's request.


Specification List of Ultra-thin Stainless Steel Wire Mesh


Mesh/Inch Wire Dia Mesh Opening Opening Area Weight Mesh /Inch Wire Dia Mesh Opening Opening Area Weight
mm (mm) A (kg/sq m) mm mm A (kg/sq m)
d w % 　 d w % 　
16 0.04 1.547 95% 2.56 120 0.06 0.151 51% 1.25
25 0.025 0.991 87% 6 130 0.043 0.152 61% 1.095
32 0.025 0.768 94% 3.84 150 0.05 0.119 50% 0.968
36 0.028 0.677 92% 5.12 150 0.028 0.141 70% 0.722
42 0.036 0.568 53% 2.88 160 0.043 0.115 53% 0.903
50 0.03 0.478 89% 3.6 160 0.035 0.123 61% 0.81
56 0.04 0.413 83% 2.5 180 0.03 0.111 62% 0.585
63 0.04 0.363 81% 4.32 200 0.036 0.091 51% 0.768
70 0.065 0.297 67% 2.43 200 0.028 0.099 61% 0.447
80 0.063 0.254 64% 1.488 220 0.026 0.089 60% 0.504
80 0.05 0.267 71% 1.29 230 0.03 0.08 53% 0.784
82 0.065 0.244 62% 1.044 250 0.03 0.072 50% 0.576
82 0.053 0.256 69% 1.548 260 0.022 0.076 60% 0.648
90 0.06 0.222 65% 1.217 280 0.025 0.066 53% 0.5
100 0.05 0.196 62% 0.833 300 0.028 0.057 45% 0.32
110 0.06 0.17 55% 1.131 325 0.025 0.053 46% 0.486

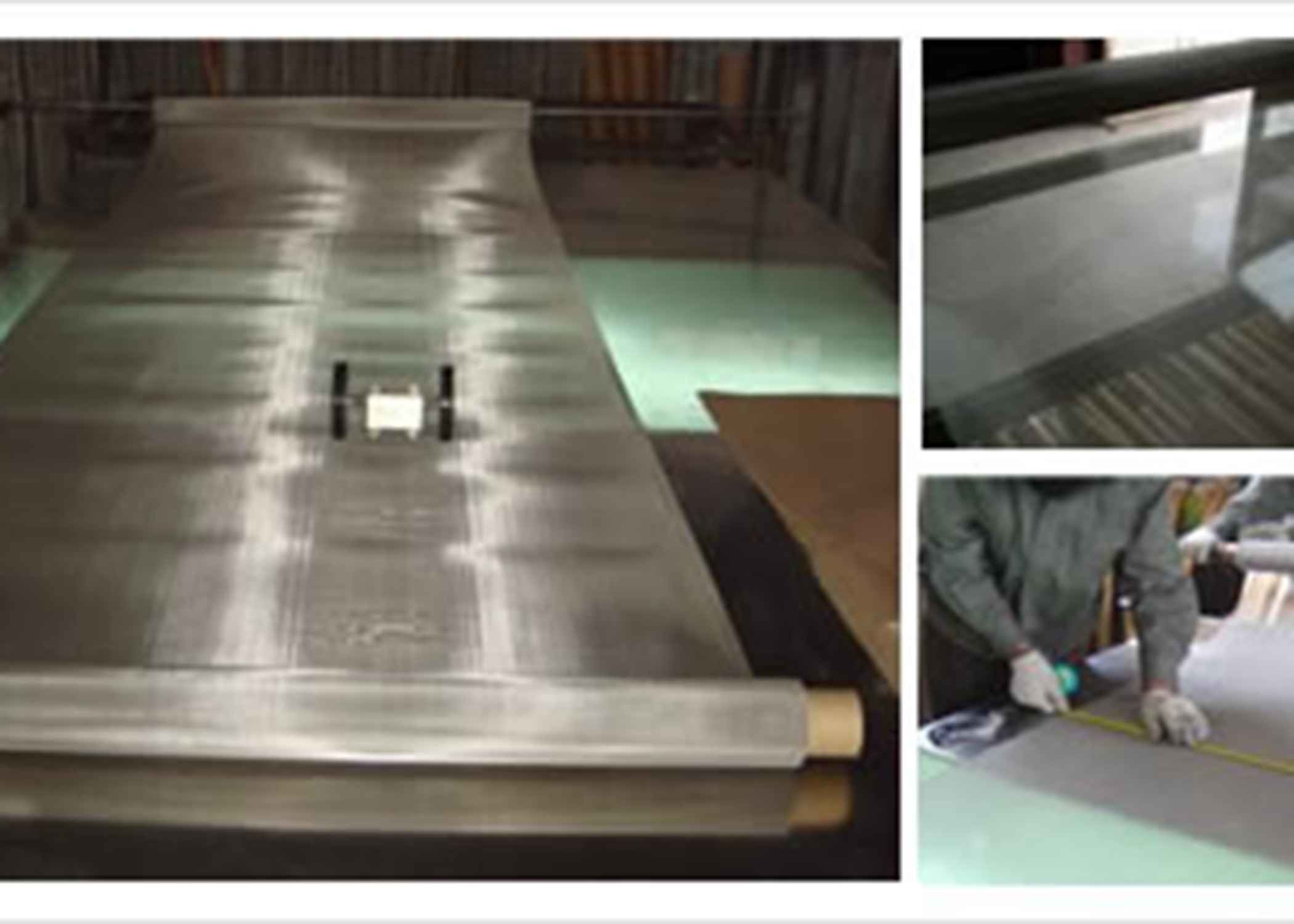

Plain Weave Stainless Steel Ultra-thin Wire Mesh With SS304, 304HC, 304L, 316, 316L.



Packing:



Ultra Thin 304HC 304L SS Woven Wire Mesh Twill Weave 1
