Anti Rust 316L 635 Mesh Steel Woven Wire Mesh Twill Weave 0.025mm Hole

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Wear-resistant, High Strength And Long Service Life | Product Name | SS Woven Wire Mesh |
---|---|---|---|
Material | SS316L | Surface | Bright Silver |
Aperture Shape | Square | Mesh Counts | 635 Mesh Per Inch |
Wire Diameter | 0.015mm | Aperture | 0.025mm |
Weaving Type | Twill Weave | Application | Filtration |
Highlight | 635 Mesh Steel Woven Wire Mesh,316L Steel Woven Wire Mesh,0.025mm 316 stainless steel mesh screen |

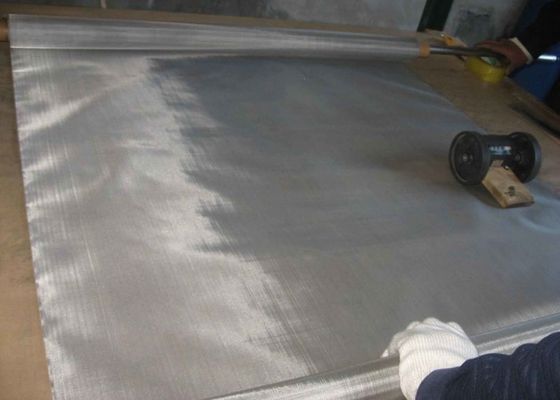

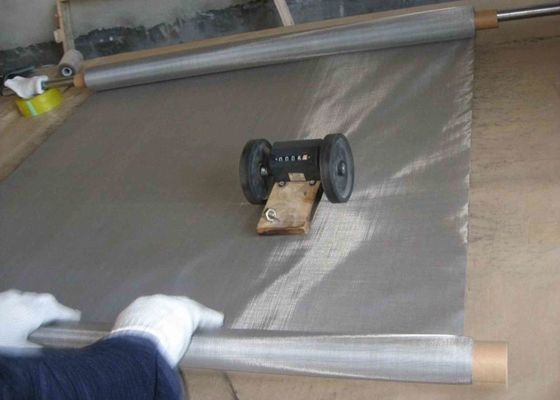

Stainless Steel 316L Twill Weave 635 mesh SS Woven Wire Mesh
635 Twill Weave Mesh With SS316L Introduction
635 mesh twill weave stainless steel wire mesh including 635 wires and openings of 1 inch. Using 0.015mm diameter wire, by twill weaving, woven 635 mesh opening for 0.025mm liquid or gas filter. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
Standard Specifications:
Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB) /100 Square Foot | ||
Inch | MM | Inch | MM | |||
90X90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | 15.8 |
100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
100X100 | 0.004 | 0.102 | 0.006 | 0.15 | 36 | 11 |
100X100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | 8.3 |
110X110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 |
120X120 | 0.0037 | 0.094 | 0.0064 | 0.1168 | 30.7 | 11.6 |
150X150 | 0.0026 | 0.066 | 0.0041 | 0.1041 | 37.4 | 7.1 |
160X160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 | 36.4 | 5.94 |
180X180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 | 6.7 |
200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 | 6.2 |
250X250 | 0.0016 | 0.0406 | 0.0024 | 0.061 | 36 | 4.4 |
270X270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 | 4.7 |
300X300 | 0.0051 | 0.0381 | 0.0018 | 0.0457 | 29.7 | 3.04 |
325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 | 4.4 |
400X400 | 0.001 | 0.0254 | 0.0015 | 0.37 | 36 | 3.3 |
500X500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 | 3.8 |
635X635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 | 2.63 |
Other specifications according to your requirements.
Material: SS316L.
CHEMICAL COMPOSITIONS(WT%) | ||||||||
ITEMS | C | Si | Mn | P | S | Ni | Cr | Mo |
SPEC. | <0.03 | <1.00 | <2.00 | <0.045 | <0.03 | 12-15 | 16-18 | 2-3 |
TESTING | 0.016 | 0.54 | 1.26 | 0.02 | 0.017 | 12.13 | 17.81 | 2.06 |
Weave Type: Twill Weave
Characteristics:
High tension, much higher tension than common polyester mesh,and this property is very suitable.
Super precision: uniform wire diameter and aperture with extremely low difference.
Low elongation: very small elongation of wire mesh at high tension.
High flexibility: the wire mesh will not lose elasticity at extreme tension.
High corrosion resistance: the excellent corronsion resistance of stainless steel wire exceeds polyester fiber.
Non-electrostatic: to avoid affects of nonelectrostatic for printing and ensure the ety of priting.
Good heat melting resistance:special features of steel wire mesh suitable for heta-melting ink.
Good solvent resistance: to avoid the affects of any solvents to wire mesh.
Applications:
Sieves; Filters; Laboratories; Injection Powders; Dusts Selection; Screening Chemical Additives; Oil Fine Filter; Gas Flow Control, etc.
Packing:
Water-proof paper first then plastic film, in wooden case or pallets.
