1 To 10 Mesh SS Woven Wire Mesh 1.6mm To 2.1mm Aperture Hole Coarse
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | SS Woven Wire Mesh | Material | Stainless Steel |
---|---|---|---|
Surface | Bright Silver | Aperture Shape | Square |
Mesh Counts | 1 To 10 Mesh | Wire Diameter | 1.6mm To 2.1mm |
Roll Width | Customized | Standard Length | Customized |
Properity | Superior Corrosion Resistance | Application | Filtration |
High Light | 10 Mesh SS Woven Wire Mesh,1 mesh SS Woven Wire Mesh,TENGLU 1.0m 2.1mm screen mesh stainless steel |

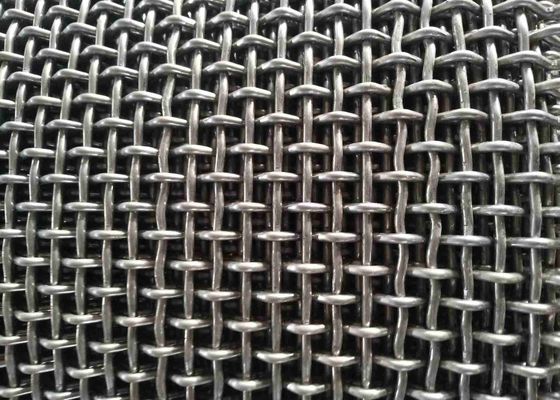

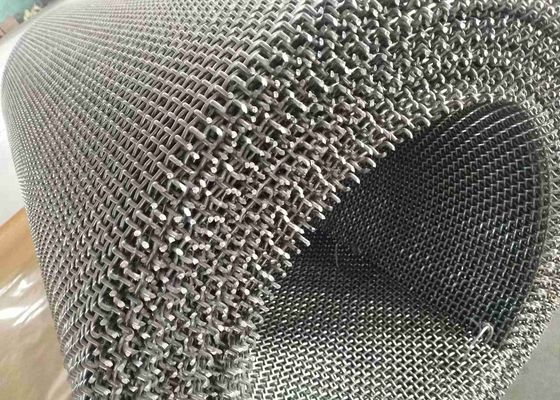

1 to 10Mesh 1.6mm to 2.1mm Aperture Hole Coarse Stainless Steel Mesh
Coarse stainless steel wire mesh type:
Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
Plain Dutch Weave.
Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
Reverse Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
10 Mesh Specifications:
Specifications | US | Metric |
Mesh Size | 10/Inch | 10/2.54cm |
Wire Diameter | 0.025” | 0.64mm |
Width | 48” | 1.22m |
Length | 100ft | 30.5m |
Packing: Water-proof paper first then plastic film, in wooden case or pallets. | ||
Nearest Port: Tianjin(By Sea); Beijing(By Air). |
Mesh | Wire Diameter | Aperture | Open Area Rate | Weight/㎡ | |||
mm | Inch | mm | Inch | % | Kgs | Lbs | |
10 | 0.90 | 0.0354 | 1.64 | 0.0645 | 41.66 | 4.05 | 8.91 |
0.80 | 0.0314 | 1.74 | 0.0685 | 46.92 | 3.20 | 7.04 | |
0.70 | 0.0275 | 1.84 | 0.0724 | 52.47 | 2.45 | 5.39 | |
0.60 | 0.0236 | 1.94 | 0.0763 | 58.33 | 1.80 | 3.96 | |
0.50 | 0.0196 | 2.04 | 0.0803 | 64.50 | 1.25 | 2.75 | |
0.40 | 0.0157 | 2.14 | 0.0842 | 70.98 | 0.80 | 1.76 | |
Roll Width: Max 8.0m |
Standard Specifications:
Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB) /100 Square Foot | ||
Inch | MM | Inch | MM | |||
1x1 | 0.08 | 2.03 | 0.92 | 23.37 | 84.6 | 41.1 |
2X2 | 0.063 | 1.6 | 0.437 | 11.1 | 76.4 | 51.2 |
3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | 56.7 |
4X4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 | 104.8 |
4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 | 57.6 |
5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | 54.9 |
6X6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | 48.1 |
8X8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | 41.1 |
10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 | 41.2 |
10X10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | 26.1 |
Other specifications according to your requirements.
Materials:
SS304 SS316
Weaving Type:
Plain weave
Characteristics:
High tension, much higher tension than common polyester mesh,and this property is very suitable.
Super precision: uniform wire diameter and aperture with extremely low difference.
Low elongation: very small elongation of wire mesh at high tension.
High flexibility: the wire mesh will not lose elasticity at extreme tension.
High corrosion resistance: the excellent corronsion resistance of stainless steel wire exceeds polyester fiber.
Non-electrostatic: to avoid affects of nonelectrostatic for printing and ensure the ety of priting.
Good heat melting resistance:special features of steel wire mesh suitable for heta-melting ink.
Good solvent resistance:to avoid the affects of any solvents to wire mesh.
Applications:
Air Vents;
Filters;
Hydraulic Filters;
Plastic Extrusion;
Guarding;
Car Grille;
Scuttle Panel;
Heater Guard;
ety Guard;
Ozone Generator;
Decorative/Cosmetic Mesh;
Food Use;
Door And Window Protection;
Sand Sieve;
Paper Pulp Transportation;
Speakers Cover;
Microphones Cover;
Protecting Air Intakes From Small Objects And Light Debris.
