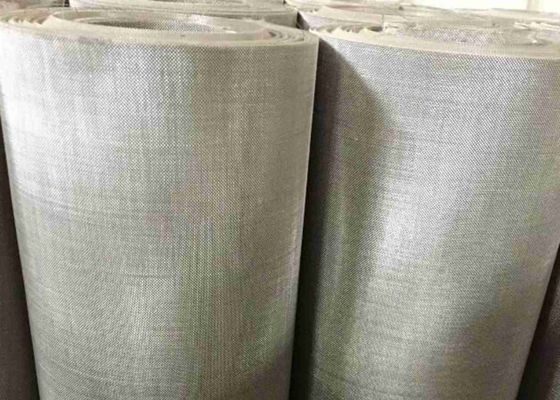

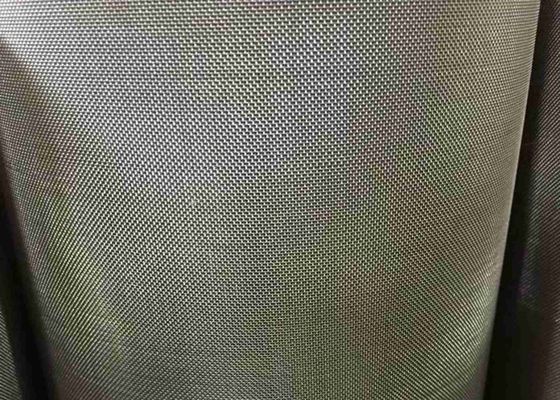

Anti Rust 10 To 100 Mesh SS Woven Wire Mesh , 316 Stainless Steel Mesh Screen

  • Anti Rust 10 To 100 Mesh SS Woven Wire Mesh , 316 Stainless Steel Mesh Screen
  • Anti Rust 10 To 100 Mesh SS Woven Wire Mesh , 316 Stainless Steel Mesh Screen
  • Anti Rust 10 To 100 Mesh SS Woven Wire Mesh , 316 Stainless Steel Mesh Screen
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SS Woven Wire Mesh Material Stainless Steel
Surface Bright Silver Hole Shape Square Hole
Mesh Counts 10 To 100 Per Inch Woven Type Plain Weave
Standard Width 40", 48", 70" Roll Length 100'
Properity Anti-rust Application Pulp And Papermaking Industry
Highlight

100 Mesh SS Woven Wire Mesh

,

10 mesh SS Woven Wire Mesh

,

316 Stainless Steel Mesh Screen
Leave a Message
Product Description

10 to 100 Mesh Counts for Papermaking Industry SS Woven Wire Mesh



Paper Making Wire Mesh Brief Introduction



It was installed in the paper-making machine net department, which can make the water suspension of pulp preliminary dehydration, and then form the wet paper pages. Woven wire metal mesh can be used in papermaking industry. Pulp and paper industry use the wire mesh for water clarification,dewatering, pulp screening and fractionation, drying and other liquid/solid separation processes. The mainly use as a face cloth cover for cylinder mould, high quality wire cloth is woven to our specification using a variety of weaves and wire diameters, the wire mesh are features with durability, seam strength, drainage and minimized wire marking.



The selection of wire mesh size depends on the amount of short fiber it is desirable to include in the pulp. The smaller the mesh openings, the more short fiber and clay will be retained and the less the hydraulic loading can be exerted per square meter of mesh surface area.





Papermaking Usuage Stainless Steel Woven Mesh Specifications:



Mesh Wire Diameter Aperture Open Area Rate
mm Inch mm Inch %
20 0.27 0.0106 1.000 0.0393 62.00
20 0.25 0.0098 1.020 0.0401 64.50
80 0.12 0.0047 0.197 0.0077 38.69
80 0.10 0.0039 0.217 0.0085 46.92
100 0.10 0.0039 0.154 0.0060 36.75
100 0.08 0.0031 0.174 0.0068 46.92
120 0.06 0.0023 0.151 0.0059 51.34

Other specifications as your requests.

Anti Rust 10 To 100 Mesh SS Woven Wire Mesh , 316 Stainless Steel Mesh Screen 0


Materials:



SS304, SS304L, SS316, SS316L.



Weaving Type: Plain weave.


Stainless Steel Woven Wire Mesh,10-100Mesh Count for Papermaking Industry



Features:



Corrosion resistance, mechanical properties, physical properties and fabricability

Improve finish paper quality including evenness, gram weight and aspect tension ratio

Reduction in the amount of water carry-over from the inside of mould.

Reducing the effect of centrifugal force.



Characteristics:


Easy to clean

Maximum open area

Increase in formation pressure.

Firm mesh binding
High precision of the mesh openings
Uniform weave (no mesh striping)
No static charge
Exceptionally high yield point
Very narrow thickness tolerances
Large open area



Applications:



Pulp and paper making industry, waste water treatment.

Stainless Steel Woven Wire Mesh,10-100Mesh Count for Papermaking Industry



Packing:

Anti Rust 10 To 100 Mesh SS Woven Wire Mesh , 316 Stainless Steel Mesh Screen 3
