Micro Opening 36" 48" SS Woven Wire Mesh Bright Silver

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Narrow Pore Size, High Stability, Etc Product Name SS Woven Wire Mesh
Material Stainless Steel Surface Bright Silver
Hole Shape Square Hole Woven Type Plain Weave, Twilled Weave, Dutch Weave
Edge Type Raw Edge Width 36", 48", Etc
Length 100' Usage Widely Used In Many Different Industries For Filtration
Highlight

0.1m 48" SS Woven Wire Mesh

,

0.1m 36" SS Woven Wire Mesh

,

TENGLU 0.1m Micro Opening woven mesh screen

Leave a Message
Product Description

Micro Opening Precisely Woven High Stability SS Woven Wire Mesh



Bfief Introduction



Stainless Steel Micro Hole Wire Cloth, We offer the comprehensive range of micron wire cloths, ranging to ultra fine options and manufactured from stainless steel and all metallic materials and alloys. All wire cloth is manufactured using the most modern production equipment under clean conditions. Our woven wire filter cloths are ideally suited to surface filtration applications, and have proved their worth in many different environments and situations.



Specifications:



Standard Roll Width: 1m or 48";

Standard Roll Length: 30m or 100ft.

Square Hole Plain Square Weave(PSW) 90-500Mesh
Twill Square Weave(TSW) 90-635Mesh
Dutch Weave Plain Dutch Weave(PDW) (7-100)×(40-1200)
Twill Dutch Weave(TDW) (20-500)×(150-3500)
Other specifications according to your requirements.

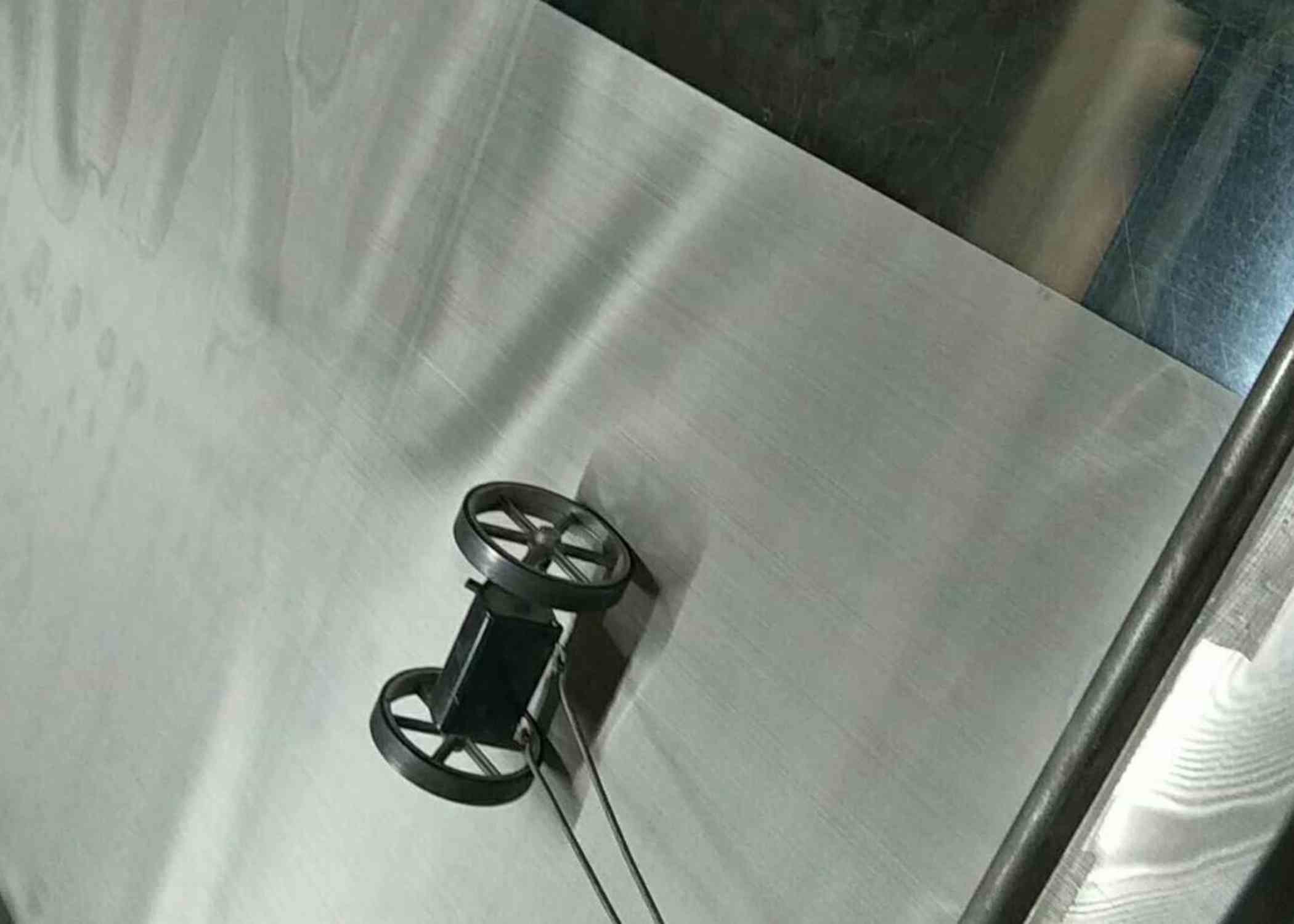

Micro Opening 36" 48" SS Woven Wire Mesh Bright Silver 0

Materials:



SS304, SS304L, SS316, SS316L and Other Stainless Steel Alloy. Aluminum, Brass, Nickel, Hastelloy and other metal are available.



Weaving Type:

Micro Opening Wire Cloth/Microbic Wire Cloth, Precisely Woven in Stainless Steel



Micronic (Dutch Weaves PDW and TDW)- The dutch weaves (PDW, TDW) are thick, strong; light-tight meshes which are used primarily in fluid, vacuum, and pressure filtration of liquids and gases. These are woven to precise tolerances and their openings are actually tiny curved, triangular tunnels.

Micro Opening Wire Cloth/Microbic Wire Cloth, Precisely Woven in Stainless Steel



Micronic (Square Weaves PSW and TSW) - The square weaves (PSW, TSW) are woven with straight through square holes, are thin and flexible, and are often used in the separation and classification of solid particles. These square weaves have very high flow rates and square see through openings.


Features:



Accuracy of weave.

Rigidity.

Regularity.
High stability.
Corrosion resistance.
Thermal resistance.
Resistance to moisture.
No static loading.
Ease of fabrication.

Optimum flow rates.

Narrow pore size distribution.
Precise alignment of filter pores.
Excellent resistance to abrasion.
No particle dissolution.
Easy to clean.
Excellent levels of plasticity.
Chemical and thermal resistance.
Smooth surface structure.
High levels of reliability.

Applications:



Pressure filters for fine filtration in hydraulic steering equipment.
Oil and fuel filters.
Pressure and vacuum filters.
As porous media for fluid beds.
Filter candles.
Medical science.
Food and beverage industry.
Plastics industry.



Packing:

Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.

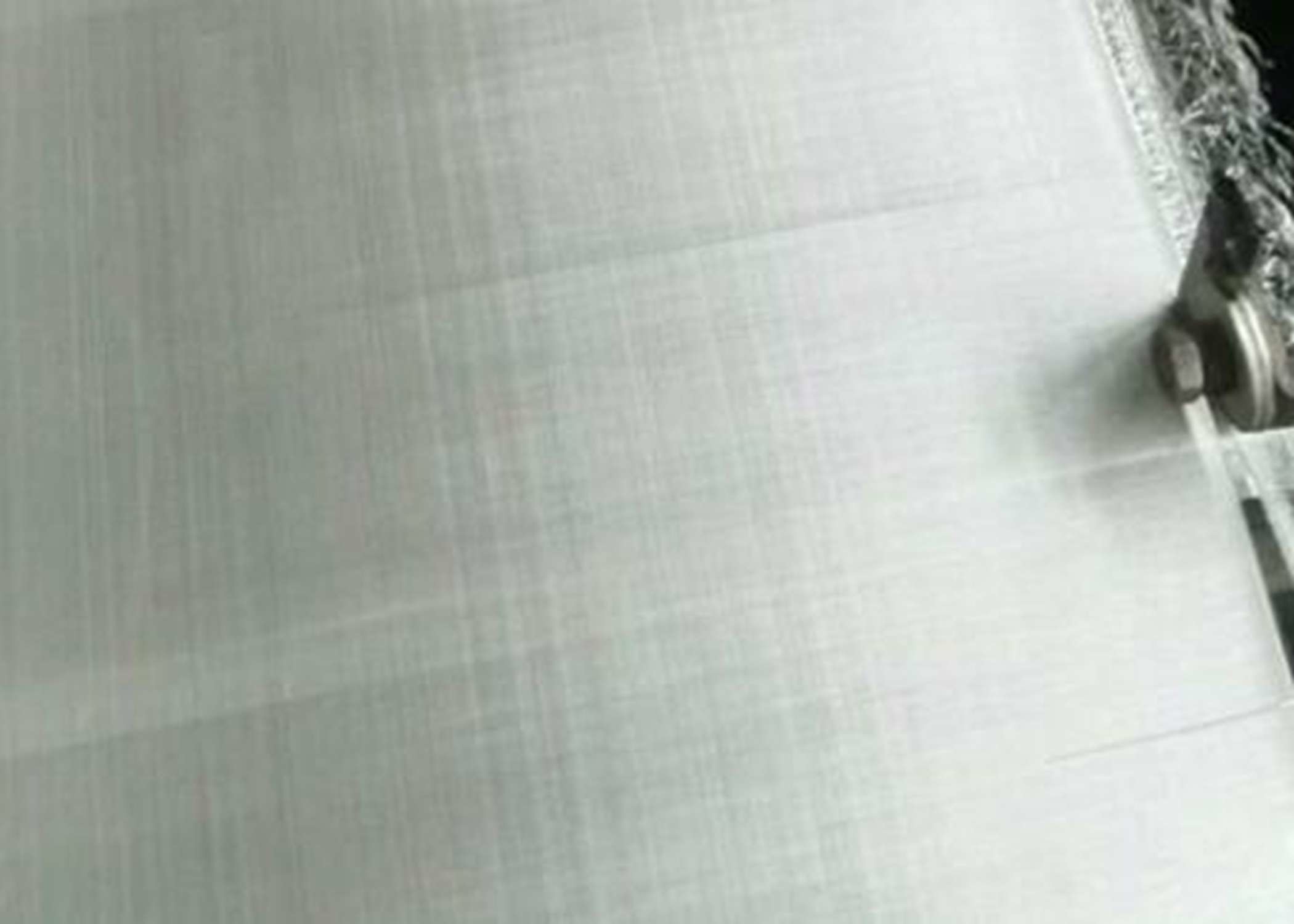

Micro Opening 36" 48" SS Woven Wire Mesh Bright Silver 3
