Square Hole SS Woven Wire Mesh 18x18 Mesh Selvage Edge

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Selvage Edge Will Increase The Stability Of A Mesh And Provide A Safety Edge For Handling Product Name SS Woven Wire Mesh
Material Stainless Steel Surface Bright Silver
Hole Shape Square Hole Mesh Counts Mainly 1 To 30 Per Inch
Edge Type Selvaged Edge Width 36", 48", Etc
Length 100' Usage Food Industry, Filtration Industry
High Light

Selvage Edge Square Hole SS Woven Wire Mesh

,

Selvage Edge 18 Mesh SS Woven Wire Mesh

,

Selvage Edge stainless steel metal mesh

Leave a Message
Product Description

18x18 Selvaged Edge Woven Mesh Square Hole 304 Ss Woven Wire Mesh



brief introduction



Selvage edge woven wire mesh, “selvage edge” refers to the edge or border of wire cloth that has a finished edge. When wire cloth is woven, the shute wires are woven in, continuously, forming a smooth edge that runs the length of roll while helping to prevent unraveling on certain specifications. Generally speaking, a selvage edge will increase the stability of a mesh and provide a safety edge for handling. Looped selvage, as seen in the photo below, is the most common type of selvage edge. In recent years, selvage edge has decreased in popularity due to difficulty in producing and increased costs to produce. When a selvage edge is required, it is important to specify, as raw edge is widely the norm in the industry.



Materials: SS304 316, 304L, 316L, etc.
Standard: AISI, SUS, EN.
Weaving: plain woven wire cloth.


Specification:



Mesh/Inch

Wire Diameter Aperture

Open Area
(%)

Weight
(kg /Square meter)

Inch MM Inch MM
4X4 .047 1.19 .203 5.16 81.2 2.7
5X5 .041 1.04 .159 4.04 79.5 2.6
6x6 .035 0.89 .145 3.68   2.1
8 x 8 .32 0.81 .113 2.88   2.6
10X10 .025 .64 .075 1.91 74.9 2.0
12X12 .020 .508 .063 1.60 75.9 1.5
14X14 .020 .508 .051 1.30 71.9 1.8
16X16 .018 .457 .0445 1.13 71.2 1.6
18X18 .017 .432 .0386 .98 69.4 1.6
20X20 .020 .240 .0300 .76 76.0 .56
20X20 .016 .330 .0340 .86 72.2 1.1
30X30 .0120 .305 .0213 .54 63.9 1.4
30X30 .0094 .240 .0243 .62 72.1 .84

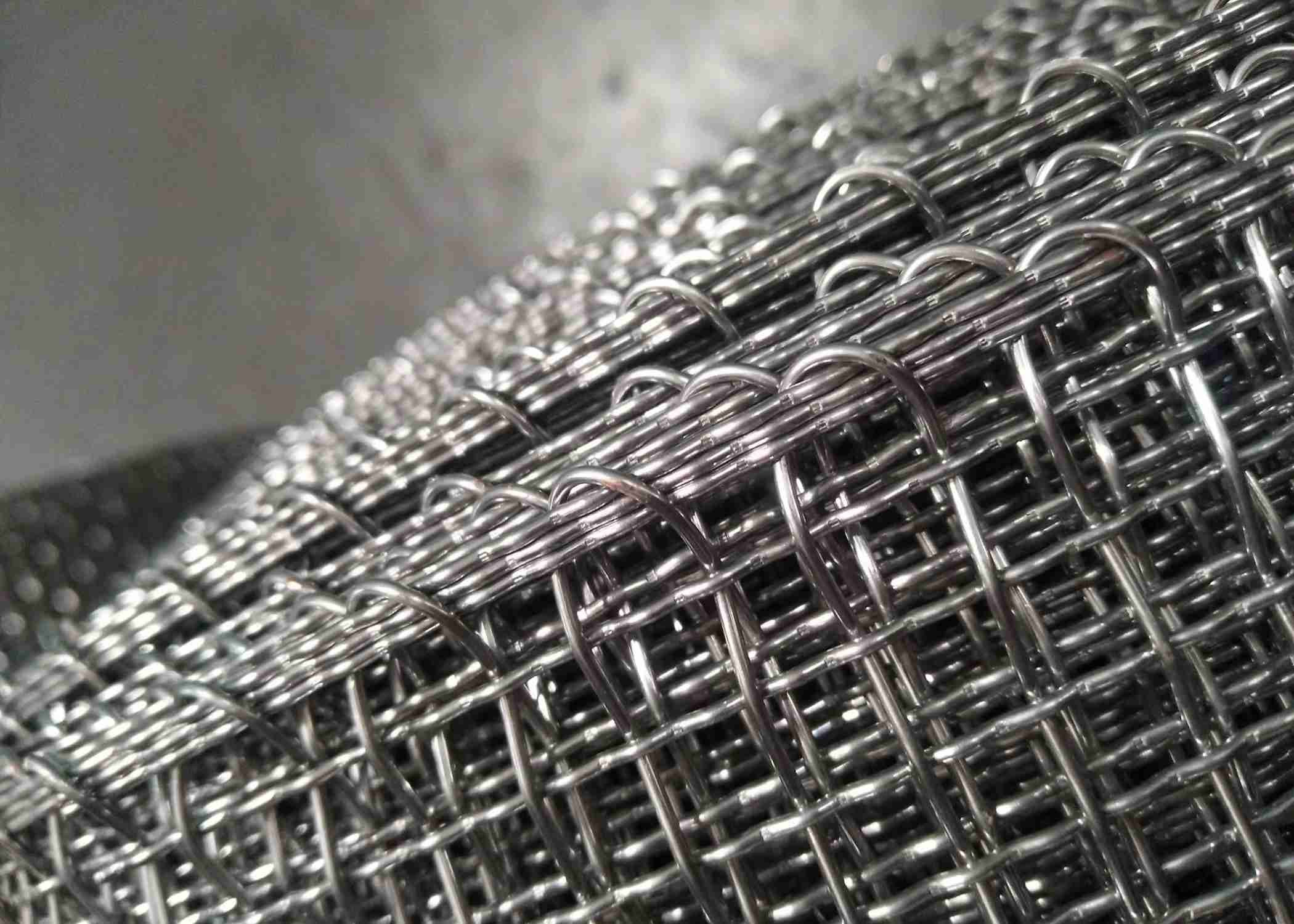

Square Hole SS Woven Wire Mesh 18x18 Mesh Selvage Edge 0



Edge Type:

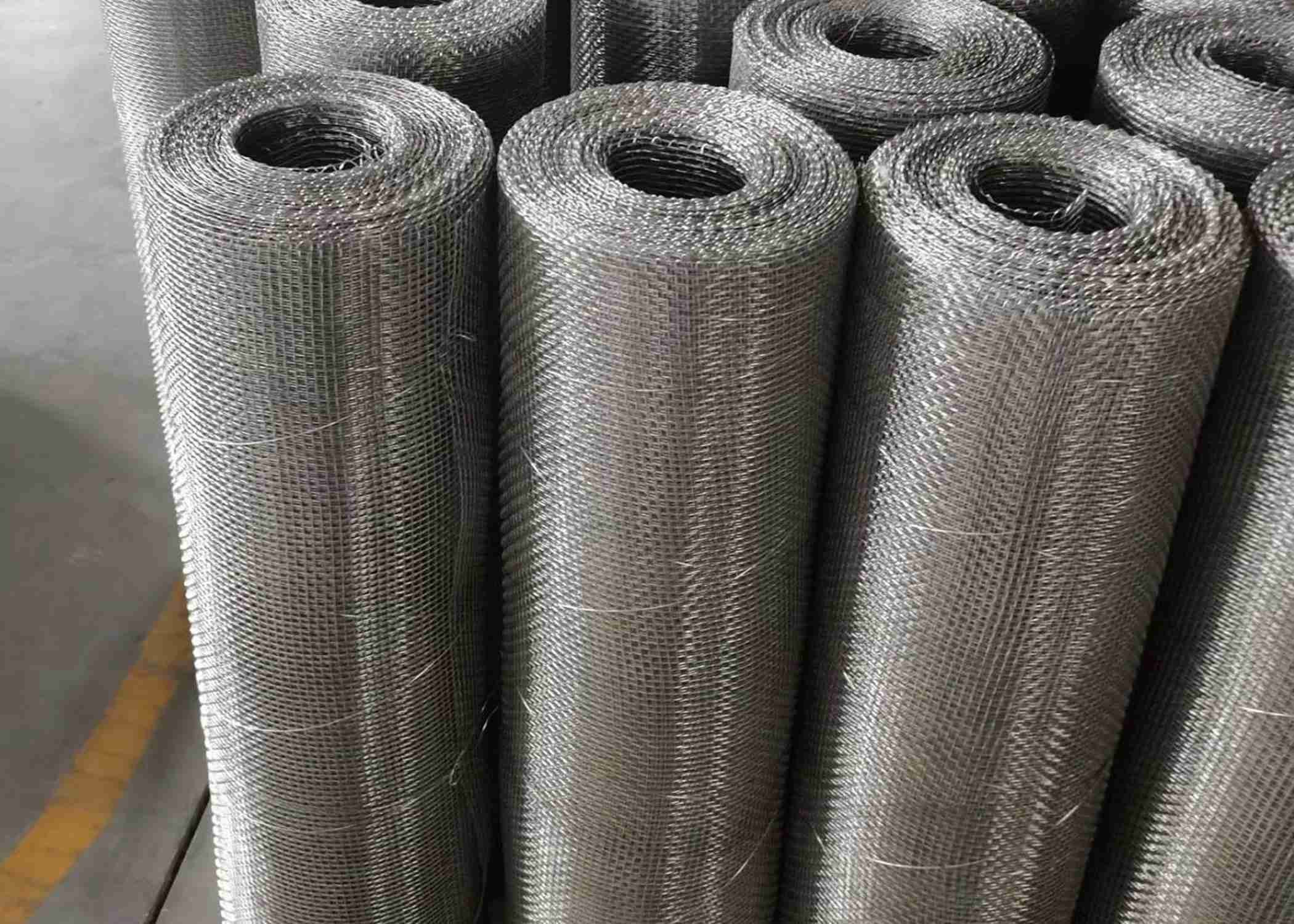

Square Hole SS Woven Wire Mesh 18x18 Mesh Selvage Edge 1

Characteristics and usage:


stainless steel wire mesh is heat-resisting, acid-resisting and corrosion-resisting. This kind of wire mesh is widely used in mining, chemicals, food products and others.

Square Hole SS Woven Wire Mesh 18x18 Mesh Selvage Edge 2


Application:


It can be processed into filter discs of various sizes
It can be cut into size panels in all shapes including, squares, rectangles and circles in all materials and mesh sizes
Black wire cloth is mainly used in filtration mesh of rubber, plastic, petroleum and grains industry



Packing:

Square Hole SS Woven Wire Mesh 18x18 Mesh Selvage Edge 3

Company Information

Anping Qianpu Wire Mesh Products Co., Ltd. is located in Anping County, Hebei Province, the famous Chinese industry base and the township of wire mesh. Its west is Beijing-Guangzhou Railway and Beijing- Shenzhen Expressway, the east is the Beijing-Kowloon Railway and the Beijing-Shanghai Expressway, and the south is Shihuang Expressway. Inside the city, there is a large logistics center of railway and highway, so the transportation is so developed.



Square Hole SS Woven Wire Mesh 18x18 Mesh Selvage Edge 4Square Hole SS Woven Wire Mesh 18x18 Mesh Selvage Edge 5Square Hole SS Woven Wire Mesh 18x18 Mesh Selvage Edge 6
