200 Mesh Screen Square 316SS Mesh Firm Structure SS Woven Wire Mesh

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C
Supply Ability 3000 rolls per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Bright Silver, Firm Structure Product Name Stainless Steel Woven Wire Mesh
Material Stainless Steel Mesh Counts 200 Per Inch
Wire Diameter 0.0021 Inch Opening Microns 74 Microns
Opening 0.0029 Inch Width 1m, 1.2m, 1.5m Or Customized
Length Standard 30m Or Customized Application Filter,sieve
High Light

stainless steel filter disc

,

water filter screen mesh

Leave a Message
Product Description

200 Mesh Screen Square 316SS Mesh Firm Structure SS Woven Wire Mesh



200 mesh woven wire mesh introduction:



200 mesh plain weave stainless steel wire mesh including 200 wires and openings of 1 inch. Using 0.05mm diameter wire, by plain weaving, woven 200 mesh opening for 0.077mm liquid or gas filter. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.



We are specialized in producing and distributing stainless steel wire mesh, stainless steel wire cloth, stainless steel woven mesh, stainless steel filter mesh, stainless steel hardare cloth, stainless steel window screening,woven hardare cloth,stainless steel screen.



Materials:



Stainless steel woven wire meshes are generally made of stainless steel Type 302,304,304L,316,316L,321 and 430 etc. Many different grades of stainless are used in wire cloth.T304 is the most common one, but others are also used in specific applications



Weaving Types:



Plain or Twilled Weave, Plain or Twilled Dutch Weave, Five heddle Weave, Reverse Plain or Twilled Dutch Weave

The weaving is determined according to our customers' specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.





Characteristics:



High tension, much higher tension than common polyester mesh,and this property is very suitable.

Super precision: uniform wire diameter and aperture with extremely low difference.

Low elongation: very small elongation of wire mesh at high tension.

High flexibility: the wire mesh will not lose elasticity at extreme tension.

High corrosion resistance: the excellent corronsion resistance of stainless steel wire exceeds polyester fiber.

Non-electrostatic: to avoid affects of nonelectrostatic for printing and ensure the safety of priting.

Good heat melting resistance:special features of steel wire mesh suitable for heta-melting ink.

Good solvent resistance: to avoid the affects of any solvents to wire mesh.


Applications:


This kind of stainless steel wire mesh are widely used in such fields as environmental protection, pharmaceutical industry, chemical industry, food industry, mechanical industry, smelting industry, coal mining, paper making, cement, construction industry, decoration, aeronautics and astronautics and so on.



Specifications:



Specifications US Metric
Mesh Size 200/Inch 200/2.54cm
Wire Diameter 0.0021” 0.0533mm
Width 48” 1.22m
Length 100ft 30.5m
Packing: Water-proof paper first then plastic film, in wooden case or pallets.
Nearest Port: Tianjin(By Sea); Beijing(By Air).



Fine Mesh Standard Specifications:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8
635X635 0.0008 0.0203 0.0008 0.0203 25 2.63

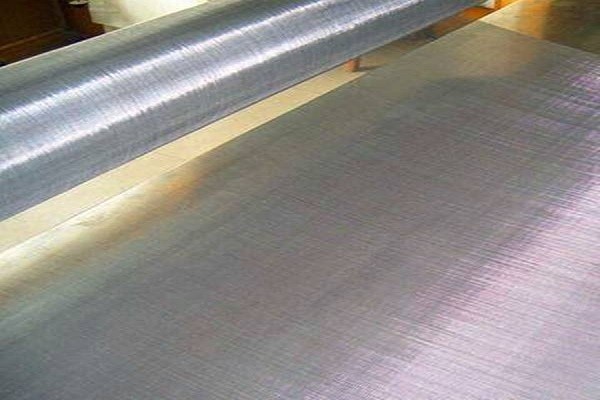

200 Mesh Screen Square 316SS Mesh Firm Structure SS Woven Wire Mesh 0



Type of woven

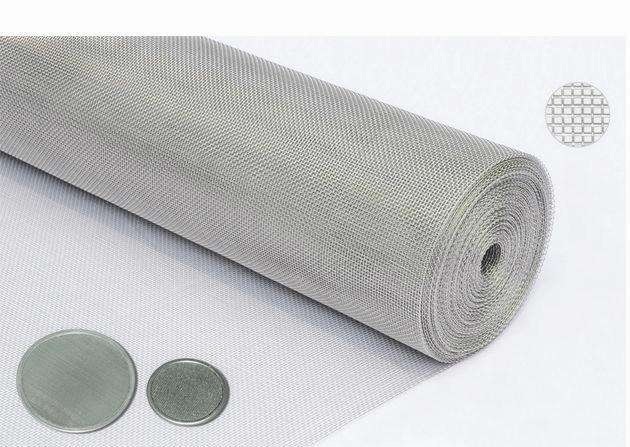

200 Mesh Screen Square 316SS Mesh Firm Structure SS Woven Wire Mesh 1









200 Mesh Screen Square 316SS Mesh Firm Structure SS Woven Wire Mesh 2

200 Mesh Screen Square 316SS Mesh Firm Structure SS Woven Wire Mesh 3





Our product range



200 Mesh Screen Square 316SS Mesh Firm Structure SS Woven Wire Mesh 4

Stainless steel woven wire mesh packing



200 Mesh Screen Square 316SS Mesh Firm Structure SS Woven Wire Mesh 5200 Mesh Screen Square 316SS Mesh Firm Structure SS Woven Wire Mesh 6



In order to make an offer,please provide below specification of wire mesh



Material

Mesh size or aperture size

Wire diameter

Length per roll

Width per roll



About us



We are a professional wire mesh company.

We are located in Anping County, Hebei Province,China.



Our product range

  • stainless steel woven wire mesh
  • welded wire mesh
  • crimped wire mesh
  • hexagonal wire mesh
  • brass wire mesh
  • wire belt
  • wire mesh filter

200 Mesh Screen Square 316SS Mesh Firm Structure SS Woven Wire Mesh 7

We have our own woven machines,our technique is based on rich experience of woven,from production to selling we have our professional personnel to compeleted,our woven mesh now cover plain weave,twill weave,dutch weave,plain dutch weave,twill dutch weave,we keep the flat surface of woven procudure and accurate filtration technique.All mesh is manufactured from highly pick up of stainless steel wire.



We welcome your enquiry!
