Twill Weave 316 Stainless Steel Mesh Screen Filtration

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | SS Woven Wire Mesh | Material | Stainless Steel |
---|---|---|---|
Surface | Bright Silver | Hole Shape | Square Hole |
Mesh Counts | 1 To 635 Per Inch | Woven Type | Plain Weave, Twill Weave |
Max Width | 12m | Roll Length | 30m |
Properity | Anti-rust | Application | Filtration |
Highlight | Twill Weave 316 stainless steel mesh screen,Filtration 316 stainless steel mesh screen,316 stainless steel filter mesh |

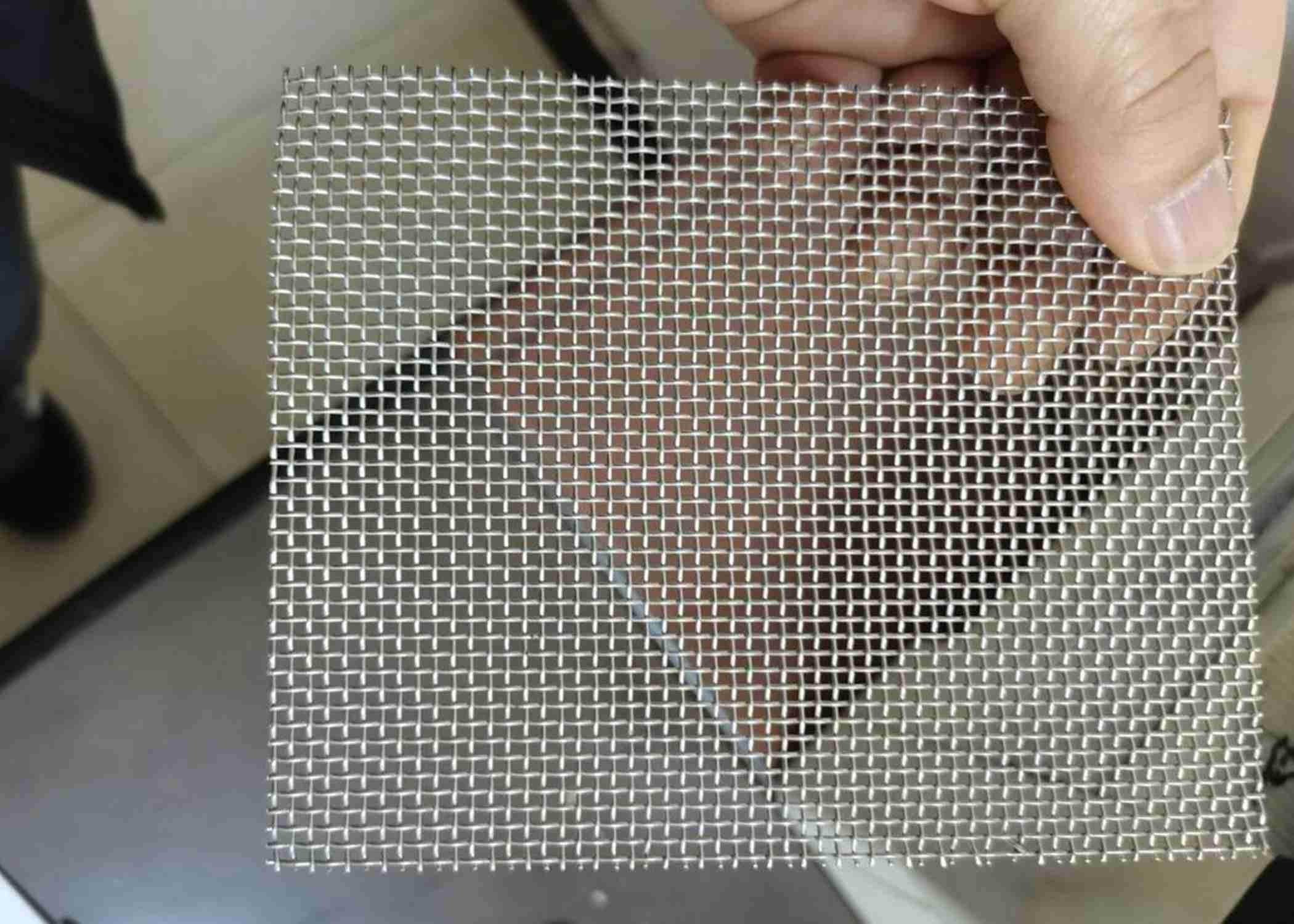

Bright Silver High Anti-rust Stainless Steel Wire Mesh with Square Hole
brief introduction
Stainless Steel Woven Wire Mesh made of stainless steel, can be further divided into square wire mesh plain weave and square wire mesh twill weave.Stainless steel square wire mesh made of selected plain steel wire offers precise construction and uniform opening, is extensively used in filtration industry.
Main Materials: AISI304, AISI304 L, AISI316, AISI316L
Specifications:
Max Width: 12M
Standard Length: 30 M
Mesh Counts: 1-500 mesh
Standard Specifications:
Mesh/Inch |
Wire Diameter |
Aperture |
Open Area |
Weight(LB) /100 Square Foot |
||
Inch |
MM |
Inch |
MM |
|||
1x1 |
0.08 |
2.03 |
0.92 |
23.37 |
84.6 |
41.1 |
2X2 |
0.063 |
1.6 |
0.437 |
11.1 |
76.4 |
51.2 |
3X3 |
0.054 |
1.37 |
0.279 |
7.09 |
70.1 |
56.7 |
4X4 |
0.063 |
1.6 |
0.187 |
4.75 |
56 |
104.8 |
4X4 |
0.047 |
1.19 |
0.203 |
5.16 |
65.9 |
57.6 |
5X5 |
0.041 |
1.04 |
0.159 |
4.04 |
63.2 |
54.9 |
6X6 |
0.035 |
0.89 |
0.132 |
3.35 |
62.7 |
48.1 |
8X8 |
0.028 |
0.71 |
0.097 |
2.46 |
60.2 |
41.1 |
10X10 |
0.025 |
0.64 |
0.075 |
1.91 |
56.3 |
41.2 |
10X10 |
0.02 |
0.51 |
0.08 |
2.03 |
64 |
26.1 |
12X12 |
0.023 |
0.584 |
0.06 |
1.52 |
51.8 |
42.2 |
12X12 |
0.02 |
0.508 |
0.063 |
1.6 |
57.2 |
31.6 |
14X14 |
0.023 |
0.584 |
0.048 |
1.22 |
45.2 |
49.8 |
14X14 |
0.02 |
0.508 |
0.051 |
1.3 |
51 |
37.2 |
16X16 |
0.018 |
0.457 |
0.0445 |
1.13 |
50.7 |
34.5 |
18X18 |
0.017 |
0.432 |
0.0386 |
0.98 |
48.3 |
34.8 |
20X20 |
0.02 |
0.508 |
0.03 |
0.76 |
36 |
55.2 |
20X20 |
0.016 |
0.406 |
0.034 |
0.86 |
46.2 |
34.4 |
24X24 |
0.014 |
0.356 |
0.0277 |
0.7 |
44.2 |
31.8 |
30X30 |
0.013 |
0.33 |
0.0203 |
0.52 |
37.1 |
34.8 |
30X30 |
0.012 |
0.305 |
0.0213 |
0.54 |
40.8 |
29.4 |
30X30 |
0.009 |
0.229 |
0.0243 |
0.62 |
53.1 |
16.1 |
35X35 |
0.011 |
0.279 |
0.0176 |
0.45 |
37.9 |
29 |
40X40 |
0.01 |
0.254 |
0.015 |
0.38 |
36 |
27.6 |
50X50 |
0.009 |
0.229 |
0.011 |
0.28 |
30.3 |
28.4 |
50X50 |
0.008 |
0.203 |
0.012 |
0.31 |
36 |
22.1 |
60X60 |
0.0075 |
0.191 |
0.0092 |
0.23 |
30.5 |
23.7 |
60X60 |
0.007 |
0.178 |
0.0097 |
0.25 |
33.9 |
20.4 |
70X70 |
0.0065 |
0.165 |
0.0078 |
0.2 |
29.8 |
20.8 |
80X80 |
0.0065 |
0.165 |
0.006 |
0.15 |
23 |
23.2 |
80X80 |
0.0055 |
0.14 |
0.007 |
0.18 |
31.4 |
16.9 |
90X90 |
0.005 |
0.127 |
0.0061 |
0.16 |
30.1 |
15.8 |
100X100 |
0.0045 |
0.114 |
0.0055 |
0.14 |
30.3 |
14.2 |
100X100 |
0.004 |
0.102 |
0.006 |
0.15 |
36 |
11 |
100X100 |
0.0035 |
0.089 |
0.0065 |
0.17 |
42.3 |
8.3 |
110X110 |
0.004 |
0.1016 |
0.0051 |
0.1295 |
30.7 |
12.4 |
120X120 |
0.0037 |
0.094 |
0.0064 |
0.1168 |
30.7 |
11.6 |
150X150 |
0.0026 |
0.066 |
0.0041 |
0.1041 |
37.4 |
7.1 |
160X160 |
0.0025 |
0.0635 |
0.0038 |
0.0965 |
36.4 |
5.94 |
180X180 |
0.0023 |
0.0584 |
0.0033 |
0.0838 |
34.7 |
6.7 |
200X200 |
0.0021 |
0.0533 |
0.0029 |
0.0737 |
33.6 |
6.2 |
250X250 |
0.0016 |
0.0406 |
0.0024 |
0.061 |
36 |
4.4 |
270X270 |
0.0016 |
0.0406 |
0.0021 |
0.0533 |
32.2 |
4.7 |
300X300 |
0.0051 |
0.0381 |
0.0018 |
0.0457 |
29.7 |
3.04 |
325X325 |
0.0014 |
0.0356 |
0.0017 |
0.0432 |
30 |
4.4 |
400X400 |
0.001 |
0.0254 |
0.0015 |
0.37 |
36 |
3.3 |
500X500 |
0.001 |
0.0254 |
0.001 |
0.0254 |
25 |
3.8 |
Other specifications according to your requirements.
Weaving Type:
Plain weave and twilled weave patterns.
The weaving is determined according to our customers specific requirements, such as the material,the wire diameter,the size of the mesh,width and length.
Characteristics:
Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion and rust resistance.
Square aperture,high flow through and relative high open area,as result less pressure drop during filtration.
Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.
Applications:
This kind of stainless steel wire mesh are widely used in such fields as environmental protection, pharmaceutical industry, chemical industry, food industry, mechanical industry, smelting industry, coal mining, paper making, cement, construction industry, decoration, aeronautics and astronautics and so on.

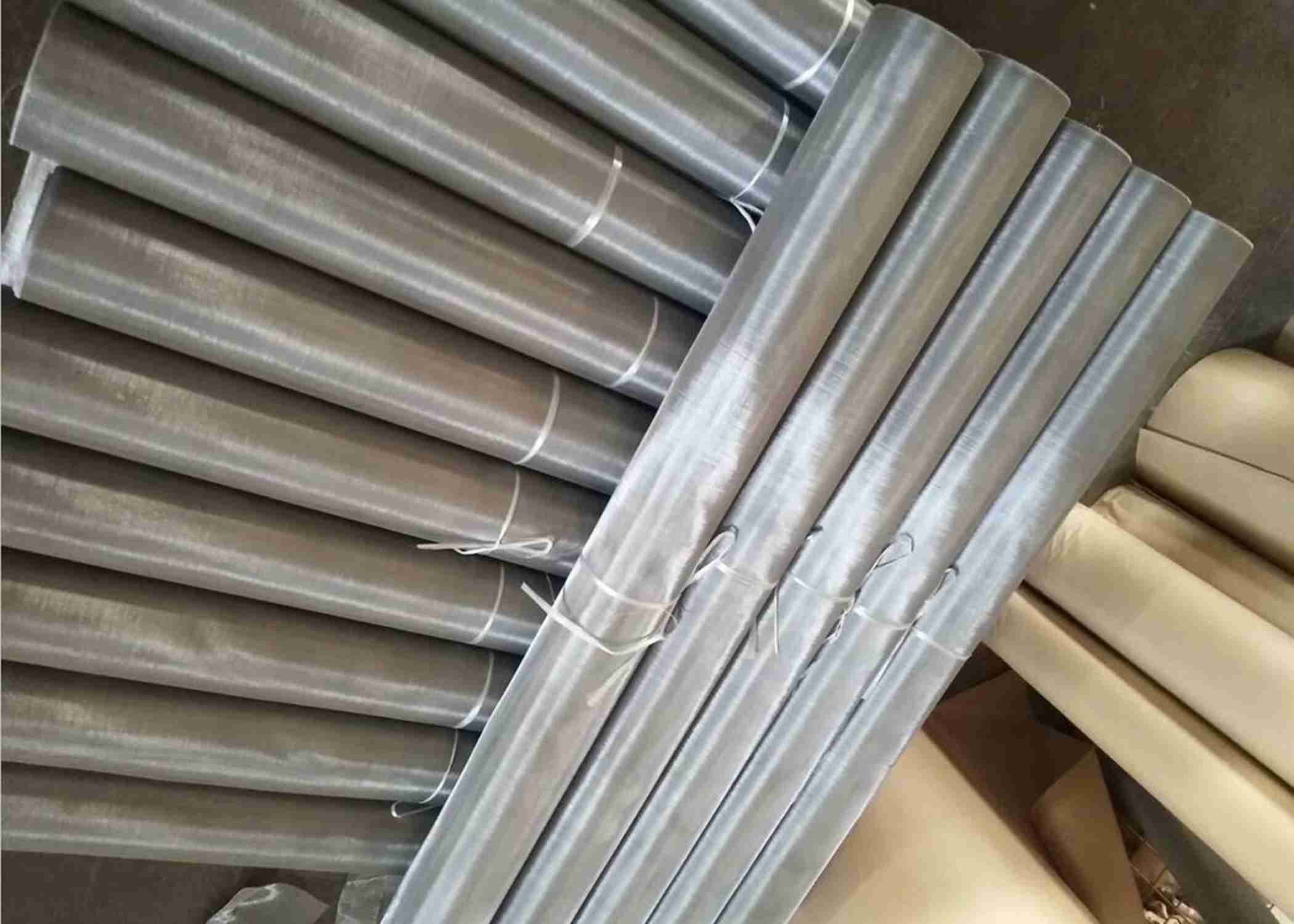

Packing:
Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
