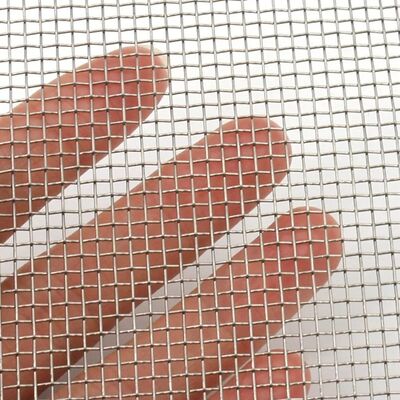

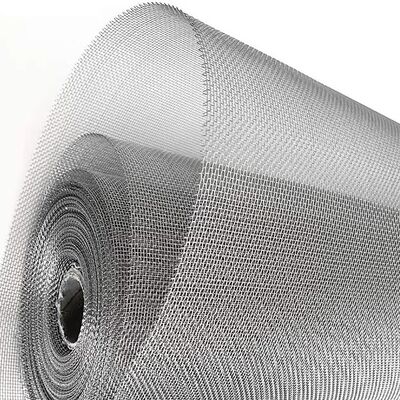

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
Product Details
| Material | SS304, SS304L, SS316, SS316L | Weaving Type | Plain Weave / Twill Weave / Dutch Weave |
|---|---|---|---|
| Wire Diameter | 0.15mm – 2.0mm | Mesh Count | 2 – 400 Mesh |
| Opening Size | 0.038mm – 10mm | Surface Treatment | Bright Annealed / Pickling Passivation |
| Standard Size | 1m×30m Roll (customizable) | Application | Food & Beverage Filtration, Pharmaceutical Sieving, Industrial Filter, Construction Fencing, Security Window Guards |
| Highlight | food grade stainless steel wire mesh,304/316 stainless steel filtration mesh,woven wire mesh for fencing |
||
Product Description
Plain Dutch Weave has a specialized structure with larger warp wires than weft wires. It is woven by interlacing a few warp wires with tightly packed weft wires, forming a dense mesh with invisible apertures. Its plain pattern ensures even wire distribution, resulting in a smooth, easy-to-clean surface.
Twill Dutch Weave has an upgraded structure, also with larger warp wires than weft wires. Tightly packed weft wires are woven in a twill pattern (each weft passes over two warp wires and under one, or vice versa), creating a dense mesh with subtle diagonal textures, enhanced rigidity and wear resistance.
- *Material*: SS304 / SS304L / SS316 / SS316L
- *Weaving Type*: Plain Weave / Twill Weave / Dutch Weave
- *Weaving Type*: Plain Weave / Twill Weave / Dutch Weave
Main Applications
Our stainless steel woven wire mesh is widely used in:
- *Food & Beverage*: Bakery equipment, beverage filtration, food processing machinery
- *Pharmaceutical*: Medicine sieving, clean room filtration, pharmaceutical machinery components
- *Construction*: Concrete reinforcement, building facades, security window guards
- *Industrial & Security*: Machine guards, liquid filtration, mine sieving, pet enclosures

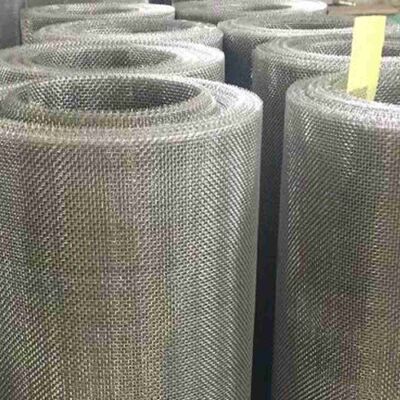

Packing:
In rolls, wrapped with waterproof paper then covered with hessian cloth. Special packing may be arranged if necessary.
