0.23mm Stainless Steel Knitted Wire Mesh Ss304 Grade 500mm Width Stock

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Corrosion Resistance, Alkali And Acid Resistance, Long Service Life, Rust Resistance And Heat Resistance Product Name Stainless Steel 304 Knitted Wire Mesh
Type Knitted Material Stainless Steel 304
Wire Diameter 0.23mm Roll Width 500mm
Roll Length 10 To 50m Applications Popular Uses In Auto Parts And Other Engineering Applications.
High Light

0.23mm stainless steel knitted wire mesh

,

304 stainless steel knitted wire mesh

,

500mm width knitted stainless steel mesh

Leave a Message
Product Description

Stainless Steel Knitted Wire Mesh 0.23mm Wire SS304 Grade 500mm Width Sock



Knitted Mesh

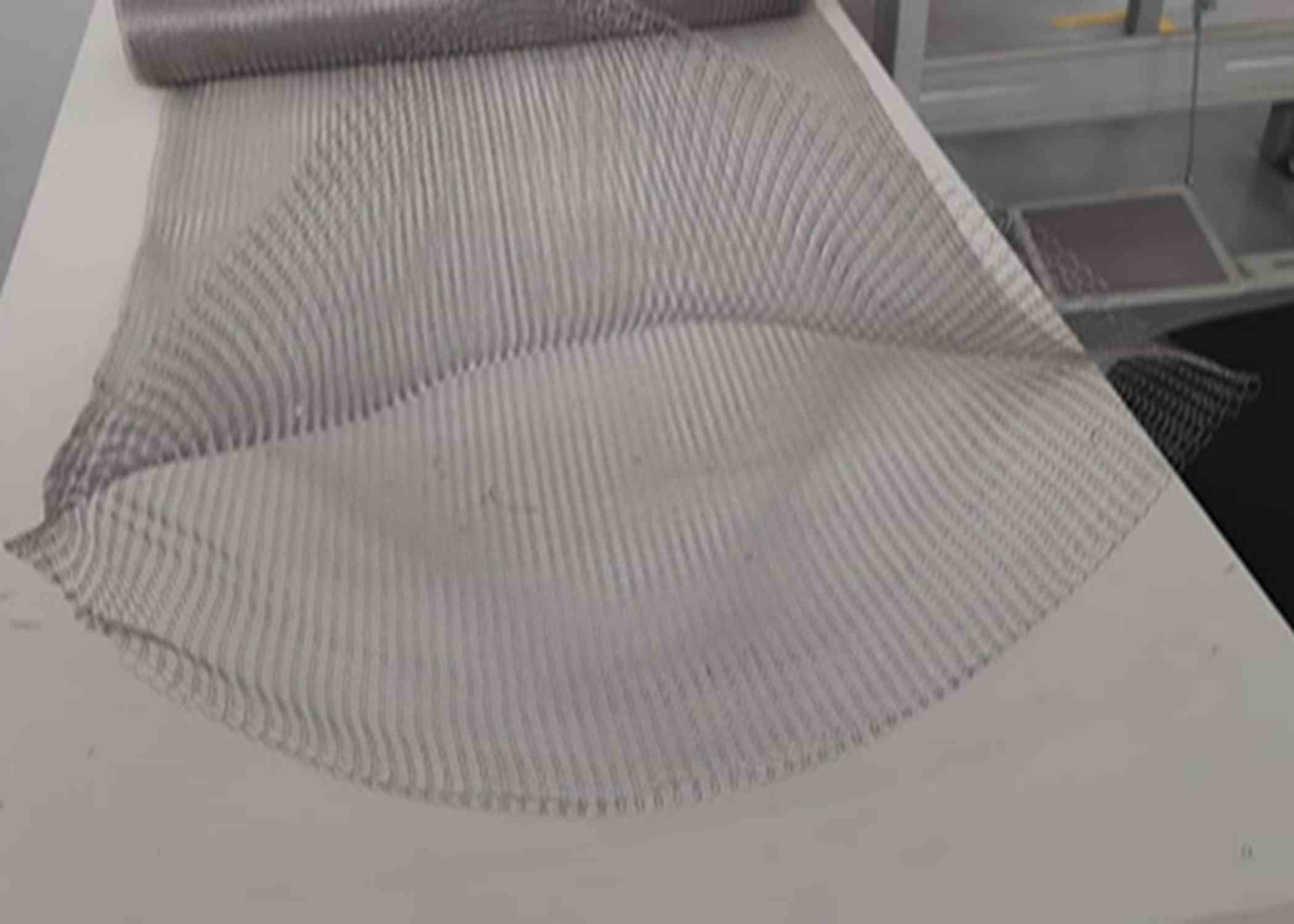

Knitted wire mesh is a metal wire or plastic strand knitted into a mesh structure in very much the same way as stockings or sweaters. Knitting produces mesh of interlocking loops. These loops can move relative to each other in the same plane without distorting the mesh, giving knitted mesh a two-way stretch.



The loop structure gives knitted wire fabric greater in plane springiness or two-dimensional flexibility compared to woven mesh or fabrics. Knitted mesh can be crimped or compressed to alter characteristics for specific applications.



Stainless steel knitted wire mesh offers excellent properties such as corrosion resistance, alkali and acid resistance, long service life, rust resistance and heat resistance. As a result of these properties, it finds popular uses in auto parts and other engineering applications.



Stock is available in Stainless steel material.





Specifications:

Wire Diameters: from 0.1mm to 0.45mm.

Roll Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500 mm, 600mm, 1000mm, etc.

Roll Length: 15m, 30m, 50m to 100m.

Specification of flat wire stainless steel knitted mesh
Wire Diameter (mm) Mesh Opening/ Loop Size (mm) Number of Needles Maximum Width (mm) Minimum Width (mm)
0.1 × 0.3 2 × 4 36 60 55
0.1 × 0.3 4.5 × 4 2.5 × 4 34 150 100
0.1 × 0.4 4.5 × 5.5 2.5 × 5.5 40 150 120
0.1 × 0.4 4 × 3.5 2.5 × 3.5 56 205 180
0.1 × 0.4 4 × 4 3 × 4 65 260 240
0.2 × 0.4 5.2 × 3.5 3 × 3.5 94 420 380
0.2 × 0.4 7.5 × 5 5 × 5 102 565 490
0.2 × 0.5 5 × 4 2.5 × 4 128 560  470



Specification of round wire stainless steel knitted mesh
Wire Diameter (mm) Width (mm) Number of Stitches Per cm on Length Number of Stitches Per cm Across Lay Flat
0.08 – 0.18 6 - 300 3.5 4.4
0.16 40 - 600 2.4 3.5
0.18 - 0.35 30 - 1000 1.6 1.9
0.25 - 0.40 30 - 1000 1.6 0.74
0.4 - 0.5 100 - 350 0.5 0.5





Materials:



Knitted wire mesh is made of stainless steel wire, copper wire, galvanized iron wire, monel, etc.



Features:



Corrosion resistance.
Alkali and acid resistance.
Rust resistance.
High temperature resistance.
Excellent shielding performance.
Outstanding filtering efficiency.
Durable and long service life.



Applications:

They are used in the field of environmental and process engineering, as vandalism protection in seat covers of public transport systems and in the automotive industry. We produce and develop tailor-made solutions for individual and series production, entirely according to the wishes and needs for our customers. Optimally matched, the three-dimensional knitted wire mesh ensures a high stretchability and resilience depending on the intend use.



Filter technology
Environmental and process engineering
Bearing and damping elements/ vibration decoupling
Vandalism protection
Silencer
Heat-/thermal-isolation
Sealing elements
Separation applications
Filling material to avoid death volume
EMC-applications










Packing:



Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.







Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4

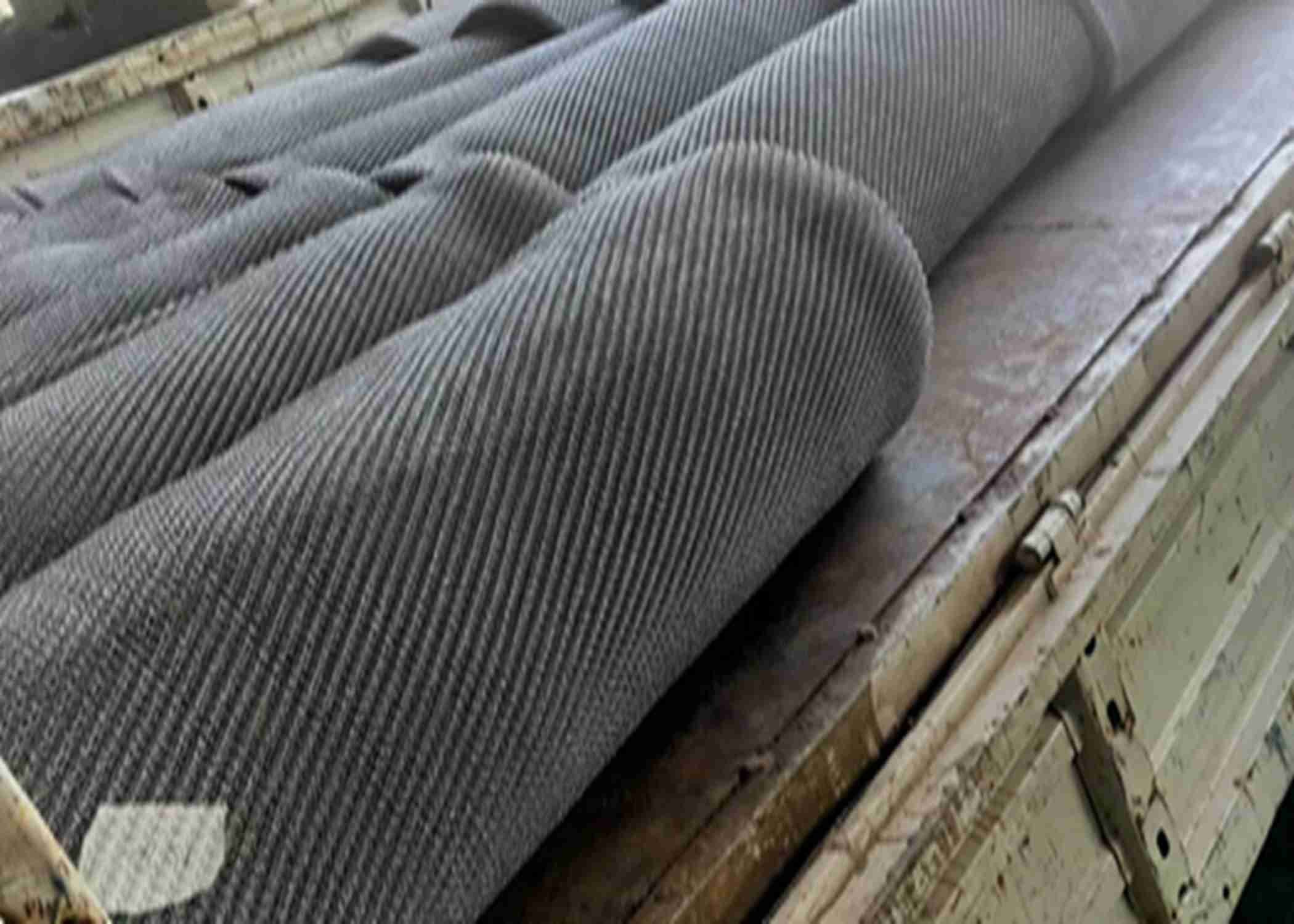

0.23mm Stainless Steel Knitted Wire Mesh Ss304 Grade 500mm Width Stock 1

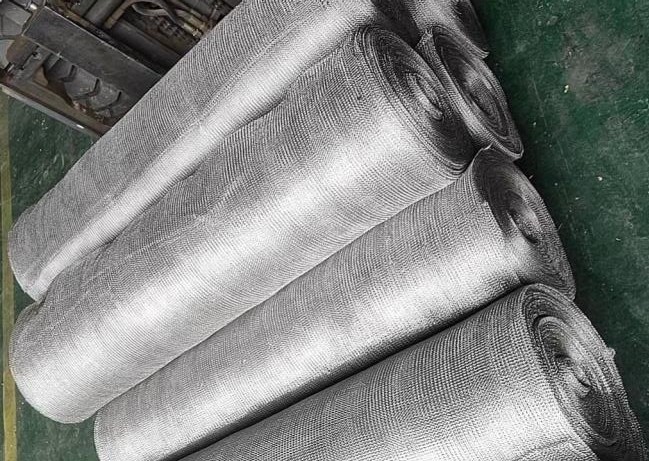

0.23mm Stainless Steel Knitted Wire Mesh Ss304 Grade 500mm Width Stock 2
