180 To 700 Model Stainless Steel Filter Mesh

Place of Origin	Anping of China
Brand Name	QIANPU
Certification	ISO
Minimum Order Quantity	50Rolls
Price	Negotiable
Packaging Details	Warpped with plastic film, then in wooden case or pallets.
Delivery Time	a week
Payment Terms	T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Features	Strong Corrosion Resistance	Product Name	Knitted Wire Mesh
Standard	Q/SG12-1-79 Q/YSZZ-88-91	Type	Knitted
Material	Stainless Steel, Nickel, Aluminum, Etc	Wire Diameter	0.1 To 0.3mm
Weight	3 To 7mm	Roll Width	Max 1.6m
Roll Length	Max 400m	Applications	For The Separation Of Liquid In The Gas.
High Light	700 Model Stainless Steel Filter Mesh , 700 Model 180 model Stainless Steel Filter Mesh , 700 Model 0.3mm screen mesh stainless steel

Leave a Message

Product Description

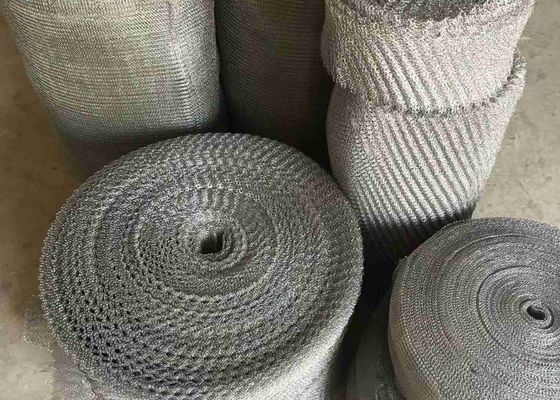

180 - 700 Model Knitted High Filtering Accuracy Stainless Steel Knitted Wire Mesh

Knitted wire mesh rolls Introduction:

Knitted mesh is made of either crochet or knitting of various wire materials including stainless steel, copper, synthetic fiber and other materials.

Knitted wire mesh products are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications

180-700 model knitted wire mesh use 0.10-0.30mm wire, knitted into a mesh of interlocking loops, application for liquid/ gas separation or gas/water separation in the process of filtration, screening, distillation, evaporation and absorption etc. The mesh has the characteristics of high filtering accuracy, good penetrability, flexibility, electrical conductivity, thermal conductivity etc.

180-700 Knitted Wire Mesh Specifications:

Model	Material	Wire Diameter	Mesh Width	Mesh Length
180-700	Stainless Steel	0.1-0.3mm	10-1600mm	10-100m
	Carbon Steel	0.1-0.3mm	50-500mm	10-100m
	Copper/Brass	0.1-0.3mm	100-500mm	10-100m
	Aluminum	0.1-0.3mm	10-1600mm	10-100m
	Nickel	0.1-0.3mm	100-600mm	10-100m
Notes: 1. 180-700 model: it has 180 openings in the mesh width of 700mm 2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm 3. The mesh can be made into single strand, double strand, multi-strand etc. 4. The surface include flattened and crimped.

Common Specifications:

Stainless Steel Knitted Wire Mesh
Types	Model	Wire Diameter	Mesh Width	Mesh Length
standard type	40-100	0.10-0.30mm	10-1600mm	10-100m
	60-150	0.10-0.30mm	10-1600mm	10-100m
	60-180	0.10-0.30mm	10-1600mm	10-100m
	105-300	0.10-0.30mm	10-1600mm	10-100m
	140-400	0.10-0.30mm	10-1600mm	10-100m
	160-400	0.10-0.30mm	10-1600mm	10-100m
high efficient	60-100	0.10-0.30mm	10-1600mm	10-100m
	70-100	0.10-0.30mm	10-1600mm	10-100m
	80-100	0.10-0.30mm	10-1600mm	10-100m
	80-150	0.10-0.30mm	10-1600mm	10-100m
	90-100	0.10-0.30mm	10-1600mm	10-100m
	90-150	0.10-0.30mm	10-1600mm	10-100m
	150-300	0.10-0.30mm	10-1600mm	10-100m
	200-400	0.10-0.30mm	10-1600mm	10-100m
	300-600	0.10-0.30mm	10-1600mm	10-100m
high penetrated	20-100	0.10-0.30mm	10-1600mm	10-100m
	20-160	0.10-0.30mm	10-1600mm	10-100m
	30-150	0.10-0.30mm	10-1600mm	10-100m
	70-400	0.10-0.30mm	10-1600mm	10-100m
	170-600	0.10-0.30mm	10-1600mm	10-100m
	180-700	0.10-0.30mm	10-1600mm	10-100m
Notes: 1. 40-100 model: it has 40 openings in the mesh width of 100mm. 2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm. 3. The mesh can be made into single strand, double strand, multi-strand etc. 4. The surface include flattened and crimped. 5. Material: stainless steel, caron steel, aluminum, brass, copper, nickel.
absorbed type	20-40	0.10-0.20mm	10-120mm	10-100m
	30-40	0.10-0.20mm	10-120mm	10-100m
	30-50	0.10-0.20mm	10-120mm	10-100m
	30-60	0.10-0.20mm	10-120mm	10-100m
	30-80	0.10-0.20mm	10-120mm	10-100m
	50-120	0.10-0.20mm	10-120mm	10-100m
Notes: 1. 50-120 model: it has 50 openings in the mesh width of 120mm. 2. Material: stainless steel, caron steel, aluminum, brass, copper, nickel.

Material:

Stainless steel: 201 202 302 304 304L 316 316L 321 430

Carbon steel : Q195 Q235 Q275

Brass: CuZn40 CuZn37 CuZn35 CuZn30 CuZn20 CuZn5

Copper: C10200 C11000

Aluminum: 1050 1060 1100 5052 5056 5083

Nickel: N2 N4 N6 Cr20Ni80 Monel400 Monel600

Plastic: PP PE

Application:

* EMI and RFI shielding

* Air filter in the cars or tractors

* Gas/liquid separation, gas/water separation, oil/water separation

* Making cleaning ball

* Medical devices

* Textile fabrics

* Rangehood filters

* Decorative mesh

Packing:

Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3

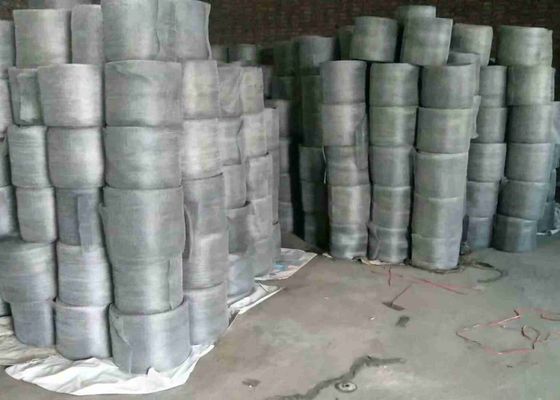

Our factory Photos:

Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4

We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
