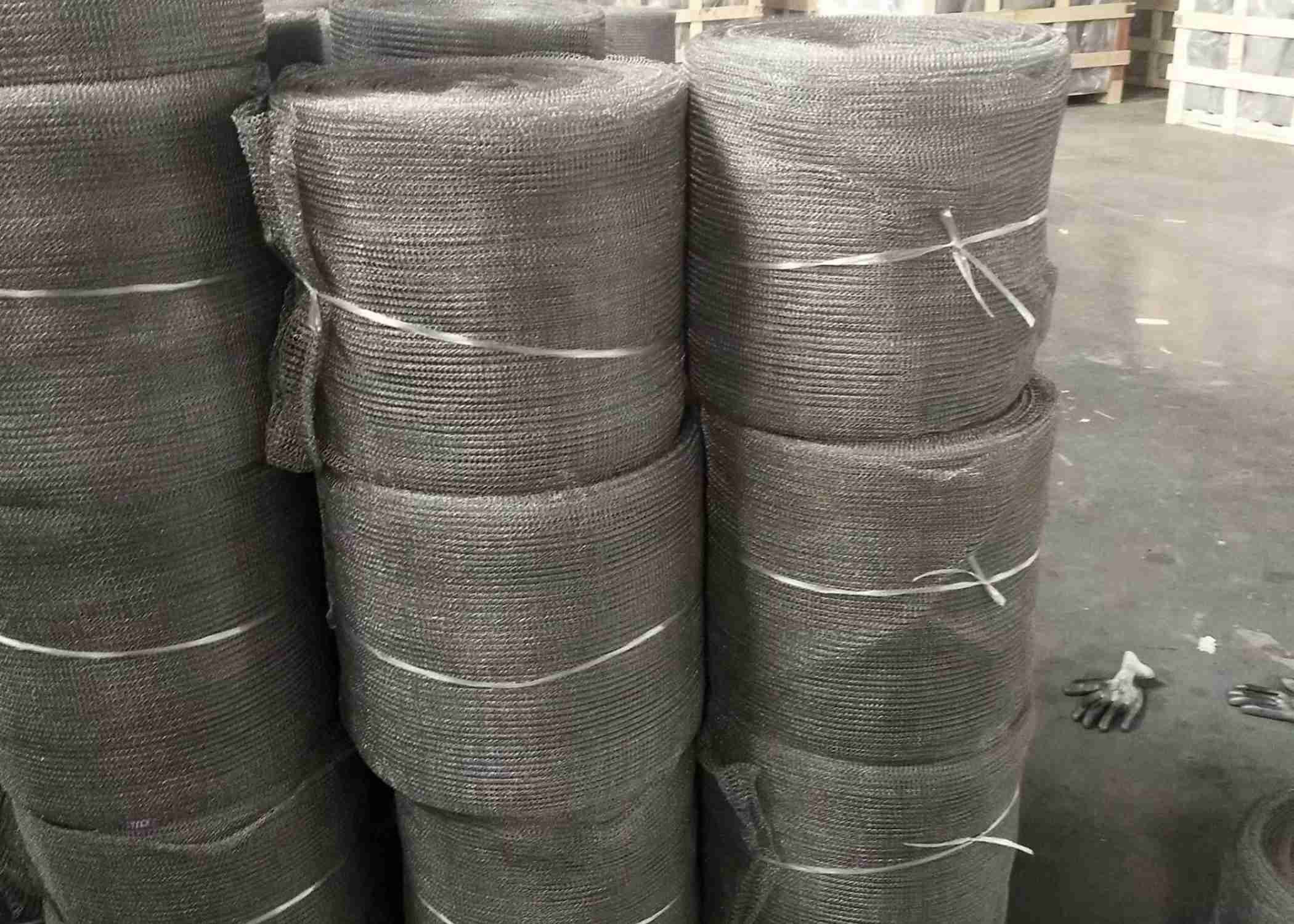

0.1 To 0.3mm Stainless Steel Knitted Mesh

  • 0.1 To 0.3mm Stainless Steel Knitted Mesh
  • 0.1 To 0.3mm Stainless Steel Knitted Mesh
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Strong Corrosion Resistance Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material Various Materials, As Required Wire Diameter 0.1 To 0.3mm
Weight 3 To 7mm Roll Width Max 1.6m, As Required
Roll Length Max 400m, As Required Applications For The Separation Of Liquid In The Gas.
High Light

105 model 0.3mm Stainless Steel Knitted Mesh

,

0.1mm stainless steel knitted mesh

,

7mm stainless steel metal mesh
Leave a Message
Product Description

Various Materials Types And Applications Stainless Steel Knitted Wire Mesh



Introduction:



Knitted wire mesh is a type of wire fabric manufactured by a circular knitted machine. It can be made of various materials, such as stainless steel, copper, nickel, Monel, Teflon plastic and other alloy materials. The various material wires are knitted into a sleeve of continuous stocking of inter-linked wire loops.



knitted wire mesh can be divided into different types according to different standard. You can refer to the following types, and choose the best fit for you.



Specifications of knitted wire mesh



Stainless Steel Knitted Wire Mesh
Types Model Wire Diameter Mesh Width Mesh Length
standard type 40-100 0.10-0.30mm 10-1600mm 10-100m
60-150 0.10-0.30mm 10-1600mm 10-100m
60-180 0.10-0.30mm 10-1600mm 10-100m
105-300 0.10-0.30mm 10-1600mm 10-100m
140-400 0.10-0.30mm 10-1600mm 10-100m
160-400 0.10-0.30mm 10-1600mm 10-100m
high efficient 60-100 0.10-0.30mm 10-1600mm 10-100m
70-100 0.10-0.30mm 10-1600mm 10-100m
80-100 0.10-0.30mm 10-1600mm 10-100m
80-150 0.10-0.30mm 10-1600mm 10-100m
90-100 0.10-0.30mm 10-1600mm 10-100m
90-150 0.10-0.30mm 10-1600mm 10-100m
150-300 0.10-0.30mm 10-1600mm 10-100m
200-400 0.10-0.30mm 10-1600mm 10-100m
300-600 0.10-0.30mm 10-1600mm 10-100m
high penetrated 20-100 0.10-0.30mm 10-1600mm 10-100m
20-160 0.10-0.30mm 10-1600mm 10-100m
30-150 0.10-0.30mm 10-1600mm 10-100m
70-400 0.10-0.30mm 10-1600mm 10-100m
170-600 0.10-0.30mm 10-1600mm 10-100m
180-700 0.10-0.30mm 10-1600mm 10-100m

Notes:

1. 40-100 model: it has 40 openings in the mesh width of 100mm.

2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm.

3. The mesh can be made into single strand, double strand, multi-strand etc.

4. The surface include flattened and crimped.
absorbed type 20-40 0.10-0.20mm 10-120mm 10-100m
30-40 0.10-0.20mm 10-120mm 10-100m
30-50 0.10-0.20mm 10-120mm 10-100m
30-60 0.10-0.20mm 10-120mm 10-100m
30-80 0.10-0.20mm 10-120mm 10-100m
50-120 0.10-0.20mm 10-120mm 10-100m

Notes:

1. 50-120 model: it has 50 openings in the mesh width of 120mm.





Material: stainless steel, carbon steel, copper, Monel, titanium.



Wire type:



flat wire or round wire.



Wire diameter:



Round wire: 0.08 mm - 0.5 mm.

Flat wire: 0.1 mm × 0.3 mm, 0.1 mm × 0.4 mm, 0.2 mm × .4 mm, 0.2 mm × 0.5 mm.

Mesh opening: 2 mm × 3 mm, 4 mm × 6 mm to 12 mm × 6 mm.



Features of knitted wire mesh:



Various materials. Different material knitted wire mesh can be used in various applications for different requirements.

Solid structure. The interlocking structure of knitted wire mesh make the structure is solid, which will not loose when using.

High efficiency. The knitted wire mesh can be used as  demister pad for high filtering efficiency.

Corrosion and rust resistance.

Acid and alkali resistance.

Temperature resistance.

Wide range of applications.



Applications of knitted wire mesh:



Knitted wire mesh is widely used as demister pads for gas and liquid separators.

Knitted wire mesh can be used for cleaning machines, kitchens and other components and parts.

Compressed knitted wire mesh can be installed in the engines to decrease noise and reduce shocks.

Knitted wire mesh can be used as shielding mesh for EMI/RFI shielding.



0.1 To 0.3mm Stainless Steel Knitted Mesh 0

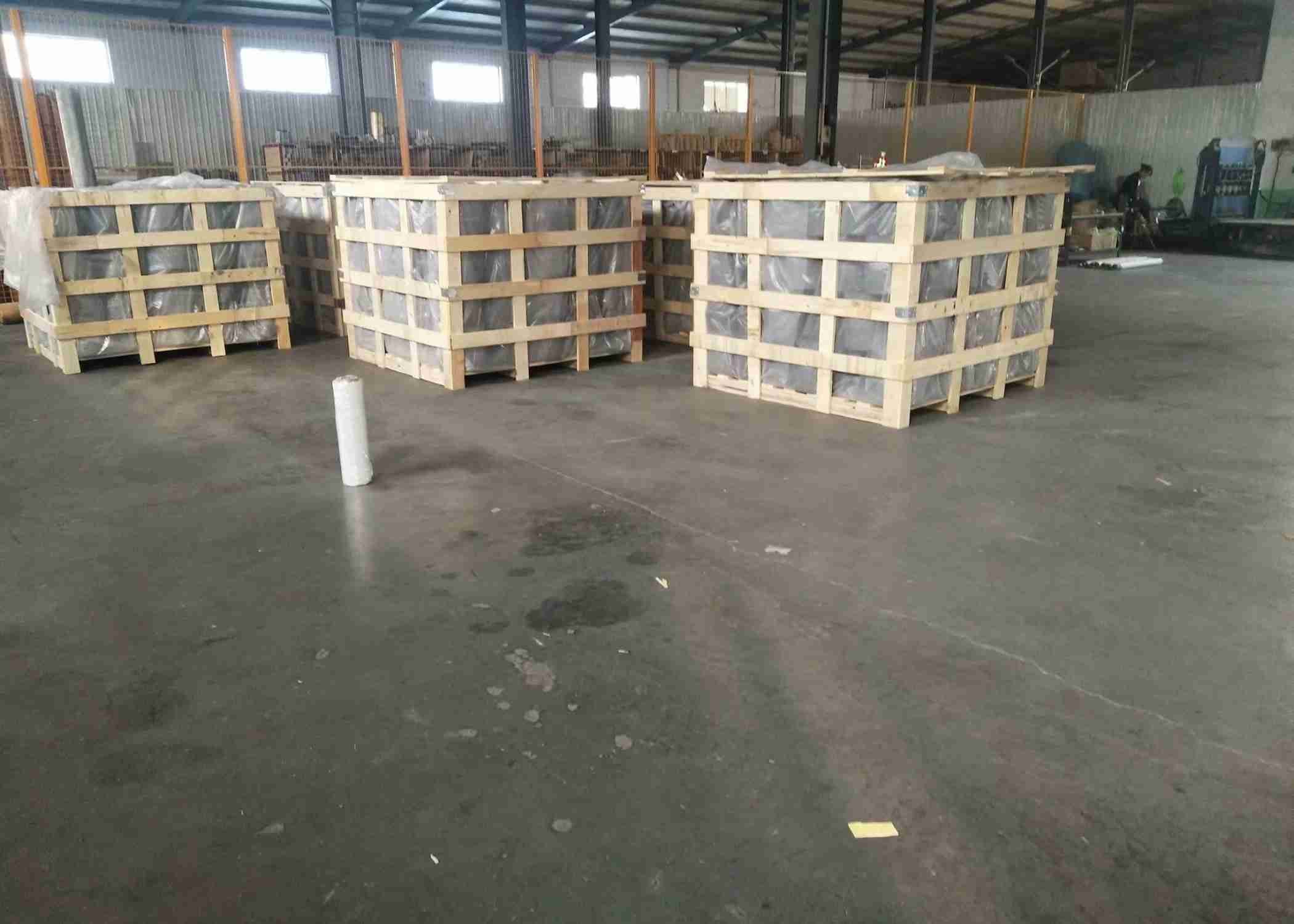

Packing:



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4





We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
