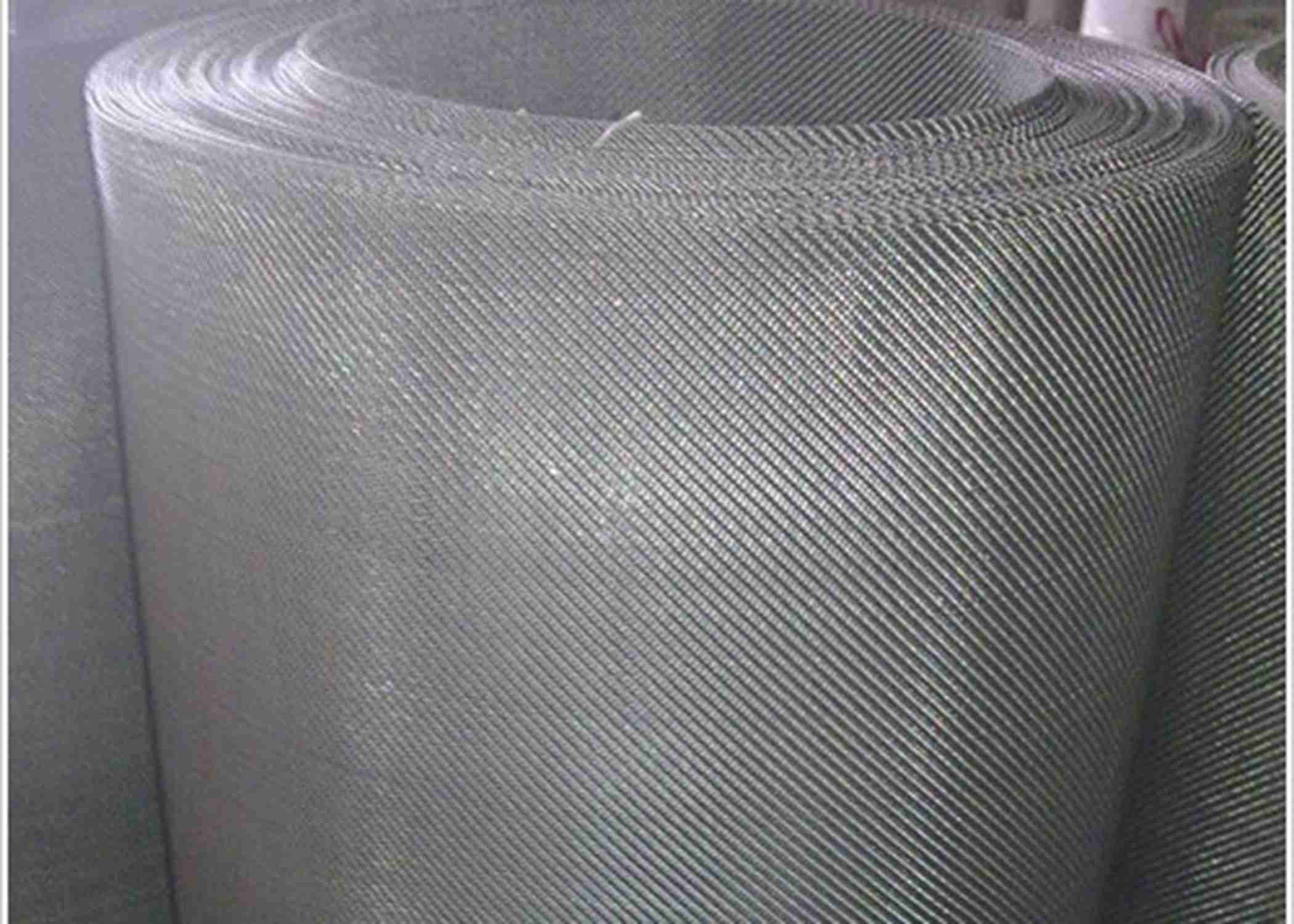

30x150 Mesh 0.25x0.18mm Wire Stainless Steel Dutch Wire Mesh SS304

  • 30x150 Mesh 0.25x0.18mm Wire Stainless Steel Dutch Wire Mesh SS304
  • 30x150 Mesh 0.25x0.18mm Wire Stainless Steel Dutch Wire Mesh SS304
  • 30x150 Mesh 0.25x0.18mm Wire Stainless Steel Dutch Wire Mesh SS304
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 Roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Outstanding Filtration Performance Product Name Plain Dutch Wire Mesh
Material SS304 SS316 Surface Bright Silver
Mesh Counts 30 X 150 Wire Dia. 0.25x0.18 Mm
Weaving Type Plain Dutch Weave (PDW) Roll Width 1.0m, 1.2m, 1.5m, 1.6m; 36", 48", Etc
Roll Length 10m, 20m, 30m, 100', Etc Application Separating Filtering Diffusing
Highlight

Stainless Steel Dutch Wire Mesh SS304

,

30x150Mesh Stainless Steel Dutch Wire Mesh

,

0.25x0.18mm dutch weave wire mesh
Leave a Message
Product Description

30x150 Mesh 0.25x0.18mm Wire Plain Dutch Weave Stainless Steel Dutch Wire Mesh



Plain Dutch Weave Wire Introduction:



In a Plain Dutch Weave, the diameter of the warp wire is larger than the weft. The mesh is formed by weaving a limited number of warps with the maximum number of weft wires woven tightly together, producing a cloth with no readily visible apertures. This mesh is strong and stable, easy to clean and with a good flow rate suitable for high-pressure liquid/solid separation.



80 x700 Specifications



Mesh Counts Wire Diameter Aperture Weight
mm Inch um kgs/㎡ lbs/㎡
30×150 0.25×0.18 0.0098×0.0070 82 1.68 3.69



Common Specifications of Plain Dutch Wire Mesh



Mesh Counts

warp×weft

(Mesh/Inch)

Wire Diameter

warp×weft

(mm)

Aperture Size

(μm)

Weight

(kg/㎡)

Thickness

(mm)
7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×.0.25 177 2.28 0.855
14×76 0.45×.0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135






80*700OPI Plain Dutch Weave(PDW) Filter Cloth, With High Precision



Features:



Excellent filtration performance;

Acid resistance;
High temperature resistance;
Tensil and abrasion resistence;
Stability of filtration;
Fine and high precision;
Special filtration performance.

Warp wire has bigger dia than shute wire
Shute wires are possibly bound close to each other
High accuracy
Nominal or no pressure loss while filtration
Supreme filtration surface
More stable than square and rectangular wire mesh



Material:



Stainless Steel 304, 304L, 316, 316L, etc.



Weaving methods:



Plain Dutch Weave("Warp×Weft" same meaning to "Warp×Shute")

80*700OPI Plain Dutch Weave(PDW) Filter Cloth, With High Precision

Woven as a plain weave, but with the warp wires of greater diameter than the weft wires. The weft wires are very close together so that a so-called zero-mesh structure is formed; while the warp wires are thicker and arranged wider apart.



Application:

Mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks. And can be made to extruder screens for melt filtration.

1.Products are mainly used for gas separation, liquid filtration and other medium;
2.Widely used in precision pressure filter, fuel filter, vacuum filter, filter materials, aerospace, petroleum, pharmaceutical, sugar, oil, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, food, health, scientific research and other industries.





80*700OPI Plain Dutch Weave(PDW) Filter Cloth, With High Precision

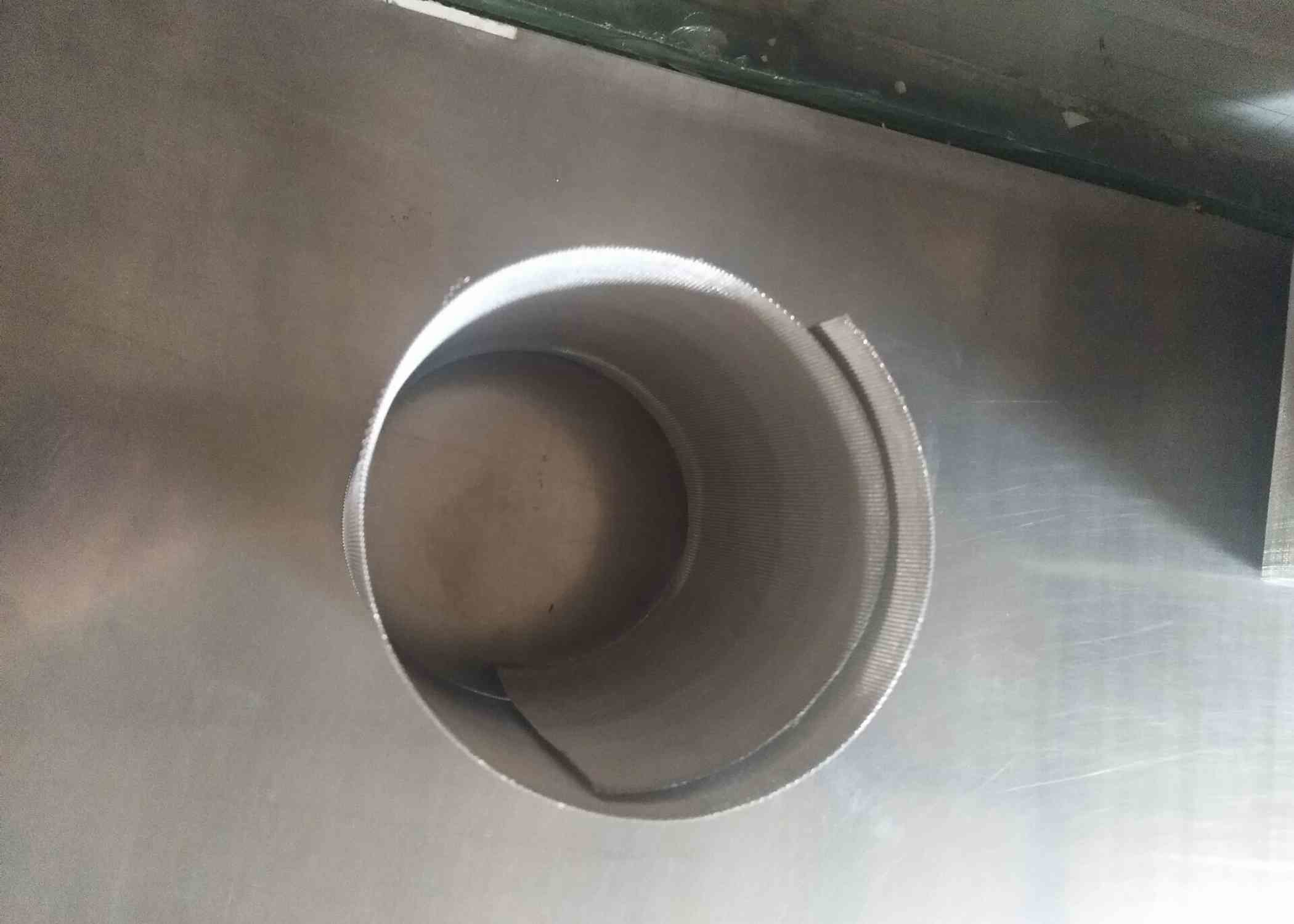

Packing:



30x150 Mesh 0.25x0.18mm Wire Stainless Steel Dutch Wire Mesh SS304 3





Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
