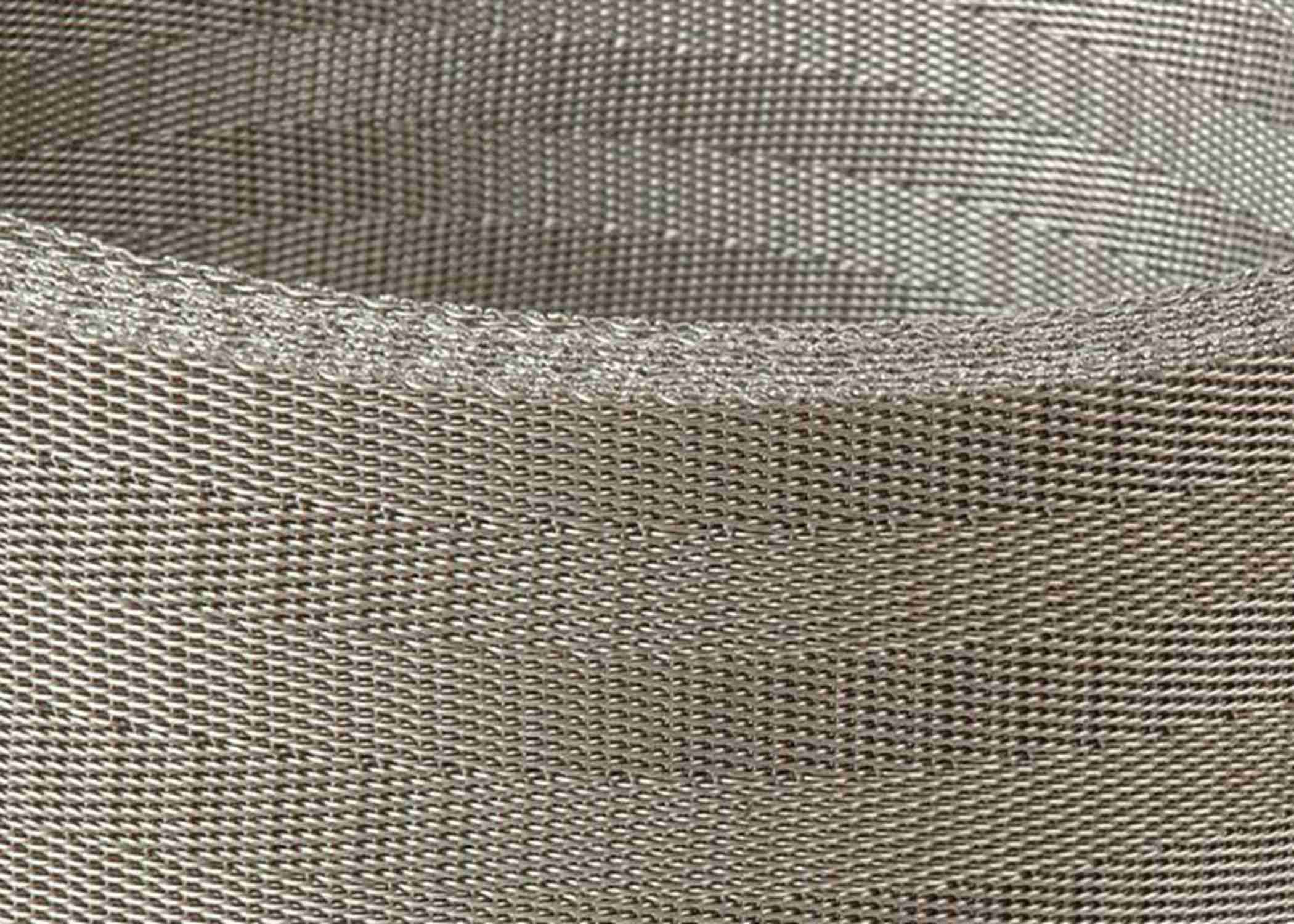

DIN 1.4301 Stainless Steel Dutch Wire Mesh

  • DIN 1.4301 Stainless Steel Dutch Wire Mesh
  • DIN 1.4301 Stainless Steel Dutch Wire Mesh
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 Roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Significantly Higher Particle Separation Product Name Plain Dutch Weave Filter Cloth
Material DIN 1.4301 And DIN 1.4401 Aperture 10 Micron
Mesh Counts 70×400 Wire Diameter 0.12mm X 0.07mm
Weaving Type Plain Dutch Weave Roll Width 1020mm (40"), 1220mm (48"), 1530mm (60"), Etc
Roll Length 30.5m (100'), Etc Application Filtration
High Light

1.4301 Stainless Steel Dutch Wire Mesh

,

DIN Stainless Steel Dutch Wire Mesh

,

DIN 1.4301 stainless steel wire and mesh
Leave a Message
Product Description

70 X 400mesh DIN 1.4301 And DIN 1.4401 Plain Dutch Weave Filter Cloth

Stainless Steel Plain Dutch Weave Wire Mesh



Dutch Plain Woven Wire Cloth is primarily used as filter cloth. This kind of woven wire cloth has a coarser mesh and wire in the warp direction and a finer mesh and wire in the weft direction. Dutch Plain Woven Wire Cloth makes an ideal filter cloth with a very compact, firm mesh with great strength.



Stainless steel dutch wire cloth products are widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making,electronic, metallurgy etc. Special size and specification are available according to customers requirement.



Specifications



Roll Width: 0.2m-1.6m

Roll Length: 10m, 20m, 30m; 100ft

Mesh Counts Wire Diameter Aperture Weight
mm Inch um kgs/㎡ lbs/㎡
70×400 0.12 X 0.07 0.0047×0.0027 - 0.74 1.62



Common Specifications of Plain Dutch Wire Mesh



Mesh Counts

warp×weft

(Mesh/Inch)

Wire Diameter

warp×weft

(mm)

Aperture Size

(μm)

Weight

(kg/㎡)

Thickness

(mm)
7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×.0.25 177 2.28 0.855
14×76 0.45×.0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135



Characteristics:



1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh



Features:



Plain Dutch Weave guarantees a significantly higher particle separation than metal fiber materials. Accurate and individual apertures mean that our wire cloths perform well in filtration and separation, finding applications in static as well as dynamic filtration.



Material: DIN1.4301, DIN1.4401



Weaving methods:

Plain Dutch Weave ("Warp×Weft" same meaning to "Warp×Shute")

70X400mesh Plain Dutch Weave Filter Cloth, DIN 1.4301 & DIN 1.4401



Application:



Plain Dutch Weave features a lightly structured surface and high levels of flow and minimal pressure drop and it is used for high mechanical loads for pre-coat filters and filter candles.



70X400mesh Plain Dutch Weave Filter Cloth, DIN 1.4301 & DIN 1.4401

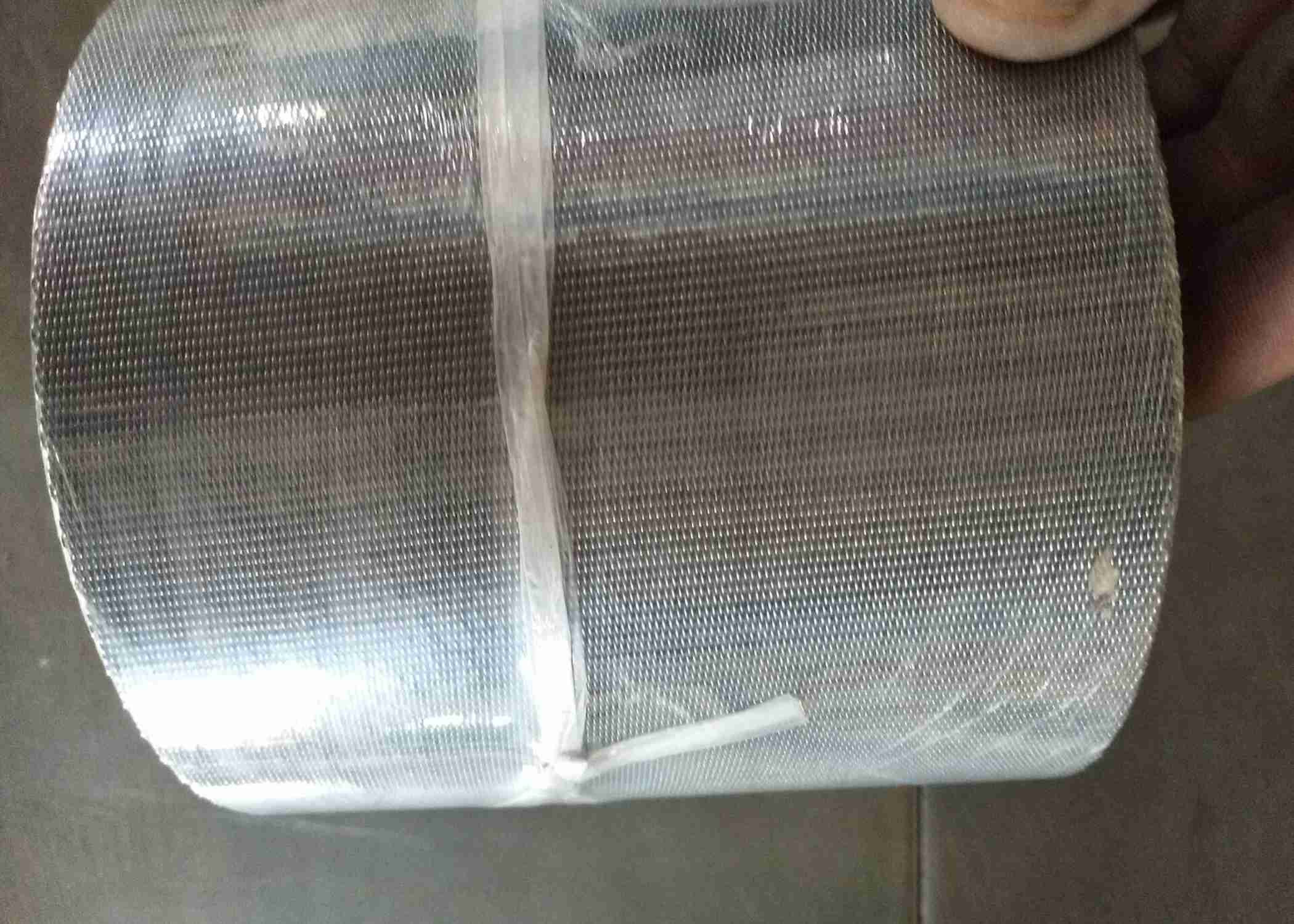

Packing:



DIN 1.4301 Stainless Steel Dutch Wire Mesh 2





Questions: What specs are needed to quote?



Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
