110×900 Stainless Steel Dutch Wire Mesh Filter Cloth 0.5m Used In Aerospace Field

Place of Origin Hengshui,China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price Negotiable
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 3000 rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Corrosion Resistance Production Name Stainless Steel Dutch Wire Mesh 110×900
Material Stainless Steel 304, 316 Woven Type Twill Dutch Weave
Color Bright Silver Mesh Count 110×900
Width 0.5m To 2m Application Aerospace Industry
High Light

Aerospace Field Stainless Steel Dutch Wire Mesh

,

Stainless Steel Dutch Wire Mesh 0.5m

,

Aerospace Field Wire Mesh Filter Cloth

Leave a Message
Product Description

110×900 Mesh Stainless Steel Twill Dutch Weave Filter Cloth Used In Aerospace Field



Introduction:



The structure of Dutch woven cloth has different mesh counts in weft and warp direction. Suitable match of wire dia. and mesh count can realize the filtration density that are unrealizable for square mesh. Common dutch woven wire cloth has more weft wires than warp wires, and the warp wire dia. is usually bigger than that of the warp wires; Due to its unique structure and weave pattern, dutch woven wire cloth is more used in fine filtration than normal s.s. square mesh.Present densest dutch woven cloth can have the mesh opening size as small as 3 microns.So we also call dutch woven mesh micron-grade filter cloth.



Twill dutch weave wire cloth including Dutch and twill weaving to provide a fine mesh filtering cloth. Shute wires are passed over and under two warp wires, providing a tight and fine filter with tapered openings. The weaving process allows for the used of very fine wires, to micron size, can be used in aerospace industry.



Dutch twilled weave Specifications:



Mesh Wire Diameter mm Filtration Fineness um
Weight
(kg/sq.m)
20x200 0.335x0.28 118 4.58
20x260 0.25x0.20 119 3.14
24x300 0.28x0.18 110 3.01
30x250 0.28x0.20 77 3.41
30x340 0.28x0.16 89 2.84
40x560 0.18x0.10 70 1.73
80x700 0.12x0.08 30 1.26
80x780 0.12x0.07 28 1.22
90x780 0.10x0.07 26 1.24
100x780 0.10x0.07 25 1.13
120x1100 0.07x0.05 18 0.86
165x800 0.07x0.05 25 0.58
165x1400 0.07x0.04 14 0.75
200x600 0.06x0.04 28 0.5
200x1400 0.06x0.04 12 0.72
200x1600 0.06x0.035 11 0.7
200x1800 0.06x0.03 10 0.7
250x2000 0.045x0.028 8 0.65
325x2300 0.035x0.026 5 0.57
325x2500 0.035x0.023 4 0.52
400x2800 0.03x0.018 3 0.46
400x3000 0.03x0.16 2. 0.43
400x3500 0.03x0.15 1
0.38



Weaving methods: Twilled Dutch Weave Pattern



Materials: AISI304(DIN1.4301)

AISI304 CHEMICAL COMPOSITIONS (WT%)
ITEMS C Si Mn P S Ni Cr
SPEC. <0.08 <1.00 <2.00 <0.045 <0.03 8-10.5 18-20




Property:



Stable and strong structure;
Excellent corrosion, high temperature and abrasion resistance;
Durable and has a long service life;
Two weaving methods show beautiful surface.



Usage:



Twill dutch weave wire mesh play an important role in the aerospace field. Commercial, military and general aviation aircraft all have wire cloth filters to protect critical systems from contamination. Premature engine overhauls caused by dirt and debris cost airlines millions in maintenance and lost passenger revenue and hurt military readiness. The role of wire cloth in aerospace engine parts makes flights safer, smoother and quieter. Here we will look at three categories where wire cloth and filters are critical to safe flight operations, airplane noise reduction and passenger comfort.


Delivery Time


We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.


Mutual Benefit


If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.

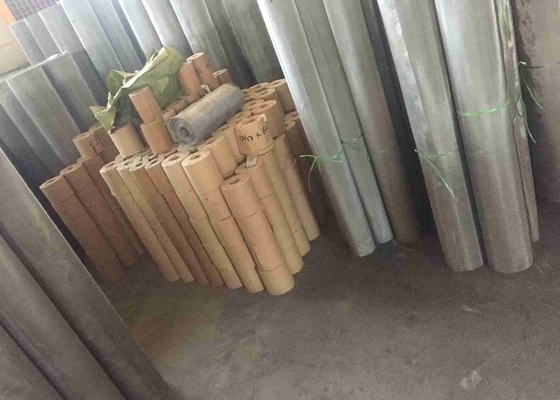

110×900 Stainless Steel Dutch Wire Mesh Filter Cloth 0.5m  Used In Aerospace Field 0






Factory Scan

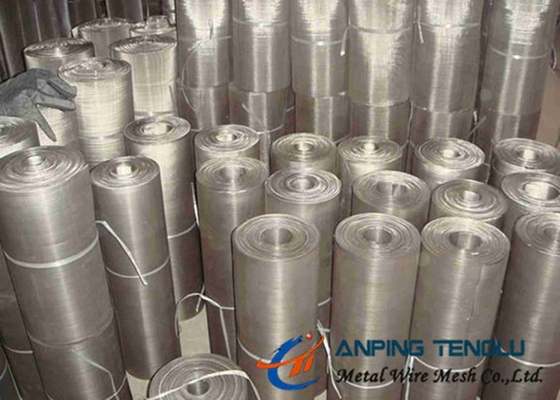

110×900 Stainless Steel Dutch Wire Mesh Filter Cloth 0.5m  Used In Aerospace Field 1
