Titanium Knitted Mesh 0.08mm To 0.50mm Diameter Wire Good Thermal Property

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Alkali And Acid Resistance Product Name Titanium Knitted Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material Titanium Wire Diameter 0.08mm To 0.50mm
Knitted Type Standard Type, High Efficient, High Penetrated, Absorbed Type Roll Width 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm
Roll Length Up To 200m Applications Used In The Chemical Industry To Make Wire Mesh Demisters
High Light

titanium knitted mesh

,

0.08mm diameter knitted mesh

,

0.50mm diameter knitted wire mesh

Leave a Message
Product Description

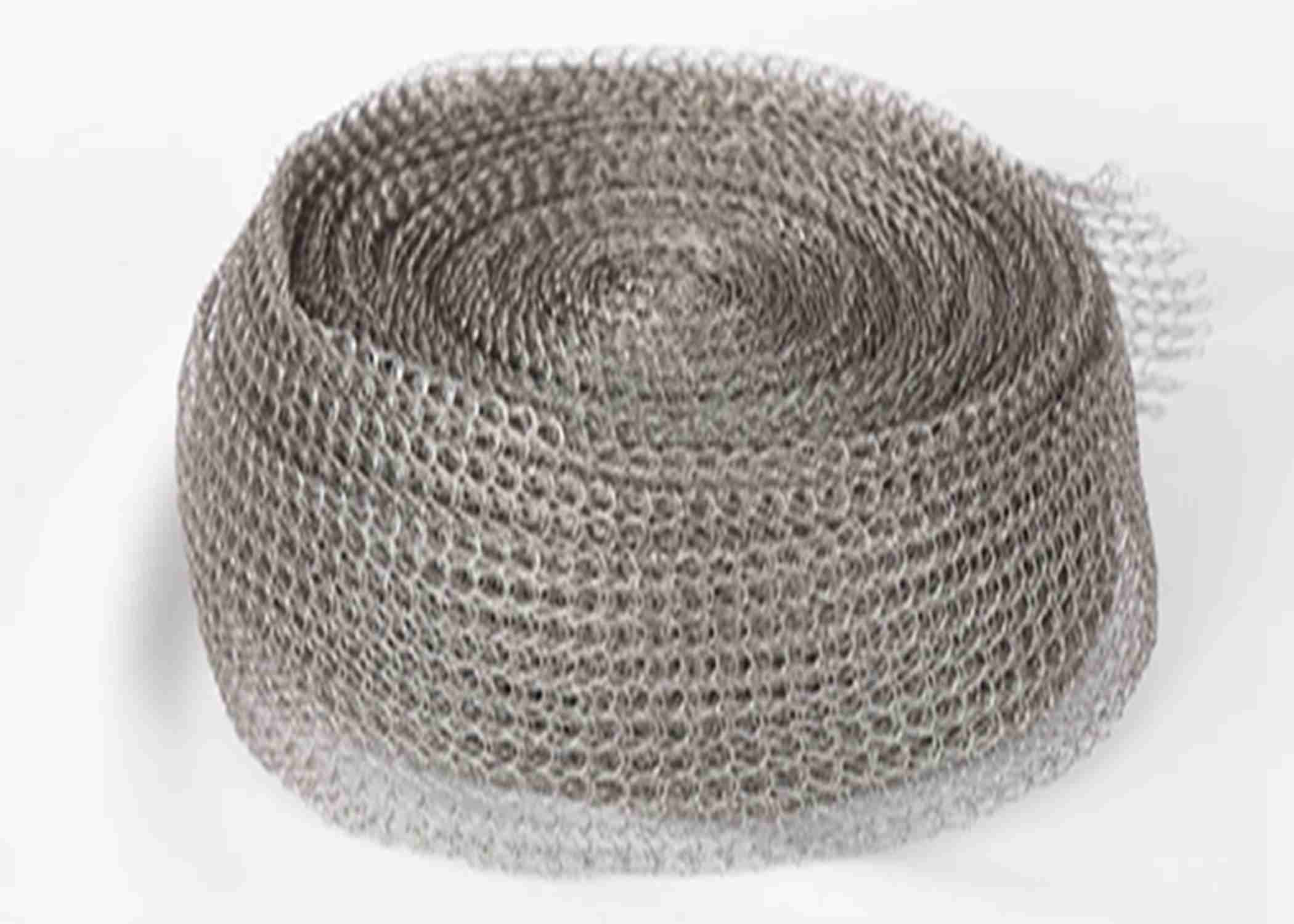

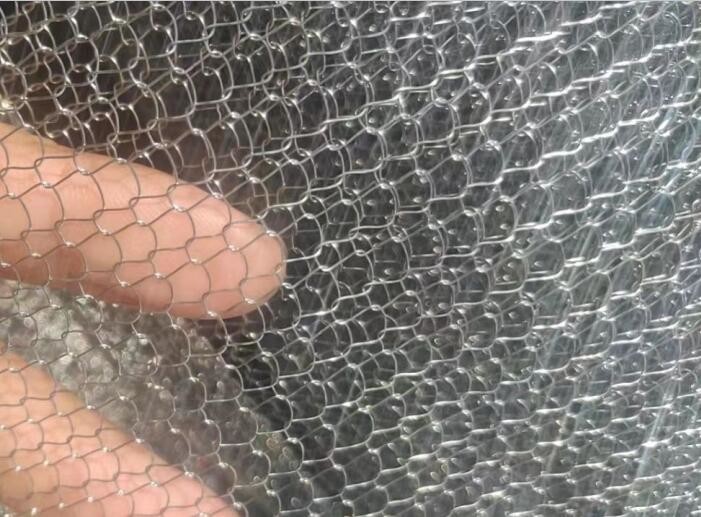

Titanium Knitted Mesh 0.08mm To 0.50mm Diameter Wire



Knitted Wire Mesh Introduction



knitted wire mesh, also called liquid-Gas filter net, foam-breaking net, packing net, gas-liquid net, foam-catching net, woven wire mesh, braided wire mesh, shielding wire mesh.



It is a kind of wire mesh woven in a special form. The wire used for weaving is generally φ0.08~φ0.50mm round wire or pressed flat wire. The form can also be braided with metal filaments and fiber filaments.





Materials:



Main materials of knitted wire mesh: stainless steel wire 201, 304, 304L, 321, 316, 316L, 904L, pure nickel wire, pure titanium wire, Monel, PP, PC, PE, PVC, PTFE.



Specifications:

Wire diameter: 0.07mm-0.55mm (the commonly used wire diameter is: 0.20mm-0.25mm) In addition, there are many strands of wires woven together.


Hole size: from (2×3mm) to (4×5mm) to (12×6mm) In addition, the hole size can be fine-tuned according to customer requirements. The opening form is the cross arrangement of large holes and small holes (the size of the holes in the length direction is the same, and the width is different)



The surface condition of the knitted mesh: flat mesh surface and corrugated mesh surface pressed into corrugations (the width and depth of the corrugation have different specifications)


Width of knitted mesh: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, etc.





Common Specifications of Knitted Wire Mesh

Wire Diameter

(mm)

Opening Size

(mm)

Width

(mm)

Length

(m)

Number of Wires

(Nos.)

0.10

1.0-3.0

3-50

10-200

1-3

0.11

1.0-3.0

3-80

10-200

1-3

0.12

1.0-3.0

3-80

10-100

1-3

0.15

1.0-3.0

9-120

10-100

1-3

0.17

1.0-3.0

9-120

10-50

1-2

0.19

1.0-3.0

15-120

10-50

1-2

0.21

3.0-7.0

15-120

10-50

1-2

0.23

3.0-7.0

40-1000

10-50

1-2

0.25

3.0-7.0

40-1000

10-50

1-2

0.27

3.0-7.0

60-1000

10-50

1

0.28

3.0-7.0

60-1000

10-50

1

0.30

3.0-7.0

60-1000

10-50

1



Titanium Knitted Mesh 0.08mm To 0.50mm Diameter Wire Good Thermal Property 0



Features:



Low density and high tensile strength.
Excellent Corrosion resistance.
High temperature resistance.
Outstanding filtration performance.
Good thermal property.
Acid and alkali resistance.
Nontoxic.



Applications:



Used in the chemical industry to Make wire mesh demisters, catalysts and the elimination or capture of mist droplets and liquid foam entrained in the gas during distillation, evaporation, absorption and other processes;

Oil and gas separation, oil-water separation, gas-liquid separation, shock absorption and noise reduction, sealing elements, etc. in the manufacturing process of mechanical equipment;

Dust removal, water removal, fog removal, air purification, flue gas desulfurization, water treatment equipment, oil-water separators in the field of environmental protection; separation and filtration devices in various occasions;

Filters for cars and tractors;

Sealing, damping (shock), noise reduction and exhaust purification components in automotive components;

Electromagnetic interference shielding devices for electronic and electrical products are widely used.

Pest control

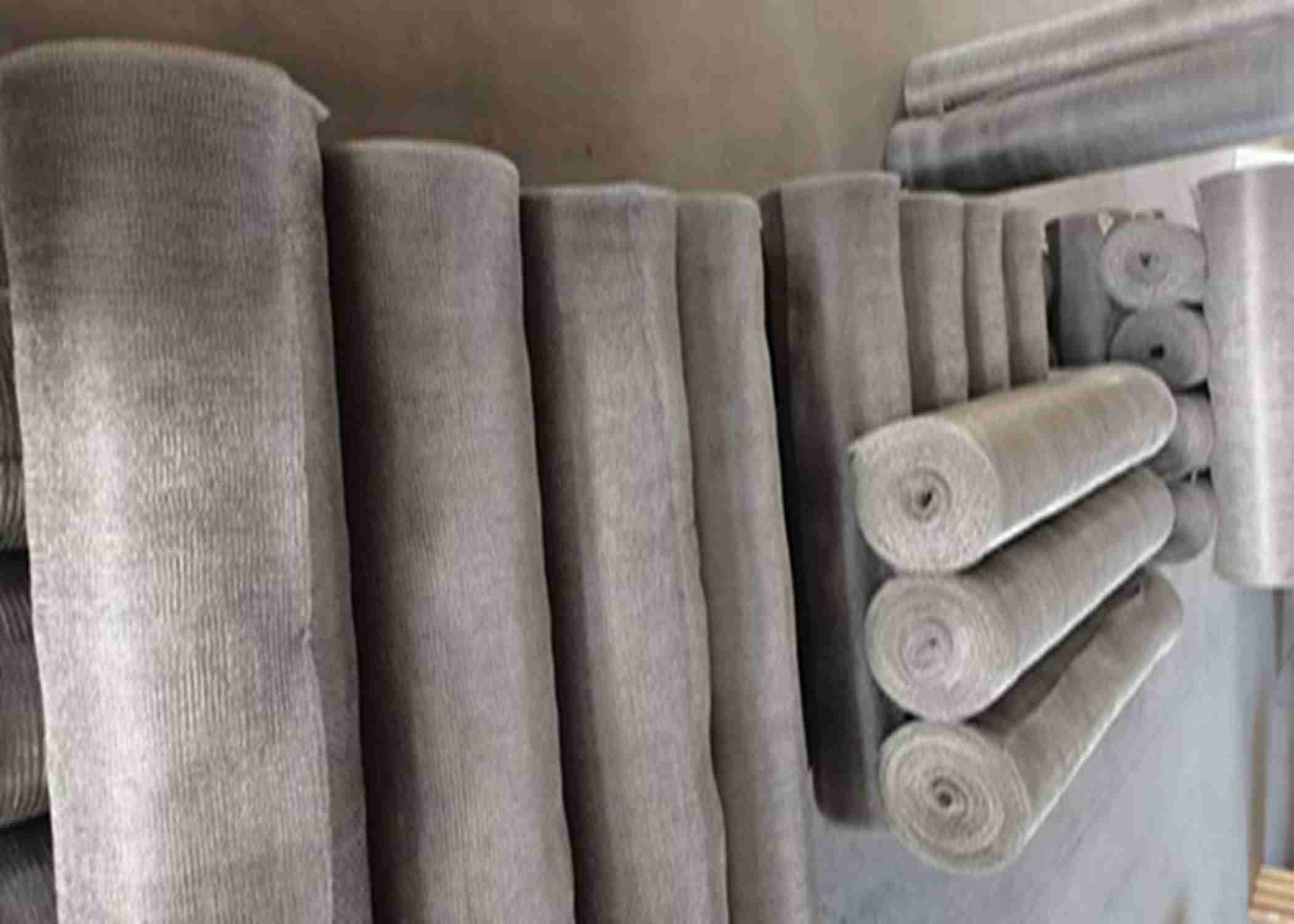

Packing:



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4
