0.28mm Ss316l Stainless Steel Knitted Wire Mesh Acid Resistance And Heat Resitance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Acid Resistance And Heat Resitance | Product Name | Knitted Wire Mesh |
|---|---|---|---|
| Standard | Q/SG12-1-79 Q/YSZZ-88-91 | Roll Type | Flatten Type |
| Material | SS316L | Wire Diameter | 0.28mm |
| Opening | 4mm X 4mm | Roll Width | 1m |
| Roll Length | 10 To 50m | Applications | Usded For Filtration And Cleaning |
| High Light | 0.28mm stainless steel knitted wire mesh,316l stainless steel knitted wire mesh,heat resitance ss knitted wire mesh |
||
Product Description

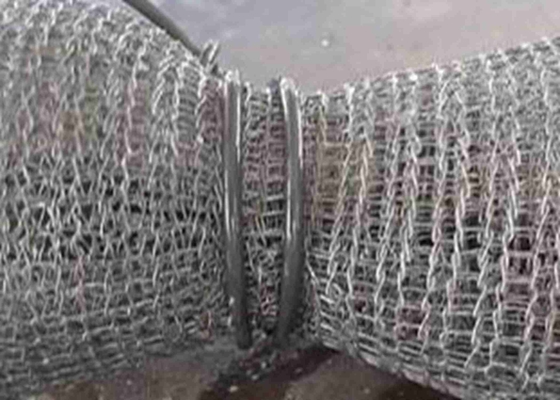

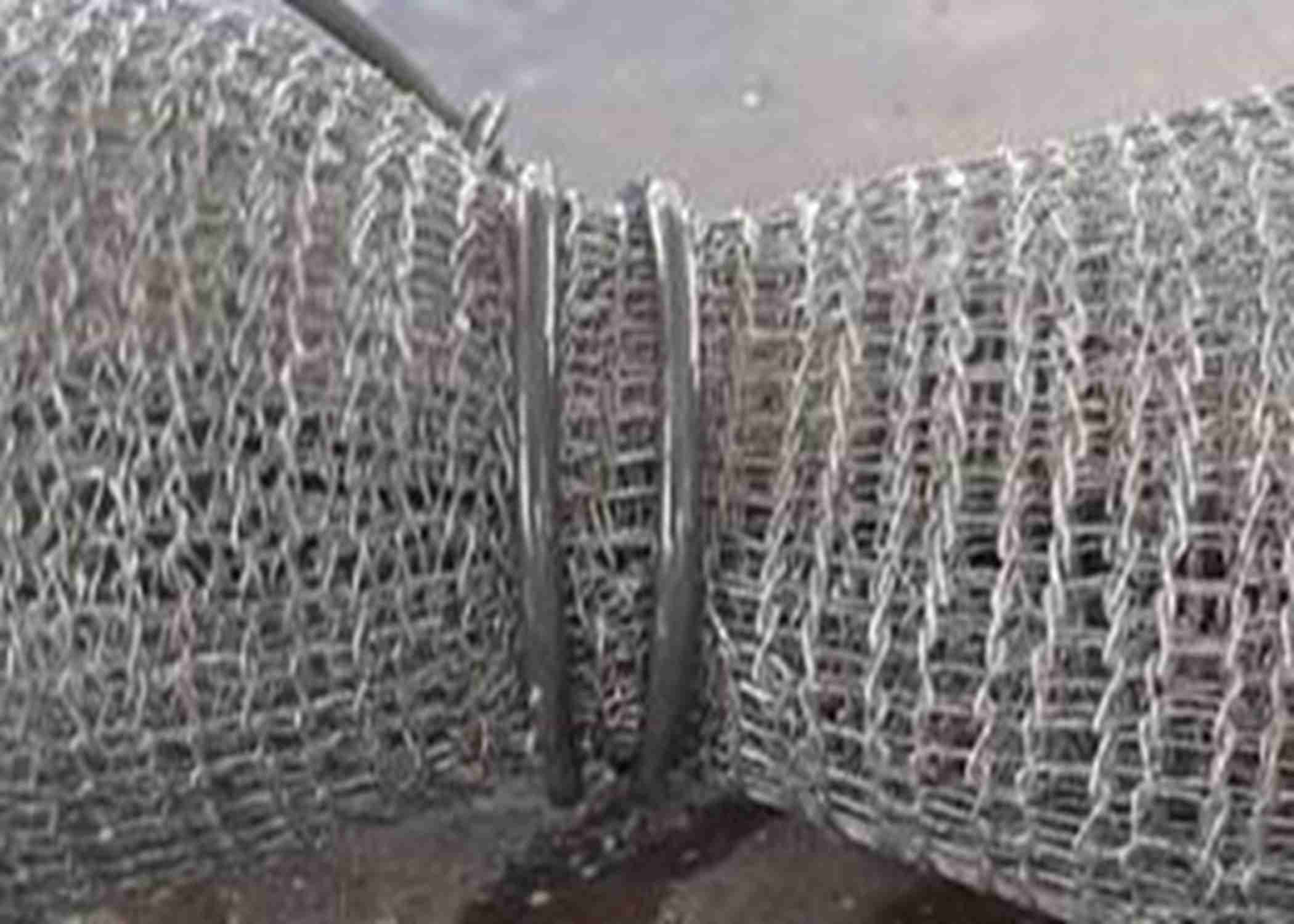

0.28mm Wire SS316L Knitted Wire Mesh With Acid Resistance And Heat Resitance
Knitted Mesh Fabric Usded For Filtration And Cleaning
Stainless steel knitted mesh refers to knitted mesh made of stainless steel wire. It is a nonwoven wire mesh or cloth product. The stainless steel knitted mesh is the most widely used type among all material knitted meshes.
Stainless steel knitted mesh can be made of mono-filament or multi-filament. Mono-filament knitted mesh is the simplest type, which can be used in the common applications and the multi-filament knitted mesh has higher strength, which can be used in the heavy duty applications.
The stainless steel knitted mesh is manufactured using a knitting process where the mesh is formed from a series of interlocking loops. The original stainless steel knitted mesh is flattened when complete production, but it can be made into ginning knitted mesh by machine according to customers' requirements. Ginning knitted mesh has different shapes, width and depth of ginning, which can suit more applications. Additional, stainless steel knitted mesh can be compressed into compressed knitted mesh for better filtering efficiency.
Combination Knitted Wire Mesh Specifications:
Material: stainless steel wire, copper wire, brass wire, nickel wire, monel wire, aluminum wire, galvanised wire and other alloy wire.
Wire diameter: 0.11mm, 0.12mm, 0.14mm, 015mm and other sizes can be customized.
Width: 6mm, 13mm, 25mm, 38mm, 50mm, 75mm, 100mm, 175mm, 200mm, 500mm, 1000mm and other widths are available.
Length: commonly is 10m and other lengths can be customized according to your requirements.
Roll type: flatten type and ginning type.
|
Common Specifications of Combination Knitted Wire Mesh |
||||
|
Wire Diameter (mm) |
Opening Size (mm) |
Width (mm) |
Length (m) |
Number of Wires (Nos.) |
|
0.21 |
3.0-7.0 |
60-150 |
10-50 |
2 |
|
0.23 |
3.0-7.0 |
60-150 |
10-50 |
2 |
|
0.25 |
3.0-7.0 |
60-150 |
10-50 |
2 |
|
0.27 |
3.0-7.0 |
60-150 |
10-50 |
2 |
|
0.28 |
3.0-7.0 |
60-150 |
10-50 |
2 |
|
0.30 |
3.0-7.0 |
60-150 |
10-50 |
2 |
Materials:
Stainless steel
Details of knitted mesh fabric
Knitted mesh fabric materials: stainless steel wire, copper wire, nickel wire, galvanized iron wire, phosphor bronze wire and polypropylene fiber.
Manufacturing method: Machine knitting.
Manufactured form: Sock/tube (can be slit into a single layer).
Material structure: Inter-locking loops with variable free-space dimensions.
Features:
High filtration efficiency.
High strength.
Corrosion and rust resistance.
Acid and alkali resistance.
Heat resistance.
Wide range of application.
Applications:
It can used as filter mesh for gas and liquid in filtering and deleting the particle mixture in foam, liquid and air, by way of distillating, absorbing, evaporating and filtering process. So it used in petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection filed.
Packing:
Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.
Our factory Photos:
We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
