0.1mm To 0.3mm Stainless Steel Knitted Wire Mesh Monofilament Multifilament

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Alkali And Acid Resistance Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material SS304, SS316, ETC Wire Diameter 0.10mm To 0.30mm
Knitted Type Standard Type, High Efficient, High Penetrated, Absorbed Type Roll Width Up To 1000mm
Roll Length Up To 200m Applications Used In Filtration Device For Air, Liquid And Gas Filtration
High Light

0.3mm stainless steel knitted wire mesh

,

monofilament stainless steel knitted wire mesh

,

multifilament knitted stainless steel mesh

Leave a Message
Product Description

0.1mm To 0.3mm Wire Stainless Steel Knitted Wire Mesh Monofilament And Multifilament Wire

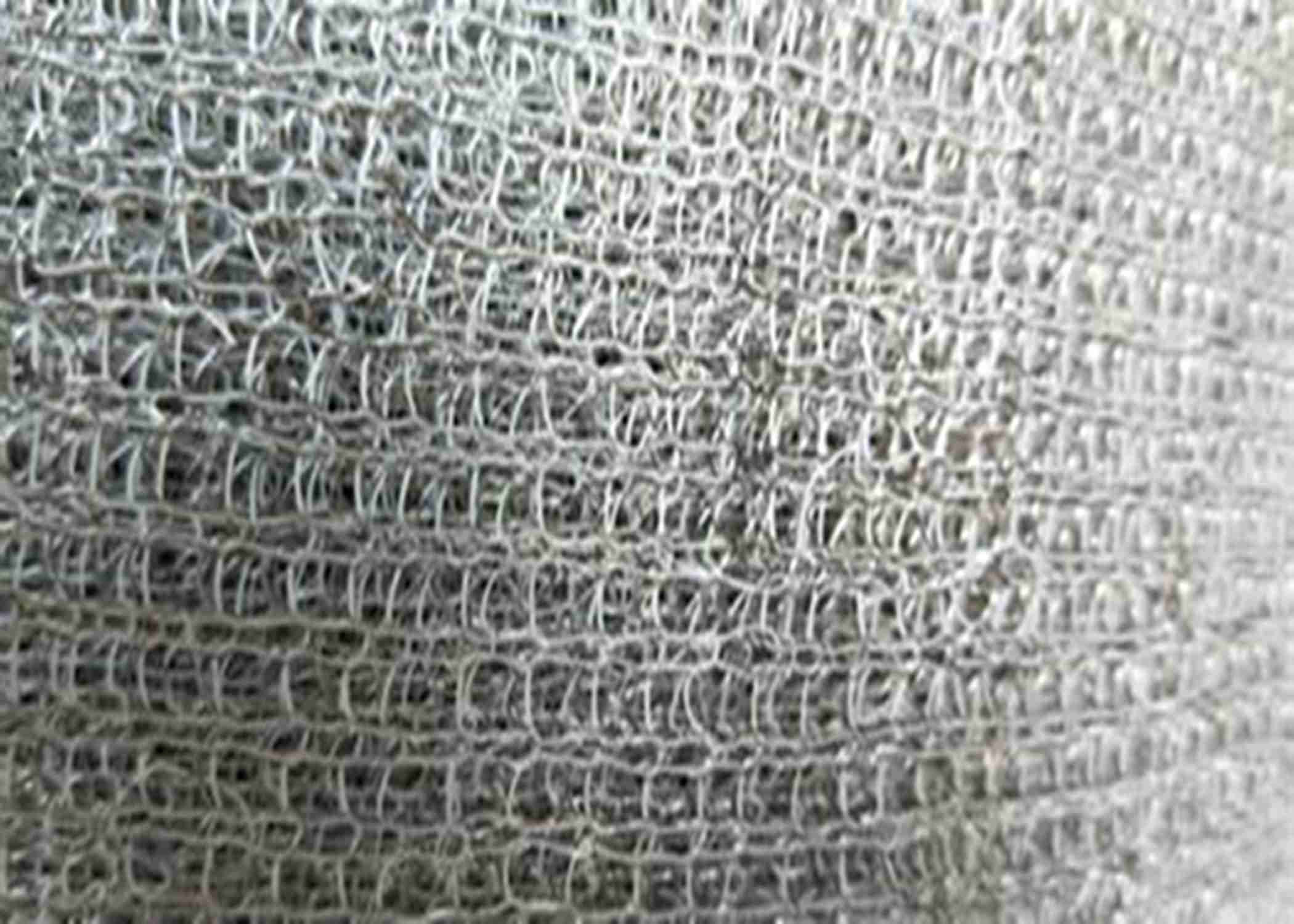

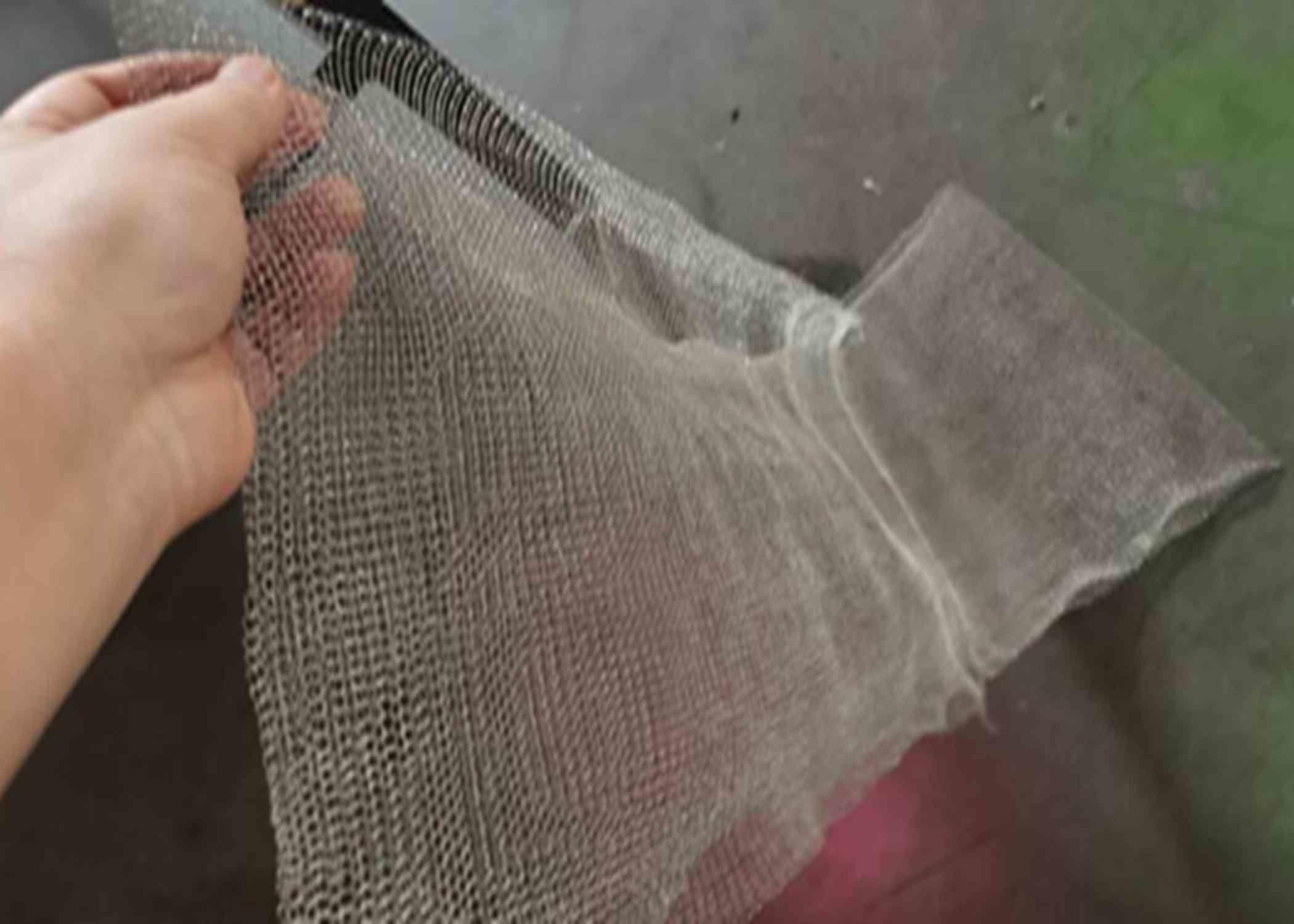

Knitted Wire Mesh Introduction



Stainless Steel Knitted Wire Mesh is produced by knitting machines, similar to jumpers and scarves machine, use stainlesss steel wire as raw material, knitting monofilament or multifilament wire into a tubular form. Then the wire mesh be flattened to mesh rolls, and can be also supplied in corrugated (crimped) form.



The final knitted mesh is in the structure of inter-connecting loops, and it similar to a long knit sock. We can produce multi-filament, co-knit and multi-strand knitted wire meshes.





Materials:



200 series: Grade 201, Grade 202;
300 series: Grade 304, Grade 316, Grade 321;
400 series: Grade 410, Grade 420, Grade 430.

SS304 and SS316 are standard material.



Specifications:


Opening Sizes: from 1mm x 1mm to 10mm x 10mm.

Wire Diameters: from 0.1mm to 0.45mm.

Roll Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500 mm, 600mm, etc.

Roll Length: 15m, 30m, 50m to 200m.



Item

Hole Number

Wire Diameter(mm)

Standard Knitted Wire Mesh

40-100

0.23,0.25,0.27,0.28

60-180

0.23,0.25,0.27,0.28

140-400

0.1*0.4

D--Wire Diameter; W1,W2, H--Hole Opening



Item

Hole Number

Wire Diameter(mm)

High Efficient Knitted Wire Mesh

70-100

0.23,0.25,0.28

80-100

0.1*0.3

90-100

0.1-0.3

D--Wire Diameter; W1,W2, H--Hole Opening



Item

Hole Number

Wire Diameter(mm)

High Penetrated Knitted Wire Mesh

20-160

0.15,0.23,0.28

30-150

0.15,0.23,0.28

70-400

0.15,0.23,0.28

D--Wire Diameter; W1,W2, H--Hole Opening



Common Specifications of Knitted Wire Mesh

Wire Diameter

(mm)

Opening Size

(mm)

Width

(mm)

Length

(m)

Number of Wires

(Nos.)

0.10

1.0-3.0

3-50

10-200

1-3

0.11

1.0-3.0

3-80

10-200

1-3

0.12

1.0-3.0

3-80

10-100

1-3

0.15

1.0-3.0

9-120

10-100

1-3

0.17

1.0-3.0

9-120

10-50

1-2

0.19

1.0-3.0

15-120

10-50

1-2

0.21

3.0-7.0

15-120

10-50

1-2

0.23

3.0-7.0

40-1000

10-50

1-2

0.25

3.0-7.0

40-1000

10-50

1-2

0.27

3.0-7.0

60-1000

10-50

1

0.28

3.0-7.0

60-1000

10-50

1

0.30

3.0-7.0

60-1000

10-50

1



0.1mm To 0.3mm Stainless Steel Knitted Wire Mesh Monofilament Multifilament 0



Features:



Corrosion resistance;
Alkali and acid resistance;
Rust resistance;
High temperature resistance;
Excellent shielding performance;
Outstanding filtering efficiency;
Durable and long service life.



Applications:



It can be used in the cable shields as a chassis grounding and electrostatic discharge;
Stainless steel knitted mesh can be installed onto the machine frames for EMI & RFI shielding industries, for elastomer cores and cable wrap;
It can be made into knitted mesh mist eliminator for gas and liquid filtration;
Stainless steel knitted mesh has outstanding filtering efficiency in various filtration device for air, liquid and gas filtration.







Packing:



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4
