Monel Wire Mesh Knitted Nickel Copper Alloy With Acid Resistant

  • Monel Wire Mesh Knitted Nickel Copper Alloy With Acid Resistant
  • Monel Wire Mesh Knitted Nickel Copper Alloy With Acid Resistant
  • Monel Wire Mesh Knitted Nickel Copper Alloy With Acid Resistant
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Corrosion Resistance Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material Monel 400, Monel 200, Etc Wire Diameter 0.10mm To 0.30mm
Knitted Type Standard Type, High Efficient, High Penetrated, Absorbed Type Roll Width Up To 1000mm
Roll Length Up To 200m Applications Oil Mist Separation, Mist Eliminators Or Demister Pads For Oil/ Gas, Etc
Highlight

monel wire mesh knitted

,

nickel copper alloy wire mesh knitted

,

acid resistant wire mesh knitted
Leave a Message
Product Description

Monel Knitted Wire Mesh Monel Is A Nickel-Copper Alloy With Acid Resistant



Monel knitted wire mesh introduction:

The knitted wire mesh is manufactured on a circular wire knitting machine using a single or double wire. The mono-filament interlocking-loop construction gives strength while allowing it to conform to almost any size or shape. The manufacturing process allows for an optional elastomer core to be included in to the product to aid compression. An additional environmental seal/carrier is also an option. It is available in a variety of combinations to suit many EMC and environmental sealing applications. Wire types are tin plated copper clad steel known as TCS, Monel which is an alloy of copper and nickel, Aluminium and stainless steel. Solid knitted wire meshes are supplied as round cord sections, rectangular and dumbbell sections. Knitted wire mesh over elastomeric cores can be other shapes such as D shape, tubes, clip on profiles and more.



The alloy Monel is a Nickel-Copper alloy. This alloy has got a high corrosion resistance and because of that, the mechanical properties will be not affected by high temperatures (up to 480°C).


Monel isn’t magnetic and has good workability in hot and cold condition.



Because of these properties, Monel can be found in applications as piping in seawater, offshore, shipping and in chemical equipment where acids are used.



Monel is available in several alloys with each its specific characteristics. we supply knitted wire mesh and woven wire mesh produced out of Monel-alloys.


Benefits:



Resistance to static and running seawater attack
High mechanical strength
Resistance to SCC
Prevents attack by acidic and alkali media
Perfect finish
Prolong service



Materials:



Pure nickel: Nickel 200/201, Nickel 270

Nickel Alloy: Cr20Ni80, Monel 400, Inconel 600

Others available, please ask



Monel 400 Mesh Chemical Composition:



C Cu Fe S Mn Ni Si
<0.3 % 28% to 34 % <2.5% <0.024% <2 % >63 % 0.5 %




Monel knitted wire mesh specfications:



wire opening size width length number of wires
mm inch mm inch mm m Nos.
0.10 0.0039 1 to 3 0.039 to 0.118 3 to 50 10 to 200 1 to 3
0.11 0.0043 1 to 3 0.039 to 0.118 3 to 80 10 to 200 1 to 3
0.12 0.0047 1 to 3 0.039 to 0.118 3 to 80 10 to 100 1 to 3
0.15 0.0059 1 to 3 0.039 to 0.118 9 to 120 10 to 100 1 to 3
0.17 0.0067 1 to 3 0.039 to 0.118 9 to 120 10 to 50 1 to 2
0.19 0.0075 1 to 3 0.039 to 0.118 15 to 120 10 to 50 1 to 2
0.21 0.0083 3 to 7 0.118 to 0.276 15 to 120 10 to 50 1 to 2
0.23 0.0091 3 to 7 0.118 to 0.276 40 to 1000 10 to 50 1 to 2
0.25 0.0098 3 to 7 0.118 to 0.276 40 to 1000 10 to 50 1 to 2
0.27 0.0106 3 to 7 0.118 to 0.276 60 to 1000 10 to 50 1
0.28 0.0110 3 to 7 0.118 to 0.276 60 to 1000 10 to 50 1
0.30 0.0118 3 to 7 0.118 to 0.276 60 to 1000 10 to 50 1

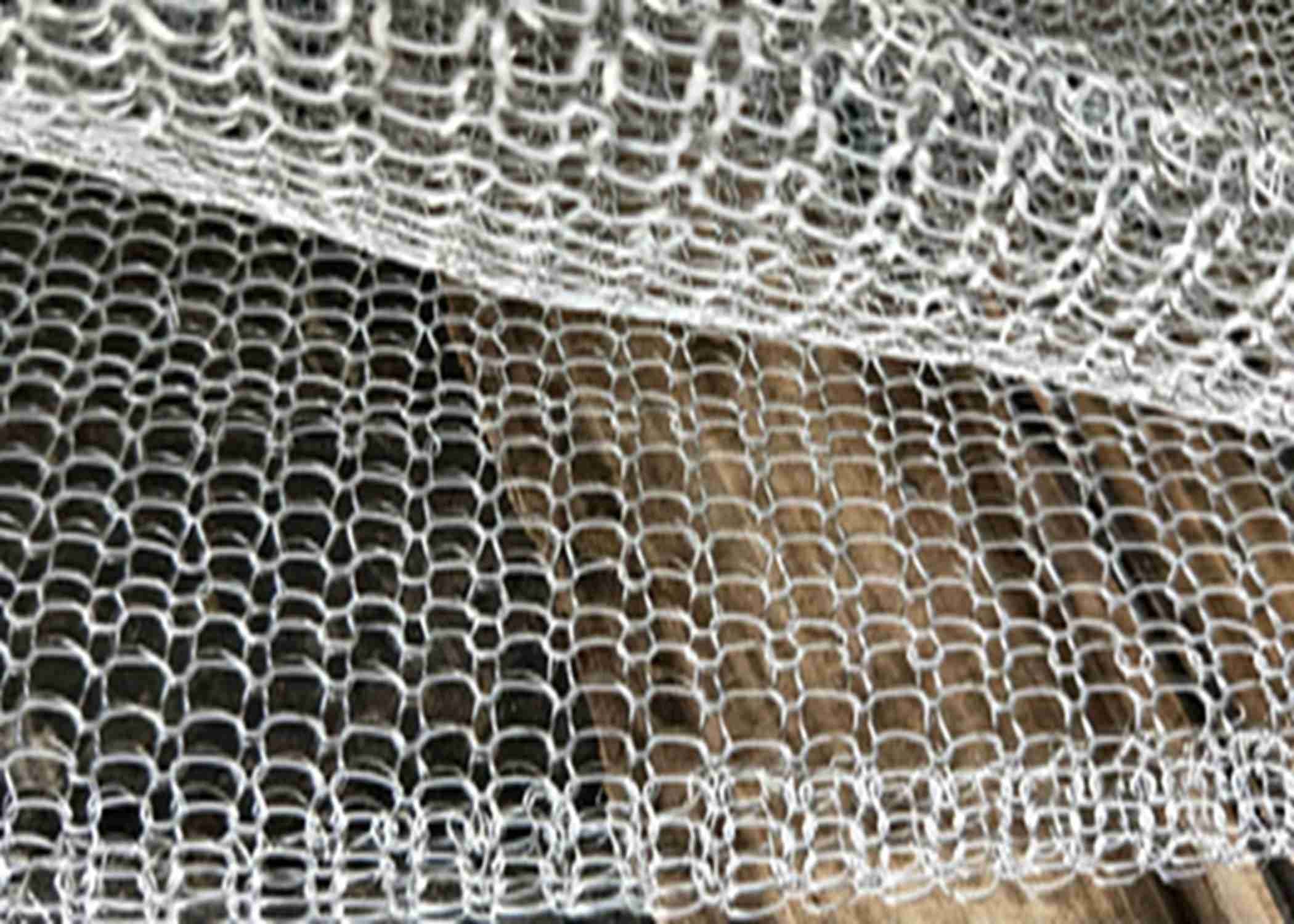

Monel Wire Mesh Knitted Nickel Copper Alloy With Acid Resistant 0



Application:



Usage of Monel knitted wire mesh includes:

In the EMI & RFI shielding applications, for shielding gaskets, elastomer cores and cable wrap.

In the filtration & separation applications, for the screen of the mist eliminator.

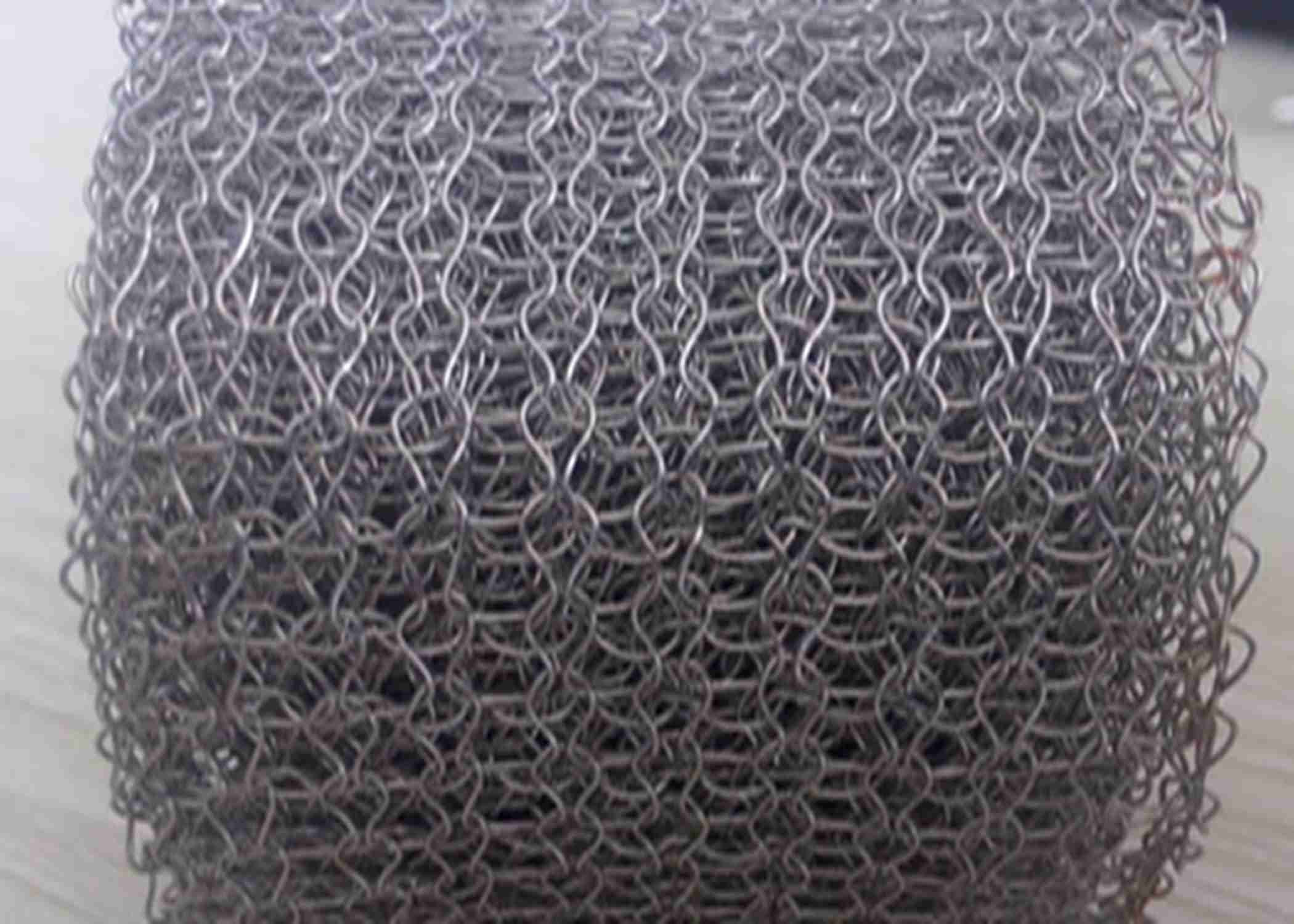

Monel Wire Mesh Knitted Nickel Copper Alloy With Acid Resistant 1





Monel knitted wire mesh rolls



Roll width 3 mm, 15 mm, 25.4 mm, 50.8 mm to 600 mm (measured on flat)

Roll length 15 m, 30 m, 50 m to 200 m

Other rolls size on request
