10m X 0.6m 304 Stainless Steel Knitted Wire Mesh Durable And Long Lifespan

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Acid And Alkali Resistance. Product Name Stainless Steel 304 Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material Stainless Steel Wire, Copper Wire, Galvanized Iron Wire, Monel, Etc Wire Diameter 0.10mm To 0.30mm
Opening 3.0mm To 7.0mm Roll Width 60 To 1000mm
Roll Length 10 To 50m Applications Protecting Mesh
High Light

10m x 0.6m stainless steel knitted wire mesh

,

304 stainless steel knitted wire mesh

,

304 knitted stainless steel mesh

Leave a Message
Product Description

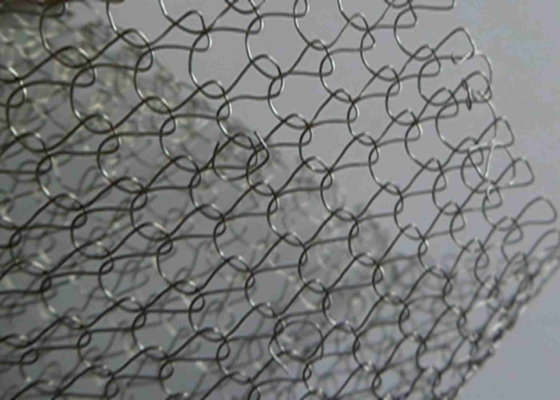

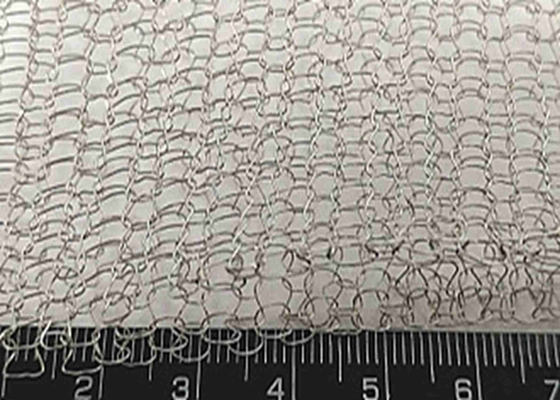

Stainless Steel 304 Knitted Wire Mesh Durable and long lifespan Knitted Mesh



Knitted Mesh

Knitted wire mesh is made of either crochet or knitting of various wire materials including stainless steel, copper, synthetic fiber and other materials.

Knitted wire mesh products are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications.

Our knitted wire mesh is made from all material available in wire shapes for processing of the following parts:

Filters Oil and Air Breather Elements Catalytic Converter Mesh Insulator Blanket Mesh Mufflers and Silencers Copper Mesh Oil-Bath Separators Mist Elimination Pads Ground Wire Mesh





Specifications:

Wire Diameters: from 0.1mm to 0.45mm.

Roll Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500 mm, 600mm, 1000mm, etc.

Roll Length: 15m, 30m, 50m to 100m.

Specification of flat wire stainless steel knitted mesh
Wire Diameter (mm) Mesh Opening/ Loop Size (mm) Number of Needles Maximum Width (mm) Minimum Width (mm)
0.1 × 0.3 2 × 4 36 60 55
0.1 × 0.3 4.5 × 4 2.5 × 4 34 150 100
0.1 × 0.4 4.5 × 5.5 2.5 × 5.5 40 150 120
0.1 × 0.4 4 × 3.5 2.5 × 3.5 56 205 180
0.1 × 0.4 4 × 4 3 × 4 65 260 240
0.2 × 0.4 5.2 × 3.5 3 × 3.5 94 420 380
0.2 × 0.4 7.5 × 5 5 × 5 102 565 490
0.2 × 0.5 5 × 4 2.5 × 4 128 560  470



Specification of round wire stainless steel knitted mesh
Wire Diameter (mm) Width (mm) Number of Stitches Per cm on Length Number of Stitches Per cm Across Lay Flat
0.08 – 0.18 6 - 300 3.5 4.4
0.16 40 - 600 2.4 3.5
0.18 - 0.35 30 - 1000 1.6 1.9
0.25 - 0.40 30 - 1000 1.6 0.74
0.4 - 0.5 100 - 350 0.5 0.5





Materials:



Knitted wire mesh is made of stainless steel wire, copper wire, galvanized iron wire, monel, etc.



Features:



Corrosion resistance.
Alkali and acid resistance.
Rust resistance.
High temperature resistance.
Excellent shielding performance.
Outstanding filtering efficiency.
Durable and long service life.



Applications:



Knitted wire mesh made of tinned copper clad steel has the best shielding performance of all wires used in knitted meshes, combining low contact resistance with a small degree of permeability. It is not suitable for highly abrasive applications where the TIN plating may wear away to expose the copper. The corrosion resistance of tinned copper clad steel knitted wire mesh is suitable for most applications



Flattened stainless steel knitted mesh





Ginning stainless steel knitted mesh










Packing:



Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4



We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
