Alkali And Acid Resistance Stainless Steel Knitted Wire Mesh 0.08mm To 0.5mm

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Acid And Alkali Resistance And Corrosion Resistance Product Name Stainless Steel Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Roll Type Flatten Type And Ginning Type
Material Stainless Steel Wire, Copper Wire, Nickel Wire, Monel Wire, Aluminum Wire And Other Alloy Wire. Wire Diameter 0.08mm To 0.5mm
Opening 3.0mm To 7.0mm Roll Width 6mm, 13mm, 25mm, 38mm, 50mm, 75mm, 100mm, 175mm, 200mm, 500mm, 1000mm And Other Widths Are Available.
Roll Length 10 To 50m Applications For Gas And Liquid Filtration
High Light

flatten stainless steel knitted wire mesh

,

0.08mm stainless steel knitted wire mesh

,

acid resistance knitted wire mesh

Leave a Message
Product Description

Alkali And Acid Resistance Stainless Steel 0.08mm To 0.5mm Wire Knitted Wire Mesh

Knitted Wire Mesh with Stainless Steel

Stainless steel knitted mesh refers to knitted mesh made of stainless steel wire. It is a nonwoven wire mesh or cloth product. The stainless steel knitted mesh is the most widely used type among all material knitted meshes.



Stainless steel knitted mesh can be made of mono-filament or multi-filament. Mono-filament knitted mesh is the simplest type, which can be used in the common applications and the multi-filament knitted mesh has higher strength, which can be used in the heavy duty applications.



The stainless steel knitted mesh is manufactured using a knitting process where the mesh is formed from a series of interlocking loops. The original stainless steel knitted mesh is flattened when complete production, but it can be made into ginning knitted mesh by machine according to customers' requirements. Ginning knitted mesh has different shapes, width and depth of ginning, which can suit more applications. Additional, stainless steel knitted mesh can be compressed into compressed knitted mesh for better filtering efficiency.



The wire of knitted wire mesh rolls can be flat wire or round wire. The round wire knitted wire mesh rolls is the most commonly used type, which can be used almost all of the applications. The flat wire knitted wire mesh rolls have larger surface area than the round wire knitted wire mesh rolls. They can be used in the special applications according to customers' requirements.



The knitted wire mesh rolls can be made of mono-filament wires, which are widely used in the common applications for filtering and shielding. It can also be made of multi-filament wires, which has higher strength and can be used in the heavy duty applications.





Combination Knitted Wire Mesh Specifications:

Material: stainless steel wire, copper wire, nickel wire, monel wire, aluminum wire and other alloy wire.
Wire diameter: 0.11mm, 0.12mm, 0.14mm, 015mm, 0.25mm, 0.5mm and other sizes can be customized.
Width: 6mm, 13mm, 25mm, 38mm, 50mm, 75mm, 100mm, 175mm, 200mm, 500mm, 1000mm and other widths are available.
Length: commonly is 10m and other lengths can be customized according to your requirements.
Roll type: flatten type and ginning type.





Specification of round wire stainless steel knitted mesh
  Wire Diameter (mm) Width (mm) Number of Stitches Per cm on Length Number of Stitches Per cm Across Lay Flat
Fine Mesh 0.08 – 0.18 6 - 300 3.5 4.4
Medium-fine Mesh 0.16 40 - 600 2.4 3.5
Standard Mesh 0.18 - 0.35 30 - 1000 1.6 1.9
Coarse Mesh 0.25 - 0.40 30 - 1000 1.6 0.74
Super Coarse Mesh 0.4 - 0.5 100 - 350 0.5 0.5





Materials:



Knitted wire mesh is made of stainless steel wire, copper wire, galvanized iron wire, monel, etc.



Features:



Corrosion resistance.
Alkali and acid resistance.
Rust resistance.
High temperature resistance.
Excellent shielding performance.
Outstanding filtering efficiency.
Durable and long service life.

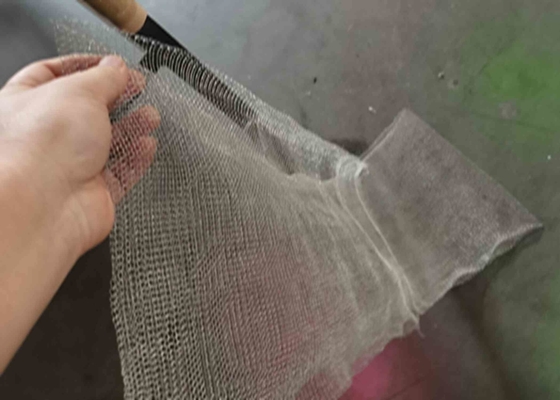

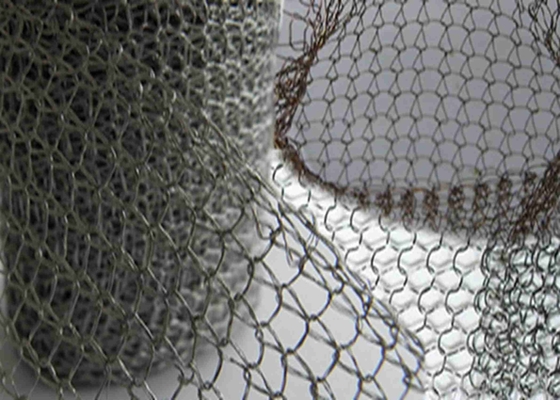

Alkali And Acid Resistance Stainless Steel Knitted Wire Mesh 0.08mm To 0.5mm 0

Alkali And Acid Resistance Stainless Steel Knitted Wire Mesh 0.08mm To 0.5mm 1

Alkali And Acid Resistance Stainless Steel Knitted Wire Mesh 0.08mm To 0.5mm 2



Applications:



Stainless steel knitted mesh has excellent shielding performance. It can be used in the cable shields as a chassis grounding and electrostatic discharge.


Stainless steel knitted mesh can be installed onto the machine frames for EMI shielding in military electronic system.
It can be made into knitted mesh mist eliminator for gas and liquid filtration.


Stainless steel knitted mesh has outstanding filtering efficiency in various filtration device for air, liquid and gas filtration.







Alkali And Acid Resistance Stainless Steel Knitted Wire Mesh 0.08mm To 0.5mm 3

Alkali And Acid Resistance Stainless Steel Knitted Wire Mesh 0.08mm To 0.5mm 4

Alkali And Acid Resistance Stainless Steel Knitted Wire Mesh 0.08mm To 0.5mm 5

Alkali And Acid Resistance Stainless Steel Knitted Wire Mesh 0.08mm To 0.5mm 6

Alkali And Acid Resistance Stainless Steel Knitted Wire Mesh 0.08mm To 0.5mm 7



What else is knitted mesh called?


Once you start to give something a name, it can be difficult to think of what someone else might call it, about knitted wire mesh, it also be called: Chain mesh, Wire net, Knotted wire mesh, Silt mesh, Mesh stocking, Wire netting, Sock mesh, Stretchy mesh, Wire mesh stocking, Mesh ribbon, Chicken wire, Holey mesh, Knitted copper, Interwoven metal, Metal bag, Wire protector, Wine bottle mesh, Interlocked wire.


Packing:



Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4



We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
