Filtration And Cleaning 0.11mm Stainless Steel Knitted Wire Mesh
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Acid And Alkali Resistance, Corrosion And Rust Resistance. | Product Name | Knitted Wire Mesh With Different Materials |
---|---|---|---|
Standard | Q/SG12-1-79 Q/YSZZ-88-91 | Roll Type | Flatten Type And Ginning Type |
Main Material | Can Be Galvanized Wire, Stainless Steel Wire, Copper Wire, Brass Wire, Nickel Wire, Monel Wire And Other Alloy Wires. | Wire Diameter | 0.11mm, 0.12mm, 0.14mm, 015mm And Other Sizes Can Be Customized. |
Opening | 3.0mm To 7.0mm | Roll Width | 6mm, 13mm, 25mm, 38mm, 50mm, 75mm, 100mm, 175mm, 200mm, 500mm, 1000mm And Other Widths Are Available. |
Roll Length | 10 To 50m | Applications | Usded For Filtration And Cleaning |
High Light | filtration stainless steel knitted wire mesh,0.11mm stainless steel knitted wire mesh,cleaning knitted mesh |

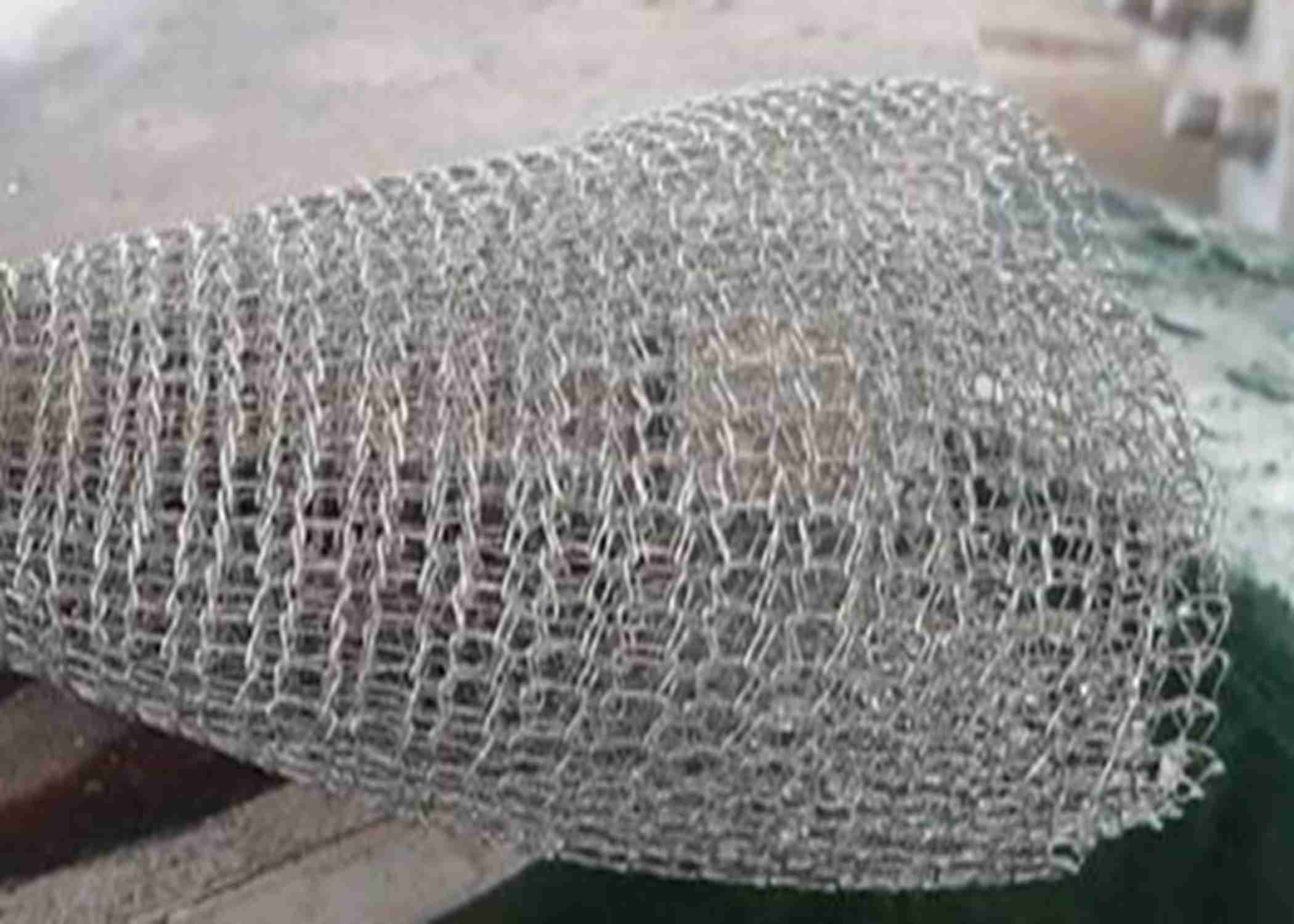

Various Materials Knitted Mesh Fabric Usded For Filtration And Cleaning Knitted Wire Mesh
Knitted Mesh Fabric Usded For Filtration And Cleaning
Knitted wire fabric is a wire fabric, which is made by a circular knitted machine. The various knitted material wires are knitted into a sleeve of continuous stocking of inter-linked wire loops.
The knitted mesh fabric has various materials, the main materials can be galvanized wire, stainless steel wire, copper wire, brass wire, nickel wire, monel wire and other alloy wires.
Knitted mesh fabric is normally knitted from round or flat wires ranging from various diameters. The round wire knitted mesh fabric is the most widely used type and the flat wire knitted mesh fabric can be used in the special applications according to customers' requirements.
The knitted mesh fabric can be made of mono-filament wires or multi-filament wires. The mono-filament knitted mesh fabric is simple and economical, the multi-filament knitted mesh fabric has higher strength to suitable heavy duty applications.
The knitted mesh fabric can be flattened, which is the original appearance of knitted mesh. It can be crimped, which is crimped by machines to form different shapes, width and depth crimps according to customers' requirements.
The knitted mesh fabric can be supplied in rolls, sometimes, the knitted wire mesh fabric can be compressed into different shapes according to customers' requirements. This structure allows liquid and gas flowing through. The special knitting increase filtration capability and particle retention capacity of the wire mesh fabric.
Combination Knitted Wire Mesh Specifications:
Material: stainless steel wire, copper wire, brass wire, nickel wire, monel wire, aluminum wire, galvanised wire and other alloy wire.
Wire diameter: 0.11mm, 0.12mm, 0.14mm, 015mm and other sizes can be customized.
Width: 6mm, 13mm, 25mm, 38mm, 50mm, 75mm, 100mm, 175mm, 200mm, 500mm, 1000mm and other widths are available.
Length: commonly is 10m and other lengths can be customized according to your requirements.
Roll type: flatten type and ginning type.
Common Specifications of Combination Knitted Wire Mesh |
||||
Wire Diameter (mm) |
Opening Size (mm) |
Width (mm) |
Length (m) |
Number of Wires (Nos.) |
0.21 |
3.0-7.0 |
60-150 |
10-50 |
2 |
0.23 |
3.0-7.0 |
60-150 |
10-50 |
2 |
0.25 |
3.0-7.0 |
60-150 |
10-50 |
2 |
0.27 |
3.0-7.0 |
60-150 |
10-50 |
2 |
0.28 |
3.0-7.0 |
60-150 |
10-50 |
2 |
0.30 |
3.0-7.0 |
60-150 |
10-50 |
2 |
Materials:
Knitted wire mesh is made of stainless steel wire, copper wire, galvanised iron wire, monel, etc.
Details of knitted mesh fabric
Knitted mesh fabric materials: stainless steel wire, copper wire, nickel wire, galvanized iron wire, phosphor bronze wire and polypropylene fiber.
Manufacturing method: Machine knitting.
Manufactured form: Sock/tube (can be slit into a single layer).
Material structure: Inter-locking loops with variable free-space dimensions.
Features:
High filtration efficiency.
High strength.
Corrosion and rust resistance.
Acid and alkali resistance.
Wide range of application.
Applications:
Knitted wire mesh is widely used as liquid-gas filtration materials in various fields of industries.
Compressed knitted mesh is commonly used as filtering materials in the industries. It can be used as engine breathers in the vehicles.
Knitted wire mesh can be used as shielding mesh in the electronics and other fields.
Knitted wire mesh can be used to eliminate the mist as the knitted mesh mist eliminator or demister pad.
Knitted wire mesh can be made into knitted cleaning balls to clean kitchenware and other mechanical parts needed cleaning.

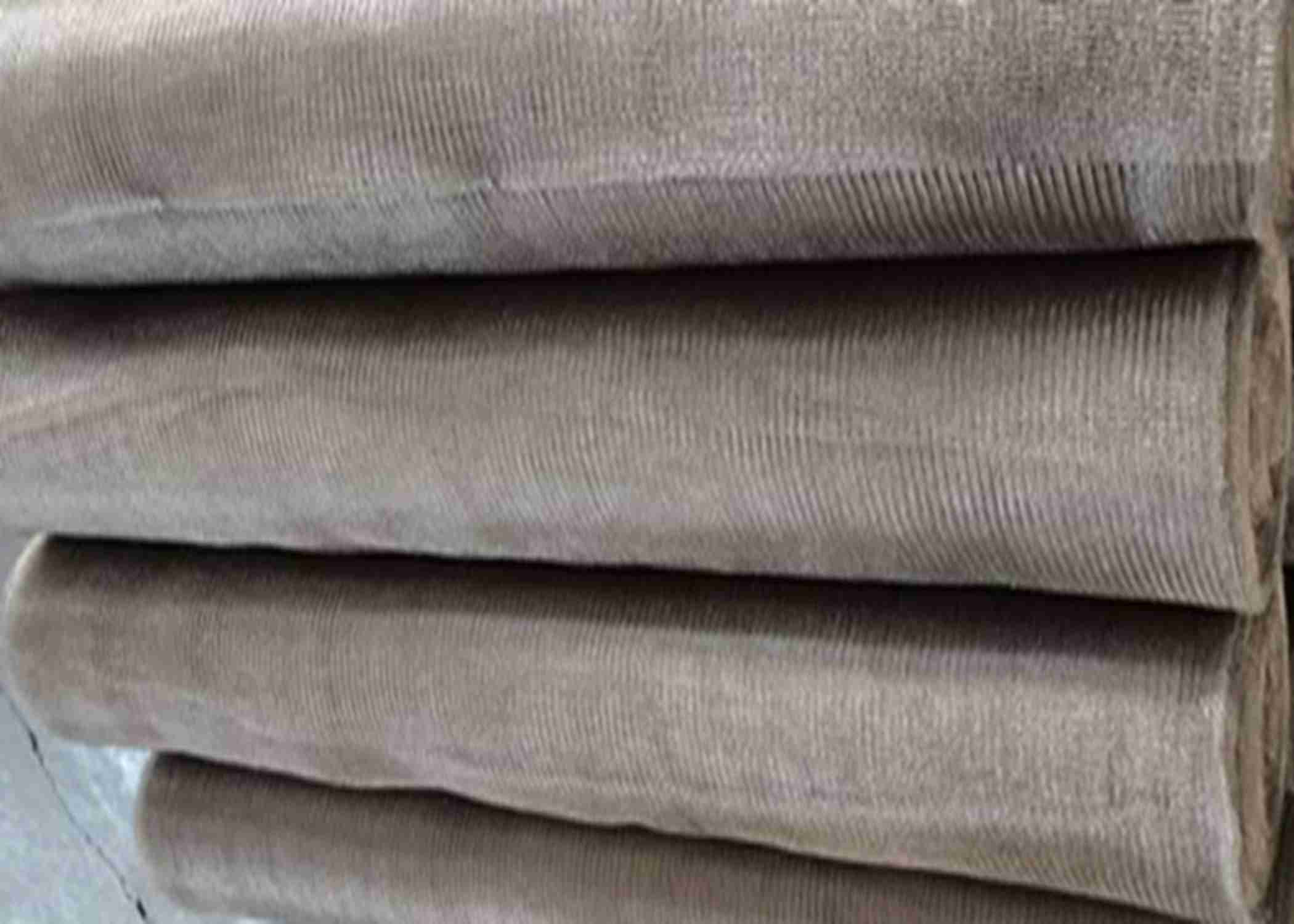

Packing:
Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.
