Industrial Fields 0.12mm Wire Knitted Stainless Steel Mesh

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Shielding Performance. Product Name Knitted Wire Mesh With Different Materials
Standard Q/SG12-1-79 Q/YSZZ-88-91 Roll Type Flatten Type And Ginning Type
Material Stainless Steel Wire, Copper Wire, Nickel Wire, Monel Wire, Aluminum Wire, Galvanised Wire And Other Alloy Wire. Wire Diameter 0.11mm, 0.12mm, 0.14mm, 015mm And Other Sizes Can Be Customized.
Opening 3.0mm To 7.0mm Roll Width 6mm, 13mm, 25mm, 38mm, 50mm, 75mm, 100mm, 175mm, 200mm, 500mm, 1000mm And Other Widths Are Available.
Roll Length 10 To 50m Applications Used In Various Applications And Industrial Fields
High Light

0.12mm wire knitted stainless steel mesh

,

industrial fields knitted stainless steel mesh

,

0.12mm stainless steel knitted wire mesh

Leave a Message
Product Description

Much Broader Range Of Materials Used In Various Industrial Fields Knitted Wire Mesh

Knitted Wire Mesh With Different Materials

Knitting is a processing method, which can making metal materials into wire mesh or fabrics. Knitted wire mesh utilizes a much broader range of materials and can be used in various applications and industrial fields.



Materials of knitted wire mesh:
Knitted wire mesh is available for various materials. They have different advantages and can be used in different applications.

*Stainless steel wires. It features acid and alkali resistance, high temperature resistance and can be used in harshest environments.
*Copper wire. Good shielding performance, corrosion and rust resistance. Can be used as shielding meshes.
*Brass wires. Similar to copper wire, which has bright color and good shielding performance.
*Galvanizes wire. Economical and durable materials. Corrosion resistance for common and heavy duty applications.
*Nickel wire.
*Other alloy wire.
*Polypropylene. Plastic material for lightweight and economical. Low cost and corrosion resistance.



The machine producing knitted wire mesh is similar to that machine making sweaters and scarves. Installing the various metal wires onto the round knitting machine and then we can get a continuous circle knitted wire mesh.



The knitted wire mesh can be made of round wires or flat wires. The round wires is the most commonly used type and the flat wire knitted mesh is commonly used in the special applications according to customers' requirements.



The knitted wire mesh can be made of mono-filament wires or multi-filament wires. The mono-filament knitted wire mesh features simple structure and economical, which is widely used in the common applications. The multi-filament knitted wire mesh has higher strength than the mono-filament knitted wire mesh. The multi-filament knitted wire mesh is commonly used in the heavy duty applications.



The circle knitted wire mesh is pressed into flattened types and sometimes, they are crimped into ginning knitted wire mesh. The ginning has different shapes, width and depth. They can be used in various industrial applications for filtration.



The flattened and ginning knitted wire mesh can be pressed into compressed knitted mesh. The compressed knitted mesh has better filtration capacity than the common knitted mesh. It is widely used in the industries for gas and liquid filtration.



Combination Knitted Wire Mesh Specifications:

Material: stainless steel wire, copper wire, brass wire, nickel wire, monel wire, aluminum wire, galvanised wire and other alloy wire.
Wire diameter: 0.11mm, 0.12mm, 0.14mm, 015mm and other sizes can be customized.
Width: 6mm, 13mm, 25mm, 38mm, 50mm, 75mm, 100mm, 175mm, 200mm, 500mm, 1000mm and other widths are available.
Length: commonly is 10m and other lengths can be customized according to your requirements.
Roll type: flatten type and ginning type.



Common Specifications of Combination Knitted Wire Mesh

Wire Diameter

(mm)

Opening Size

(mm)

Width

(mm)

Length

(m)

Number of Wires

(Nos.)

0.21

3.0-7.0

60-150

10-50

2

0.23

3.0-7.0

60-150

10-50

2

0.25

3.0-7.0

60-150

10-50

2

0.27

3.0-7.0

60-150

10-50

2

0.28

3.0-7.0

60-150

10-50

2

0.30

3.0-7.0

60-150

10-50

2





Materials:



Knitted wire mesh is made of stainless steel wire, copper wire, galvanized iron wire, monel, etc.



Features:



High strength.
Corrosion and rust resistance.
Acid and alkali resistance.
High temperature resistance.
Soft and won't hurt the mechanical parts.
Durable and long service life.
Good shielding performance.
High filtration efficiency.
Excellent cleaning capacity.

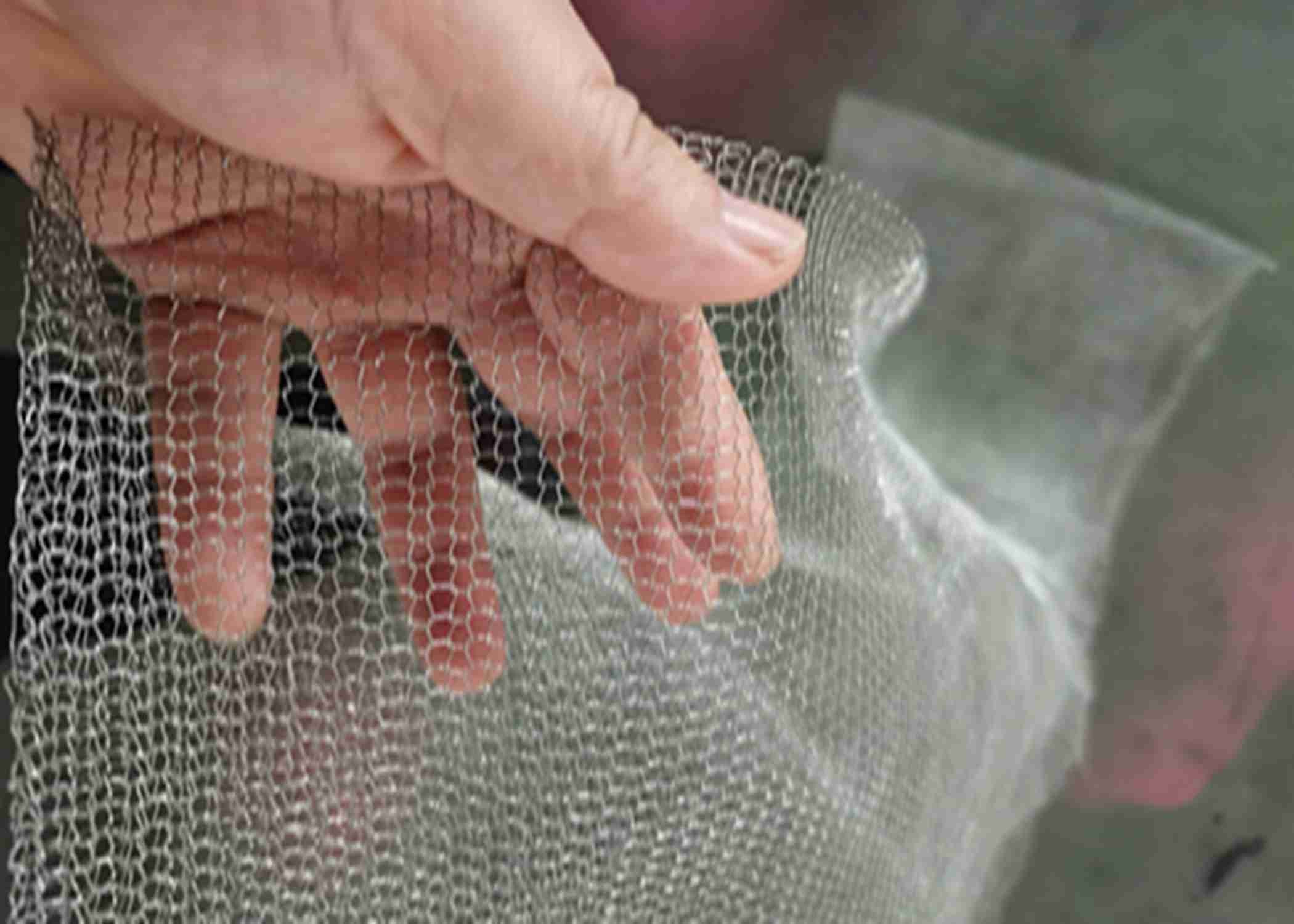

Industrial Fields 0.12mm Wire Knitted Stainless Steel Mesh 0

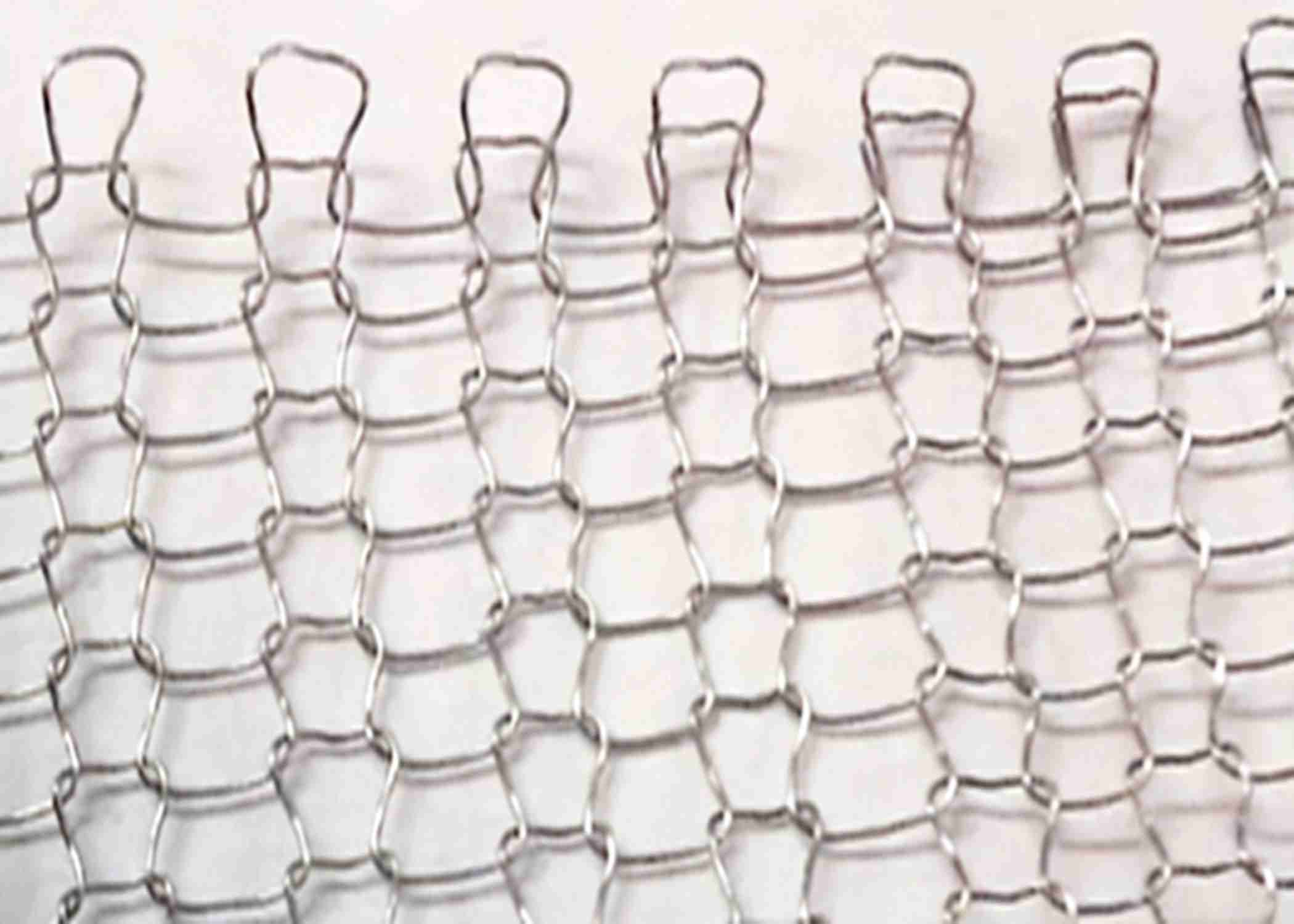

Industrial Fields 0.12mm Wire Knitted Stainless Steel Mesh 1

Industrial Fields 0.12mm Wire Knitted Stainless Steel Mesh 2



Applications:



Knitted wire mesh is widely used as liquid-gas filtration materials in various fields of industries.
Compressed knitted mesh is commonly used as filtering materials in the industries. It can be used as engine breathers in the vehicles.
Knitted wire mesh can be used as shielding mesh in the electronics and other fields.
Knitted wire mesh can be used to eliminate the mist as the knitted mesh mist eliminator or demister pad.
Knitted wire mesh can be made into knitted cleaning balls to clean kitchenware and other mechanical parts needed cleaning.

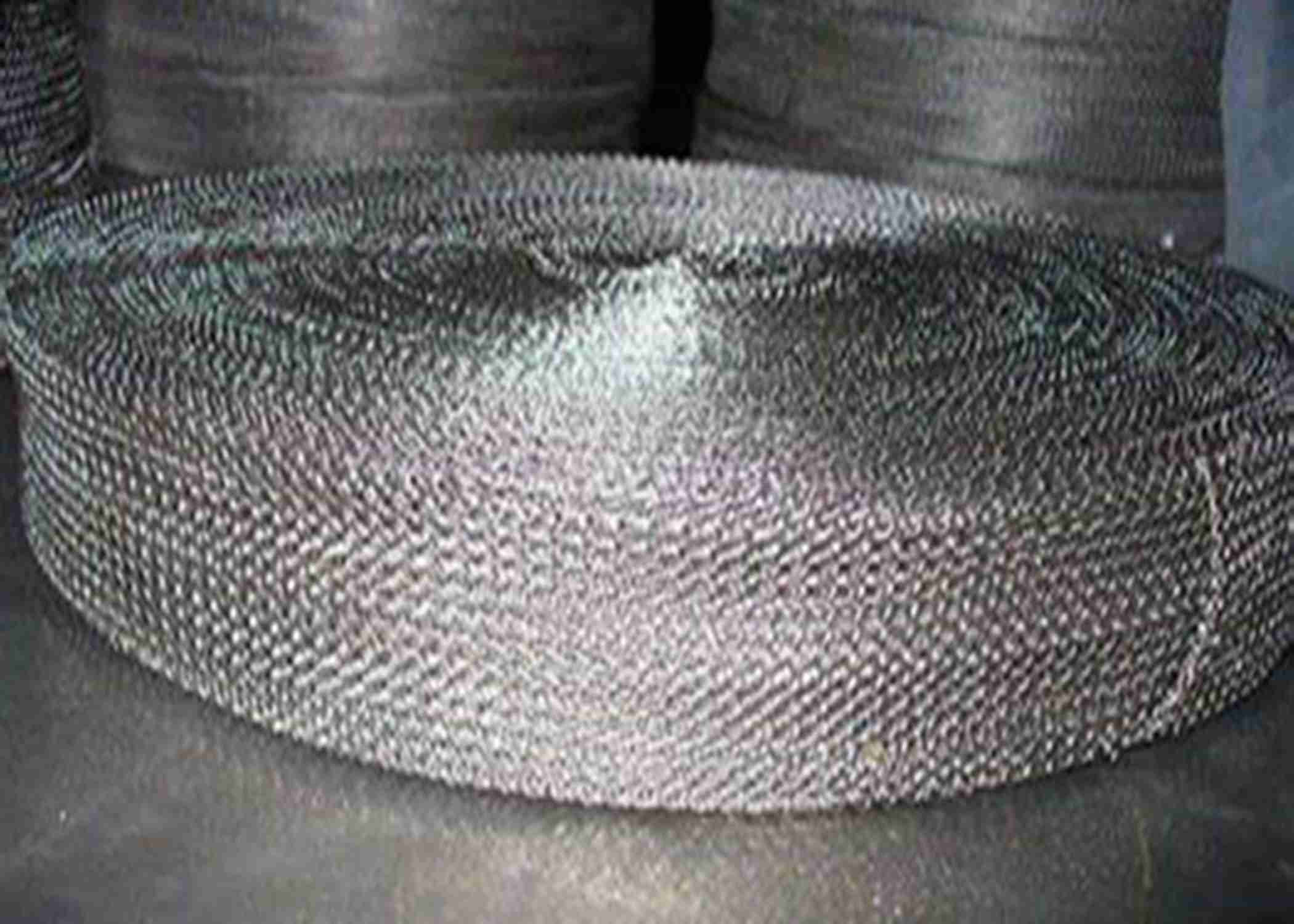

Industrial Fields 0.12mm Wire Knitted Stainless Steel Mesh 3



Industrial Fields 0.12mm Wire Knitted Stainless Steel Mesh 4


Packing:



Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4



We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
