Shielding Knitted Wire Mesh Tape Stainless Steel 10m Roll

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Acid And Alkali Resistance. Product Name Knitted Wire Mesh Tape
Standard Q/SG12-1-79 Q/YSZZ-88-91 Roll Type Flatten Type And Ginning Type
Material Stainless Steel Wire, Copper Wire, Nickel Wire, Monel Wire, Aluminum Wire And Other Alloy Wire. Wire Diameter 0.11mm, 0.12mm, 0.14mm, 015mm And Other Sizes Can Be Customized.
Opening 3.0mm To 7.0mm Roll Width 6mm, 13mm, 25mm, 38mm, 50mm, 75mm, 100mm, 175mm, 200mm, 500mm, 1000mm And Other Widths Are Available.
Roll Length 10 To 50m Applications Commonly Used As Knitted Wire Mesh Shielding For EMI/RFI Shielding.
High Light

shielding knitted wire mesh tape

,

knitted wire mesh tape stainless steel

,

10m roll knitted wire mesh tape

Leave a Message
Product Description

Knitted Wire Mesh Tape Used As Shielding Stainless Steel Knitted Wire Mesh



Knitted Wire Mesh Tape

Knitted wire mesh tape, also called cable wrapping, is a kind of knitted wire mesh roll, which the various fine wires are knitted into a double-thickness flat stockings, the knitted wire mesh can be rolled up directly, or it can be rolled onto the paper reels or plastic reels.



The material of knitted wire mesh tape has a wide range of selection. The main materials of knitted wire mesh tape can be stainless steel, copper, monel, nickel and other alloy wires. All the materials are corrosion resistance and high temperature resistance. They have excellent shielding performance in the applications.



Knitted wire mesh tape is widely used to shield, ground and statically discharge cables or harness entire bundles of cables. Knitted wire mesh tape has excellent shielding performance, which can be used in the various fields.





Combination Knitted Wire Mesh Specifications:

Material: stainless steel wire, copper wire, nickel wire, monel wire, aluminum wire and other alloy wire.
Wire diameter: 0.11mm, 0.12mm, 0.14mm, 015mm and other sizes can be customized.
Width: 6mm, 13mm, 25mm, 38mm, 50mm, 75mm, 100mm, 175mm, 200mm, 500mm, 1000mm and other widths are available.
Length: commonly is 10m and other lengths can be customized according to your requirements.
Roll type: flatten type and ginning type.



Common Specifications of Combination Knitted Wire Mesh

Wire Diameter

(mm)

Opening Size

(mm)

Width

(mm)

Length

(m)

Number of Wires

(Nos.)

0.21

3.0-7.0

60-150

10-50

2

0.23

3.0-7.0

60-150

10-50

2

0.25

3.0-7.0

60-150

10-50

2

0.27

3.0-7.0

60-150

10-50

2

0.28

3.0-7.0

60-150

10-50

2

0.30

3.0-7.0

60-150

10-50

2





Materials:



Knitted wire mesh is made of stainless steel wire, copper wire, galvanized iron wire, monel, etc.



Features:



A wide range of material selection.
Corrosion and rust resistance.
High temperature resistance.
Acid and alkali resistance.
Various width and wire diameters for choice.
Excellent shielding performance.
Easy to install and uninstall.
Durable and long service life.
Crimped tapes are available for greater thicknesses.



Applications:



Knitted wire mesh tape is commonly used as knitted wire mesh shielding for EMI/RFI shielding. It can be used in electrical and electronic cables for cable shielding, jointing and grounding. It can supply excellent shielding performance to guarantee the safety.

Note: for the best shielding performance, you should make sure there is 50% overlap on the cables.

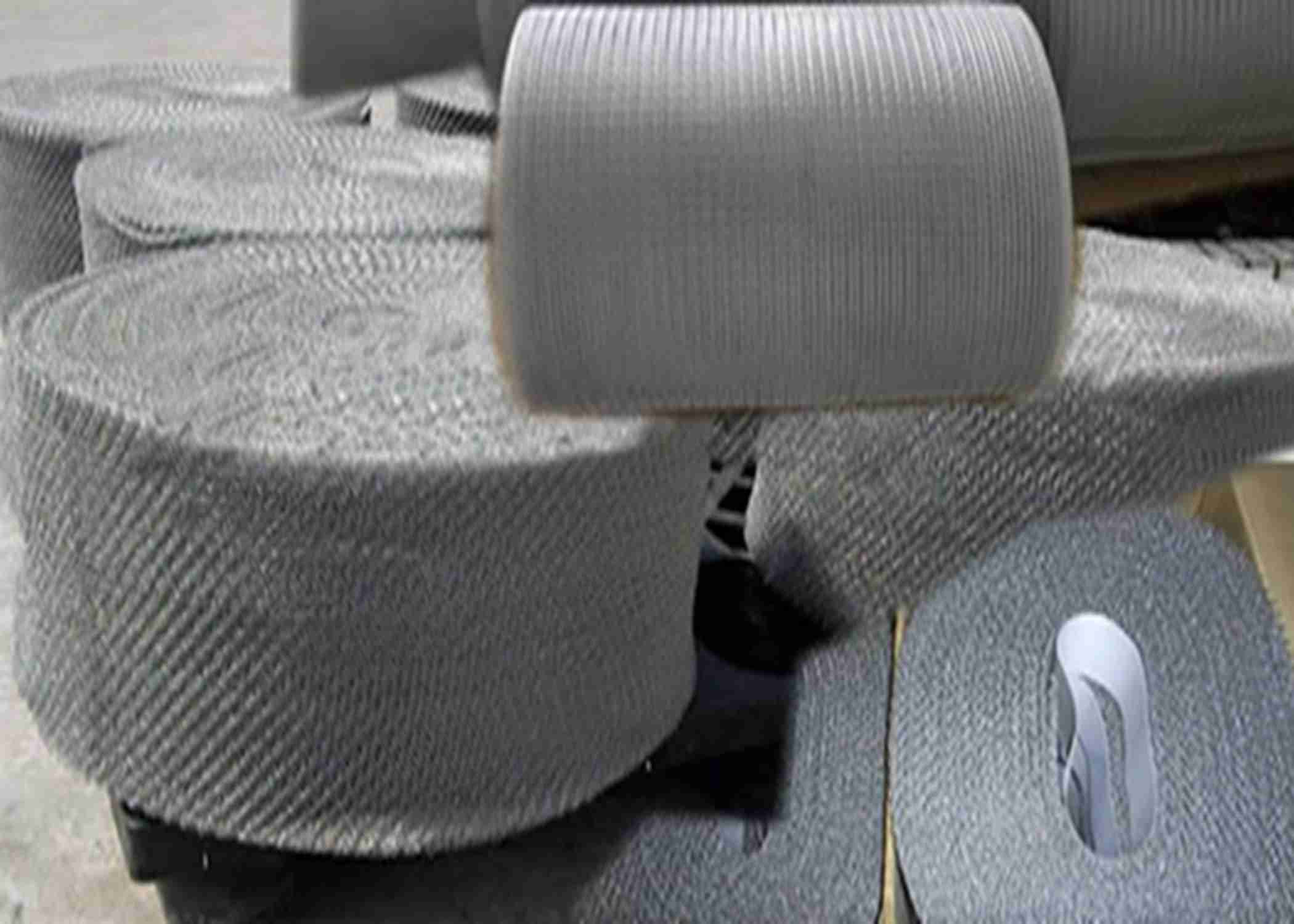

Shielding Knitted Wire Mesh Tape Stainless Steel 10m Roll 0

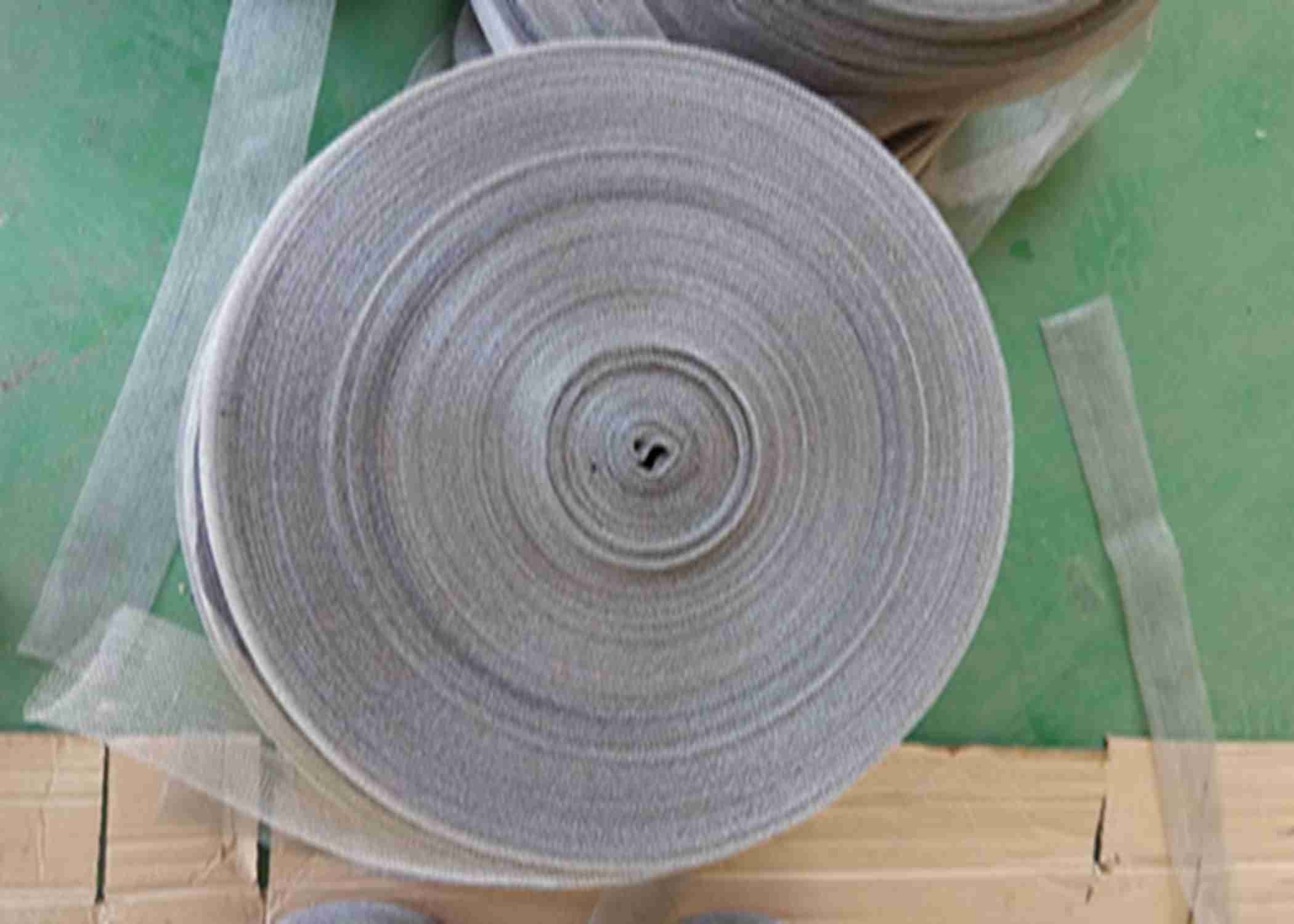

Shielding Knitted Wire Mesh Tape Stainless Steel 10m Roll 1


Packing:



Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4



We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
