Corrugated Stainless Steel Knitted Wire Mesh 0.10-0.30 Mm

  • Corrugated Stainless Steel Knitted Wire Mesh 0.10-0.30 Mm
  • Corrugated Stainless Steel Knitted Wire Mesh 0.10-0.30 Mm
  • Corrugated Stainless Steel Knitted Wire Mesh 0.10-0.30 Mm
  • Corrugated Stainless Steel Knitted Wire Mesh 0.10-0.30 Mm
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Acid And Alkali Resistance. Product Name Crimped Knitted Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Crimped Knitted Mesh
Material Stainless Steel Wire, Copper Wire, Galvanized Iron Wire, Monel, Etc Wire Diameter 0.10mm To 0.30mm
Opening 3.0mm To 7.0mm Roll Width 60 To 150mm
Roll Length 10 To 50m Applications Serves Well In Filtering And Deleting The Particle Mixture In Foam, Liquid And Air
High Light

corrugated stainless steel knitted wire mesh

,

0.30mm stainless steel knitted wire mesh

,

0.10mm wire mesh knitted
Leave a Message
Product Description

Corrugated/ Crimped Knitted Mesh 0.20-0.28 mm Wire Stainless Steel Knitted Wire Mesh



Corrugated Knitted Mesh/ Crimped Knitted Mesh


Knitted wire mesh also called of gas-liquid filter mesh or knitted wire mesh fabric, is normally knitted from round or flat wires ranging from various diameters. The round wire knitted mesh fabric is the most widely used type and the flat wire knitted mesh fabric can be used in the special applications according to customers' requirements. The knitted mesh fabric can be made of mono-filament wires or multi-filament wires. The mono-filament knitted mesh fabric is simple and economical, the multi-filament knitted mesh fabric has higher strength to suitable heavy duty applications. What's more, knitted wire mesh also can be compressed into different shapes. And this kind of knitted wire mesh also called of compressed knitted wire mesh. With high filtration rate, knitted wire mesh is in various industries for air and liquid separation and filtration.





Combination Knitted Wire Mesh Specifications:



Common Specifications of Combination Knitted Wire Mesh

Wire Diameter

(mm)

Opening Size

(mm)

Width

(mm)

Length

(m)

Number of Wires

(Nos.)

0.21

3.0-7.0

60-150

10-50

2

0.23

3.0-7.0

60-150

10-50

2

0.25

3.0-7.0

60-150

10-50

2

0.27

3.0-7.0

60-150

10-50

2

0.28

3.0-7.0

60-150

10-50

2

0.30

3.0-7.0

60-150

10-50

2





Materials:



Knitted wire mesh is made of stainless steel wire, copper wire, galvanized iron wire, monel, etc.



Features:



High filtration efficiency.
High strength and firm structure.
High temperature resistance.
Corrosion and rust resistance.
Acid and alkali resistance.
Will not scratch or mar.
Wide range of application.
Long service life.



Applications:



Knitted wire mesh serves well in filtering and deleting the particle mixture in foam, liquid and air, by way of distillating, absorbing, evaporating and filtering process, in petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection.



Specifications:


Opening Sizes: from 1mm x 1mm to 10mm x 10mm.

Wire Diameters: from 0.1mm to 0.45mm.

Roll Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500 mm, 600mm, etc.

Roll Length: 15m, 30m, 50m to 100m.

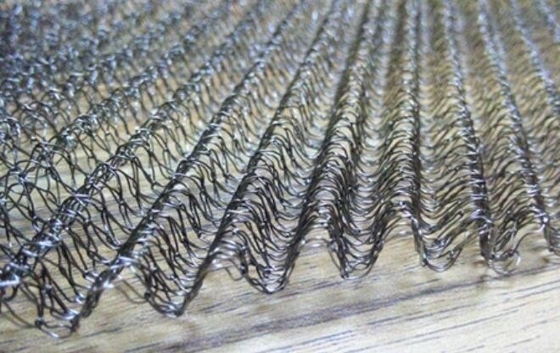

Corrugated Stainless Steel Knitted Wire Mesh 0.10-0.30 Mm 0

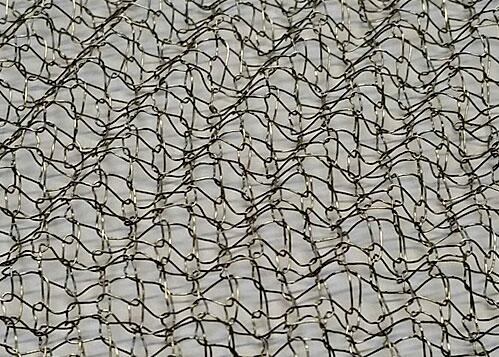

Corrugated Stainless Steel Knitted Wire Mesh 0.10-0.30 Mm 1


Packing:



Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4



We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
