0.5mm 65mn Woven Crimped Wire Mesh High Wear Resistance For Mining Screens

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 100Pcs
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 3 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Features Excellent Wear Resistance, Sturdy Mesh Construction, Longer Functional Life Product Name 65MN Crimped Wire Mesh For Mining Screens
Material 65Mn Processing Method Double Crimp, Lock Crimp, Flat Top
Opening 1.0mm-150mm Wire Diameter 0.5-12.7mm
Width Up To 6meter Length Up To 100meters
Surface Finishing Mill Finish, Anti-rust Oil Spraying, PVC Coating Applications Heavy Screening & Sieving Of Coal Mines.
High Light

ss306 woven crimped wire mesh


mining screens woven crimped wire mesh


65mn steel crimped wire mesh

Leave a Message
Product Description

65MN Crimped Wire Mesh High Wear Resistance For Mining Screens Crimped Wire Mesh

65MN Crimped Wire Mesh for Mining Screens

Mining Screen, also named stone crusher screen Vibrating Sieving Screen Mesh, Crusher Sieving Screen Mesh. Mining Screen Mesh is usually made of 65MN wires of the same diameter that are crimped to form precise square openings and achieve maximum rigidity. Its high tensile strength, excellent vibration resistance and long service life make it obtain accurate screening results and services at best price, so that 65MN crimped wire mesh is a perfect choice stone crusher screen and mining screens.


Material: 65Mn Steel
Wire diameter: 0.5-12.7mm
Weaving type: Double crimped, Flat Top Crimped, Lock crimped Intermediate Crimped(notes: Intermediate Crimped is not recommend for Mining Screen Usage)
Aperture/opening: 1.0mm-150mm
Size: in sheet or in roll, width up to 6meter, length up to 100meters.
General sheet size: 1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm.
Surface finishing: Mill finish, Anti-rust oil spraying, PVC coating


Item# Mesh Aperture Wire Dia. Item# Mesh Aperture Wire Dia. Item# Mesh Aperture Wire Dia.
1 1.0mm 0.6mm 0.7mm 0.8mm 16 12.5mm 4mm 5mm 6mm 31 28.0mm 6mm,7mm,8mm
2 1.5mm 0.9mm 0.8mm 1mm 17 13.0mm 4mm 5mm 6mm 31 30.0mm 6mm 7mm 8mm
3 1.6mm 1.2mm 1.3mm 1.4mm 18 14.0mm 4mm 5mm 7mm 32 32.0mm 6mm 7mm 8mm
4 2.0mm 1.5mm 1.6mm 1.8mm 19 15.0mm 4mm 5mm 7mm 33 35.0mm 6mm 7mm 8mm
5 3.0mm 1.8mm 1.9mm 2mm 20 16.0mm 5mm 6mm 7mm 34 38.0mm 6mm 7mm 8mm
6 4.0mm 2mm 2.5mm 3mm 21 17.0mm 5mm 6mm 7mm 35 40.0mm 6mm 7mm 8mm
7 5.0mm 2mm 2.5mm 3mm 22 18.0mm 5mm 7mm 8mm 36 45.0mm 7mm 9mm 10mm
8 6.0mm 2.5mm 3mm 4mm 23 19.0mm 5mm 7mm 8mm 37 50.0mm 8mm 9mm 10mm
9 7.0mm 2.5mm 3mm 4mm 24 20.0mm 5mm 7mm 8mm 38 55.0mm 8mm 9mm 10mm
10 8.0mm 3mm 4mm 5mm 25 21.0mm 6mm 7mm 8mm 39 60.0mm 10mm 11.2mm 12.7mm
11 9.0mm 3mm 4mm 5mm 26 22.0mm 6mm 7mm 8mm 40 65.0mm 10mm 11.2mm 12.7mm
12 9.5mm 3mm 4mm 5mm 27 23.0mm 6mm 7mm 8mm 41 75.0mm 10mm 11.2mm 12.7mm
13 10.0mm 3mm 4mm 5mm 28 24.0mm 6mm 7mm 8mm 42 80.0mm 10mm 11.2mm 12.7mm
14 11.0mm 3mm 4mm 5mm 29 25.0mm 6mm 7mm 8mm 43 90.0mm 10mm 11.2mm 12.7mm
15 12.0mm 4mm 5mm 6mm 30 26.0mm 6mm 7mm 8mm 44 100.0mm 10mm 11.2mm 12.7mm

Other Specifications according to your requirements.



Weave Patterns: Double Crimp, Lock Crimp, Flat Top

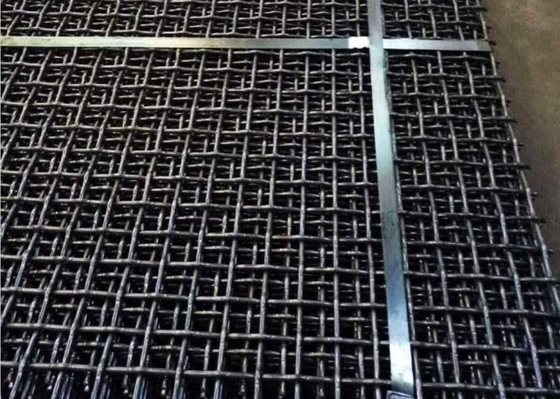

0.5mm 65mn Woven Crimped Wire Mesh High Wear Resistance For Mining Screens 0




65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Comparing with carbon steel, 45#, 50#, 55#, 60#, 70#, 72A material grade, 65mn Material have the highest Manganese content and high carbon, which let is have High Wear resistance and Tensile strength. Stainless steel is also fine material, but price is too expensive for batch quantity uses. So that 65mn crimped wire mesh is a great screens for mining, quarrying, vibrating industry.


65MN Material Chemical Composition (%)
Material C Si Mn Cr Ni Cu
65Mn steel 0.62-0.70 0.17-0.37 0.90-1.20 ≤0.25 ≤0.30 ≤0.25




Excellent wear resistance, sturdy mesh construction, Longer functional life.
Flat top screens, double crimp screens and lock crimp screens are available
65MN Mining Screen is pre-crimped wire cloth that is consisted of accurate openings and is woven much tighter than the normal weave.
And the 65MN Mining Screen made by QIUSUO is promised accurate dimensions and mesh aperture, corrosion resistant surface finish and black &bright surface.




Heavy Screening & Sieving Of Coal Mines.
Stone Quarry Works
Wire Mesh For Pig Breeding
Coal Mine
Cement Plant
The Cement Factory Petroleum
Glass Factory
Hardware Products.

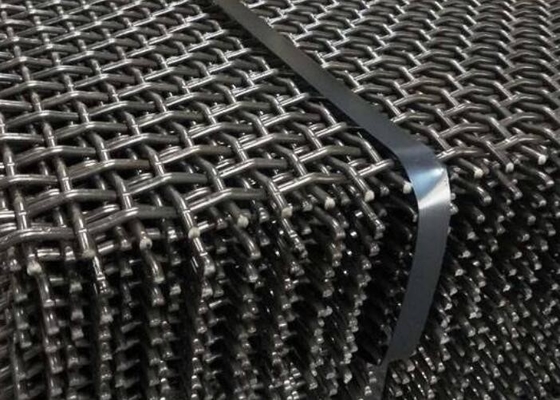

0.5mm 65mn Woven Crimped Wire Mesh High Wear Resistance For Mining Screens 1



Crimped wire mesh is packed in rolls, wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.


0.5mm 65mn Woven Crimped Wire Mesh High Wear Resistance For Mining Screens 2
