10mm Stainless Steel Netting Mesh
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Crimped Wire Mesh | Material | Stainless Steel Wire |
---|---|---|---|
Surface Color | Bright Silver | ISO | ISO9001: 2015 |
Type | Lock Crimped | Weave Techniquetyle | Pre-Crimped Then Woven |
Length | 30m Or Customized | Width | 1m, 1.2m, 2m Or Customized |
Feature | Firm Structure | Usage | Sieving And Filtering, Etc |
High Light | TENGLU 10mm Stainless Steel Netting Mesh,12mm Stainless Steel Netting Mesh,25mm stainless steel wire mesh |

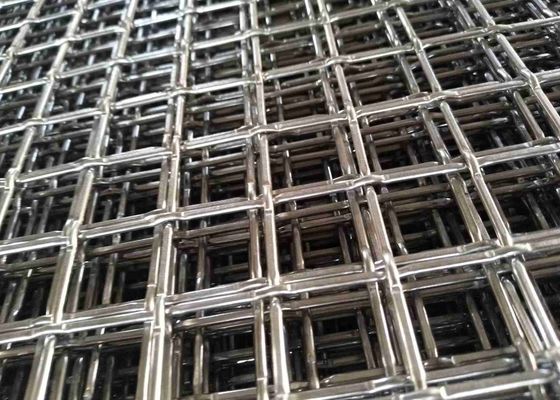

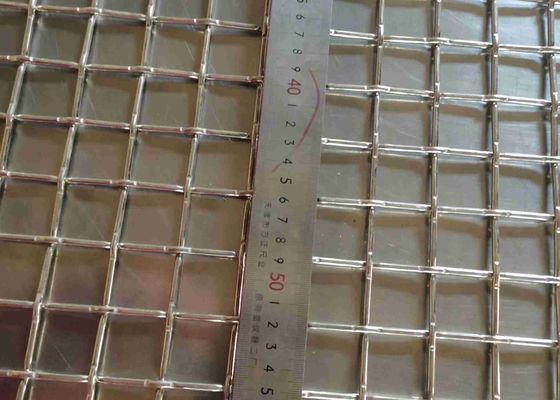

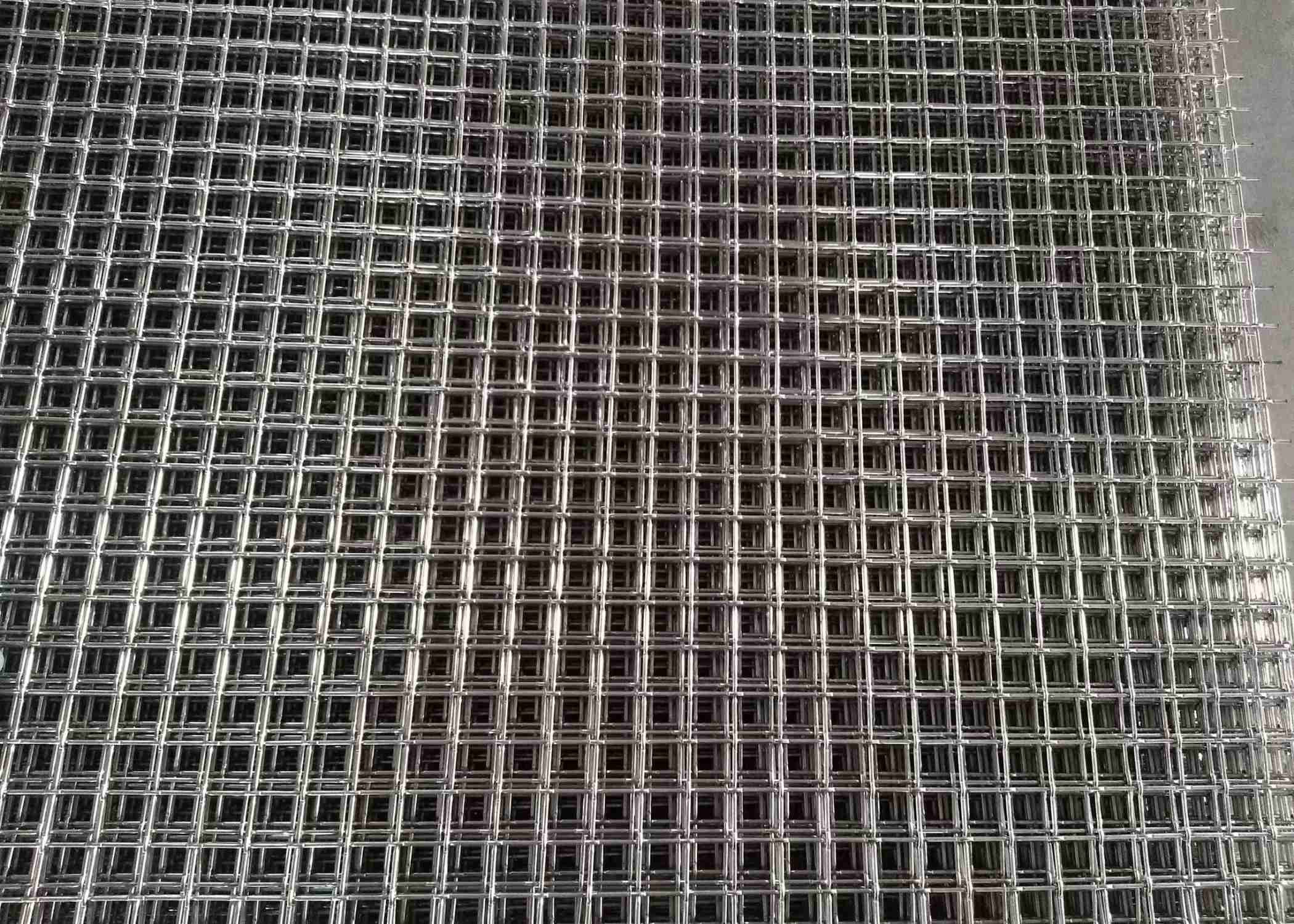

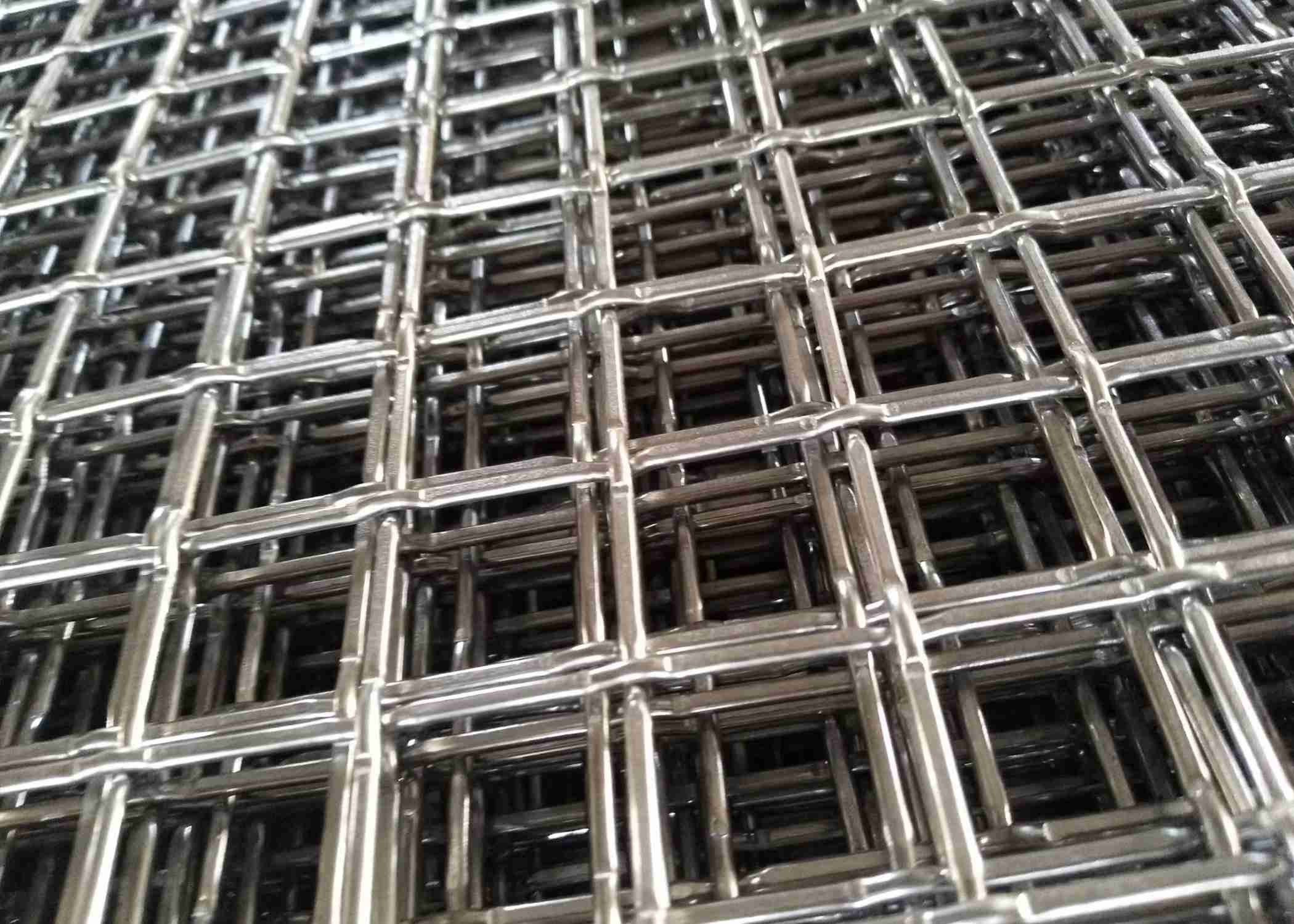

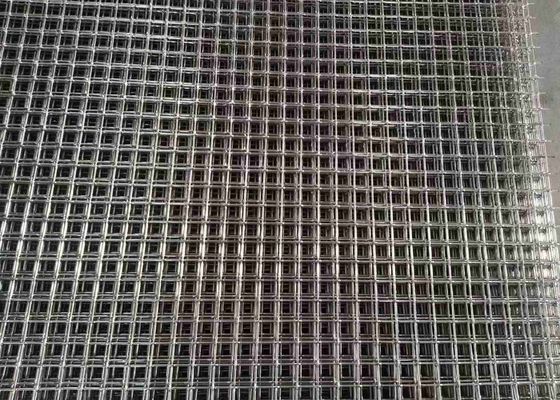

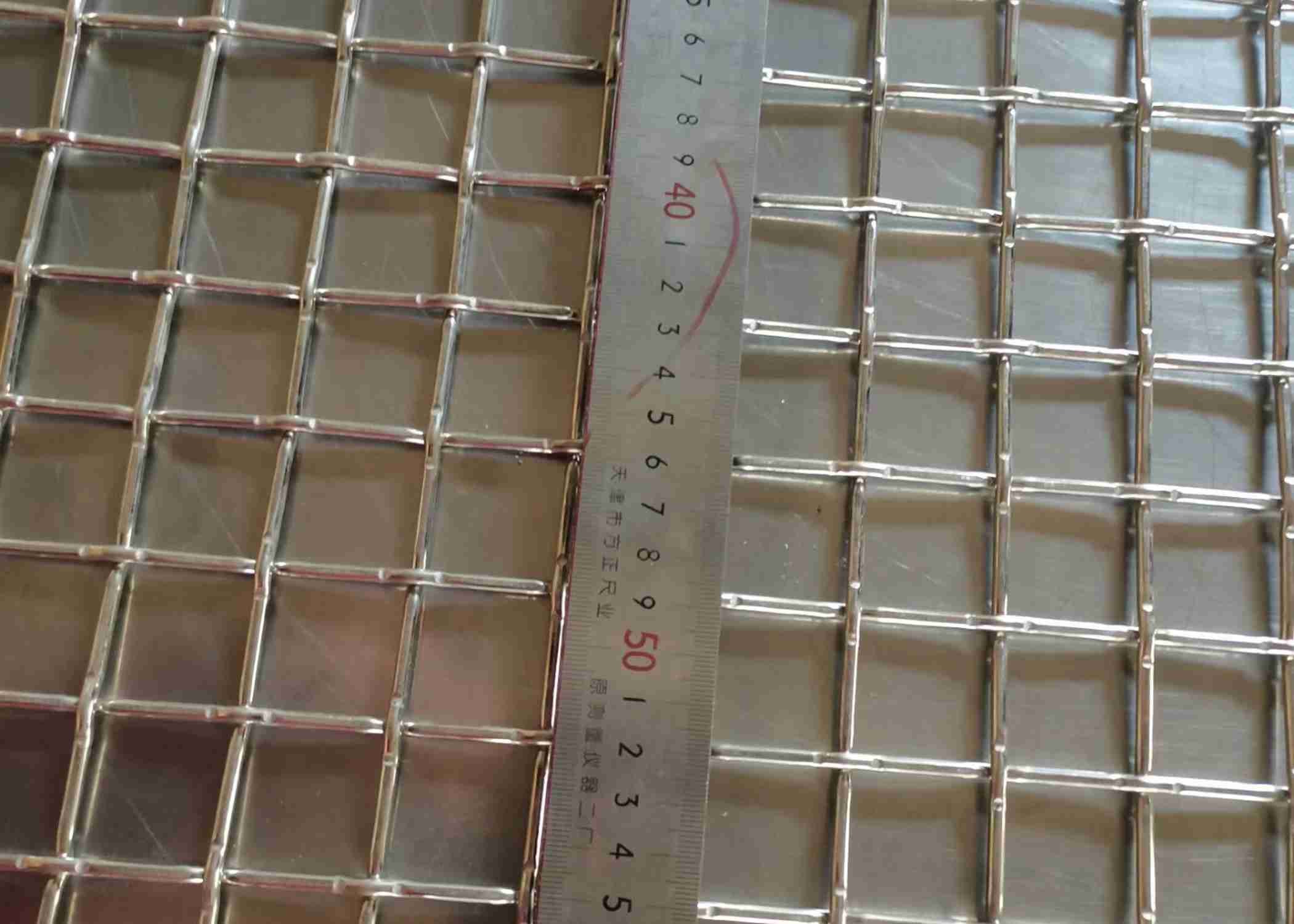

10mm 12mm 25mm Lock Crimped Stainless Steel Crimped Wire Mesh
Lock Crimped Wire Mesh Introduction:
Lock crimped wire mesh/screen is produced on looms by weaving previously crimped wires. This type of wire mesh prevents materials from slipping down and is commonly used as heavy duty wire mesh in the mining and architectural applications.
Lock crimped weave is a more modern crimp style, the warp wire and weft wire are crimping at the points of intersection and have clear bumps, while the wires on a lock crimp are straight between intersections.
Lock crimped is a refinement of the intermediate crimped. It can lock the wire at their position through pressed at each side of the raised wire. This structure can add the stability of the crimped woven wire mesh.
Specifications:
Opening Sizes: from 4mm to 100mm.
Wire Diameters: from 0.8mm to 5.0mm.
Roll Width: 1m, 1.22m, 1.5m to 4m.
Roll Length: 15m, 30m to 60m.
Panel Width: 0.5m, 0.914m, 1m, 1.22m to 2m.
Panel Length: 1m, 1.22m, 1.5m to 6m.
Other Specifications according to your requirements.
Wire Diameter (mm) |
Aperture (mm) |
Open Area (%) |
Weight (kg/㎡) |
1.5 | 10 | 75.61 | 2.48 |
1.5 | 12 | 79.01 | 2.12 |
1.6 | 10 | 74.32 | 2.80 |
2.0 | 10 | 69.44 | 4.23 |
2.0 | 15 | 77.85 | 2.99 |
2.0 | 20 | 82.64 | 2.31 |
2.0 | 25 | 85.73 | 1.88 |
2.6 | 12 | 67.55 | 5.88 |
2.6 | 15 | 72.64 | 4.88 |
3.0 | 25 | 79.72 | 4.08 |
3.5 | 25 | 76.95 | 5.46 |
3.5 | 12 | 59.94 | 10.04 |
3.5 | 19 | 71.31 | 6.91 |
3.5 | 15 | 65.74 | 8.41 |
3.5 | 11 | 57.55 | 10.73 |
4.0 | 12 | 56.25 | 12.70 |
4.0 | 19 | 68.24 | 8.83 |
4.0 | 15 | 62.33 | 10.69 |
4.0 | 14 | 60.49 | 11.29 |
4.7 | 25 | 70.85 | 9.45 |
4.8 | 25 | 70.38 | 9.82 |
4.8 | 25 | 70.38 | 9.82 |
4.8 | 23 | 68.45 | 10.53 |
4.8 | 19 | 63.73 | 12.29 |
4.8 | 15 | 57.39 | 14.78 |
4.8 | 22 | 67.39 | 10.92 |
LOCK CRIMP TYPE:
Material:
Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.
Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel
Features:
Greater precision;
Particularly smooth surface;
Keep the wires in a specific position;
Wear resistance and firm structure;
Strong and durable, long life.
Usage:
Architectural & decorative industries, for the screen of window, fence and ceiling.
Mining & aggregate industries, for the quarrying screen of vibrating machine.
Petrochemical & chemical industries, for test sieve.
