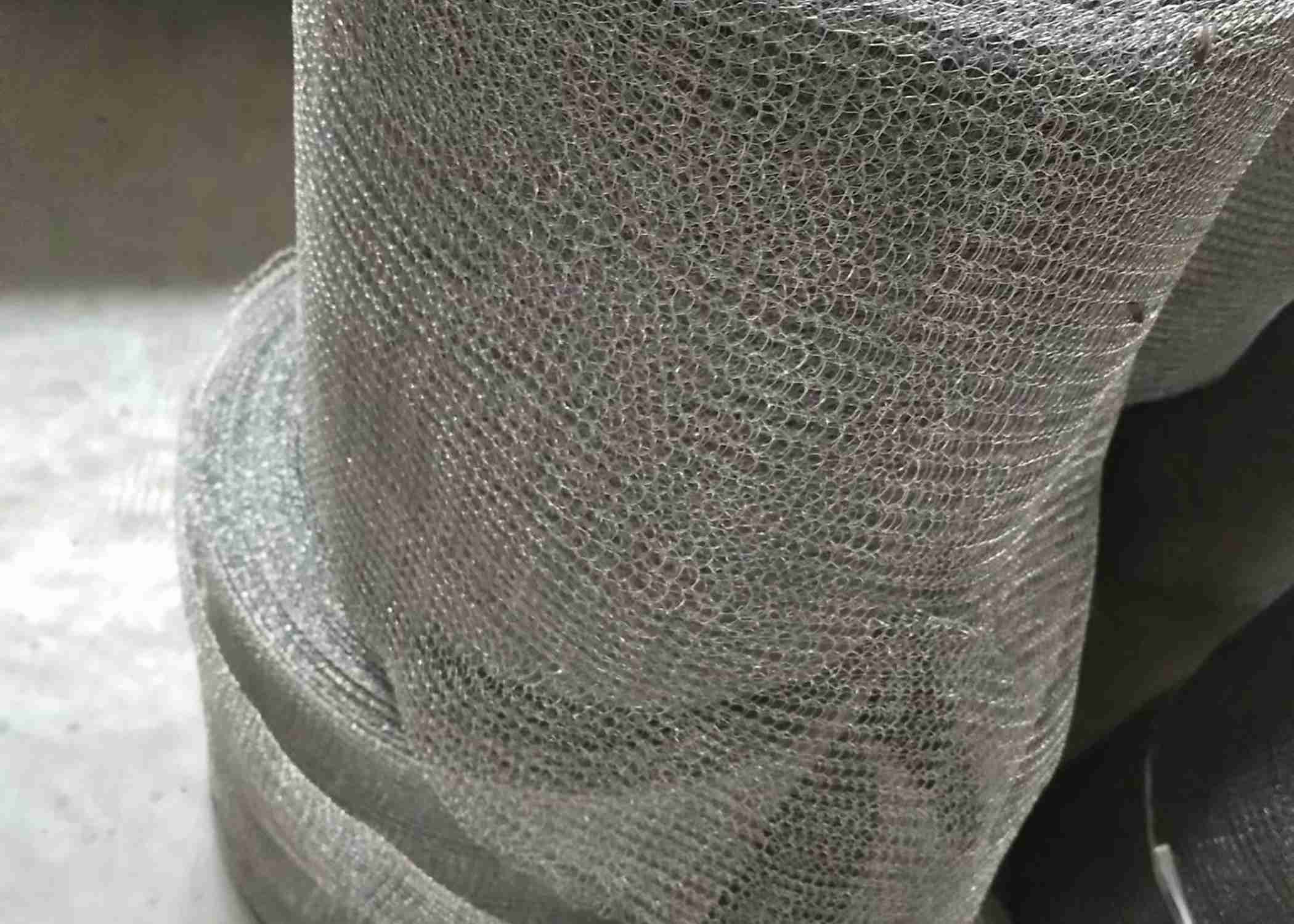

SS304 Stainless Steel Knitted Wire Mesh 0.11mm To 0.35mm

  • SS304 Stainless Steel Knitted Wire Mesh 0.11mm To 0.35mm
  • SS304 Stainless Steel Knitted Wire Mesh 0.11mm To 0.35mm
  • SS304 Stainless Steel Knitted Wire Mesh 0.11mm To 0.35mm
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Aesthetic, Bright Silver Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material SS304 SS304L SS316 SS316L Etc Wire Diameter 0.11mm To 0.35mm
Knitted Type Standard Type, High Efficient, High Penetrated, Absorbed Type Roll Width Up To 1600mm
Roll Length Up To 400m Applications Architectural Mesh
Highlight

105 model 0.11mm SS304 Stainless Steel Knitted Wire Mesh

,

105 model 0.11mm Stainless Steel Knitted Wire Mesh

,

105 model 0.35mm metal wire mesh screen
Leave a Message
Product Description

Aesthetic Architectural Mesh Bright Silver Stainless Steel Knitted Wire Mesh


Knitted wire architectural mesh introduction:


There are many advantages to opting to use knitted wire as opposed to woven mesh. Knitted wire is extremely lightweight and flexible, making it an ideal material to work with. Despite its delicate appearance, it is capable of holding up to 250kg of weight. The knitted pattern and wire diameter make the mesh near invisible from a distance, offering architectural solutions that will not cause an eye-sore.



Stainless steel


Knitted wire architectural mesh can be made from stainless steel, exotic alloys, plastics and even fibres. Stainless steel is usually the most popular option for architectural mesh as it is anti-corrosive and all weather resistant, making it perfect for outdoor use.

Stainless steel can last upwards of 15 years exposed to the elements, offering a cost effective solution to most architectural problems.



Different wire diameters


Knitted wire architectural mesh can be knit from a number of different wire diameters, from as little as 0.11mm – 0.35mm, and can be manufactured as a single or a multi-knit. All of these factors will be dependent upon your requirements and the outcome that you are looking to achieve.



Stainless Steel Material Specifications:



Stainless Steel Knitted Wire Mesh
Types Model Wire Diameter Mesh Width Mesh Length
standard type 40-100 0.10-0.30mm 10-1600mm 10-100m
60-150 0.10-0.30mm 10-1600mm 10-100m
60-180 0.10-0.30mm 10-1600mm 10-100m
105-300 0.10-0.30mm 10-1600mm 10-100m
140-400 0.10-0.30mm 10-1600mm 10-100m
160-400 0.10-0.30mm 10-1600mm 10-100m
high efficient 60-100 0.10-0.30mm 10-1600mm 10-100m
70-100 0.10-0.30mm 10-1600mm 10-100m
80-100 0.10-0.30mm 10-1600mm 10-100m
80-150 0.10-0.30mm 10-1600mm 10-100m
90-100 0.10-0.30mm 10-1600mm 10-100m
90-150 0.10-0.30mm 10-1600mm 10-100m
150-300 0.10-0.30mm 10-1600mm 10-100m
200-400 0.10-0.30mm 10-1600mm 10-100m
300-600 0.10-0.30mm 10-1600mm 10-100m
high penetrated 20-100 0.10-0.30mm 10-1600mm 10-100m
20-160 0.10-0.30mm 10-1600mm 10-100m
30-150 0.10-0.30mm 10-1600mm 10-100m
70-400 0.10-0.30mm 10-1600mm 10-100m
170-600 0.10-0.30mm 10-1600mm 10-100m
180-700 0.10-0.30mm 10-1600mm 10-100m

Notes:

1. 40-100 model: it has 40 openings in the mesh width of 100mm.

2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm.

3. The mesh can be made into single strand, double strand, multi-strand etc.

4. The surface include flattened and crimped.
absorbed type 20-40 0.10-0.20mm 10-120mm 10-100m
30-40 0.10-0.20mm 10-120mm 10-100m
30-50 0.10-0.20mm 10-120mm 10-100m
30-60 0.10-0.20mm 10-120mm 10-100m
30-80 0.10-0.20mm 10-120mm 10-100m
50-120 0.10-0.20mm 10-120mm 10-100m

Notes:

1. 50-120 model: it has 50 openings in the mesh width of 120mm.


Materials: Stainless steel: 304, 304L, 316, 316L, etc.

Features:


Low pressure drop;
High collection efficiency;
Fast delivery and service;
Custom-designed for specific applications;
Efficient and economical for a wide range of applications;
Porous blankets of knitted metal or plastic wire mesh;
It is convenient for installation, operation and maintenance.

Applications:

Architectural mesh can be used for both aesthetic or practical purposes. Mesh facades are very often described as “woven mesh”, however knitted wire mesh could also be used for this purpose, offering a pleasing aesthetic without taking away from the overall look of a building.

Knitted wire mesh is also great for practical purposes, such as protecting insecure areas of a building or catching falling material.



Packing:



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4
