90 To 150 Model SS Wire Mesh Screen High Collection Efficiency

  • 90 To 150 Model SS Wire Mesh Screen High Collection Efficiency
  • 90 To 150 Model SS Wire Mesh Screen High Collection Efficiency
  • 90 To 150 Model SS Wire Mesh Screen High Collection Efficiency
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Collection Efficiency Product Name Knitted Mesh Fabric
Standard Q/SG12-1-79 Q/YSZZ-88-91 Model 90 - 150
Material Stainless Steel, Aluminum, Copper, Etc Wire Diameter 0.1mm To 0.3mm
Wires Single Strand, Double Strand, Multi-strand Etc Roll Width 0.1m To 1.6m
Roll Length 10 To 100m Applications Filtration And Cleaning
High Light

150 Model SS Wire Mesh Screen

,

90 Model ss wire mesh screen

,

0.1mm stainless mesh screen
Leave a Message
Product Description

90- 150 Model Knitted Mesh High Collection Efficiency Knitted Wire Mesh



High Efficient Knitted Wire Mesh

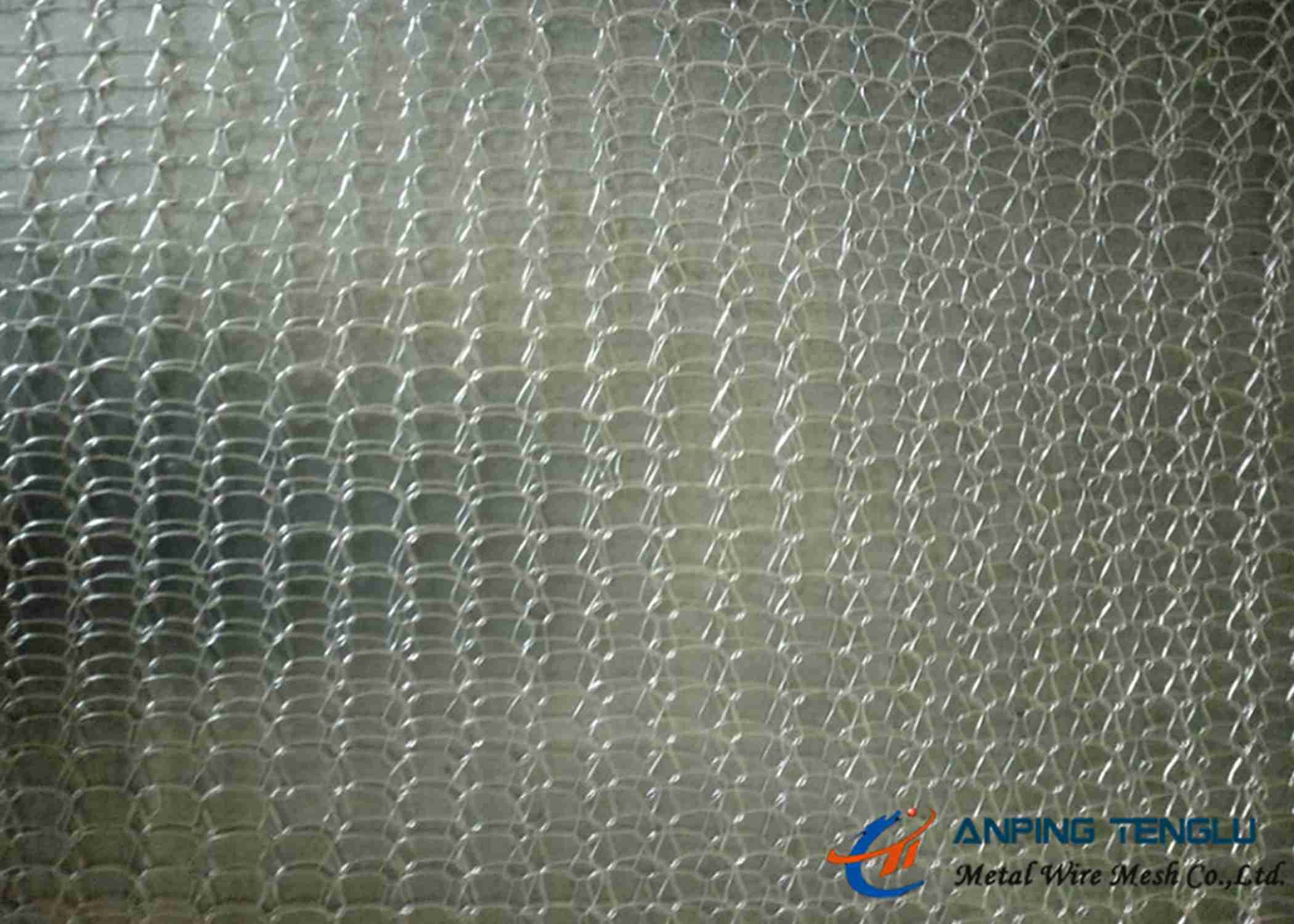

KNITTED WIRE MESH BULK ROLLS are typically made from a single or double wire that is knitted to form a spring like & flexible wire mesh of interlocking loops much like hockey socks or sweaters are made. Knitted Wire Mesh is a high strength and flexible material that has unlimited uses and applications in many industries.



Knitted wire mesh can be used alone as a insulation blanket, demister pad, mist eliminator, pre-filter or formed and molded into many unique products such as gaskets and seals for deep filtration, EMI / RFI shielding and many automotive applications.



90-150 model knitted wire mesh use 0.10 to 0.30mm wire, knitted into a mesh of interlocking loops, application for liquid/gas separation or gas/water separation in the process of filtration, screening, distillation, evaporation and absorption etc. The mesh has the characteristics of high filtering accuracy,good penetrability, flexibility, electrical conductivity, thermal conductivity etc.



90 - 150 Model details:



Model Material Wire Diameter Mesh Width Mesh Length
90-150 Stainless Steel 0.1-0.3mm 10-1600mm 10-100m
Carbon Steel 0.1-0.3mm 50-500mm 10-100m
Copper Brass 0.1-0.3mm 100-500mm 10-100m
Aluminum 0.1-0.3mm 100-500mm 10-100m
Nickel 0.1-0.3mm 10-1600mm 10-100m
Notes:
1. 90-150 model: it has 90 openings in the mesh width of 150mm.
2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm.
3. The mesh can be made into single strand, double strand, multi-strand etc.
4. The surface include flattened and crimped.



Materials:



Stainless steel – most commonly used in automotive, industrial applications EMI/RF Shielding for excellent corrosion and temperature resistance.
Inconel – High temperature applications, up to 2300 F
Aluminium – for numerous industrial, aerospace and military applications.
Copper – in round or flat wire for welding protection pads, pest control, plastic industry cleaning and nickel filters.



Properties:


Good distribution of pressure peaks;
Dispersion of air and moisture;
Easy washable and dryable;
Recyclable and non-poisonous.


Features:


Perfort performance in salty water;
Low pressure drop;
High collection efficiency;
Fast delivery and service;
Custom-designed for specific applications;
Efficient and economical for a wide range of applications;
It is convenient for installation, operation and maintenance.

90-150 Model Knitted Mesh, With High Collection Efficiency Features


Applications:


Blankets and Curtains in Machine or Equipment Isolation;
Mining Industry;
Liquid filtration or separation in plastics, oil & gas, diesel fuels, water treatment and food processing, etc;
Air Filtration for engines, industrial kitchens, air conditioning systems, industrial vacuum, exhaust systems, air compressors and dryers, etc;
Insulation or hot side support material that is flexible, removable and reusable to with stand extreme temperatures or corrosive environments;
Insulation or filtration as an alternative to steel wool where loose fibers or fallout is a concern;
Oil Mist Separation, Mist Eliminators or Demister pads for oil & gas, utilities and commercial kitchen exhaust systems.

90-150 Model Knitted Mesh, With High Collection Efficiency Features



Packing:


Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.


Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3

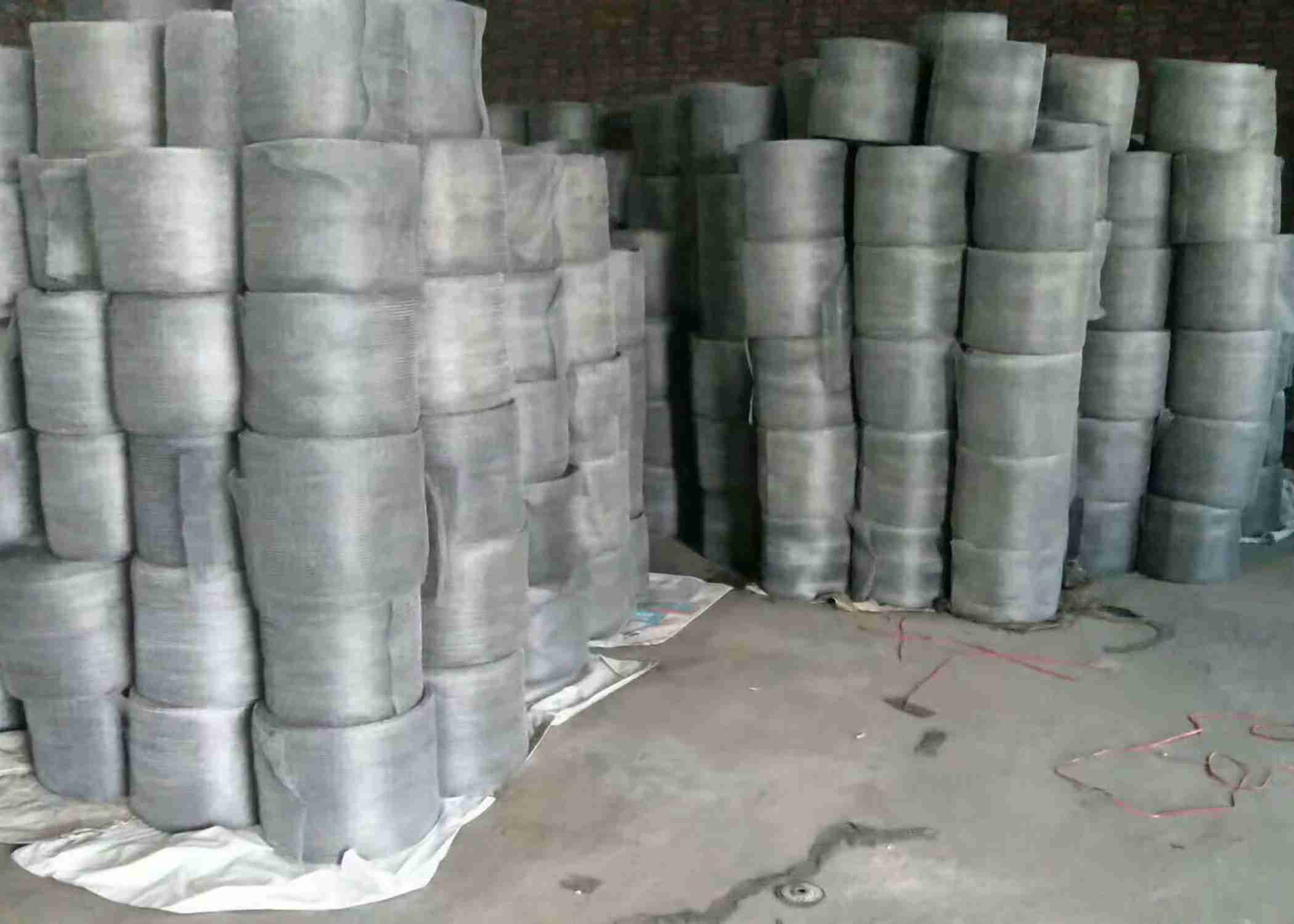

Our factory Photos:



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4

We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
