0.1mm To 0.55mm Stainless Steel Metal Mesh Corrosion Resistance

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | High Filtration Efficiency | Product Name | Knitted Mesh Fabric |
---|---|---|---|
Standard | Q/SG12-1-79 Q/YSZZ-88-91 | Type | Knitted |
Materia; | Stainless Steel, Aluminum, Copper, Etc | Wire Diameter | 0.1mm To 0.55mm |
Opening | 2.0mm To 7.0mm | Roll Width | Up To 1.6m |
Roll Length | Up To 200m | Applications | Filtration And Cleaning |
Highlight | 105 model 0.55mm Stainless Steel Metal Mesh,0.1mm Stainless Steel Metal Mesh,Corrosion Resistance stainless steel net mesh |

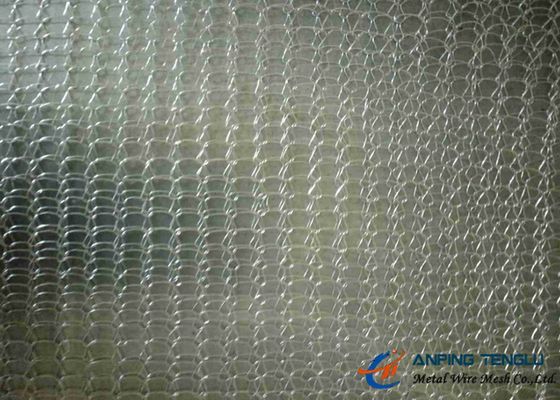

High Filtration Efficiency Knitted Mesh For Filtration And Cleaning Knitted Wire Mesh
Introduction:
Knitted wire fabric is a wire fabric, which is made by a circular knitted machine. The various knitted material wires are knitted into a sleeve of continuous stocking of inter-linked wire loops.
The knitted mesh fabric has various materials, the main materials can be galvanized wire, stainless steel wire, copper wire, brass wire, nickel wire, monel wire and other alloy wires.
Knitted mesh fabric is normally knitted from round or flat wires ranging from various diameters. The round wire knitted mesh fabric is the most widely used type and the flat wire knitted mesh fabric can be used in the special applications according to customers' requirements.
The knitted mesh fabric can be made of mono-filament wires or multi-filament wires. The mono-filament knitted mesh fabric is simple and economical, the multi-filament knitted mesh fabric has higher strength to suitable heavy duty applications.
The knitted mesh fabric can be flattened, which is the original appearance of knitted mesh. It can be crimped, which is crimped by machines to form different shapes, width and depth crimps according to customers' requirements.
The knitted mesh fabric can be supplied in rolls, sometimes, the knitted wire mesh fabric can be compressed into different shapes according to customers' requirements. This structure allows liquid and gas flowing through. The special knitting increase filtration capability and particle retention capacity of the wire mesh fabric.
Specifications:
Stainless Steel Knitted Wire Mesh | ||||
Types | Model | Wire Diameter | Mesh Width | Mesh Length |
standard type | 40-100 | 0.10-0.30mm | 10-1600mm | 10-100m |
60-150 | 0.10-0.30mm | 10-1600mm | 10-100m | |
60-180 | 0.10-0.30mm | 10-1600mm | 10-100m | |
105-300 | 0.10-0.30mm | 10-1600mm | 10-100m | |
140-400 | 0.10-0.30mm | 10-1600mm | 10-100m | |
160-400 | 0.10-0.30mm | 10-1600mm | 10-100m | |
high efficient | 60-100 | 0.10-0.30mm | 10-1600mm | 10-100m |
70-100 | 0.10-0.30mm | 10-1600mm | 10-100m | |
80-100 | 0.10-0.30mm | 10-1600mm | 10-100m | |
80-150 | 0.10-0.30mm | 10-1600mm | 10-100m | |
90-100 | 0.10-0.30mm | 10-1600mm | 10-100m | |
90-150 | 0.10-0.30mm | 10-1600mm | 10-100m | |
150-300 | 0.10-0.30mm | 10-1600mm | 10-100m | |
200-400 | 0.10-0.30mm | 10-1600mm | 10-100m | |
300-600 | 0.10-0.30mm | 10-1600mm | 10-100m | |
high penetrated | 20-100 | 0.10-0.30mm | 10-1600mm | 10-100m |
20-160 | 0.10-0.30mm | 10-1600mm | 10-100m | |
30-150 | 0.10-0.30mm | 10-1600mm | 10-100m | |
70-400 | 0.10-0.30mm | 10-1600mm | 10-100m | |
170-600 | 0.10-0.30mm | 10-1600mm | 10-100m | |
180-700 | 0.10-0.30mm | 10-1600mm | 10-100m | |
Notes: 1. 40-100 model: it has 40 openings in the mesh width of 100mm. 2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm. 3. The mesh can be made into single strand, double strand, multi-strand etc. 4. The surface include flattened and crimped. |
||||
absorbed type | 20-40 | 0.10-0.20mm | 10-120mm | 10-100m |
30-40 | 0.10-0.20mm | 10-120mm | 10-100m | |
30-50 | 0.10-0.20mm | 10-120mm | 10-100m | |
30-60 | 0.10-0.20mm | 10-120mm | 10-100m | |
30-80 | 0.10-0.20mm | 10-120mm | 10-100m | |
50-120 | 0.10-0.20mm | 10-120mm | 10-100m | |
Notes: 1. 50-120 model: it has 50 openings in the mesh width of 120mm. |
Features:
High filtration efficiency.
High strength.
Corrosion and rust resistance.
Acid and alkali resistance.
Wide range of application.
Applications:
Knitted mesh fabric is widely used in various industries for air and liquid separation and filtration.
Knitted mesh fabric can be used as knitted copper cleaning mesh to clean the inside and outside of the machine parts without hurting the surface of parts.
Knitted mesh fabric can be made into knitted cleaning balls to clean the kitchenware and used in the industries for cleaning applications.
The knitted mesh fabric can be used for eliminate the mist as knitted mesh mist eliminator.

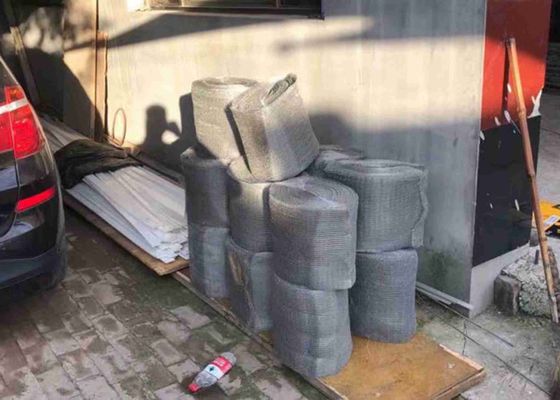

Packing:
Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.
Our factory Photos:
We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
