Pure Copper 0.25mm Metal Filter Mesh 2.0mm To 7.0mm Opening

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Effectiveness Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material Copper Wire Diameter 0.1mm To 0.55mm
Opening 2.0mm To 7.0mm Roll Width 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm,500 Mm, 600mm
Roll Length 10-400m Applications Oil Mist Separation, Mist Eliminators Or Demister Pads For Oil/ Gas, Etc
High Light

0.25mm Metal Filter Mesh

,

Copper Metal Filter Mesh

,

105 model 7.0mm metal mesh screen

Leave a Message
Product Description

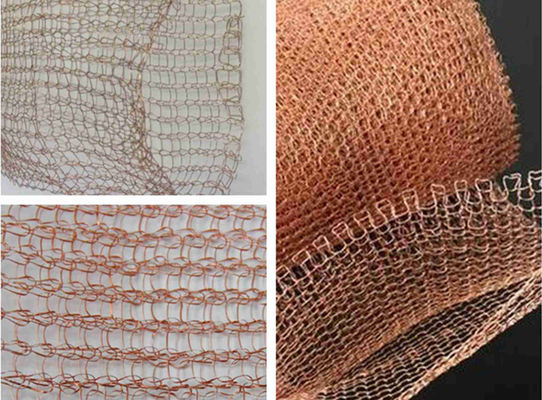

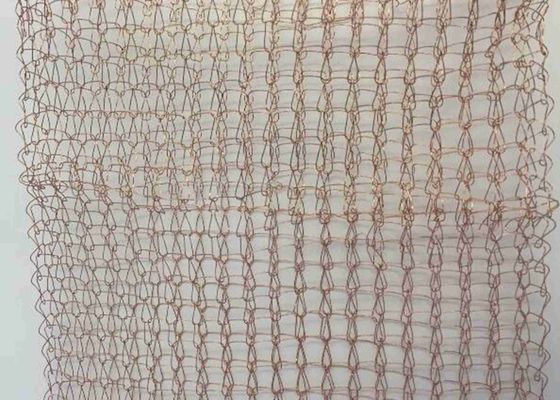

Pure Copper 0.25mm wire High Effectiveness Copper Knitted Wire Mesh


Copper knitted wire mesh is also known as copper knitted wire industrial cleaning mesh, it is produced in special equipments, use monofilament or multifilament brass / copper wire that are knitted into a tubular form. Copper knitted wire mesh are most commonly used as household products, such as stuffed any small holes to keep rodents out of your house and prevent pests from your garden.

We offer copper knitted wire mesh in the standard specifications, opening sizes range from 3 mm x 3 mm to 8 mm x 8 mm, while wire diameter ranges from 0.20 mm to 0.28 mm. Depending on the specification, the manufactured widths are between 100 mm and 400 mm. The wire mesh are commonly constructed with pure copper material.

Knitted copper wire mesh has the same structure as stockings or sweaters. The copper gauze is made of pure copper wire knit into a continuous flat double-thick stocking. 100% copper material is never rust during its long lifespan. Knitted copper mesh is widely used in industrial industry and used as rodent exclusion mesh


Specifications:



TypeCommon Specification
Standard40-100 60-150 105-300 140-400 160-400 200-570
High efficiency60-100 80-100 80-150 90-150
150-300 200-400 300-600
Strong penetration20-100 30-150 70-400 100-600 170-560
Damping33-30 38-40 20-40 26-40 30-40
30-50 48-50 30-60 30-80-50-120


Special type as your requirements.


Material:



Red copper wire (99.8% Cu purity) (common wire through is:0.20mm - 0.25mm).



Wire Diameter: 0.10-0.55mm



Hole Size:

(2x3mm) to (4x5mm) to the (12x6mm) also according to customer requirements on the hole size fine-tuning. The cutout form of the large hole and the orifice cross-arranged (the size of the holes in the longitudinal direction is the same,width is different).



Standard Width:


40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm,500 mm, 600mm

The Surface Condition of knitted wire mesh: the flat-type mesh surface and pressed into a corrugated bellows-type network surface (the width of the corrugations and the depth of the different specifications)


Model:


40-100,60-180,140-400,40-100,70-100,80-100,90-100,20-160,30-150,70-400
('40-100 'stands for there is 40 holes in 100mm width)


Features:


High strength.
Firm structure.
Will not scratch or mar.
Never rust.
Non-flammable.
Resistant to disintegration.
Reusable.
Long service life.



Applications:


Copper knitted mesh can be used for industrial, for example, copper knitted wire mesh filters is used for cleaning and filtration. Our copper knitted mesh is widely used as air filters, breathers and separators made for cars, trucks and farm equipment.
Copper knitted mesh can be used as knitted wire mesh shielding in cables and other applications.
Copper knitted mesh can be used as filtration materials in oil, gas and water filtration applications.
Copper knitted mesh can be used as knitted copper cleaning mesh for cleaning inside and outside of mechanical parts.
Copper knitted mesh can be made into knitted cleaning balls or scourer to cleaning kitchenware and soldering iron.


High Effectiveness Copper Knitted Wire Mesh/ 0.6m-2.0m Width/Red and YellowHigh Effectiveness Copper Knitted Wire Mesh/ 0.6m-2.0m Width/Red and Yellow



Packing:



Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.


Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3


Our factory Photos:



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4

We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
