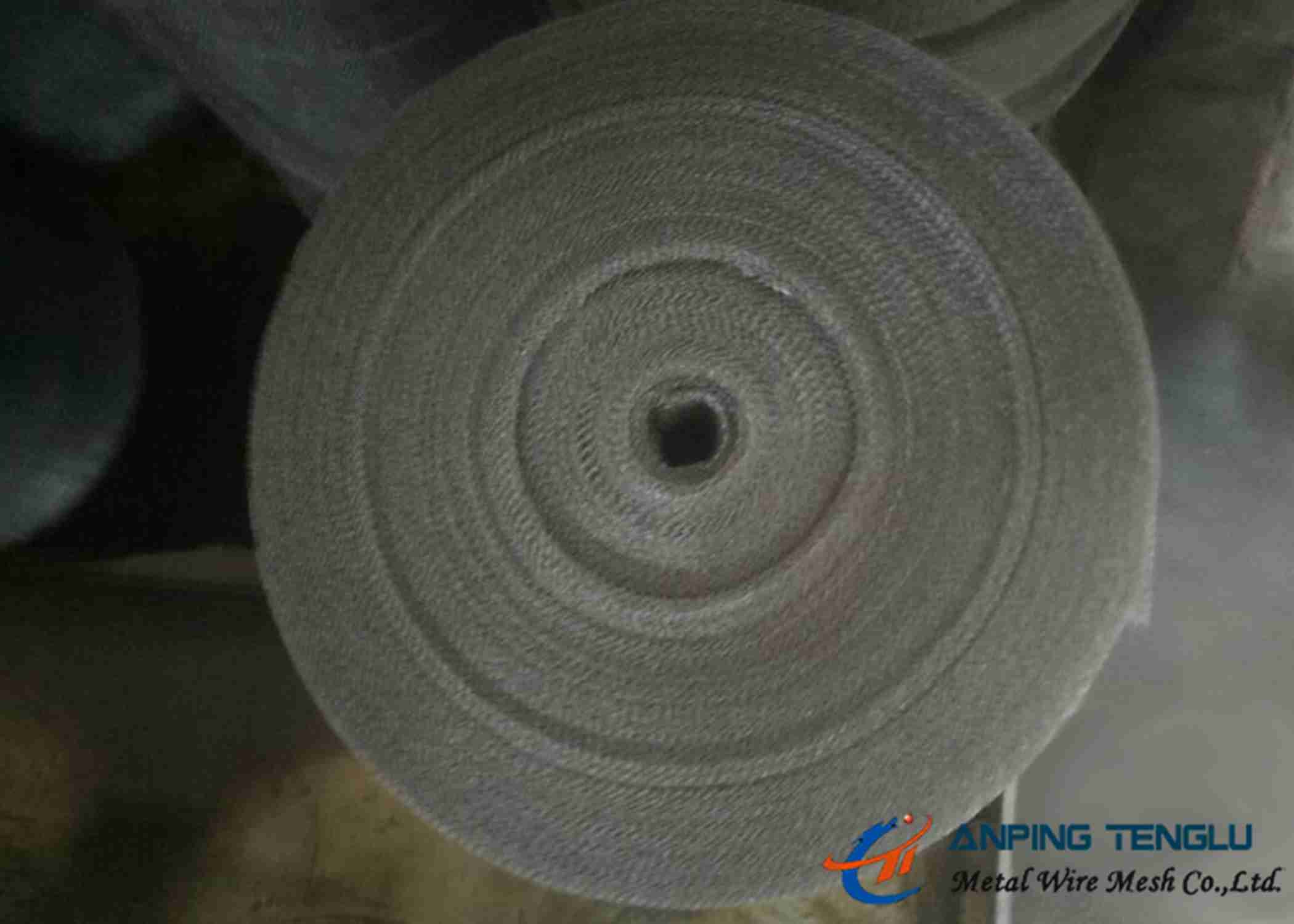

0.1mm To 0.3mm Stainless Steel Knitted Wire Mesh
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | With Good Penetrability | Product Name | Knitted Wire Mesh |
|---|---|---|---|
| Standard | Q/SG12-1-79 Q/YSZZ-88-91 | Type | Knitted |
| Material | Metal And Non Metal | Wire Diameter | 0.1mm To 0.3mm |
| Opening | 3.0mm To 7.0mm | Roll Width | 60 To 150mm |
| Roll Length | 10 To 50m | Applications | Oil Mist Separation, Mist Eliminators Or Demister Pads For Oil/ Gas, Etc |
| High Light | 0.3mm Stainless Steel Knitted Wire Mesh,0.1mm Stainless Steel Knitted Wire Mesh,Stainless Steel metal mesh net |
||
Product Description

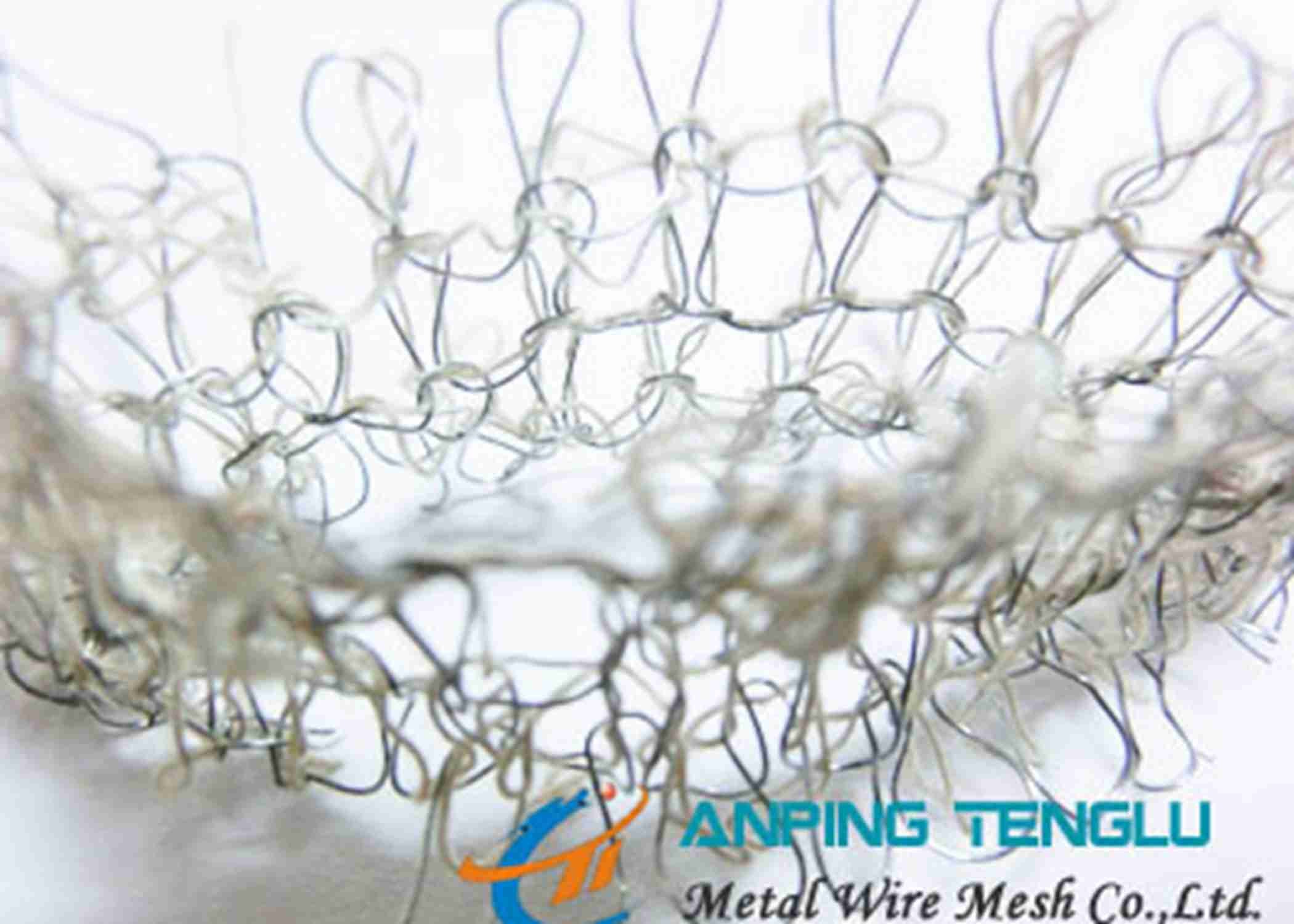

Combination Knitted Metal and Non- Metal Wire Combinations Knitted Wire Mesh
Combination Knitted Wire Mesh Introduction:
Combination Knitted Wire Mesh is produced by using metal or non metal different materials as knitted wires, they can be co-knitted with one another to enhance product capabilities, such as strength, thickness, etc. Combination knitted wire mesh are the most commonly used in the filtration & separation application.
We offer combination knitted wire mesh in the standard specifications, opening sizes range from 3 mm x 3 mm to 10 mm x 10 mm, while wire diameters range from 0.21 mm to 0.30 mm, and the manufactured widths are between 100 mm and 500 mm.
Combination Knitted Wire Mesh Specifications:
| Common Specifications of Combination Knitted Wire Mesh | ||||
|
Wire Diameter (mm) |
Opening Size (mm) |
Width (mm) |
Length (m) |
Number of Wires (Nos.) |
| 0.21 | 3.0-7.0 | 60-150 | 10-50 | 2 |
| 0.23 | 3.0-7.0 | 60-150 | 10-50 | 2 |
| 0.25 | 3.0-7.0 | 60-150 | 10-50 | 2 |
| 0.27 | 3.0-7.0 | 60-150 | 10-50 | 2 |
| 0.28 | 3.0-7.0 | 60-150 | 10-50 | 2 |
| 0.30 | 3.0-7.0 | 60-150 | 10-50 | 2 |
Materials:
Metal: Stainless Steel Wire, Nickel Wire, Copper Wire, Aluminum Wire, ect.
Non-Metal Wire: PP, PE, Plastic
Features:
Reduce the frictions of contacting surface.
Applications:
Used in the filtration & separation industries, for the screen of textile production process.
Specifications:
Opening Sizes: from 1mm x 1mm to 10mm x 10mm.
Wire Diameters: from 0.1mm to 0.45mm.
Roll Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500 mm, 600mm, etc.
Roll Length: 15m, 30m, 50m to 100m.
Packing:
Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.
Our factory Photos:
We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
