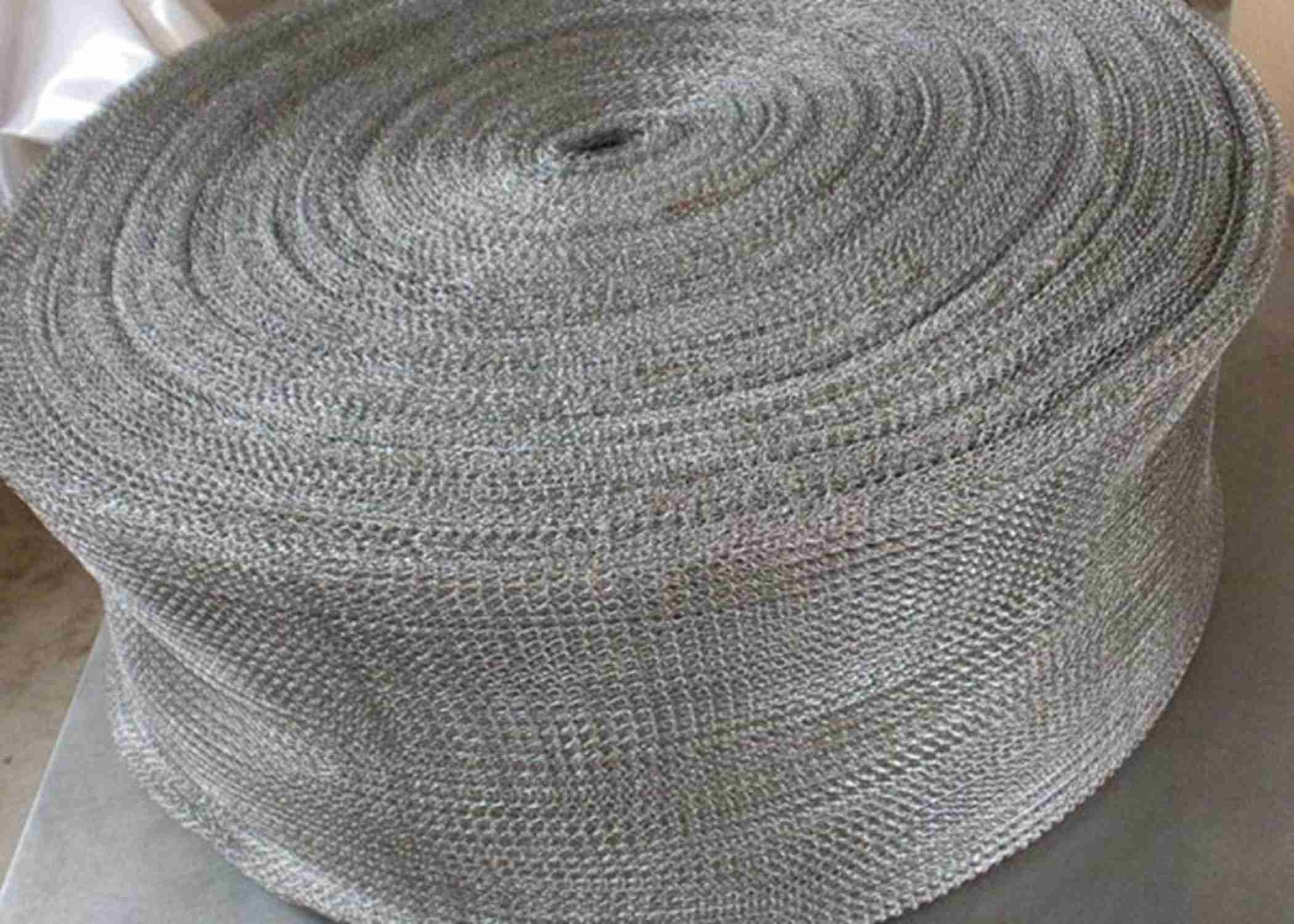

105 To 300 Model Stainless Steel Knitted Wire Mesh 0.2mm

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Features With Good Penetrability Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material Stainless Steel Model 105 Holes Per 300mm Width
Knitted Type Standard Type Roll Width Up To 1600mm
Roll Length Up To 200m Applications Oil Mist Separation, Mist Eliminators Or Demister Pads For Oil/ Gas, Etc
High Light

300 Model Stainless Steel Knitted Wire Mesh


105 Model Stainless Steel Knitted Wire Mesh


105 Model 0.2mm ss mesh net

Leave a Message
Product Description

105- 300 Model Knitted Net With Good Penetrability Knitted Wire Mesh


105- 300 Model Knitted Wire Mesh Introduction:

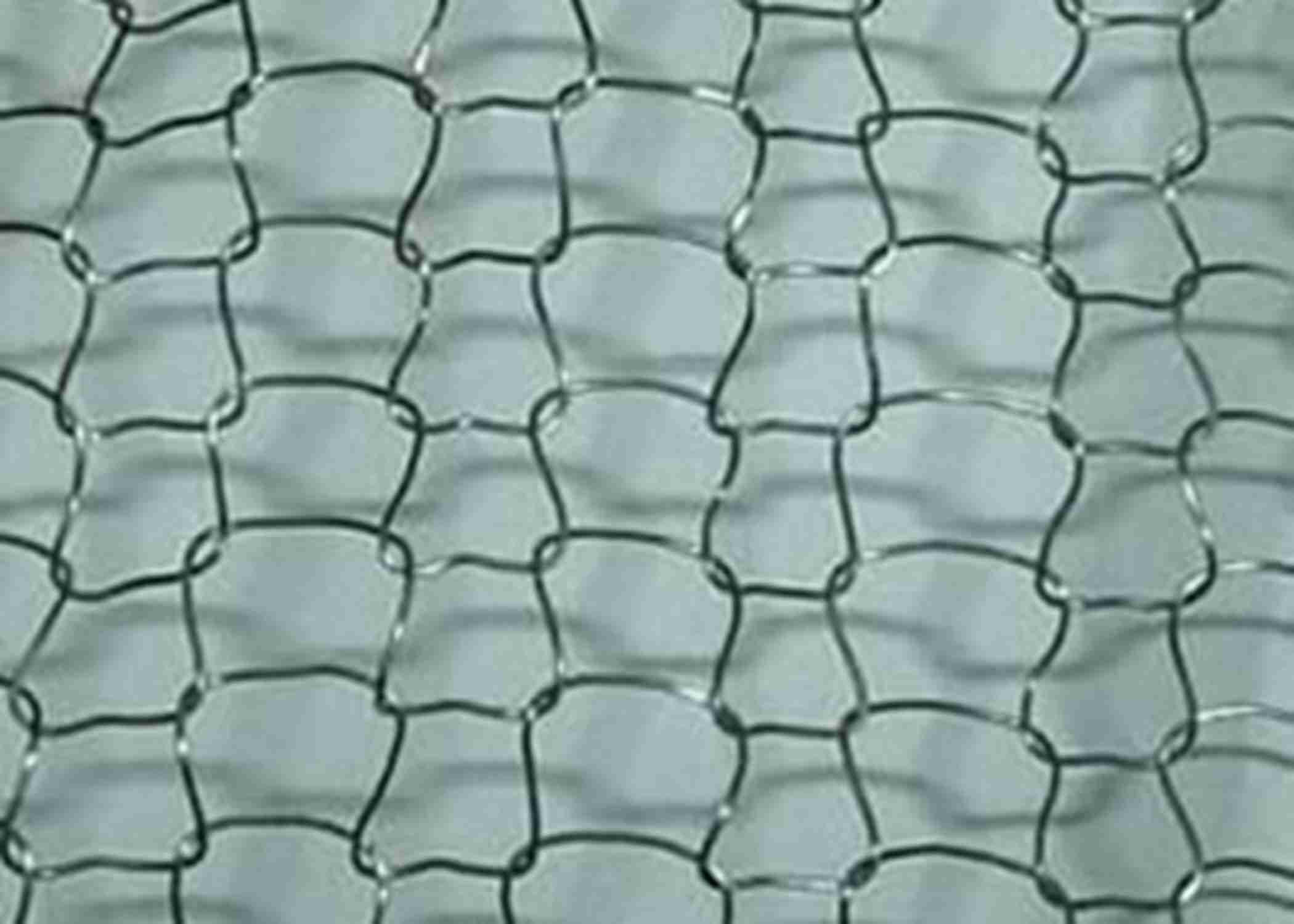

Knitted wire mesh(also known as knit wire or knitted wire) is a highly adaptable and configurable material offering superior functionality in a variety of applications. Knitted in a circular pattern resembling a tube sock, its interlocking-loop construction gives it tremendous strength and resiliency while allowing it to be pliable and to conform to almost any size, shape or density requirements. Because it can be made from any metal, plastic or fiberglass thread or wire, its physical characteristics can be tailored and tweaked to meet any operating environment requirements.

Monel knitted wire mesh has good corrosion resistance in all extreme environments and it is reasonably conductive and is tough with high tensile strength, giving good wear characteristics.

Knitted wire mesh made of tinned copper clad steel has the best shielding performance of all wires used in knitted meshes, combining low contact resistance with a small degree of permeability. It is not suitable for highly abrasive applications where the TIN plating may wear away to expose the copper. The corrosion resistance of tinned copper clad steel knitted wire mesh is suitable for most applications

Aluminum knitted wire mesh is mechanically weak and will readily take a compression set and this combined with its readiness to form a non-conducting oxide.


105-300 model knitted wire mesh use 0.10-0.30mm wire,knitted into a mesh of interlocking loops, application for liquid/gas separation or gas/water separation in the process of filtration,screening,distillation,evaporation and absorption.The mesh has characteristics of high filtering accuracy,good penetrability,electrical conductivity, thermal conductivity etc.




Model Material Wire Diameter Mesh Width Mesh Length
105-300 Stainless Steel 0.1-0.3mm 10-1600mm 10-100m
Carbon Steel 0.1-0.3mm 50-500mm 10-100m
Copper Brass 0.1-0.3mm 100-500mm 10-100m
Aluminum 0.1-0.3mm 10-1600mm 10-100m
Nickel 0.1-0.3mm 100-600mm 10-100m
1. 105-300 model: it has 105 openings in the mesh width of 300mm.
2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm.
3. The mesh can be made into single strand, double strand, multi-strand etc.
4. The surface include flattened and crimped.
105-300 Model Stainless Steel Knittted Wire Mesh With Good Penetrability


Stainless steel: 304, 304L, 316, 316L
Carbon steel : Q195, Q235, Q275
Brass: CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5
Copper: C10200, C11000
Aluminum: 1050, 1060, 1100, 5052, 5056, 5083
Nickel: N2, N4, N6, Cr20Ni80, Monel400, Monel600
105-300 Model Stainless Steel Knittted Wire Mesh With Good PenetrabilityBrass Wire


Low pressure drop;
High collection efficiency;
Fast delivery and service;
Custom-designed for specific applications;
Efficient and economical for a wide range of applications;
Porous blankets of knitted metal or plastic wire mesh;
It is convenient for installation, operation and maintenance.


Insulation or hot side support material that is flexible, removable and reusable to with stand extreme temperatures or corrosive environments;
Insulation or filtration as an alternative to steel wool where loose fibers or fallout is a concern;
Oil Mist Separation, mist eliminators or Demister pads for oil & gas, utilities and commercial kitchen exhaust systems;
Sound Attenuation filter in pneumatic tools and vacuum;
Cryogenic gaskets, seals & discs;
Automotive exhaust air gap spacers, flex joint seals and air bag filters;
Pre-filter for coarse dust in the heating and ventilation systems;
Gas turbine and compressed air inlet / outlet filter;
Engine exhaust muffler packing;
EMI / RFI Shielding.

105-300 Model Stainless Steel Knittted Wire Mesh With Good Penetrability

Standard Type:

105-300 Model Stainless Steel Knittted Wire Mesh With Good Penetrability



Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3


Our factory Photos:



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4
