Monel 400 Metal Netting Mesh For Filtration And Separation 0.10mm To 0.30mm

  • Monel 400 Metal Netting Mesh For Filtration And Separation 0.10mm To 0.30mm
  • Monel 400 Metal Netting Mesh For Filtration And Separation 0.10mm To 0.30mm
  • Monel 400 Metal Netting Mesh For Filtration And Separation 0.10mm To 0.30mm
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Low Pressure Drop, High Collection Efficiency, Etc Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material Monel 400 Wire Diameter 0.10mm To 0.30mm
Knitted Type Standard Type, High Efficient, High Penetrated, Absorbed Type Roll Width Up To 600mm
Roll Length Up To 200m Applications Oil Mist Separation, Mist Eliminators Or Demister Pads For Oil/ Gas, Etc
High Light

Monel 400 metal netting mesh

,

0.10mm metal netting mesh

,

0.30mm metal wire mesh
Leave a Message
Product Description

Monel 400 Oil/ Gas Filter For Filtration And Separation Monel Knitted Wire Mesh



Monel knitted wire mesh introduction:

Monel knitted wire mesh/ gaskets are produced by special weaving machines, use monel wire as raw material, the finished product is knitted wire mesh tube. Monel knitted wire mesh is most commonly used as economical gaskets for EMI shielding.

Our monel knitted wire mesh in the standard specifications, opening sizes range from 1 mm x 1 mm to 6 mm x 6 mm, while wire diameters range from 0.10 mm to 0.28 mm, and the manufactured width is up to 600 mm, although more typically 20 mm to 100 mm. The standard wire material are Monel 400.



Monel 400 is an extremely combination property nickel alloy contains approximately 67% nickel, 28% copper and 5% others, in the hydrofluoric acid and fluoride gas medium with excellent corrosion resistance, it is more resistant to oxidation than higher copper alloys and more resistant to reducing conditions than nickel.



Benefits:



Greater strength and toughness

Light weight and durable

High temperature and excellent corrosion resistant

Soft and nonmagnetic



Materials:



Pure nickel: Nickel 200/201, Nickel 270

Nickel Alloy: Cr20Ni80, Monel 400, Inconel 600

Others available, please ask



Monel 400 Mesh Chemical Composition:



C Cu Fe S Mn Ni Si
<0.3 % 28% to 34 % <2.5% <0.024% <2 % >63 % 0.5 %




Monel knitted wire mesh specfications:



wire opening size width length number of wires
mm inch mm inch mm m Nos.
0.10 0.0039 1 to 3 0.039 to 0.118 3 to 50 10 to 200 1 to 3
0.11 0.0043 1 to 3 0.039 to 0.118 3 to 80 10 to 200 1 to 3
0.12 0.0047 1 to 3 0.039 to 0.118 3 to 80 10 to 100 1 to 3
0.15 0.0059 1 to 3 0.039 to 0.118 9 to 120 10 to 100 1 to 3
0.17 0.0067 1 to 3 0.039 to 0.118 9 to 120 10 to 50 1 to 2
0.19 0.0075 1 to 3 0.039 to 0.118 15 to 120 10 to 50 1 to 2
0.21 0.0083 3 to 7 0.118 to 0.276 15 to 120 10 to 50 1 to 2
0.23 0.0091 3 to 7 0.118 to 0.276 40 to 1000 10 to 50 1 to 2
0.25 0.0098 3 to 7 0.118 to 0.276 40 to 1000 10 to 50 1 to 2
0.27 0.0106 3 to 7 0.118 to 0.276 60 to 1000 10 to 50 1
0.28 0.0110 3 to 7 0.118 to 0.276 60 to 1000 10 to 50 1
0.30 0.0118 3 to 7 0.118 to 0.276 60 to 1000 10 to 50 1

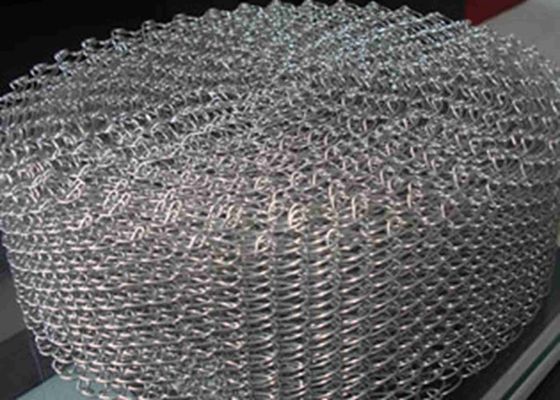

Monel 400 Metal Netting Mesh For Filtration And Separation 0.10mm To 0.30mm 0



Application:



Usage of Monel knitted wire mesh includes:

In the EMI & RFI shielding applications, for shielding gaskets, elastomer cores and cable wrap.

In the filtration & separation applications, for the screen of the mist eliminator.

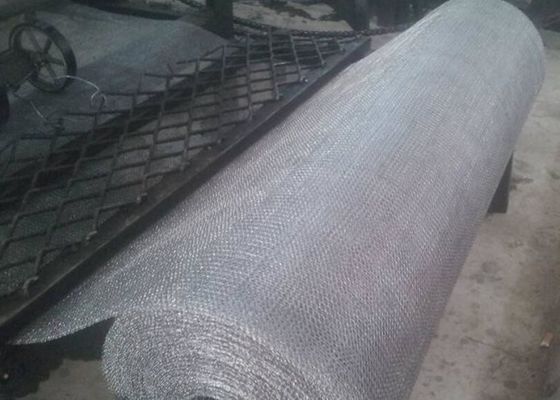

Monel 400 Metal Netting Mesh For Filtration And Separation 0.10mm To 0.30mm 1



Monel knitted wire mesh rolls



Roll width 3 mm, 15 mm, 25.4 mm, 50.8 mm to 600 mm (measured on flat)

Roll length 15 m, 30 m, 50 m to 200 m

Other rolls size on request





Packing:



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4
