SS316 SS316L Stainless Steel Knitted Wire Mesh SS304 SS304L
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Low Pressure Drop, High Collection Efficiency, Etc | Product Name | Knitted Wire Mesh |
---|---|---|---|
Standard | Q/SG12-1-79 Q/YSZZ-88-91 | Type | Knitted |
Material | SS304 SS304L SS316 SS316L Etc | Wire Diameter | 0.10mm To 0.30mm |
Knitted Type | Standard Type, High Efficient, High Penetrated, Absorbed Type | Roll Width | 100mm To 600mm |
Roll Length | 10m To 100m | Applications | Oil Mist Separation, Mist Eliminators Or Demister Pads For Oil/ Gas, Etc |
High Light | 0.1m SS316L Stainless Steel Knitted Wire Mesh,0.1m SS316 Stainless Steel Knitted Wire Mesh,TENGLU 0.1m SS304L screen mesh stainless steel |
SS304 SS304L SS316 SS316L Low Pressure Drop Stainless Steel Knitted Wire Mesh

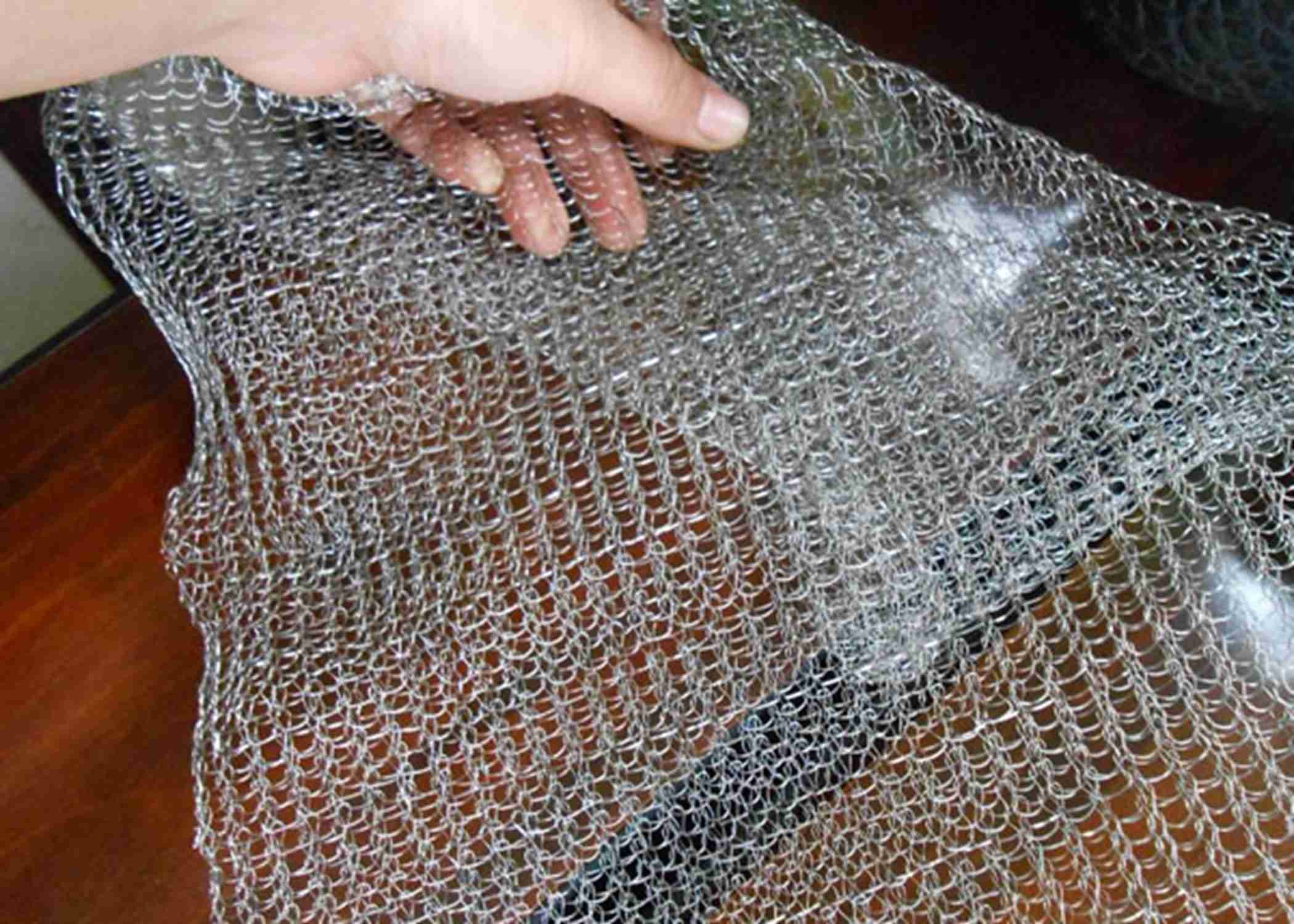

Knitted Wire Mesh use stainlesss steel wire as raw material, is typically made from a single or double wire that is knitted to form a spring like & flexible wire mesh of interlocking loops much like hockey socks or sweaters are made. Knitted Wire Mesh is a high strength and flexible material that has unlimited uses and applications in many industries.
Knitted wire mesh is a highly adaptable and configurable material offering superior functionality in a variety of applications. Knitted in a circular pattern resembling a tube sock, its interlocking-loop construction gives it tremendous strength and resiliency while allowing it to be pliable and to conform to almost any size, shape or density requirements. Because it can be made from any metal, plastic or fiberglass thread or wire, its physical characteristics can be tailored and tweaked to meet any operating environment requirements.
These knitted meshes mainly serve the following industries: cleaning of the filter, plastic and die, mufflers, shock absorber mounts, soundproof generator pad, air conditioning humidifier pad, to capture the flame of the wireless signal shielding, sealing in harsh environments. Our knitted wire products with a variety of materials. The available material include stainless steel, galvanized steel, Aluminium, copper, Nickel and copper nickel alloys. We can also made knitted mesh into all shapes, such as: knitted wire mesh tapes, knitted wire mesh rolls and ginning knitted mesh. We can compress our products into various forms. For example: cylindrical, round disc, ring, oval, rectangle, bottle-shaped, as well as various other special shapes.
The most popular Product size:
SS 316 demister knitted wire with width 100mm, 5.0 mm thick, wire dia 0.1 mm.
PTFE monofilament knitted wire mesh with wire diameter 0.3mm - 0.6mm for producing demister pad.
SS304 knitted wire mesh sock with full round type comes in flattened size 685 mm width or approx 1370 mm in circumferential diameter. Strand single, 20 to 80 needles, wire round dia 0.20 mm and opening 3 × 4mm, 30 m / roll.
Knitted nylon fabric wrapped around mandrel to achieve final cylinder used for silencer function in a pneumatic unit.
304 stainless knitted wire mesh wire diameter .002" or .0025", flat width 1 inch, 26 needles.
Stainless Steel Material Specifications:
Stainless Steel Knitted Wire Mesh | ||||
Types | Model | Wire Diameter | Mesh Width | Mesh Length |
standard type | 40-100 | 0.10-0.30mm | 10-1600mm | 10-100m |
60-150 | 0.10-0.30mm | 10-1600mm | 10-100m | |
60-180 | 0.10-0.30mm | 10-1600mm | 10-100m | |
105-300 | 0.10-0.30mm | 10-1600mm | 10-100m | |
140-400 | 0.10-0.30mm | 10-1600mm | 10-100m | |
160-400 | 0.10-0.30mm | 10-1600mm | 10-100m | |
high efficient | 60-100 | 0.10-0.30mm | 10-1600mm | 10-100m |
70-100 | 0.10-0.30mm | 10-1600mm | 10-100m | |
80-100 | 0.10-0.30mm | 10-1600mm | 10-100m | |
80-150 | 0.10-0.30mm | 10-1600mm | 10-100m | |
90-100 | 0.10-0.30mm | 10-1600mm | 10-100m | |
90-150 | 0.10-0.30mm | 10-1600mm | 10-100m | |
150-300 | 0.10-0.30mm | 10-1600mm | 10-100m | |
200-400 | 0.10-0.30mm | 10-1600mm | 10-100m | |
300-600 | 0.10-0.30mm | 10-1600mm | 10-100m | |
high penetrated | 20-100 | 0.10-0.30mm | 10-1600mm | 10-100m |
20-160 | 0.10-0.30mm | 10-1600mm | 10-100m | |
30-150 | 0.10-0.30mm | 10-1600mm | 10-100m | |
70-400 | 0.10-0.30mm | 10-1600mm | 10-100m | |
170-600 | 0.10-0.30mm | 10-1600mm | 10-100m | |
180-700 | 0.10-0.30mm | 10-1600mm | 10-100m | |
Notes: 1. 40-100 model: it has 40 openings in the mesh width of 100mm. 2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm. 3. The mesh can be made into single strand, double strand, multi-strand etc. 4. The surface include flattened and crimped. |
||||
absorbed type | 20-40 | 0.10-0.20mm | 10-120mm | 10-100m |
30-40 | 0.10-0.20mm | 10-120mm | 10-100m | |
30-50 | 0.10-0.20mm | 10-120mm | 10-100m | |
30-60 | 0.10-0.20mm | 10-120mm | 10-100m | |
30-80 | 0.10-0.20mm | 10-120mm | 10-100m | |
50-120 | 0.10-0.20mm | 10-120mm | 10-100m | |
Notes: 1. 50-120 model: it has 50 openings in the mesh width of 120mm. |
Materials: Stainless steel: 304, 304L, 316, 316L, etc.
Features:
Low pressure drop;
High collection efficiency;
Fast delivery and service;
Custom-designed for specific applications;
Efficient and economical for a wide range of applications;
Porous blankets of knitted metal or plastic wire mesh;
It is convenient for installation, operation and maintenance.
Applications:
☆ Insulation or hot side support material that is flexible, Removable and Reusable to with stand extreme temperatures or corrosive environments.
☆ Insulation or filtration as an alternative to steel wool where loose fibers or fallout is a concern.
☆ Oil Mist Separation, Mist Eliminators or Demister pads for oil & gas, utilities and commercial kitchen exhaust systems.
☆ Sound Attenuation filter in pneumatic tools and vacuum
☆ Cryogenic gaskets, seals & discs.
☆ Automotive exhaust air gap spacers, flex joint seals and air bag filters.
☆ Pre-filter for coarse dust in the heating and ventilation systems.
☆ Gas turbine and compressed air inlet / outlet filter.
☆ Engine exhaust muffler packing.
☆ EMI / RFI Shielding.

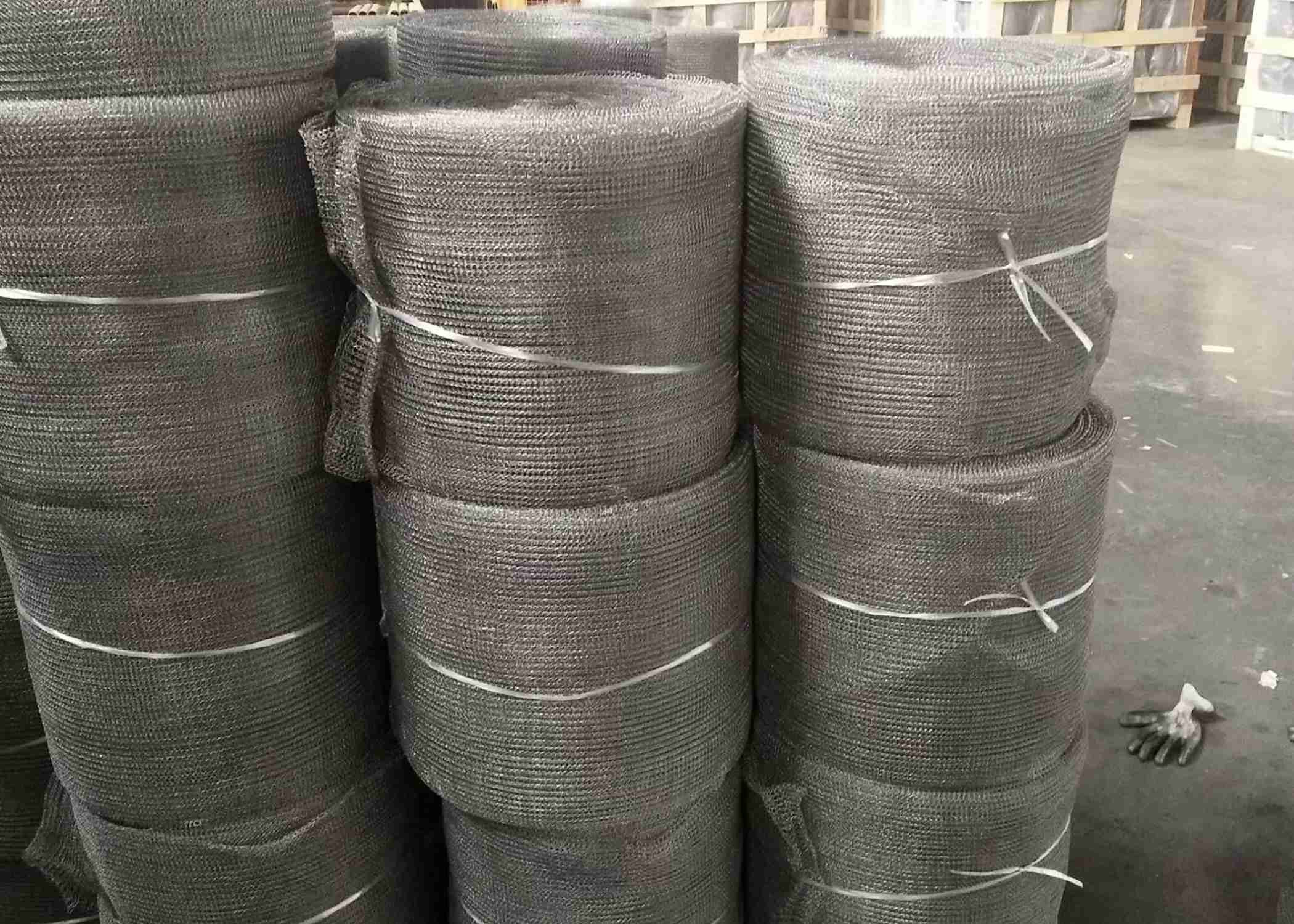

Packing:
Our factory Photos:
