0.10 To 0.30mm Metal Wire Net 100 To 500mm Pure And Alloy Aluminum

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Easy Maintenance, Flexible, Etc Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material Aluminum Pure And Alloy Wire Diameter 0.10mm To 0.30mm
Knitted Type Standard Type, High Efficient, High Penetrated, Absorbed Type Roll Width 100mm To 600mm
Roll Length 10m To 100m Applications Used As Air Filter, Liquid Filter, Solid Filter In Boilers, Evaporators, Vaccum Towers, Absorbers, Etc
High Light

0.30mm Metal Wire Net

,

0.10mm Metal Wire Net

,

Alloy Aluminum metal wire netting

Leave a Message
Product Description

Pure and Alloy Aluminum, 0.10 to 0.30mm Wire 100 to 500mm Width Knitted Wire Mesh



Aluminum Knitted Wire Mesh introduction:

Aluminum knitted wire mesh is produced from monofilament or multifilament aluminum wire by special weaving machines, knitted into a seamless and continuous tubular form. Aluminum knitted wire mesh can be create very high levels of electromagnetic shielding performance, so it is widely used in the EMI & RFI shielding applications.


Knitted wire fabric is a wire fabric, which is made by a circular knitted machine. The various knitted material wires are knitted into a sleeve of continuous stocking of inter-linked wire loops. The aluminum knitted mesh fabric materials we use pure aluminum wire and alloy aluminum wire, with light weight features.



Knitted mesh fabric is normally knitted from round wires ranging from various diameters. The round wire knitted mesh fabric is the most widely used type and the flat wire knitted mesh fabric can be used in the special applications according to customers' requirements.



We produce aluminum knitted wire mesh in the standard specifications, opening sizes range from 3 mm x 3 mm to 10 mm x 10 mm, while wire diameter ranges from 0.10 mm to 0.30 mm, and the manufactured width is between 100 mm and 500 mm. The standard wire materials are Grade 5056 aluminum alloy.



Aluminum Material Specifications:



Aluminum Knitted Wire Mesh
Types Model Wire Diameter Mesh Width Mesh Length
standard type 40-100 0.10-0.30mm 100-500mm 10-100m
60-150 0.10-0.30mm 100-500mm 10-100m
60-180 0.10-0.30mm 100-500mm 10-100m
105-300 0.10-0.30mm 100-500mm 10-100m
140-400 0.10-0.30mm 100-500mm 10-100m
160-400 0.10-0.30mm 100-500mm 10-100m
high efficient 60-100 0.10-0.30mm 100-500mm 10-100m
70-100 0.10-0.30mm 100-500mm 10-100m
80-100 0.10-0.30mm 100-500mm 10-100m
80-150 0.10-0.30mm 100-500mm 10-100m
90-100 0.10-0.30mm 100-500mm 10-100m
90-150 0.10-0.30mm 100-500mm 10-100m
150-300 0.10-0.30mm 100-500mm 10-100m
200-400 0.10-0.30mm 100-500mm 10-100m
300-600 0.10-0.30mm 100-500mm 10-100m
high penetrated 20-100 0.10-0.30mm 100-500mm 10-100m
20-160 0.10-0.30mm 100-500mm 10-100m
30-150 0.10-0.30mm 100-500mm 10-100m
70-400 0.10-0.30mm 100-500mm 10-100m
170-600 0.10-0.30mm 100-500mm 10-100m
180-700 0.10-0.30mm 100-500mm 10-100m

Notes:

1. 40-100 model: it has 40 openings in the mesh width of 100mm.

2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm.

3. The mesh can be made into single strand, double strand, multi-strand etc.

4. The surface include flattened and crimped.

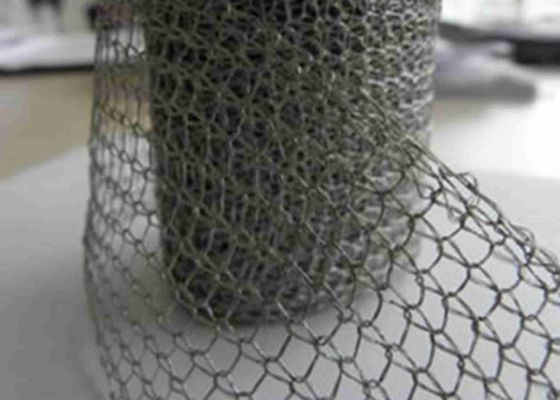

0.10 To 0.30mm Metal Wire Net 100 To 500mm Pure And Alloy Aluminum 0



Types: standard type, high efficient, high penetrated

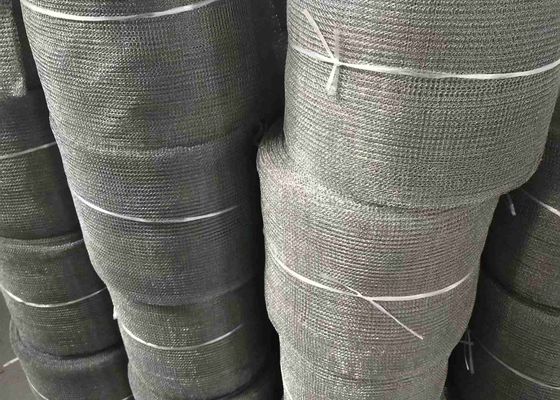

0.10 To 0.30mm Metal Wire Net 100 To 500mm Pure And Alloy Aluminum 1


Materials:


Aluminum 1050, 1060, 1100, 5052, 5056, 5083.


Features:


Light weight and low cost;
Good electrical performance;
Corrosion resistance;
Easy maintenance;
Long Service Life;
Flexible.


Applications:


Aluminum Alloy Filter Elements with Rating of 99% used as air filter, liquid filter, solid filter in boilers, evaporators, vaccum towers, absorbers, lube towers;
Monel and Aluminium TCS Compressed Knitted Wire Mesh Tube for Hydraulic Oil or Water Treatment;
Aluminium knitted wire mesh for airbag filter;
Powder coated knitted woven mesh for decorative curtains;

In the EMI & RFI shielding applications, for elastomer cores and cable wrap;

In the aerospace applications, for a part of the aircraft under wing door panel as a seal;

In the filtration & separation applications, for the screen of the demister pads and range hood screen.



Packing:



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3
