Nickel Pure And Alloy Wire Mesh Filter Screen 0.1mm To 0.3mm

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Strong Corrosion Resistance Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material Nickel Pure And Alloy Wire Diameter 0.1mm To 0.3mm
Normal Width 25mm To 600mm Roll Width 10mm To 1600mm
Roll Length 10m To 100m Applications For The Separation Of Liquid In The Gas.
High Light

Nickel wire mesh filter screen

,

0.1mm wire mesh filter screen

,

0.3mm steel filter mesh

Leave a Message
Product Description

Nickel Pure And Alloy Material For Gas- Liquid Filter Mesh Knitted Wire Mesh



Nickel Knitted Wire Mesh Introduction:



Nickel is a versatile element that will alloy with most metals and complete solid solubility exists between nickel and copper. Often referred to as Monel alloys.



Nickel alloys exhibit high levels of corrosion resistance (especially to seawater) and high strength at elevated temperatures. Nickel has special magnetic and thermal expansion properties and is often used as a plating or alloyed to protect other metals.



Nickel can withstand very harsh environments and is therefore suitable for many chemical and marine industry applications where other materials will fail. Typical uses include conductive cushions in electrochemical equipment, electrical connections and seals in marine engineering, and high-temperature anti-vibration components for use in gas turbines.



Knitted wire mesh use nickel wire as raw materialis, the mesh opening of nickel knitted wire mesh is similar to the shape of Ω . Nickel knitted wire mesh is one type of nickel mesh specially designed for gas and liquid filtering and mist eliminating. This is a filter wire mesh material suitable for special working conditions in making of wire mesh demisters, gas and oil treatment, internal-combustion engine filter elements and dust removers. The roll width ranges from 25mm to 600mm. The hole size and filtration rating can be custom made to meet specific requirements. Nickel knitted wire mesh is mainly used for air and liquid filtration.





Nickel Knitted Wire Mesh Specifications:


Nickel Knitted Wire Mesh
Types Model Wire Diameter Mesh Width Mesh Length
standard type 40-100 0.10-0.30mm 10-1600mm 10-100m
60-150 0.10-0.30mm 10-1600mm 10-100m
60-180 0.10-0.30mm 10-1600mm 10-100m
105-300 0.10-0.30mm 10-1600mm 10-100m
140-400 0.10-0.30mm 10-1600mm 10-100m
160-400 0.10-0.30mm 10-1600mm 10-100m
high efficient 60-100 0.10-0.30mm 10-1600mm 10-100m
70-100 0.10-0.30mm 10-1600mm 10-100m
80-100 0.10-0.30mm 10-1600mm 10-100m
80-150 0.10-0.30mm 10-1600mm 10-100m
90-100 0.10-0.30mm 10-1600mm 10-100m
90-150 0.10-0.30mm 10-1600mm 10-100m
150-300 0.10-0.30mm 10-1600mm 10-100m
200-400 0.10-0.30mm 10-1600mm 10-100m
300-600 0.10-0.30mm 10-1600mm 10-100m
high penetrated 20-100 0.10-0.30mm 10-1600mm 10-100m
20-160 0.10-0.30mm 10-1600mm 10-100m
30-150 0.10-0.30mm 10-1600mm 10-100m
70-400 0.10-0.30mm 10-1600mm 10-100m
170-600 0.10-0.30mm 10-1600mm 10-100m
180-700 0.10-0.30mm 10-1600mm 10-100m

Notes:

1. 40-100 model: it has 40 openings in the mesh width of 100mm.

2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm.

3. The mesh can be made into single strand, double strand, multi-strand etc.

4. The surface include flattened and crimped.

absorbed type 20-40 0.10-0.20mm 10-120mm 10-100m
30-40 0.10-0.20mm 10-120mm 10-100m
30-50 0.10-0.20mm 10-120mm 10-100m
30-60 0.10-0.20mm 10-120mm 10-100m
30-80 0.10-0.20mm 10-120mm 10-100m
50-120 0.10-0.20mm 10-120mm 10-100m

Notes:

1. 20-40 model: it has 20 openings in the mesh width of 40mm.




Types: standard type, high efficient, high penetrated, absorbed type

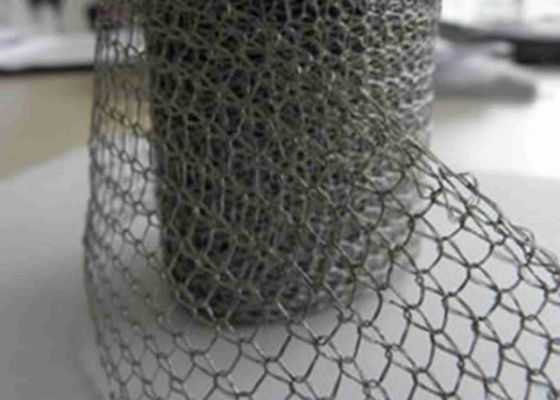

Nickel Pure And Alloy Wire Mesh Filter Screen 0.1mm To 0.3mm 0

Nickel Pure And Alloy Wire Mesh Filter Screen 0.1mm To 0.3mm 1

Material:



Nickel: N2 N4 N6 Cr20Ni80 Monel400 Monel600



Features:



Highly corrosion and alkali resistance;
Good penetration;
Excellent filtration capability.



Applications:

Nickel Gas-liquid Filter is mainly used for filtration of air and liquid and serves well in the
condition of acid, alkali or salt environment, such as in petroleum, chemical, metallurgy, and machine,
automobile and environmental protection industries. Widely used as Mesh Demister, Oil & Gas Processor, Internal Combustion Engine, Dust Removing and Filtration, etc.

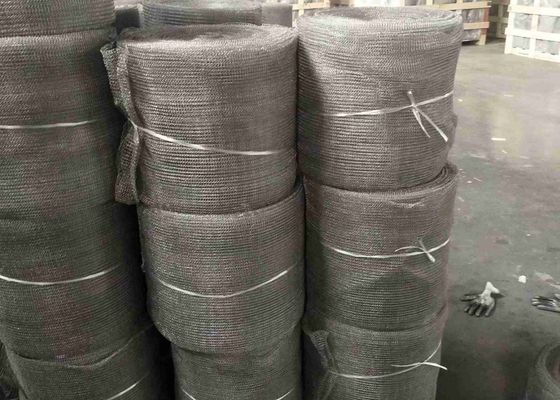

Packing:



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4
